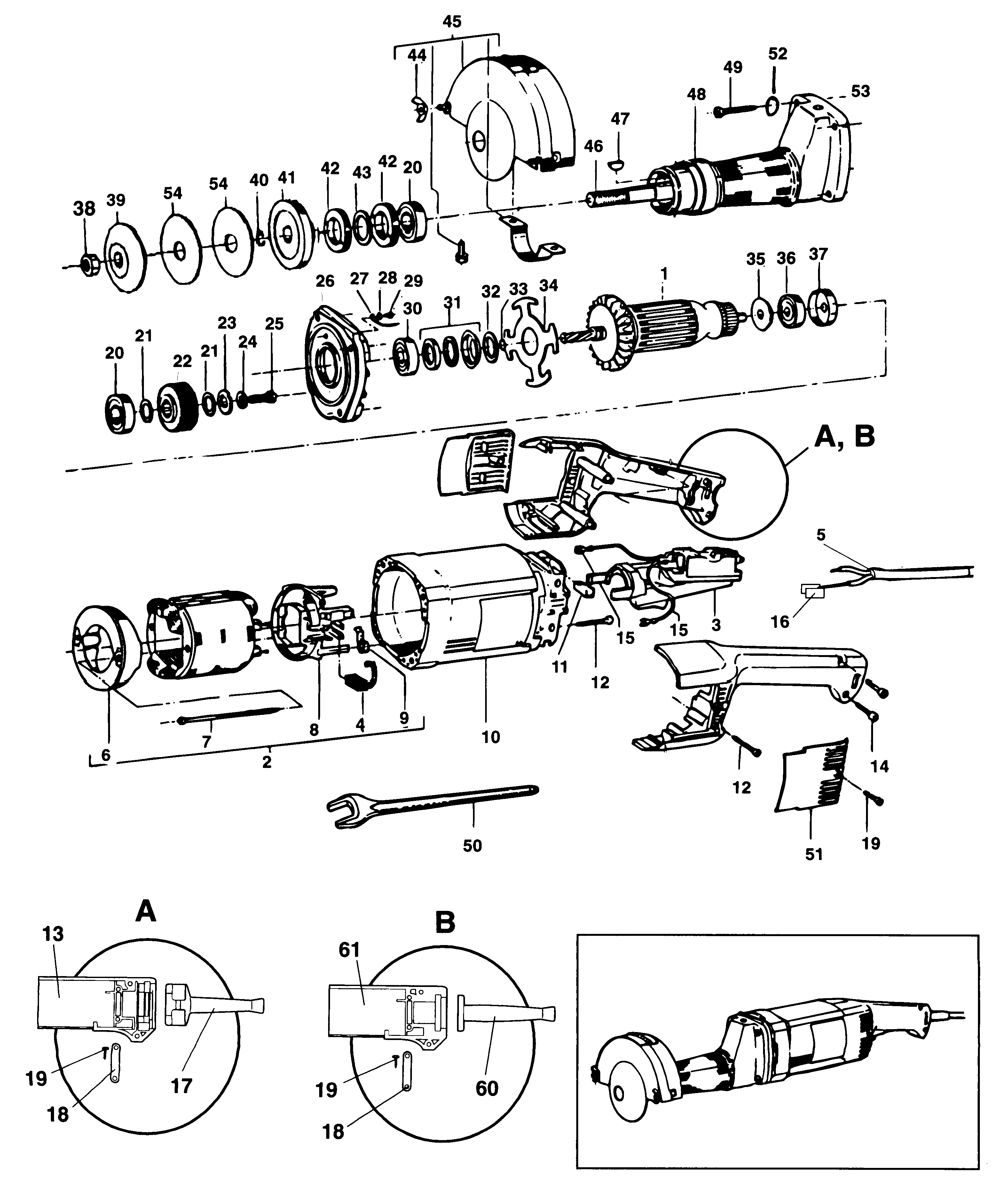

4279 STRAIGHT GRINDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 868430-02 | 1 | ARMATURE 230V | GB |  |
||
| 1 | 868430-01 | 1 | ARMATURE 115V | CA-MX (4279 ONLY) | GB | |
|
| 1 | 868430-01 | 1 | ARMATURE 115V | MX-PA-VE-BR 115V | GB | |
|
| 1 | 868430-01 | 1 | ARMATURE 115V | GB 115V | GB | |
|
| 1 | 868430-01 | 1 | ARMATURE 115V | SG 115V | GB | |
|
| 1 | N017178 | 1 | SCREW | XE | GB |  |
|
| 1 | 372946-49 | 1 | BEARING SA | XD | GB | |
|
| 2 | 868531-02 | 1 | FIELD 230V | AU-NZ (4279 ONLY) | GB | |
|
| 2 | 868531-02 | 1 | FIELD 230V | GB 240V | GB | |
|
| 2 | 868531-00 | 1 | FIELD 115V | MX-PA-VE-BR 115V | GB | ||
| 2 | 868531-00 | 1 | FIELD 115V | SG 115V | GB | ||
| 2 | 868531-00 | 1 | FIELD 115V | CA-MX (4279 ONLY) | GB | ||
| 2 | 868531-00 | 1 | FIELD 115V | GB 115V | GB | ||
| 2 | 652102-00 | 1 | DOOR | GB | |||
| 3 | 949825-06 | 1 | SWITCH | MX-PA-VE-BR 115V | GB | |
|
| 3 | 949825-06 | 1 | SWITCH | GB 115V | GB | |
|
| 3 | 949825-06 | 1 | SWITCH | SG 115V | GB | |
|
| 3 | 949825-09 | 1 | SWITCH | AU-NZ (4279 ONLY) | GB | |
|
| 3 | 949825-07 | 1 | SWITCH LOCK-ON | CA-MX (4279 ONLY) | GB | |
|
| 3 | 949825-04 | 1 | SWITCH LOCK-ON | GB 240V | GB | |
|
| 3 | 372330 | 1 | LOWER HANDLE | GB | |
||
| 4 | 940160-00 | 2 | BRUSH CUT OFF | CUT-OFF | CA-MX (4279 ONLY) | GB | |
| 4 | 940160-00 | 2 | BRUSH CUT OFF | CUT-OFF | MX-PA-VE-BR 115V | GB | |
| 4 | 940160-00 | 2 | BRUSH CUT OFF | CUT-OFF | GB 115V | GB | |
| 4 | 940160-00 | 2 | BRUSH CUT OFF | CUT-OFF | SG 115V | GB | |
| 4 | 940160-01 | 2 | BRUSH CUT OFF | 230V | AU-NZ (4279 ONLY) | GB | |
| 4 | 940160-01 | 2 | BRUSH CUT OFF | 230V | GB 240V | GB | |
| 4 | 588698-00 | 1 | BRUSH PAIR 230V | GB | |
||
| 5 | 949770-14 | 1 | CABLE & PLUG | GB 240V | GB | ||
| 5 | 949770-30 | 1 | CABLE & PLUG | GB 115V | GB | ||
| 5 | 941279 | 1 | CABLE | MX-PA-VE-BR 115V | GB | |
|
| 5 | 941279 | 1 | CABLE | SG 115V | GB | |
|
| 6 | 931073-00 | 1 | BAFFLE | GB | |
||
| 6 | 1003297-00 | 1 | SWITCH | GB | |||
| 7 | N412453 | 2 | SCREW | GB | |
||
| 7 | 488213-00 | 1 | CLAMSHELL SET | GB | |
||
| 7 | 383828-00 | 1 | LOCKING DEVICE | XE | GB | |
|
| 7 | 655498-01 | 1 | BRUSH COVER | A9 | GB | ||
| 8 | 935746 | 1 | BRUSH PLATE SA | CA-MX (4279 ONLY) | GB | |
|
| 8 | 935746 | 1 | BRUSH PLATE SA | MX-PA-VE-BR 115V | GB | |
|
| 8 | 935746 | 1 | BRUSH PLATE SA | GB 115V | GB | |
|
| 8 | 935746 | 1 | BRUSH PLATE SA | SG 115V | GB | |
|
| 8 | 935746 | 1 | BRUSH PLATE SA | CA-MX (4279 ONLY) | GB | |
|
| 8 | 935746 | 1 | BRUSH PLATE SA | MX-PA-VE-BR 115V | GB | |
|
| 8 | 935746 | 1 | BRUSH PLATE SA | GB 115V | GB | |
|
| 8 | 935746 | 1 | BRUSH PLATE SA | SG 115V | GB | |
|
| 8 | D935745 | 1 | BRUSH PLATE SA | AU-NZ (4279 ONLY) | GB | |
|
| 8 | D935745 | 1 | BRUSH PLATE SA | GB 240V | GB | |
|
| 8 | 5170020-91 | 1 | WHEEL | GB | |||
| 9 | 931076-00 | 2 | SPRING | GB | |
||
| 9 | 1004512-27 | 1 | HANDLE | TYPE 1 | GB | |
|
| 10 | 948134-09 | 1 | FIELDCASE SA | GB | |
||
| 10 | 5170031-49 | 1 | NOZZLE | GB | |||
| 11 | 930934-00 | 4 | SHOCK ABSORBER | GB | |
||
| 11 | 90548510 | 2 | RATING PLATE | GB | |||
| 12 | 931297-00 | 4 | SCREW | GB | |
||
| 12 | 860077-01 | 2 | WASHER | GB | |
||
| 13 | N082122 | 2 | CHARGER 10.8V (EURO) | DCB100; DCB100-QW - 1.8A | GB | ||
| 14 | 930284-01 | 2 | SCREW | GB | |
||
| 14 | 589467-00 | 2 | SIDE HANDLE | GB | |
||
| 15 | 949801-47 | 2 | LEAD SA | AU-NZ (4279 ONLY) | GB | |
|
| 15 | 949801-47 | 2 | LEAD SA | GB 240V | GB | |
|
| 15 | 949801-47 | 2 | LEAD SA | MX-PA-VE-BR 115V | GB | |
|
| 15 | 949801-47 | 2 | LEAD SA | GB 115V | GB | |
|
| 15 | 949801-47 | 2 | LEAD SA | SG 115V | GB | |
|
| 15 | 559856-00 | 1 | BOWL | GB | |
||
| 16 | 940153 | 1 | TERMINAL | GB | |
||
| 16 | 559853-00 | 1 | BATTERY COVER | GB | |
||
| 17 | 937325-00 | 1 | CORD PROTECTOR | AU-NZ (4279 ONLY) | GB | |
|
| 17 | 937325-00 | 1 | CORD PROTECTOR | GB 240V | GB | |
|
| 17 | 937325-00 | 1 | CORD PROTECTOR | MX-PA-VE-BR 115V | GB | |
|
| 17 | 937325-00 | 1 | CORD PROTECTOR | GB 115V | GB | |
|
| 17 | 937325-00 | 1 | CORD PROTECTOR | SG 115V | GB | |
|
| 17 | 930981-00 | 1 | CORD PROTECTOR | CA-MX (4279 ONLY) | GB | |
|
| 18 | 931477-00 | 1 | CORD CLAMP | GB | |
||
| 18 | N017182 | 1 | RING | GB | |
||
| 19 | 931469-02 | 4 | SCREW | GB | |
||
| 19 | 383155-00 | 1 | END CAP | GB | |
||
| 20 | 930566 | 2 | BEARING | GB | |
||
| 20 | N069667 | 1 | RATING PLATE | GB | |
||
| 21 | 930594-00 | 2 | WASHER | GB | |
||
| 21 | N663174 | 6 | GEARBOX | GB | |
||
| 22 | 937986-00 | 1 | GEAR | GB | |
||
| 22 | N085952 | 1 | NUT | GB | |
||
| 23 | 12952-00 | 1 | WASHER | GB | |
||
| 23 | N313860 | 1 | GUIDE | GB | |
||
| 24 | 930834-00 | 1 | WASHER | GB | |
||
| 24 | 5103005-00 | 1 | ACTUATOR | GB | |
||
| 25 | 860085-09 | 1 | SCREW.TEMP | GB | |
||
| 25 | 860089-07 | 1 | SCREW.TEMP | GB | |
||
| 26 | 5146650-00 | 1 | INSERT | GB | |
||
| 27 | 941292 | 1 | LEAD | AU-NZ (4279 ONLY) | GB | |
|
| 27 | 941292 | 1 | LEAD | GB 240V | GB | |
|
| 27 | 941292 | 1 | LEAD | MX-PA-VE-BR 115V | GB | |
|
| 27 | 941292 | 1 | LEAD | GB 115V | GB | |
|
| 27 | 941292 | 1 | LEAD | SG 115V | GB | |
|
| 27 | 939484-00 | 1 | LEAD | CA-MX (4279 ONLY) | GB | |
|
| 27 | N095761 | 2 | SCREW | M6 x 19.8 | GB | ||
| 28 | 931798-00 | 1 | WASHER | GB | |
||
| 28 | 5104913-00 | 1 | NOZZLE BLOWER | GB | |||
| 29 | 931797-00 | 1 | SCREW | GB | |
||
| 29 | 621050-00 | 2 | CHUCK 13MM | GB | |
||
| 30 | 330003-14 | 1 | BEARING | GB | |
||
| 30 | N095613 | 1 | GUARD UPPER | GB | |||
| 31 | 931067-00 | 1 | SEAL SA | GB | |
||
| 31 | 1003503-00 | 1 | WHEEL FRONT | GB | |||
| 32 | 931062 | 1 | SPACER | GB | |||
| 32 | 562162-00 | 1 | BRUSH HOLDER | GB | |
||
| 33 | 930028-00 | 1 | O RING | GB | |
||
| 33 | 874811 | 1 | INSERT | GB | |
||
| 33 | 378800-03 | 1 | SCREW | FR (KS629) | GB | |
|
| 34 | 931066-00 | 1 | FLANGE | GB | |
||
| 34 | N021845 | 1 | WASHER THRUST | GB | |
||
| 35 | N174055 | 1 | SPACER | GB | |
||
| 35 | 586566-00 | 1 | BEARING BUSH | GB | |
||
| 36 | 577745-00 | 1 | BEARING | GB | |
||
| 36 | N028878 | 2 | KIT SA | GB | |
||
| 37 | 938332-00 | 1 | SLEEVE | GB | |
||
| 37 | 1005879-01 | 1 | LEAD RED | GB | |
||
| 38 | 8535-01 | 1 | NUT | GB | |
||
| 39 | 939547-00 | 1 | FLANGE | GB | |||
| 39 | 6010119-16 | 9 | RING | GB | |
||
| 40 | 8899-00 | 1 | CIRCLIP | GB | |
||
| 41 | 939519-00 | 1 | FLANGE | GB | |
||
| 42 | 14980-00 | 2 | LOCKING RING | GB | |
||
| 43 | 930614 | 1 | SPACER | GB | |
||
| 44 | 444299-00 | 2 | NUT WING | GB | |
||
| 45 | 400731-01 | 1 | GUARD SA | GB | |
||
| 46 | 937982-01 | 1 | SPINDLE | GB | |
||
| 47 | 940441-00 | 1 | KEY | GB | |
||
| 48 | 948122-03 | 1 | CASTING SA | GB | |
||
| 49 | 940267-00 | 4 | SCREW | GB | |
||
| 50 | 939948-00 | 1 | SPANNER | GB | |
||
| 51 | 933364-02 | 2 | COVER | AU-NZ (4279 ONLY) | GB | |
|
| 51 | 933364-02 | 2 | COVER | GB 240V | GB | |
|
| 51 | 933364-02 | 2 | COVER | MX-PA-VE-BR 115V | GB | |
|
| 51 | 933364-02 | 2 | COVER | GB 115V | GB | |
|
| 51 | 933364-02 | 2 | COVER | SG 115V | GB | |
|
| 51 | 933364-04 | 2 | COVER | CA-MX (4279 ONLY) | GB | ||
| 52 | 930248-00 | 4 | WASHER | GB | |
||
| 53 | 940443-00 | 1 | GASKET | GB | |
||
| 54 | 939488-00 | 2 | SHOCK ABSORBER | GB | |
||
| 60 | 947964-00 | 1 | CORD PROTECTOR | AU-NZ (4279 ONLY) | GB | ||
| 60 | 947964-00 | 1 | CORD PROTECTOR | GB 240V | GB | ||
| 60 | 947964-00 | 1 | CORD PROTECTOR | MX-PA-VE-BR 115V | GB | ||
| 60 | 947964-00 | 1 | CORD PROTECTOR | GB 115V | GB | ||
| 60 | 947964-00 | 1 | CORD PROTECTOR | SG 115V | GB | ||
| 60 | 947964-01 | 1 | CORD PROTECTOR | CA-MX (4279 ONLY) | GB | |
|
| 61 | 401057-00 | 1 | HANDLE SA | GB | |
