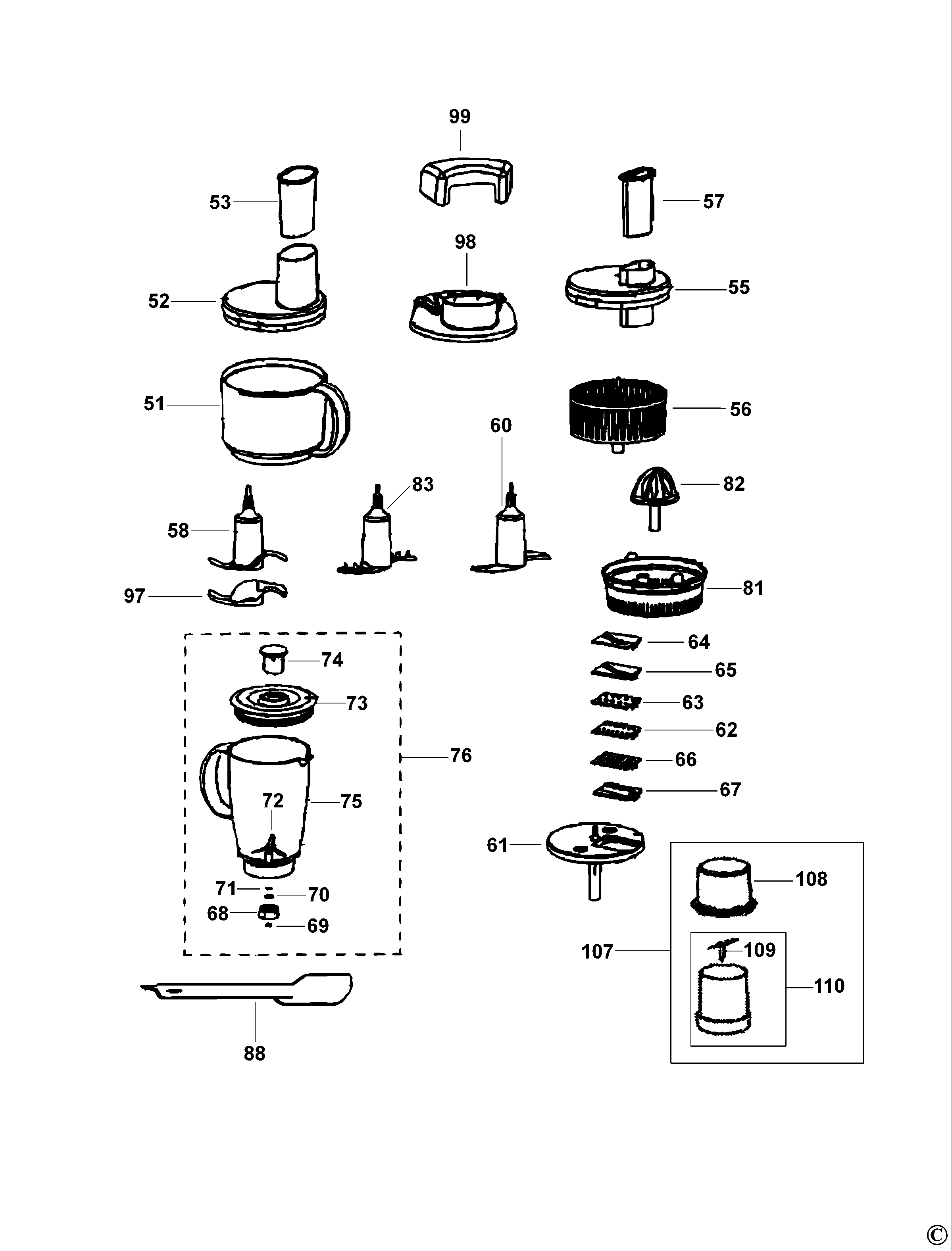

FX750 FOOD PROCESSOR Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 6010029-01 | 1 | BODY | MAIN | 151037001 | XJ |  |
| 2 | 6010029-02 | 1 | PANEL | 151037003 | XJ | |
|
| 3 | 6010029-03 | 1 | SCREW | 153100051 | XJ | |
|
| 4 | 6010029-04 | 1 | BUTTON | OPENING SAFETY LID | 151037006 | XJ | |
| 5 | 6010029-05 | 1 | KNOB SA | SPEEDCONTROLKNOBCOMP | 154037011 | XJ | |
| 8 | 6010029-08 | 1 | PCB | ELECTRONICCARD | 154037004 | XJ | |
| 9 | 6010029-09 | 1 | COVER | BOTTOMCOVER | 151037002 | XJ | |
| 12 | 6010029-12 | 1 | SPRING | 153437001 | XJ | |
|
| 13 | 6010029-13 | 1 | ACTUATOR | SWITCH | 151037015 | XJ | |
| 14 | 6010029-14 | 1 | SHAFT | 151016021 | XJ | |
|
| 15 | 6010029-15 | 1 | SCREW | 153116063 | XJ | |
|
| 16 | 6010028-06 | 1 | MICRO SWITCH | 153008004 | XJ | |
|
| 17 | 6010029-17 | 1 | HOLDER | SWITCHHOLDER | 151016108 | XJ | |
| 18 | 6010029-18 | 1 | SCREW | 153100050 | XJ | ||
| 19 | 6010029-19 | 1 | CABLE | INTERNAL | 151137006 | XJ | |
| 20 | 6010029-20 | 1 | MOTOR SA | 154037012 | XJ | |
|
| 21 | 6010029-21 | 1 | ADAPTOR | OUTLET | 151016064 | XJ | |
| 22 | 6010029-22 | 1 | ADAPTOR | LOCKINGPART | 151016169 | XJ | |
| 23 | 6010029-23 | 1 | ADAPTOR | PROTECTOR PART | 151016063 | XJ | |
| 25 | 6010029-25 | 1 | WASHER | 153200036 | XJ | |
|
| 26 | 6010029-26 | 1 | HOOK | CABLEHOOK | 151016045 | XJ | |
| 27 | 6010028-58 | 1 | PULLEY | 154016125 | XJ | |
|
| 29 | 6010029-29 | 1 | PULLEY | BIGPULLEY | 151037031 | XJ | |
| 30 | 6010029-30 | 1 | WASHER | 153200033 | XJ | |
|
| 31 | 6010028-18 | 1 | SCREW | 153100004 | XJ | |
|
| 32 | 6010029-32 | 1 | SCREW.SPECIAL | SPECIAL SAFETY | 153100045 | XJ | |
| 33 | 6010028-88 | 1 | WASHER | 151200005 | XJ | |
|
| 34 | 6010028-92 | 1 | WASHER | 153215021 | XJ | |
|
| 35 | 6010028-57 | 1 | BELT | 153016004 | XJ | |
|
| 44 | 6010029-44 | 1 | CORDSET | 151116056 | XJ | ||
| 46 | 6010029-46 | 1 | ADAPTOR | MOTOR MALE | 151016006 | XJ | |
| 47 | 6010251-10 | 1 | LID | 151037005 | XJ | |
|
| 48 | 6010028-78 | 1 | ACTUATOR | 151025035 | XJ | |
|
| 51 | 6010029-51 | 1 | BOWL | MAIN COMPLETE | 154037013 | XJ | |
| 52 | 6010029-52 | 1 | LID | MAINLID | 151016200 | XJ | |
| 53 | 6010028-44 | 1 | FOOD PUSHER | 151016013 | XJ | |
|
| 55 | 6010029-55 | 1 | LID | JUICEEXTRACTORLID | 151016201 | XJ | |
| 56 | 6010029-56 | 1 | FILTER | JUICEEXTRACTOR | 154016207 | XJ | |
| 57 | 6010028-41 | 1 | FOOD PUSHER | 151015024 | XJ | |
|
| 58 | 6010029-58 | 1 | HOLDER | CHOPPINGBLADEHOLDER | 151016030 | XJ | |
| 60 | 6010029-60 | 1 | BLADE SA | DOUGHBLADE | 151016033 | XJ | |
| 61 | 6010029-61 | 1 | HOLDER | BLADEHOLDER | 151037010 | XJ | |
| 62 | 6010027-42 | 1 | DISC | SLICING DISC THIN | 153027004 | XJ | |
| 63 | 6010027-43 | 1 | DISC | SLICING DISC THICK | 153027003 | XJ | |
| 64 | 6010027-44 | 1 | DISC | SHREDDING DISC | 153027002 | XJ | |
| 65 | 6010029-65 | 1 | BLADE | SLICINGBLADETHIN | 151127020 | XJ | |
| 66 | 6010029-66 | 1 | BLADE | PARMESANBLADE | 153027005 | XJ | |
| 67 | 6010029-67 | 1 | BLADE | FRENCHFRIESBLADE | 151127022 | XJ | |
| 68 | 6010029-68 | 1 | ADAPTOR | BLENDER FEMALE | 154016007 | XJ | |
| 69 | 6010028-59 | 1 | NUT | 153215016 | XJ | |
|
| 70 | 6010029-70 | 1 | WASHER | 151218003 | XJ | |
|
| 71 | 6010028-25 | 1 | WASHER | 151215048 | XJ | |
|
| 72 | 6010029-72 | 1 | BLADE SA | BLENDERBLADECOMPLETE | 151116151 | XJ | |
| 73 | 6010029-73 | 1 | LID | BLENDER LID | 151030011 | XJ | |
| 74 | 6010028-53 | 1 | LID | 151025026 | XJ | |
|
| 75 | 6010029-75 | 1 | BOWL | BLENDER COMPLETE | 154037010 | XJ | |
| 76 | 6010029-76 | 1 | BOWL | 154037009 | XJ | |
|
| 79 | 6010029-79 | 1 | TUBE | HOISEDRAINAGE | 151137001 | XJ | |
| 81 | 6010029-81 | 1 | FILTER | CITRUS FILTER | 151016025 | XJ | |
| 82 | 6010029-82 | 1 | CONE | CITRUSREAMER | 151015083 | XJ | |
| 83 | 6010029-83 | 1 | ATTACHMENT | WHISKINGATTACHMENT | 151016206 | XJ | |
| 88 | 6010027-40 | 1 | SPATULA | 151015072 | XJ | ||
| 89 | 6010029-89 | 1 | CABLE | INTERNAL | 151137003 | XJ | |
| 92 | 6010028-12 | 1 | HOOK | 151000004 | XJ | |
|
| 93 | 6010029-93 | 1 | SCREW | 153100002 | XJ | |
|
| 95 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 97 | 6010029-97 | 1 | PROTECTOR | BLADEPROTECTOR | 151025004 | XJ | |
| 98 | 6010029-98 | 1 | STAND | BLADESTAND | 151037008 | XJ | |
| 99 | 6010029-99 | 1 | LID | BLADESTANDLID | 151037009 | XJ | |
| 100 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 101 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 107 | 6010029-37 | 1 | ATTACHMENT | COFFEEGRINDERATTACHM | 154037078 | XJ | |
| 108 | 6010029-38 | 1 | COVER | 151037105 | XJ | |
|
| 109 | 6010029-39 | 1 | BLADE SA | COFFEEGRINDERBLADE | 151137016 | XJ | |
| 110 | 6010029-40 | 1 | ATTACHMENT | COFFEEGRINDERBASEWIT | 151037106 | XJ |
