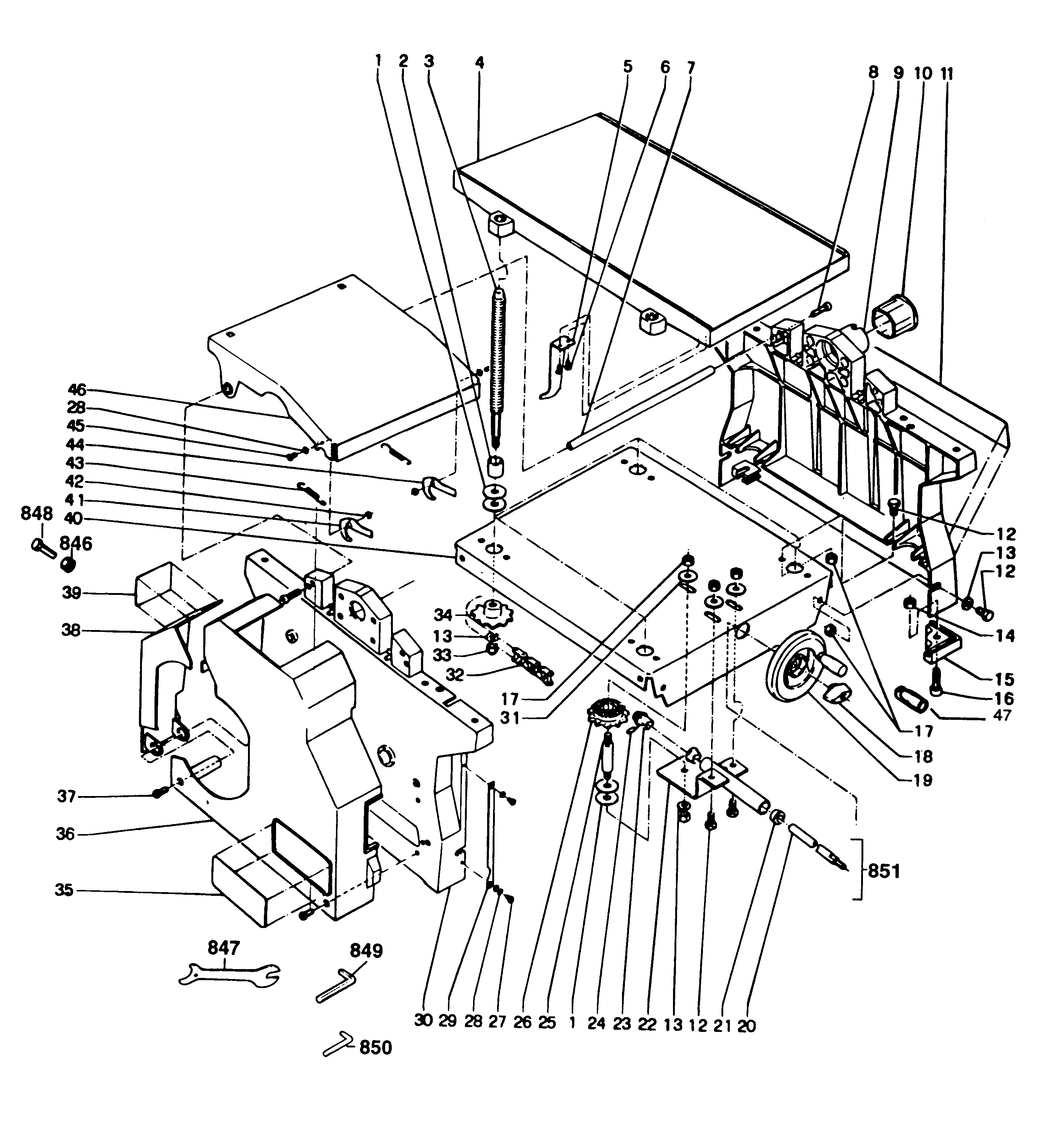

DW1153----F PLANER THICKNESSER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 860226-03 | 10 | SPACER | XJ |  |
||
| 2 | 32341 | 4 | BUSH | XJ | |
||
| 3 | 123288-00 | 4 | SPINDLE | XJ | |
||
| 4 | 123317-02 | 1 | TABLE | XJ | |
||
| 4 | 817658 | 2 | TABLE SA | XJ | |
||
| 5 | 132366 | 1 | POINTER | XJ | |
||
| 5 | 478631-00 | 1 | SCREW | 4.3 X 19 | XJ | ||
| 6 | 860094-02 | 2 | SCREW | XJ |  |
||
| 6 | 123286-00 | 1 | PINION | XJ | |
||
| 7 | 123211-00 | 1 | BAR | XJ | |
||
| 7 | 324595-02 | 1 | FIELDCASE | Yellow | XJ | |
|
| 8 | 860085-10 | 4 | SCREW | XJ | |
||
| 8 | 249222-00 | 1 | WASHER | XJ | |
||
| 9 | 325022-00 | 1 | WASHER SPECIAL | XJ | |
||
| 10 | 863665-00 | 1 | CAP | XJ | |
||
| 11 | 31116 | 1 | NAMEPLATE | XJ | |
||
| 11 | 567790-00 | 1 | KNOB | XJ | |
||
| 12 | 860085-04 | 5 | SCREW | XJ | |
||
| 13 | 860073-03 | 6 | WASHER M8 | XJ | |
||
| 14 | 860083-15 | 4 | NUT | XJ | |
||
| 14 | 1347401 | 1 | SPRING | DELTA | XJ | |
|
| 15 | 32004 | 4 | FOOT | XJ | |
||
| 15 | 603262-00 | 1 | LABEL | XE | XJ | ||
| 16 | 860093-00 | 4 | SCREW | XJ | |
||
| 17 | 860083-04 | 8 | NUT | XJ | |
||
| 17 | 588720-02 | 1 | SERVICE KIT | Major | XJ | |
|
| 18 | 866962-01 | 1 | KNOB | XJ | |
||
| 18 | 326090-00 | 1 | PLATE | XJ | |
||
| 19 | 31166 | 1 | HANDLE SA | PRE SERIAL No. 105 | XJ | |
|
| 19 | 946474-00 | 1 | HANDLE SA | From Serial No 105 | XJ | |
|
| 19 | 249278-00 | 1 | SCALE | XJ | |
||
| 20 | 866089-01 | 1 | SPINDLE | From Serial No 105 | XJ | |
|
| 20 | 31167 | 1 | SPINDLE | PRE SERIAL No. 105 | XJ | |
|
| 20 | 080238201 | 1 | CIRCLIP | XJ | |
||
| 21 | 123244-00 | 1 | BUSH | XJ | |
||
| 21 | 567866-00 | 1 | SWITCH | XJ | |
||
| 22 | 123283-01 | 1 | SUPPORT | XJ | |
||
| 23 | 866089-01 | 1 | SPINDLE | XJ | |
||
| 23 | 725187 | 1 | NUT | M8 | XJ | |
|
| 24 | 760233-00 | 1 | PIN | XJ | |
||
| 24 | 080814500 | 1 | SCREW | XJ | |
||
| 25 | 123225-00 | 1 | PIN | XJ | |
||
| 25 | 080238202 | 1 | CIRCLIP | XJ | |
||
| 26 | 860585-00 | 1 | GEAR | XJ | |
||
| 26 | 325025-05 | 1 | SUPPORT | XJ | |
||
| 27 | 860094-02 | 2 | SCREW | XJ | |
||
| 28 | 860073-00 | 2 | WASHER | XJ | |
||
| 28 | 088222002 | 1 | SPACER | XJ | |
||
| 29 | 863662-00 | 1 | SCALE | XJ | |
||
| 30 | 176415 | 1 | SIDE RH | XJ | |
||
| 30 | 179120201 | 1 | COVER | XJ | |
||
| 31 | 949876-05 | 3 | WASHER | XJ | |
||
| 31 | 080930000 | 1 | SPRING | XJ | |
||
| 32 | 123237-00 | 1 | CHAIN | XJ | |
||
| 32 | 249417-00 | 1 | SCREW | XJ | |
||
| 33 | 860092-01 | 1 | NUT | XJ | |
||
| 33 | 151148-01 | 1 | BRUSH HOLDER | XJ | |
||
| 34 | 123222-00 | 1 | PINION | XJ | |
||
| 35 | 31118 | 1 | NAMEPLATE | XJ | |
||
| 35 | 096103400 | 1 | BASEPLATE SA | XJ | |||
| 36 | 123215-00 | 1 | CASING | XJ | |
||
| 37 | 760998-00 | 2 | SCREW | XJ | |
||
| 37 | 278114-00 | 1 | WHEEL | XJ | |
||
| 38 | 123216-00 | 1 | CASING | XJ | |
||
| 38 | 330003-16 | 1 | BEARING | XJ | |
||
| 39 | 31804 | 1 | NAMEPLATE | XJ | |
||
| 40 | 132321 | 1 | BASE | XJ | |
||
| 40 | 568980-00 | 1 | LINK | XJ | |
||
| 41 | 123263-01 | 1 | HOOK LEFT | XJ | |
||
| 41 | 080810209 | 1 | PIN | XJ | |
||
| 42 | 860083-01 | 2 | NUT | XJ | |
||
| 42 | 568971-00 | 1 | FOOT | XJ | |
||
| 43 | 123203-00 | 2 | SPRING | XJ | |
||
| 43 | N000596 | 1 | BUMPER | XJ | |
||
| 44 | 123265-01 | 1 | HOOK RIGHT | XJ | |
||
| 44 | 933547 | 1 | CORD CLAMP | XJ | |
||
| 45 | 860089-25 | 2 | SCREW | XJ | |
||
| 45 | 568981-00 | 1 | BRACKET | XJ | |
||
| 46 | 123269-02 | 1 | GUARD | XJ | |
||
| 46 | 279870-00 | 1 | BRACKET | XJ | |
||
| 47 | 860263-00 | 1 | HANDLE | XJ | |
||
| 47 | 329583-00 | 1 | SPINDLE SA | XJ | |
||
| 48 | 299327 | 1 | BRACKET | XJ | |
||
| 49 | 949600-04 | 1 | CABLE SA | XJ | |
||
| 50 | 288664 | 1 | SPACER | XJ | |
||
| 51 | 560133-00 | 1 | SWITCH SA | XJ | |
||
| 52 | 326049-00 | 1 | REST | XJ | |
||
| 53 | 157164516 | 1 | LEAD 165MM YELLOW | XJ | |
||
| 55 | 32970 | 6 | SPRING | XJ | |
||
| 56 | 352313 | 3 | GUIDE BLOCK | XJ | |
||
| 57 | 278906-00 | 2 | KNOB | XJ | |
||
| 59 | 568047-00 | 1 | SWITCH | XJ | |
||
| 61 | 080235610 | 1 | ARM | XJ | |
||
| 63 | 817302 | 1 | FENCE RH | XJ | |
||
| 64 | 156164800 | 1 | COVER | XJ | |
||
| 65 | 321338 | 1 | BRUSH SA 230V | XJ | |
||
| 66 | 157164512 | 1 | LEAD 75MM BROWN | XJ | |
||
| 67 | 157164510 | 1 | LEAD 270MM BLUE | XJ | |
||
| 68 | 157164511 | 1 | LEAD 210MM YELLOW | XJ | |
||
| 69 | 369694-01 | 1 | RATING PLATE | XJ | |
||
| 70 | 583316-01 | 2 | MOTOR SA | XJ | |
||
| 71 | 860094-04 | 4 | SCREW | XJ | |||
| 72 | 826188 | 1 | BRAND LABEL | XJ | |||
| 73 | 249122-00 | 1 | SCREW | XJ | |
||
| 74 | 325441-05 | 1 | SPEED REGULATOR | XJ | |
||
| 75 | 933523 | 1 | SWITCH | XJ | |
||
| 76 | 953088 | 1 | SWITCH | XJ | |
||
| 83 | 395699-00 | 2 | GEARCASE SA | XJ | |
||
| 84 | 248425-00 | 1 | SUPPORT | XJ | |
||
| 85 | 568979-00 | 1 | PLATE | XJ | |
||
| 86 | 096920113 | 1 | NUT | XJ | |
||
| 87 | 911387 | 1 | SCREW.TEMP | XJ | |
||
| 91 | N045265 | 1 | GUARD | XJ | |
||
| 92 | 380584-00 | 1 | RATING PLATE | XJ | |||
| 93 | 080810201 | 1 | PIN | XJ | |
||
| 94 | 080233501 | 1 | SPINDLE | XJ | |
||
| 95 | 147423-00 | 1 | DISC | XJ | |
||
| 97 | 330003-16 | 1 | BEARING | XJ | |
||
| 98 | 1003717-00 | 2 | WASHER | XJ | |
||
| 831 | 560476-00 | 1 | ACTUATOR | XJ | |
||
| 846 | 865410-00 | 1 | FASTENER | XJ | |
||
| 847 | 949751-07 | 1 | SPANNER 10-13MM | XJ | |
||
| 848 | 860084-21 | 1 | SCREW | XJ | |
||
| 849 | 860098-04 | 1 | WRENCH 6 MM | XJ | |
||
| 850 | 943271-00 | 1 | HEX KEY 2.5 MM | XJ | |
||
| 851 | 191168 | 1 | SPINDLE SA | PRE SERIAL No. 105 | XJ | |
|
| 852 | 866089-01 | 1 | SPINDLE | From Serial No 105 | XJ | |
