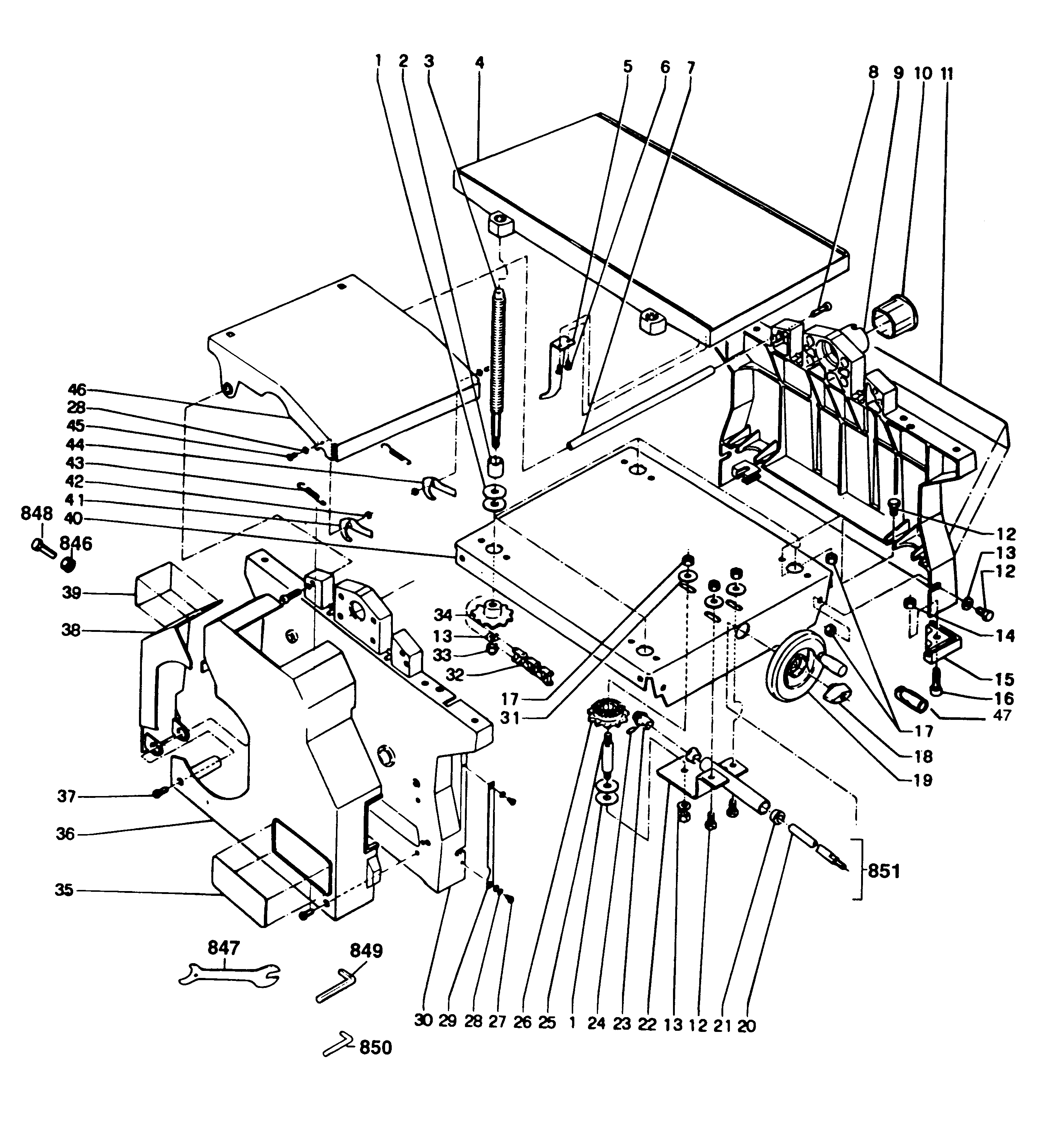

DW1150----F PLANER THICKNESSER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 860226-03 | 10 | SPACER | XJ |  |
||
| 2 | 32341 | 4 | BUSH | XJ | |
||
| 3 | 123288-00 | 4 | SPINDLE | XJ | |
||
| 4 | 123317-02 | 1 | TABLE | XJ | |
||
| 5 | 132366 | 1 | POINTER | XJ | |
||
| 6 | 860094-02 | 2 | SCREW | XJ |  |
||
| 7 | 123211-00 | 1 | BAR | XJ | |
||
| 8 | 860085-10 | 4 | SCREW | XJ | |
||
| 10 | 863665-00 | 1 | CAP | XJ | |
||
| 11 | 31116 | 1 | NAMEPLATE | XJ | |
||
| 12 | 860085-04 | 5 | SCREW | XJ | |
||
| 13 | 860073-03 | 6 | WASHER M8 | XJ | |
||
| 14 | 860083-15 | 4 | NUT | XJ | |
||
| 15 | 32004 | 4 | FOOT | XJ | |
||
| 16 | 860093-00 | 4 | SCREW | XJ | |
||
| 17 | 860083-04 | 8 | NUT | XJ | |
||
| 18 | 866962-01 | 1 | KNOB | XJ | |
||
| 19 | 31166 | 1 | HANDLE SA | PRE SERIAL No. 105 | XJ | |
|
| 19 | 946474-00 | 1 | HANDLE SA | From Serial No 105 | XJ | |
|
| 20 | 866089-01 | 1 | SPINDLE | From Serial No 105 | XJ | |
|
| 20 | 31167 | 1 | SPINDLE | PRE SERIAL No. 105 | XJ | |
|
| 21 | 123244-00 | 1 | BUSH | XJ | |
||
| 22 | 123283-01 | 1 | SUPPORT | XJ | |
||
| 23 | 866089-01 | 1 | SPINDLE | XJ | |
||
| 24 | 760233-00 | 1 | PIN | XJ | |
||
| 25 | 123225-00 | 1 | PIN | XJ | |
||
| 26 | 860585-00 | 1 | GEAR | XJ | |
||
| 27 | 860094-02 | 2 | SCREW | XJ | |
||
| 28 | 860073-00 | 2 | WASHER | XJ | |
||
| 29 | 863662-00 | 1 | SCALE | XJ | |
||
| 30 | 176415 | 1 | SIDE RH | XJ | |
||
| 31 | 949876-05 | 3 | WASHER | XJ | |
||
| 32 | 123237-00 | 1 | CHAIN | XJ | |
||
| 33 | 860092-01 | 1 | NUT | XJ | |
||
| 34 | 123222-00 | 1 | PINION | XJ | |
||
| 35 | 31118 | 1 | NAMEPLATE | XJ | |
||
| 36 | 123215-00 | 1 | CASING | XJ | |
||
| 37 | 760998-00 | 2 | SCREW | XJ | |
||
| 38 | 123216-00 | 1 | CASING | XJ | |
||
| 39 | 31804 | 1 | NAMEPLATE | XJ | |
||
| 40 | 132321 | 1 | BASE | XJ | |
||
| 41 | 123263-01 | 1 | HOOK LEFT | XJ | |
||
| 42 | 860083-01 | 2 | NUT | XJ | |
||
| 43 | 123203-00 | 2 | SPRING | XJ | |
||
| 44 | 123265-01 | 1 | HOOK RIGHT | XJ | |
||
| 45 | 860089-25 | 2 | SCREW | XJ | |
||
| 46 | 123269-02 | 1 | GUARD | XJ | |
||
| 47 | 860263-00 | 1 | HANDLE | XJ | |
||
| 846 | 865410-00 | 1 | FASTENER | XJ | |
||
| 847 | 949751-07 | 1 | SPANNER 10-13MM | XJ | |
||
| 848 | 860084-21 | 1 | SCREW | XJ | |
||
| 849 | 860098-04 | 1 | WRENCH 6 MM | XJ | |
||
| 850 | 943271-00 | 1 | HEX KEY 2.5 MM | XJ | |
||
| 851 | 866089-01 | 1 | SPINDLE | From Serial No 105 | XJ | |
|
| 851 | 191168 | 1 | SPINDLE SA | PRE SERIAL No. 105 | XJ | |
