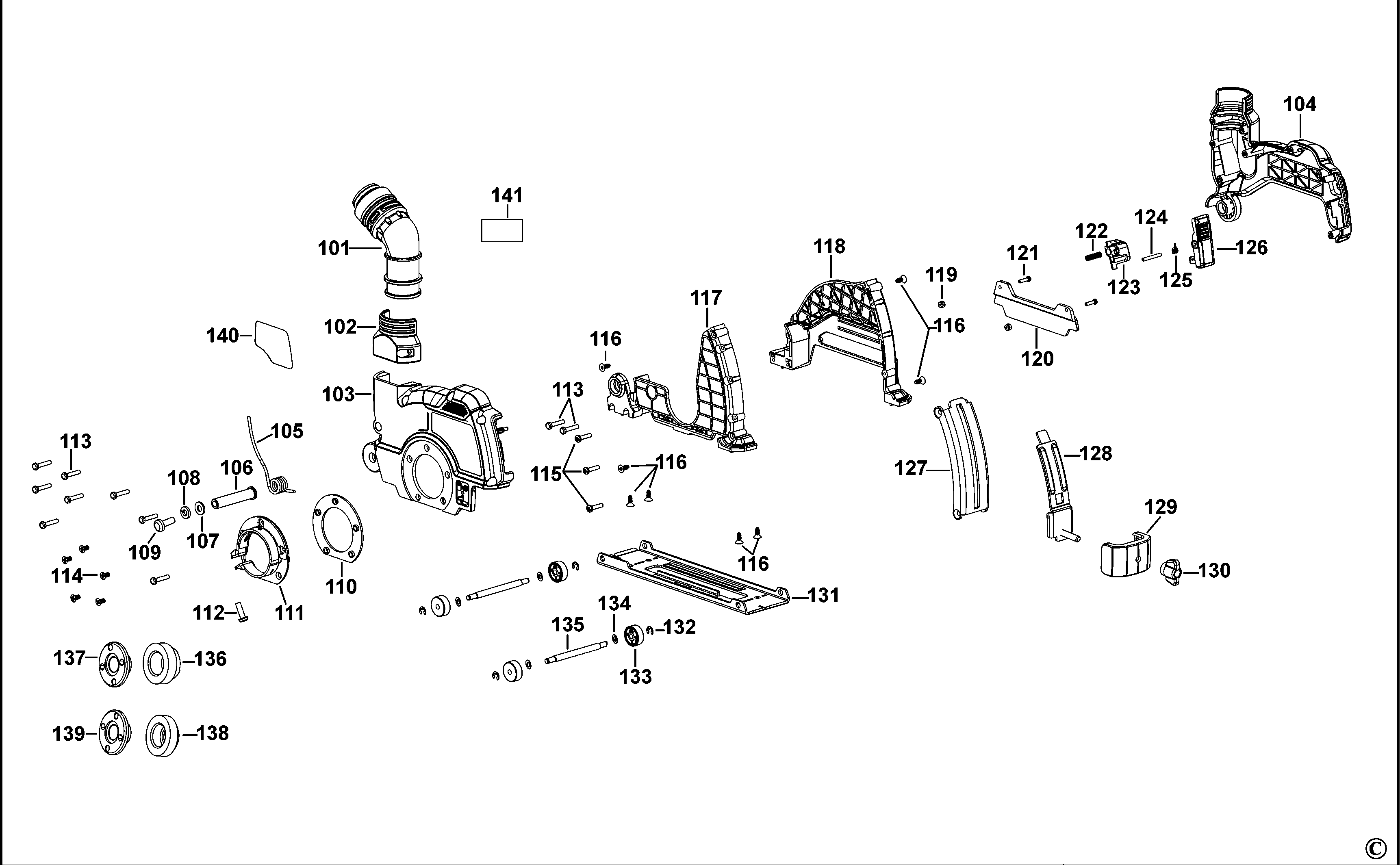

DWE46225 DUST COLLECTOR Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 101 | N645894 | 1 | DUST PORT | XJ |  |
||
| 102 | N651615 | 1 | COVER | XJ | |
||
| 103 | N645891 | 1 | CLAMSHELL HALF | XJ | |
||
| 104 | N645890 | 1 | CLAMSHELL HALF | XJ | |
||
| 105 | N646433 | 1 | SPRING | XJ | |
||
| 106 | N645896 | 1 | PIN | XJ | |
||
| 107 | N743974 | 1 | WASHER | XJ | |
||
| 108 | 098197-10 | 1 | WASHER LOCK | XJ | |
||
| 109 | 153778-01 | 1 | SCREW | XJ | |
||
| 110 | N646437 | 1 | BACKPLATE | XJ | |
||
| 111 | N646443 | 1 | STRAP | XJ | |
||
| 112 | 631609-03 | 1 | SCREW | XJ | |
||
| 113 | 90611830 | 10 | SCREW | XJ | |
||
| 114 | N813648 | 10 | SCREW | XJ | |
||
| 115 | 330019-66 | 3 | SCREW | XJ | |
||
| 116 | N760650 | 8 | PLASTIC SCREW | XJ | |
||
| 117 | N659081 | 1 | CLAMSHELL HALF | XJ | |
||
| 118 | N645892 | 1 | CLAMSHELL HALF | XJ | |
||
| 119 | N116219 | 2 | NUT | XJ | |
||
| 120 | N647700 | 1 | WINDOW | XJ | |
||
| 121 | 478455-00 | 2 | SCREW | XJ | |
||
| 122 | N646434 | 1 | SPRING | XJ | |
||
| 123 | N645899 | 1 | LATCH BUTTON | XJ | |
||
| 124 | N646432 | 1 | PIN | XJ | |
||
| 125 | N770509 | 1 | SPRING | XJ | |
||
| 126 | N645897 | 1 | LOCK HOOK | XJ | |
||
| 127 | N646427 | 1 | STRAP | XJ | |
||
| 128 | N646444 | 1 | LATCH | XJ | |
||
| 129 | N646430 | 1 | BRACKET | XJ | |
||
| 130 | N646428 | 1 | KNOB | XJ | |
||
| 131 | N645902 | 1 | SHOE | XJ | |
||
| 132 | 386957-00 | 4 | CLIP | XJ |  |
||
| 133 | N703486 | 4 | WHEEL | XJ | |
||
| 134 | N774538 | 4 | WASHER | XJ | |
||
| 135 | N703485 | 2 | AXLE | XJ | |
||
| 136 | N654478 | 1 | INNER FLANGE | XJ | |
||
| 137 | N666474 | 1 | OUTER FLANGE | XJ | |
||
| 138 | N665586 | 1 | INNER FLANGE | XJ | |
||
| 139 | N665610 | 1 | OUTER FLANGE | XJ | |
||
| 140 | N716878 | 1 | RATING PLATE | XJ | |||
| 141 | N456231 | 1 | LABEL | XJ | |
