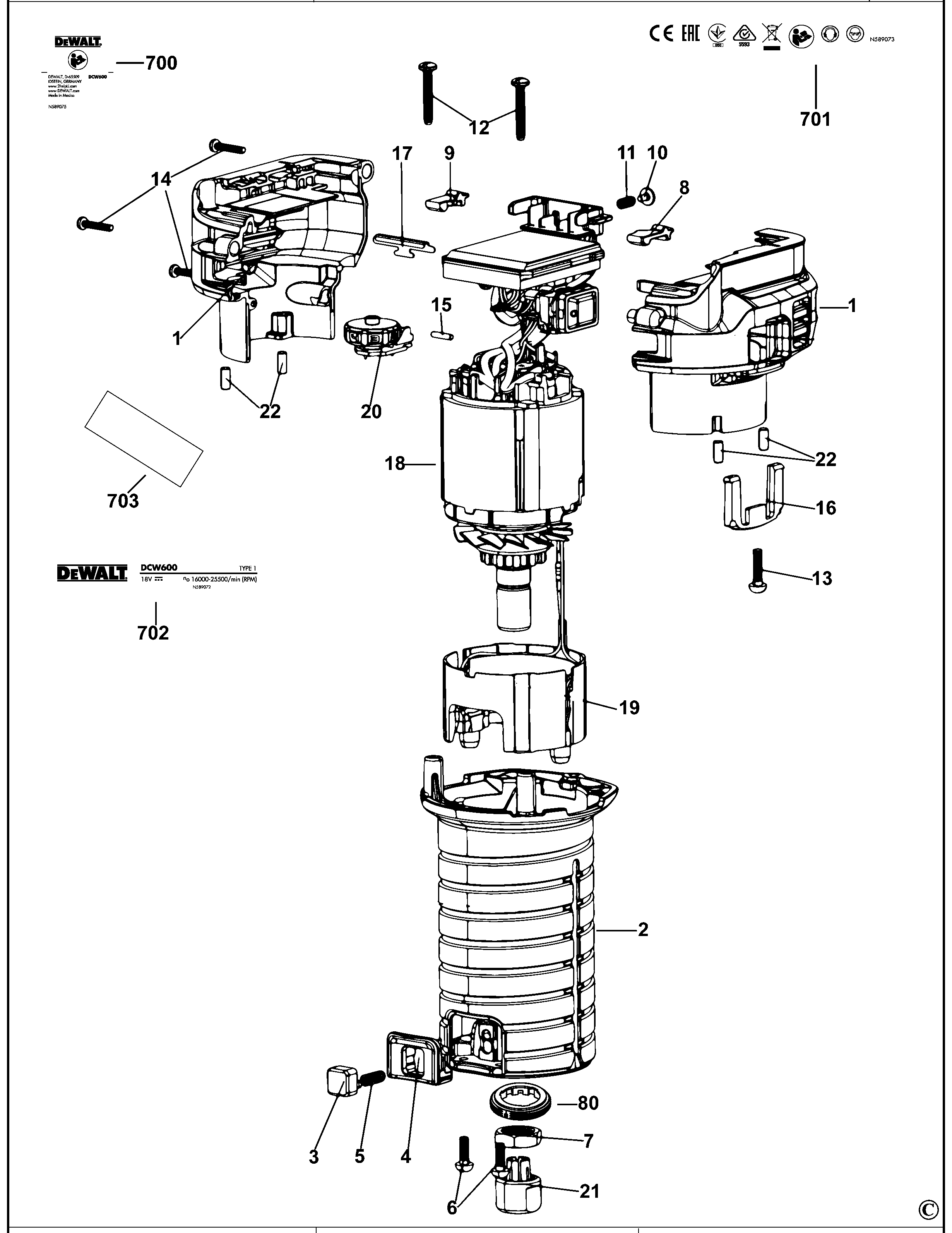

DCW600 ROUTER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N567094 | 1 | HOUSING SA | LX |  |
||
| 2 | N661051 | 1 | HOUSING MOTOR | LX | |
||
| 3 | N038183 | 1 | LOCK BUTTON | LX | |
||
| 4 | A26131 | 1 | INSERT | LX | |
||
| 5 | A23489 | 1 | SPRING | LX | |
||
| 6 | 330065-06 | 2 | SCREW | LX | |
||
| 7 | A25248 | 1 | NUT | LX | |
||
| 8 | N239160 | 1 | BUMPER | LX | |
||
| 9 | N239159 | 1 | BUMPER | LX | |
||
| 10 | N122099 | 1 | BLOCK | LX | |
||
| 11 | N461735 | 1 | SPRING | LX | |
||
| 12 | 330045-08 | 2 | SCREW | LX | |
||
| 13 | 330065-07 | 1 | SCREW | LX | |
||
| 14 | 682211-00 | 3 | SCREW | LX | |
||
| 15 | N071836 | 1 | ROLL PIN | LX | |
||
| 16 | N569455 | 1 | CLIP | LX | |
||
| 17 | N467560 | 1 | PLATE | LX | |
||
| 18 | N740030 | 1 | MOTOR SA | SSA | LX | ||
| 19 | N580684 | 1 | LED LIGHT | LX | |
||
| 20 | N550971 | 1 | WHEEL SPEED | LX | |
||
| 21 | 326286-01 | 1 | COLLET & NUT SA | 6.35mm 1/4 inch | LX | |
|
| 22 | N703257 | 4 | PIN | LX | |
||
| 23 | N742993 | 1 | HOUSING SA | LX | |
||
| 24 | N591239 | 1 | COVER | LX | |
||
| 25 | A23587 | 1 | INDICATOR | LX | |
||
| 26 | N042079 | 2 | PIN | LX | |
||
| 27 | A24452 | 1 | PIN | LX | |
||
| 28 | A24764 | 1 | ADJUSTER | LX | |
||
| 29 | 330022-18 | 1 | SCREW | LX | |
||
| 30 | A24767 | 1 | PAD | LX | |
||
| 31 | A24771 | 1 | CLAMPING BAR | LX | |
||
| 32 | A24770 | 1 | PIN | LX | |
||
| 33 | A27362 | 1 | SPRING | LX | |
||
| 34 | N028373 | 1 | RETAINER | LX | |
||
| 35 | A27941 | 1 | BASEPLATE | LX | |
||
| 36 | N029178 | 4 | SCREW | LX | |
||
| 37 | N587924 | 4 | PIN | LX | |
||
| 38 | N693104 | 1 | ADJUSTER HEIGHT | LX | |
||
| 39 | A28678SV | 1 | ADAPTOR | LX | |
||
| 40 | N092764 | 1 | BASE SA | LX | |
||
| 41 | N026733 | 1 | GUIDE SA | LX | |
||
| 67 | 945121-00 | 2 | SCREW.TEMP | LX | |
||
| 80 | A25250 | 1 | NUT LH | LX | |
||
| 85 | A27895 | 1 | WRENCH SPECIAL | LX | |
||
| 98 | 147107-00 | 1 | KNOB | LX | |
||
| 99 | N028927 | 1 | WASHER | LX | |
||
| 100 | 931405-00 | 1 | SCREW | LX | |
||
| 700 | N589075 | 1 | WARNING LABEL | LX | |
||
| 701 | N589073 | 1 | WARNING LABEL | LX | |
||
| 704 | N589078 | 1 | LABEL | LX | |
||
| 705 | A28466 | 1 | IDENTITY LABEL | LX | |
