DCW600N 20V MAX XR CORDLESS COMPA Type 1 | Drawings
Documents

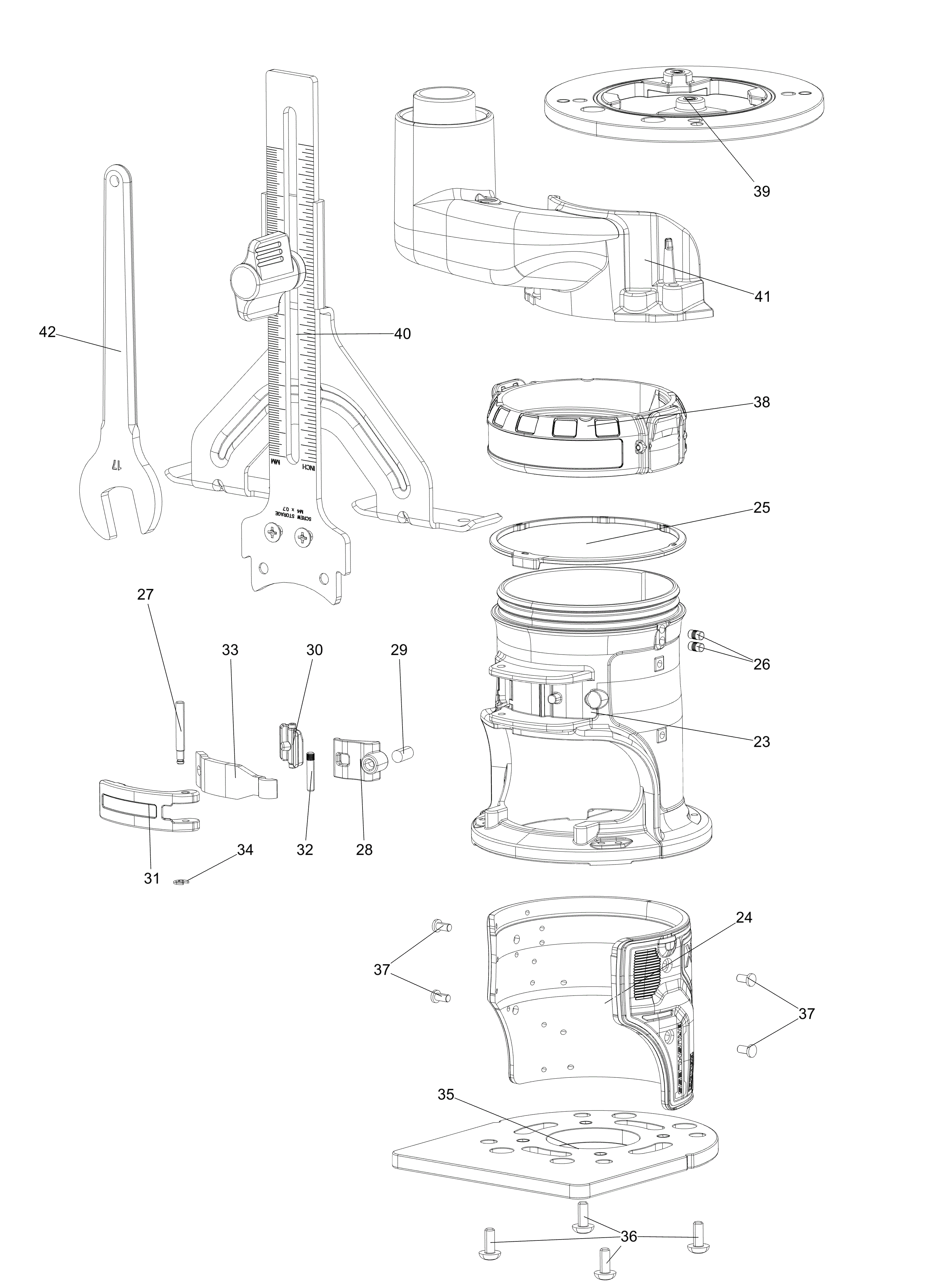

Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N567094 | 1 | HOUSING SA | XJ |  |
||
| 2 | N661051 | 1 | HOUSING MOTOR | XJ | |
||
| 3 | N038183 | 1 | LOCK BUTTON | XJ | |
||
| 4 | A26131 | 1 | INSERT | XJ | |
||
| 5 | A23489 | 1 | SPRING | XJ | |
||
| 6 | 330065-06 | 2 | SCREW | XJ | |
||
| 7 | A25248 | 1 | NUT | XJ | |
||
| 8 | N239160 | 1 | BUMPER | XJ | |
||
| 9 | N239159 | 1 | BUMPER | XJ | |
||
| 10 | N091479 | 1 | MOUNT | XJ |  |
||
| 11 | N461735 | 1 | SPRING | XJ | |
||
| 12 | 330045-08 | 2 | SCREW | XJ | |
||
| 13 | 330065-07 | 1 | SCREW | XJ | |
||
| 14 | 682211-00 | 3 | SCREW | XJ | |
||
| 15 | N071836 | 1 | ROLL PIN | XJ | |
||
| 16 | N569455 | 1 | CLIP | XJ | |
||
| 17 | N467560 | 1 | PLATE | XJ | |
||
| 18 | N740030 | 1 | MOTOR SA | SSA | XJ | ||
| 19 | N580684 | 1 | LED LIGHT | XJ | |
||
| 20 | N550971 | 1 | WHEEL SPEED | XJ | |
||
| 21 | N693118 | 1 | COLLET ASSEMBLY | XJ | |
||
| 21 | A28462SV | 1 | COLLET | XJ | |
||
| 22 | N703257 | 4 | PIN | XJ | |
||
| 23 | N742993 | 1 | HOUSING SA | INCL. 24-38 | XJ | |
|
| 24 | N591239 | 1 | COVER | XJ | |
||
| 25 | A23587 | 1 | INDICATOR | XJ | |
||
| 26 | N042079 | 2 | PIN | XJ | |
||
| 27 | A24452 | 1 | PIN | XJ | |
||
| 28 | A24764 | 1 | ADJUSTER | XJ | |
||
| 29 | 330022-18 | 1 | SCREW | XJ | |
||
| 30 | A24767 | 1 | PAD | XJ | |
||
| 31 | A24771 | 1 | CLAMPING BAR | XJ | |
||
| 32 | A24770 | 1 | PIN | XJ | |
||
| 33 | A27362 | 1 | SPRING | XJ | |
||
| 34 | N028373 | 1 | RETAINER | XJ | |
||
| 35 | A27941 | 1 | BASEPLATE | XJ | |
||
| 36 | N029178 | 4 | SCREW | XJ | |
||
| 37 | N587924 | 4 | PIN | XJ | |
||
| 38 | N693104 | 1 | ADJUSTER HEIGHT | XJ | |
||
| 39 | A28678SV | 1 | ADAPTOR | XJ | |
||
| 40 | N092764 | 1 | BASE SA | XJ | |
||
| 41 | N026733 | 1 | GUIDE SA | XJ | |
||
| 42 | A27895 | 1 | WRENCH SPECIAL | XJ | |
||
| 700 | N589072 | 1 | RATING PLATE | DCW600N-XJ TYPE 1 | XJ | |
|
| 701 | N589073 | 1 | WARNING LABEL | XJ | |
||
| 702 | N589075 | 1 | WARNING LABEL | XJ | |
||
| 703 | N589077 | 1 | BRAND LABEL | XJ | |
||
| 704 | N589078 | 1 | LABEL | XJ | |
