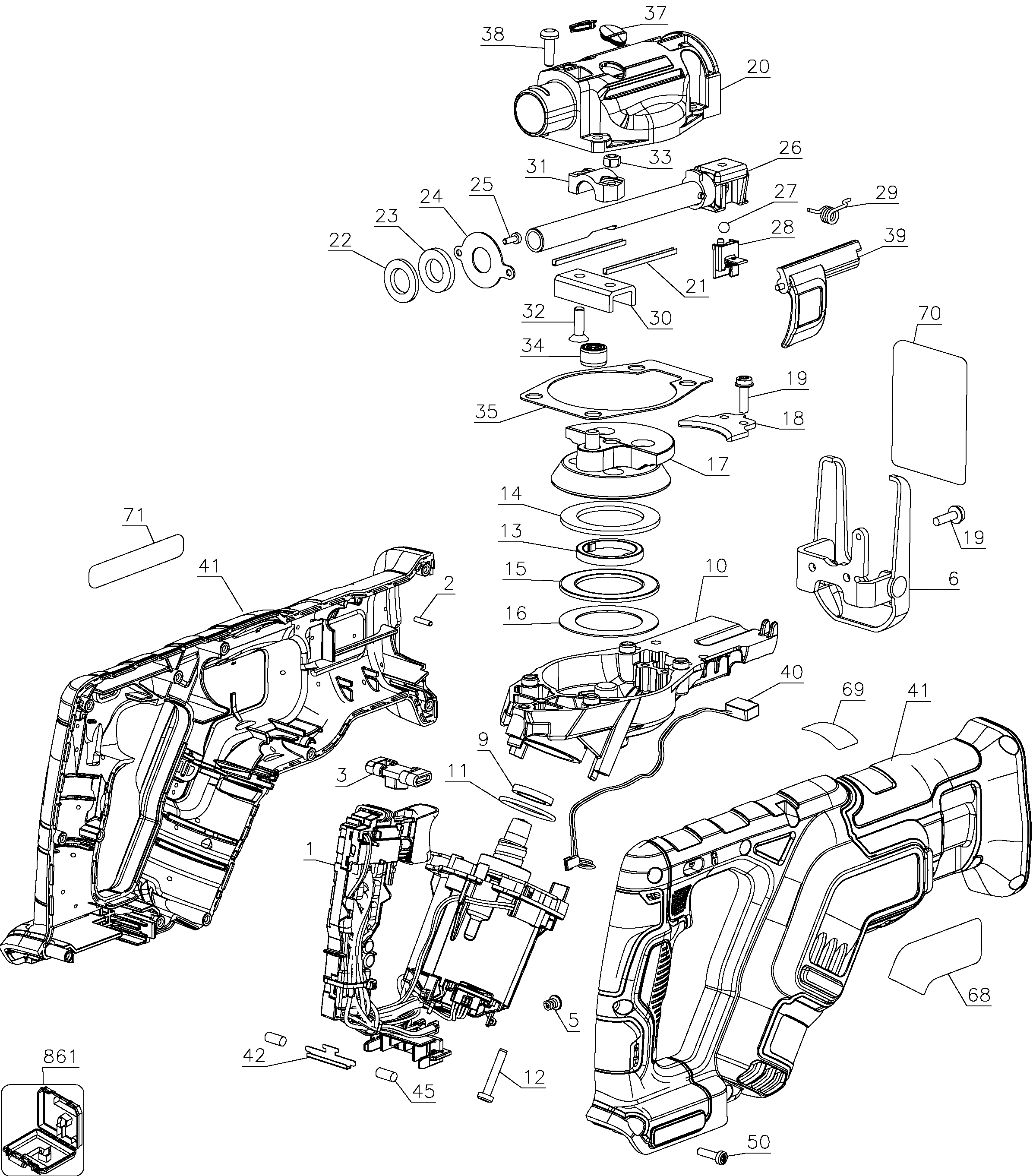

DCS367NT 18v XR COMPACT BL RECIPRO Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N521971 | 1 | MOTOR & SWITCH SA | DCS367 EURO | XJ |  |
|
| 2 | N071836 | 1 | ROLL PIN | XJ | |
||
| 3 | N454084 | 1 | BUTTON LOCK-OFF | XJ | |
||
| 5 | N453948 | 1 | SPRING | XJ | |
||
| 6 | N226256 | 1 | SHOE SA | XJ | |
||
| 9 | N143636 | 1 | FELT SEAL | XJ | |
||
| 10 | N435110 | 1 | GEARCASE SA | XJ | |
||
| 11 | N129171 | 1 | O RING | XJ | |
||
| 12 | N130874 | 3 | SCREW | XJ | |
||
| 13 | N143177 | 1 | SPACER | XJ | |
||
| 14 | N124072 | 1 | WASHER THRUST | XJ | |
||
| 15 | N115646 | 1 | THRUST BEARING | XJ | |
||
| 16 | N115647 | 1 | WASHER THRUST | XJ | |
||
| 17 | N406599 | 1 | GEAR SA | XJ | |
||
| 18 | N115642 | 1 | THRUST PLATE | XJ | |
||
| 19 | 142940-00 | 4 | SCREW | XJ | |
||
| 20 | N195829 | 1 | GEARCASE COVER SA | XJ | |
||
| 21 | 621979-00 | 2 | STRIP | XJ | |
||
| 22 | 618733-00 | 1 | SEAL | XJ | |
||
| 23 | 618477-00 | 1 | FELT SEAL | XJ | |
||
| 24 | N020720 | 1 | COVERPLATE | XJ | |
||
| 25 | 330045-43 | 1 | SCREW | XJ | |
||
| 26 | N026647 | 1 | SHAFT SA | INCL. 26-30, 32 | XJ | |
|
| 27 | 000903-00 | 1 | BALL | XJ | |
||
| 28 | N252639 | 1 | SLIDER | XJ | |
||
| 29 | N426742 | 1 | SPRING | XJ | |
||
| 30 | 658115-00 | 1 | YOKE | XJ | |
||
| 31 | 617000-00 | 1 | SADDLE | XJ | |
||
| 32 | N191614 | 2 | SCREW | XJ | |
||
| 33 | N191590 | 2 | LOCK NUT | XJ | |
||
| 34 | N021857 | 1 | BEARING | XJ | |
||
| 35 | N115641 | 1 | GASKET | XJ | |
||
| 37 | N131037 | 2 | COVER | XJ | |
||
| 38 | 144457-02 | 4 | SCREW | XJ | |
||
| 39 | N412063 | 1 | LEVER SA | XJ | |
||
| 40 | N348279 | 1 | LED | XJ | |
||
| 41 | N830479 | 1 | CLAMSHELL SET | XJ | |
||
| 42 | N467560 | 1 | PLATE | XJ | |
||
| 45 | 949638-02 | 2 | DAMPER | XJ | |
||
| 50 | 330019-02 | 11 | SCREW | XJ | |
||
| 68 | N534028 | 1 | RATING PLATE | DCS367 EURO | XJ | |
|
| 69 | N454095 | 1 | LABEL | BRUSHLESS MOTOR | XJ | |
|
| 70 | 632151-00 | 1 | LABEL | 4 POSITION | XJ | |
|
| 71 | N454100 | 1 | BRAND LABEL | 18V XR Li-Ion | XJ | |
|
| 861 | N505294 | 1 | INSERT | XJ | |||
| 861 | N279261 | 1 | KITBOX | XJ | |
