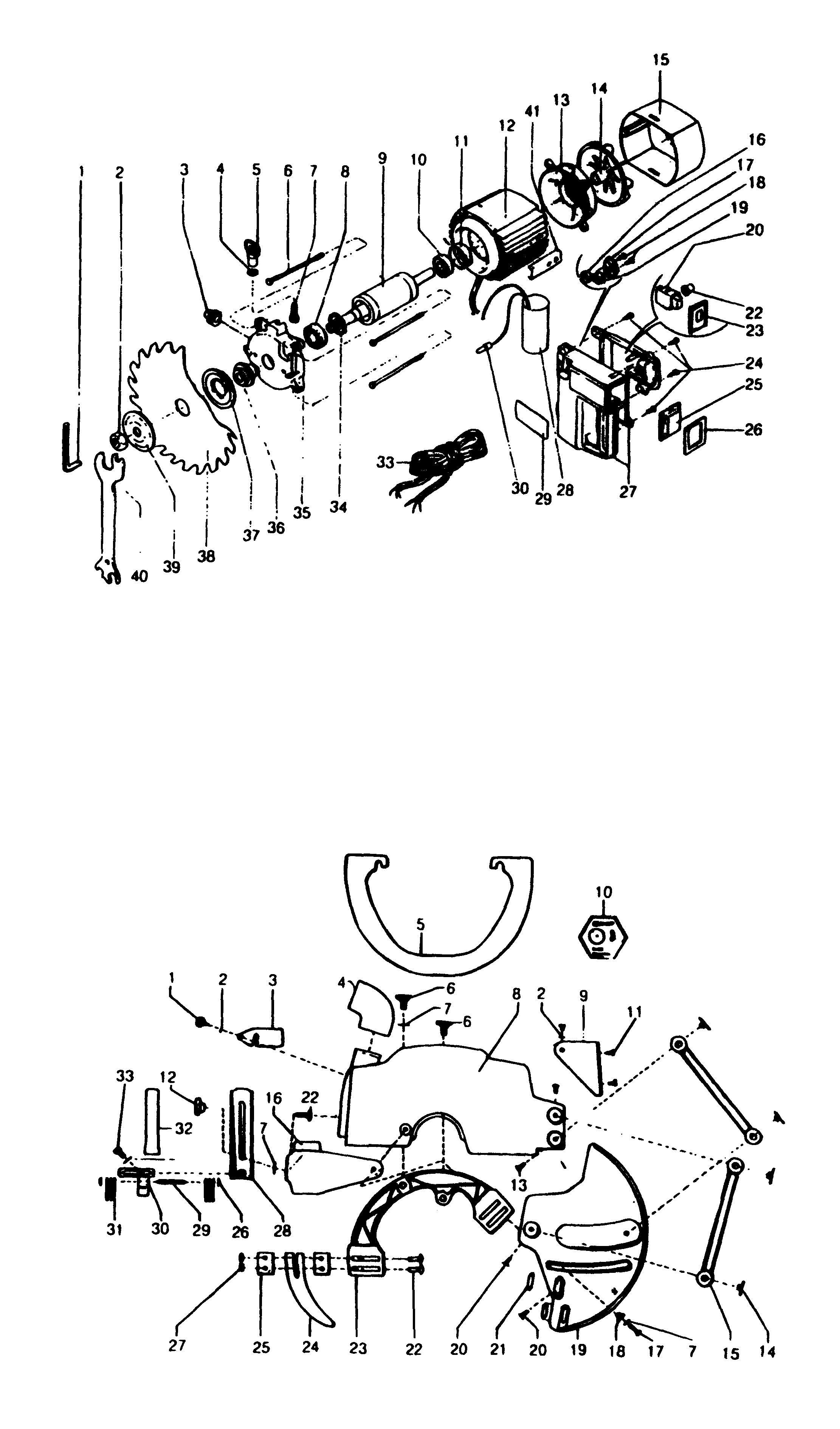

DW320-----B RADIAL ARM SAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 860098-05 | 1 | HEX KEY 8 MM | MOTOR | XJ |  |
|
| 1 | 861842-01 | 1 | KNOB | BLADE PROTECTION | XJ | |
|
| 2 | 860074-01 | 2 | WASHER | BLADE PROTECTION | XJ | |
|
| 2 | 860126-01 | 1 | NUT | MOTOR | XJ |  |
|
| 3 | 863708-00 | 1 | SQUARE | BLADE PROTECTION | XJ | |
|
| 3 | 860447-00 | 1 | BUSHING | MOTOR | XJ | |
|
| 4 | 864095-00 | 1 | TUBE EXTRACTION | BLADE PROTECTION | XJ | |
|
| 4 | 860073-03 | 1 | WASHER M8 | MOTOR | XJ | |
|
| 5 | 860143-00 | 1 | NUT WING | MOTOR | XJ | |
|
| 5 | 863706-01 | 1 | PROTECTOR | BLADE PROTECTION | XJ | |
|
| 6 | 863015-00 | 3 | TIE ROD | MOTOR | XJ | |
|
| 7 | 860075-00 | 1 | WASHER | BLADE PROTECTION | XJ | |
|
| 7 | 860085-19 | 1 | SCREW | MOTOR | XJ | |
|
| 8 | 862235-04 | 1 | GUARD | BLADE PROTECTION | XJ | |
|
| 8 | 930566 | 1 | BEARING | MOTOR | XJ | |
|
| 9 | 863707-01 | 1 | BRACKET | BLADE PROTECTION | XJ | |
|
| 9 | 197892 | 1 | ROTOR | MOTOR | XJ | |
|
| 10 | 868768-07 | 1 | BEARING | MOTOR | XJ | |
|
| 10 | 862808-01 | 1 | NAMEPLATE | BLADE PROTECTION | XJ | |
|
| 11 | 760273-00 | 2 | SCREW | BLADE PROTECTION | XJ | |
|
| 12 | 868412-00 | 1 | STATOR | MOTOR | XJ | |
|
| 12 | 946469-00 | 1 | KNOB | BLADE PROTECTION | XJ | |
|
| 13 | 860443-00 | 1 | END CAP | MOTOR | XJ | |
|
| 13 | 760998-00 | 2 | SCREW | BLADE PROTECTION | XJ | |
|
| 14 | 864053-00 | 4 | WASHER | BLADE PROTECTION | XJ | |
|
| 14 | 860444-00 | 1 | FAN | MOTOR | XJ | |
|
| 15 | 860445-00 | 1 | COVER | MOTOR | XJ | |
|
| 15 | 862084-01 | 1 | LEVER | XJ | |
||
| 16 | 863877-00 | 1 | RING | MOTOR | XJ | |
|
| 16 | 863775-01 | 1 | BRACKET | BLADE PROTECTION | XJ | |
|
| 17 | 860089-23 | 1 | SCREW | BLADE PROTECTION | XJ | |
|
| 18 | 863705-00 | 1 | BUSH | BLADE PROTECTION | XJ | |
|
| 18 | 860084-10 | 2 | SCREW | MOTOR | XJ | |
|
| 19 | 944590-00 | 1 | NUT | MOTOR | XJ | |
|
| 19 | 862417-00 | 1 | GUARD | BLADE PROTECTION | XJ | |
|
| 20 | 249412-20 | 2 | SCREW | BLADE PROTECTION | XJ | |
|
| 20 | 863124-07 | 1 | SWITCH | MOTOR | XJ | |
|
| 21 | 864054-00 | 2 | ROLLER | BLADE PROTECTION | XJ | |
|
| 22 | 860301-00 | 3 | SCREW | BLADE PROTECTION | XJ | |
|
| 22 | 863054-00 | 1 | CAP | MOTOR | XJ | |
|
| 23 | 862083-00 | 1 | BRACKET | BLADE PROTECTION | XJ | |
|
| 23 | 31154 | 1 | COVER | MOTOR | XJ | |
|
| 24 | 33552 | 1 | KNIFE | BLADE PROTECTION | XJ | |
|
| 24 | 930076-00 | 4 | SCREW | MOTOR | XJ | |
|
| 25 | 864086-00 | 2 | SHIM | BLADE PROTECTION | XJ | |
|
| 25 | 863849-00 | 1 | CAP | MOTOR | XJ | |
|
| 26 | 860074-02 | 1 | WASHER | BLADE PROTECTION | XJ | |
|
| 26 | 863198-00 | 1 | PLATE | MOTOR | XJ | |
|
| 27 | 34514 | 1 | HANDLE,SWITCH FOR TRIGGER ON/OUT | MOTOR | XJ | |
|
| 27 | 860083-03 | 2 | NUT | BLADE PROTECTION | XJ | |
|
| 28 | 863709-00 | 1 | SUPPORT | BLADE PROTECTION | XJ | |
|
| 28 | 949772-23 | 1 | CAPACITOR | MOTOR | XJ | |
|
| 30 | 860540-00 | 1 | CONNECTOR | MOTOR | XJ | |
|
| 30 | 945632-90 | 1 | BRACKET | BLADE PROTECTION | XJ | |
|
| 31 | 864013-00 | 8 | FINGER | BLADE PROTECTION | XJ | |
|
| 32 | 863703-00 | 1 | PROTECTOR | BLADE PROTECTION | XJ | |
|
| 33 | 760219-00 | 1 | SCREW | BLADE PROTECTION | XJ | |
|
| 33 | 949863-37 | 1 | CABLE | MOTOR | XJ | |
|
| 34 | 860806-00 | 1 | RING | MOTOR | XJ | |
|
| 35 | 860808-00 | 1 | HOUSING | MOTOR | XJ | |
|
| 36 | 863266-00 | 1 | INNER FLANGE | MOTOR | XJ | |
|
| 39 | 861241-00 | 1 | OUTER FLANGE | MOTOR | XJ | |
|
| 40 | 860153-00 | 1 | WRENCH | MOTOR | XJ | |
|
| 41 | 131194-00 | 1 | BAR | MOTOR | XJ | ||
| 42 | 949784-06 | 1 | CONNECTOR | MOTOR | XJ | |
|
| 43 | 197338 | 1 | MOTOR SA | MOTOR | XJ | ||
| 44 | 860318-01 | 1 | KEY | PARTS NOT DRAWN | XJ |
