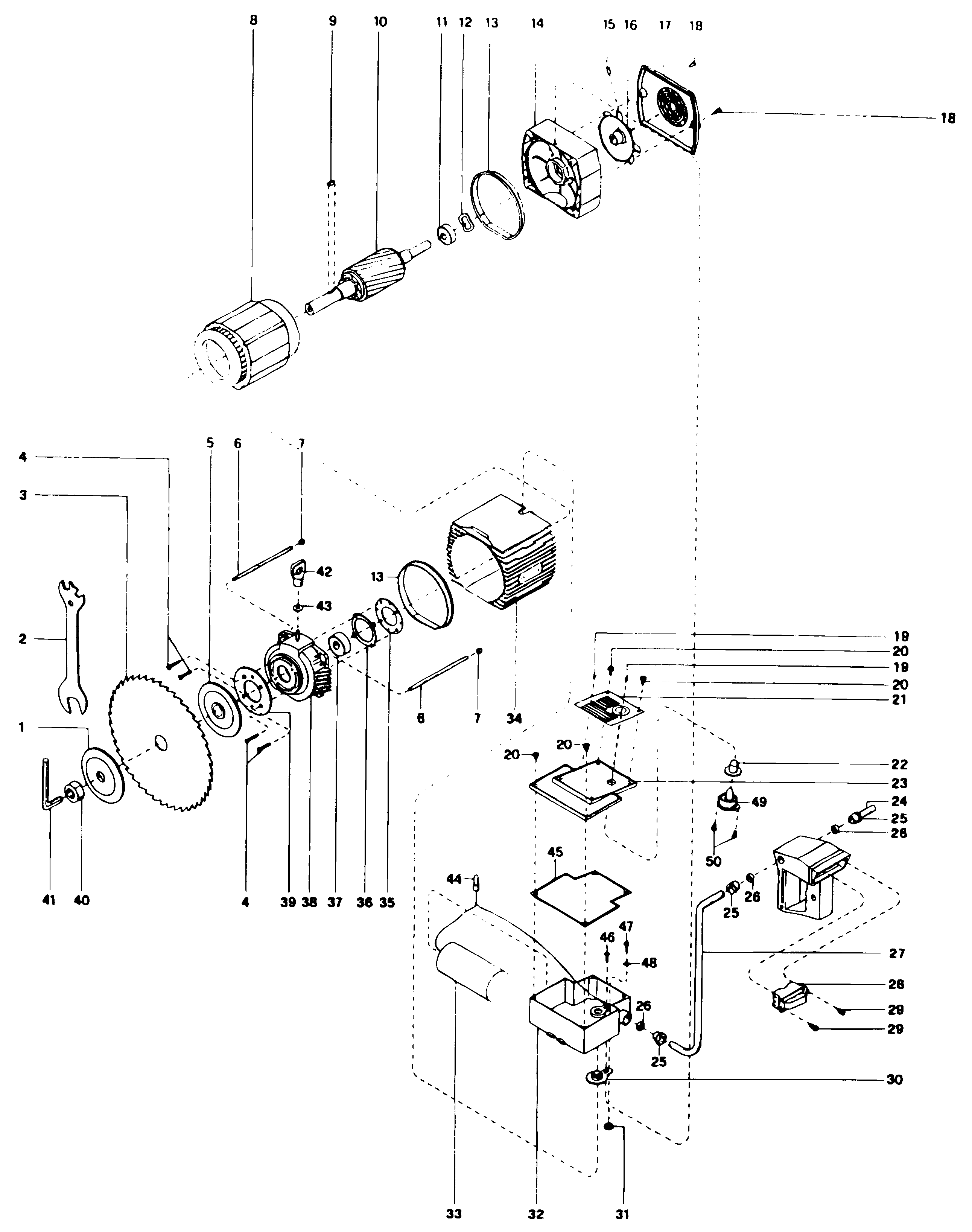

DW8003----D RADIAL ARM SAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | PARTNLS | 1 | NO LONGER SUPPLIED | XJ | |||
| 2 | 944463-00 | 1 | SPANNER MULTI | XJ |  |
||
| 4 | 860538-00 | 4 | SCREW | XJ | |
||
| 5 | 32692 | 1 | ARBOR | XJ |  |
||
| 6 | 33507 | 2 | TIE ROD | XJ | |
||
| 7 | 860083-02 | 2 | NUT | XJ | |
||
| 8 | 199747 | 1 | STATOR SA | XJ | |
||
| 9 | 860318-00 | 1 | KEY | XJ | |
||
| 10 | 868511-01 | 1 | ROTOR 3 PH | XJ | |
||
| 11 | 868768-07 | 1 | BEARING | XJ | |
||
| 12 | 860080-02 | 1 | RING | XJ | |
||
| 13 | 860718-00 | 1 | SEAL | XJ | |
||
| 14 | 860701-00 | 1 | HOUSING | XJ | |
||
| 15 | 860088-25 | 1 | SCREW | XJ | |
||
| 16 | 860688-00 | 1 | FAN | XJ | |
||
| 17 | 860687-03 | 1 | END CAP | XJ | |
||
| 18 | 860089-25 | 2 | SCREW | XJ | |
||
| 19 | 860060-01 | 2 | RIVET | XJ | |
||
| 20 | 860094-03 | 2 | SCREW | XJ | |
||
| 21 | 862493-03 | 1 | NAMEPLATE | XJ | |
||
| 22 | 860133-00 | 1 | CAP | XJ | |
||
| 23 | 944454-00 | 1 | COVER | XJ | |
||
| 24 | 945635-00 | 1 | CABLE | XJ | |
||
| 25 | 944654-00 | 3 | RETAINER | XJ | |
||
| 26 | 944590-00 | 3 | NUT | XJ | |
||
| 27 | 949863-44 | 1 | LEAD | XJ | |
||
| 28 | 860706-00 | 1 | SWITCH 1 PH | XJ | |
||
| 29 | 11271 | 2 | SCREW | XJ | |
||
| 30 | 944652-00 | 1 | GROMMET | XJ | |
||
| 31 | 944653-00 | 1 | GROMMET | XJ | |
||
| 32 | 176382 | 1 | BOX 1 PH | XJ | |
||
| 33 | 944455-00 | 1 | CONDENSOR | XJ | |
||
| 34 | 199747 | 1 | STATOR SA | XJ | |
||
| 35 | 123302-01 | 1 | CAP | XJ | |
||
| 36 | 863878-00 | 1 | GASKET | XJ | |
||
| 37 | 868768-10 | 1 | BEARING | XJ | |
||
| 38 | 862162-00 | 1 | HOUSING | XJ | |
||
| 39 | 133540 | 1 | PLATE | XJ | |
||
| 40 | 944460-00 | 1 | NUT | XJ | |
||
| 41 | 860098-05 | 1 | HEX KEY 8 MM | XJ | |
||
| 42 | 860143-00 | 1 | NUT WING | XJ | |
||
| 43 | 860073-03 | 1 | WASHER M8 | XJ | |
||
| 44 | 860540-00 | 1 | CONNECTOR | XJ | |
||
| 45 | 860708-00 | 1 | GASKET | XJ | |
||
| 46 | 860094-00 | 1 | SCREW.TEMP | XJ | |
||
| 47 | 860094-01 | 1 | SCREW | XJ | |
||
| 48 | 944650-00 | 1 | WASHER SPRING | XJ | |
||
| 49 | 860692-00 | 1 | KLIXON | XJ | |
||
| 50 | 860094-03 | 2 | SCREW | XJ | |
