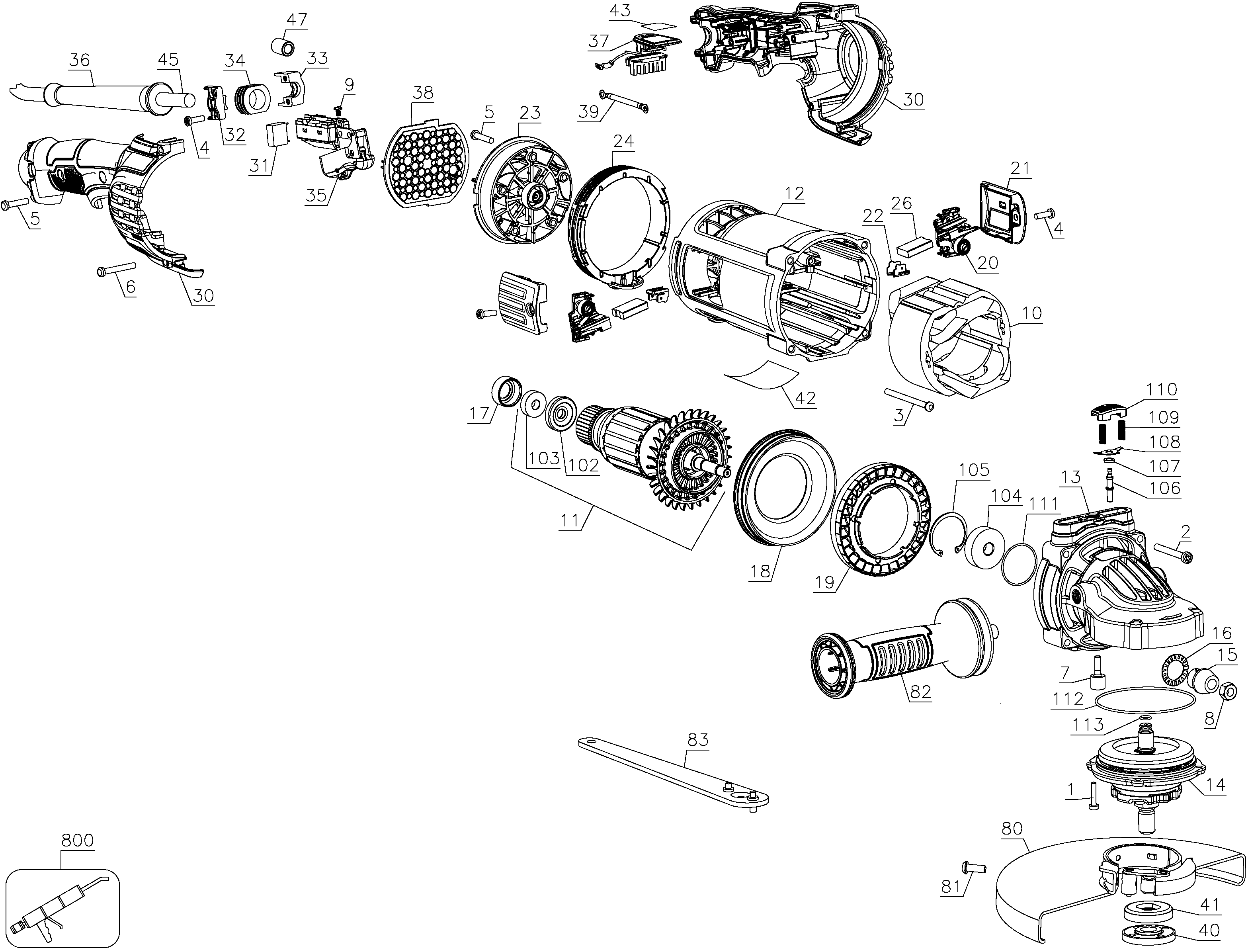

DWE4599 ANGLE GRINDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 330045-07 | 4 | SCREW | GB |  |
||
| 2 | 330019-26 | 4 | SCREW | GB | |
||
| 3 | 330019-19 | 2 | SCREW | GB | |
||
| 4 | 330019-12 | 4 | SCREW | GB | |
||
| 5 | 330019-32 | 11 | SCREW | GB | |
||
| 6 | 330019-15 | 2 | SCREW | GB | |
||
| 7 | N033051 | 1 | SCREW | GB | |
||
| 8 | 330015-03 | 1 | NUT | M8x1.25 | GB | |
|
| 9 | N111595 | 4 | SCREW | 6-32 x 7/32 T15 | GB | |
|
| 10 | N203633 | 1 | FIELD 230V | 230V PKGD N117162 | GB | ||
| 11 | N203630 | 1 | ARMATURE SA | 230V PKGD N114305 | GB | ||
| 12 | N096025 | 1 | FIELDCASE | DES | GB | |
|
| 13 | N252619 | 1 | GEARCASE SA | SPL LOCK PKDN397472 | GB | |
|
| 14 | N230836 | 1 | GEARCASE COVER SA | M14, 6K | GB | |
|
| 15 | N099841 | 1 | PINION | 6K | GB | |
|
| 16 | N132602 | 1 | WASHER SPECIAL | PINION | GB | |
|
| 17 | 609970-00 | 1 | SLEEVE INSULATING | GB | |
||
| 18 | N094853 | 1 | BAFFLE FAN | GB | |
||
| 19 | N094854 | 1 | FAN | FAN | GB | |
|
| 20 | N106196 | 2 | BRUSH HOLDER SA | GB | |
||
| 21 | N111898 | 2 | BRUSH COVER | GB | |
||
| 22 | N139735 | 2 | TERMINAL | TERMINAL | GB | |
|
| 23 | N252621 | 1 | FAN SA | DES, PKG'D N147921 | GB | ||
| 24 | N110984 | 1 | RING | ANTI-VIBE | GB | |
|
| 26 | N253999 | 2 | BRUSH PAIR 230V | 230V COATED | GB | |
|
| 30 | N145822 | 1 | HANDLE SA | LOCK-ON, GACC | GB | |
|
| 31 | N144790 | 1 | CAPACITOR | GB | |
||
| 32 | N142099 | 1 | CORD CLAMP | TOP | GB | |
|
| 33 | N104732 | 1 | CORD CLAMP | BOTTOM | GB | |
|
| 34 | N135624 | 1 | SHOCK ABSORBER | GB | |
||
| 35 | N142959 | 1 | SWITCH SA | LOCK-OFF W/LOCK-ON | GB | |
|
| 36 | 604118-00 | 1 | CORD PROTECTOR | GB | |
||
| 37 | N103805 | 1 | LED | GB | |
||
| 38 | N173925 | 1 | GACC MODULE 230V | 230V, GACC | GB | ||
| 39 | N150481 | 1 | LEAD SA | YELLOW | GB | |
|
| 40 | 401678-05 | 1 | OUTER FLANGE | GB | |
||
| 41 | 403150-01 | 1 | INNER FLANGE | GB | |
||
| 42 | N145046 | 1 | RATING LABEL | GB | |||
| 43 | N145317 | 1 | LABEL | LED ICON | GB | |
|
| 45 | N144812 | 1 | CORDSET | GB | GB | ||
| 47 | 647865-00 | 1 | SUPPRESSOR | GB | |||
| 80 | N037746 | 1 | GUARD | 9 INCH, DEEP | GB | |
|
| 81 | 606863-00 | 1 | SCREW | GB | |
||
| 82 | N241543 | 1 | SIDE HANDLE | ANTI-VIBE | GB | |
|
| 83 | 635261-00 | 1 | WRENCH PIN | GB | |
||
| 102 | 393238-00 | 1 | SHIELD | GB | |
||
| 103 | N110359 | 1 | BEARING | GB | |
||
| 104 | N389509 | 1 | BEARING | GB | |
||
| 105 | N173539 | 1 | RETAINER | GB | |
||
| 106 | N173538 | 1 | LOCK PIN | SPINDLE | GB | |
|
| 107 | N173540 | 1 | O RING | GB | |
||
| 108 | N108422 | 1 | PLATE | GB | |
||
| 109 | N110675 | 2 | SPRING | GB | |
||
| 110 | N110236 | 1 | BUTTON | GB | |
||
| 111 | N226986 | 1 | O RING | GB | |
||
| 112 | 397031-00 | 1 | O RING | GB | |
||
| 113 | 660143-00 | 1 | O RING | GB | |
||
| 800 | 429954-01 | 1 | GREASE | NYE RHEOLUBE 380G1, 500grams JAR | GB | ||
| 800 | 30301914-01 | 1 | GREASE | 35LBS RHEOLUBE 380G1 | GB | ||
| 800 | 429954-00 | 1 | GREASE | NYE RHEOLUBE 380G1, 7LBS. / 3175 GRAMS | GB |
