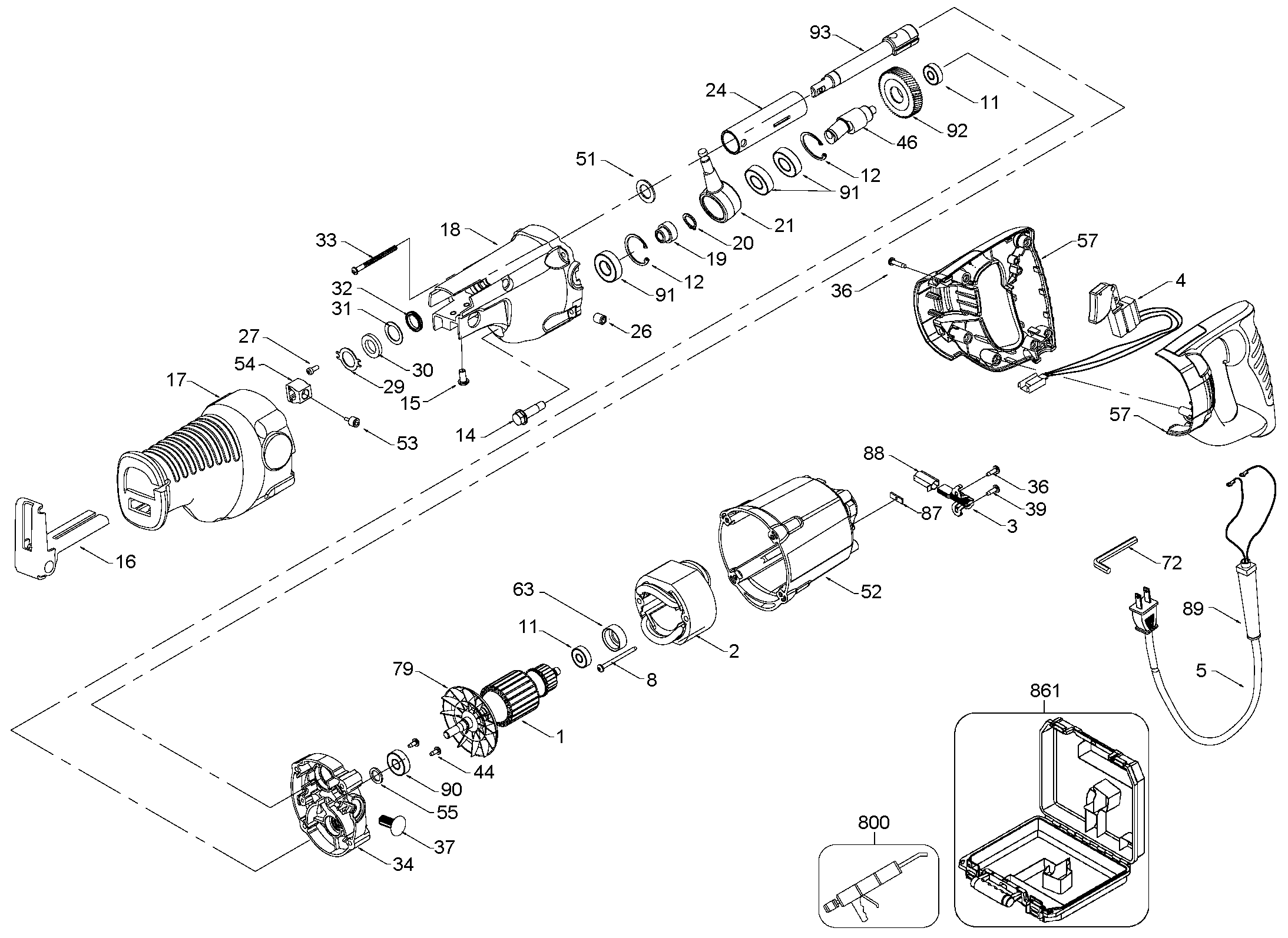

307779 TIGER SAW FOR FLEX Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | A05447 | 1 | ARMATURE 230V | 230V | 230V | LX |  |
| 2 | N073203SV | 1 | FIELD | LX | |||
| 3 | 874289 | 2 | BRUSH & HOLDER SA | LX | |
||
| 4 | 000000-00 | 1 | NO LONGER AVAILABLE | LX | |||
| 5 | 000000-00 | 1 | NO LONGER AVAILABLE | LX | |||
| 8 | 882704 | 2 | SCREW | LX | |
||
| 11 | 330003-05 | 2 | BEARING | LX | |||
| 12 | 802302 | 2 | RING | LX | |
||
| 14 | 879421 | 1 | SCREW | LX | |
||
| 15 | 906952 | 2 | SCREW | 1/4-20x1/2SOC BTN HD | LX | |
|
| 16 | 911451SV | 1 | SHOE ASSEMBLY | LX | |||
| 17 | 906726 | 1 | BOOT | LX | |||
| 18 | 000000-00 | 1 | NO LONGER AVAILABLE | LX | |||
| 19 | 879429 | 1 | SPACER | LX | |
||
| 20 | 853246 | 1 | RING | LX | |
||
| 21 | 890819 | 1 | PLATE | LX | |
||
| 24 | 883213 | 1 | CARRIER SA | LX |  |
||
| 26 | 892440 | 2 | SCREW | 3/8-16x1/2 FLAT PT | LX | |
|
| 27 | 882255 | 2 | SCREW | LX | |
||
| 29 | 879458 | 1 | PLATE | LX | |
||
| 30 | 879457 | 1 | FELT SEAL | LX | |
||
| 31 | 684931 | 1 | WASHER | LX | |
||
| 32 | 902998 | 1 | SEAL | LX | |
||
| 33 | 330019-19 | 4 | SCREW | LX | |
||
| 34 | 906705 | 1 | PLATE | LX | |
||
| 36 | 900826 | 10 | SCREW | LX | |
||
| 37 | 000000-00 | 1 | NO LONGER AVAILABLE | LX | |||
| 39 | 882703 | 4 | SCREW | LX | |
||
| 44 | 882187 | 2 | SCREW | 8-32x3/8 TAPTITE T20 | LX | |
|
| 46 | 000000-00 | 1 | NO LONGER AVAILABLE | LX | |||
| 51 | 882348 | 1 | FELT SEAL | LX | |
||
| 52 | 000000-00 | 1 | NO LONGER AVAILABLE | LX | |||
| 53 | 000000-00 | 1 | NO LONGER AVAILABLE | LX | |||
| 54 | 000000-00 | 1 | NO LONGER AVAILABLE | LX | |||
| 55 | 801852 | 1 | SEAL | LX | |
||
| 57 | 000000-00 | 1 | NO LONGER AVAILABLE | LX | |||
| 63 | 694432 | 1 | HOLDER BEARING | LX | |
||
| 72 | 802905 | 1 | ALLEN WRENCH | 3/16 SHORT ARM | LX | ||
| 72 | 802876 | 1 | ALLEN WRENCH | 5/32 SHORT ARM | LX | ||
| 79 | 878904SV | 1 | FAN | LX | |
||
| 87 | 865321 | 2 | INSULATOR | LX | |
||
| 88 | 865323 | 2 | BRUSH HOLDER | LX | |
||
| 89 | 901266 | 1 | CORD PROTECTOR | LX | |
||
| 90 | 330003-17 | 1 | BEARING | LX | |
||
| 91 | 000000-00 | 3 | NO LONGER AVAILABLE | LX | |||
| 92 | 879401 | 1 | GEAR | LX | |
||
| 93 | 000000-00 | 1 | NO LONGER AVAILABLE | LX | |||
| 800 | 5140061-28 | 1 | GREASE | LX | |
||
| 800 | 5140061-28 | 1 | GREASE | 5 1/2 OZ. | LX | |
|
| 861 | 000000-00 | 1 | NO LONGER AVAILABLE | LX |
