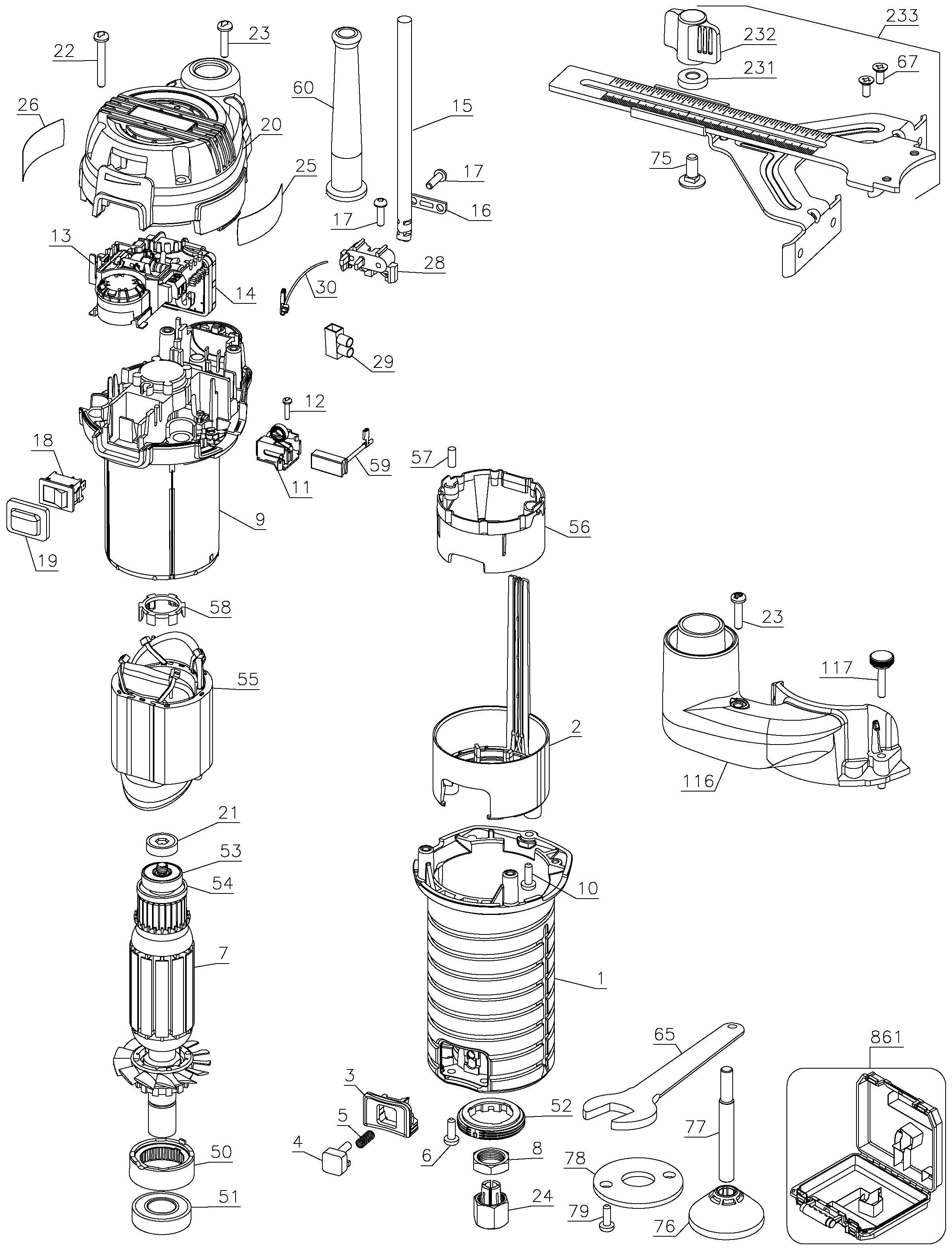

D26200 Palm Router Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | A26126SV | 1 | MOTOR HOUSING SA | INCL. BEARING | LX |  |
|
| 2 | N074107 | 1 | LED LIGHT | LX | |
||
| 3 | A26131 | 1 | INSERT | LX | |
||
| 4 | N038183 | 1 | LOCK BUTTON | LX | |
||
| 5 | A23489 | 1 | SPRING | LX | |
||
| 6 | 330065-06 | 2 | SCREW | LX | |
||
| 7 | A26132SV | 1 | ARMATURE & BRG | LX | |
||
| 8 | A25248 | 1 | NUT | LX | |
||
| 9 | A28680 | 1 | FIELDCASE | LX | |||
| 10 | 330065-07 | 1 | SCREW | LX | |
||
| 11 | A27345 | 2 | BRUSH HOLDER 120V | LX | |
||
| 12 | 330019-01 | 2 | SCREW.TEMP | M3.63 x 9.5mm T15 | LX | |
|
| 13 | N074136 | 1 | CONTROL MODULE SA | LX | |
||
| 14 | N074104 | 1 | CONTROL MODULE SA | GACC 115-120V | LX | |
|
| 15 | A28692 | 1 | CORDSET | LX | |
||
| 16 | 329301-00 | 1 | CORD CLAMP | LX | |
||
| 17 | 330019-02 | 3 | SCREW | LX | |
||
| 18 | 887453 | 1 | SWITCH | LX | |
||
| 19 | A29360 | 1 | SWITCH COVER | LX | |
||
| 20 | A28679 | 1 | END CAP | LX | |
||
| 21 | A27330 | 1 | MAGNET | LX | |
||
| 22 | 330045-09 | 2 | SCREW | M4x30 T20 MTLTHDFMG | LX | |
|
| 23 | 330065-08 | 3 | SCREW | M4x18 T20 | LX | |
|
| 24 | A24215SV | 1 | COLLET | W/NUT 1/4INCH | LX | |
|
| 25 | A29356 | 1 | RATING PLATE | LX | |
||
| 26 | A28464 | 1 | WARNING LABEL | LX | |
||
| 28 | A28476 | 1 | MOUNT | CORD CLAMP | LX | |
|
| 29 | 398100-00 | 1 | TERMINAL BLOCK | LX | |
||
| 30 | A29361 | 1 | LEAD SA | 171MM, BROWN, 18GA | LX | |
|
| 50 | A26125 | 1 | INSERT | FAN END BEARING | LX | |
|
| 51 | A27537 | 1 | BEARING | LX | |
||
| 52 | A25250 | 1 | NUT LH | LX | |
||
| 53 | N110359 | 1 | BEARING | LX | |
||
| 54 | A25585 | 1 | INSULATOR | LX | |
||
| 55 | A21119 | 1 | FIELD SA 115V | 120V | LX | |
|
| 56 | A23504 | 1 | BAFFLE | LX | |
||
| 57 | 949638-02 | 2 | DAMPER | LX | |
||
| 58 | A27937 | 1 | WASHER | PRELOAD | LX | |
|
| 59 | A27343 | 2 | BRUSH 120V | 120V | LX | |
|
| 60 | 330005-01 | 1 | CORD PROTECTOR | LX | |||
| 65 | A27895 | 1 | WRENCH SPECIAL | LX | |
||
| 67 | 945121-00 | 2 | SCREW.TEMP | LX | |
||
| 75 | 931405-00 | 1 | SCREW | LX | |
||
| 76 | A27315 | 1 | CONE | not included with unit | LX | |
|
| 77 | A27316 | 1 | PIN | not included with unit | LX | |
|
| 78 | 249014-01 | 1 | BUSH | not included with unit | LX | |
|
| 79 | 945121-00 | 2 | SCREW.TEMP | LX | |
||
| 100 | N032769SV | 1 | BASE SA | FIXED, D-SHAPE | LX |  |
|
| 102 | A28391 | 1 | SCALE | MICRO ADJUST | LX | |
|
| 104 | A24452 | 1 | PIN | LX | |
||
| 105 | A24764 | 1 | ADJUSTER | LX | |
||
| 106 | 330022-18 | 1 | SCREW | LX | |
||
| 107 | A24767 | 1 | PAD | LX | |
||
| 108 | A24771 | 1 | CLAMPING BAR | LX | |
||
| 109 | A24770 | 2 | PIN | LX | |
||
| 110 | A27362 | 1 | SPRING | LX | |
||
| 111 | A27941 | 1 | BASEPLATE | LX | |
||
| 112 | N029178 | 4 | SCREW | LX | |
||
| 113 | N028373 | 1 | RETAINER | LX | |
||
| 114 | N693104 | 1 | ADJUSTER HEIGHT | LX | |
||
| 115 | A28466 | 2 | IDENTITY LABEL | LX | |
||
| 116 | A28678SV | 1 | ADAPTOR | INCL. 23,117 | LX | |
|
| 117 | A27335 | 2 | THUMBSCREW | LX | |
||
| 203 | N042079 | 2 | PIN | LX | |
||
| 231 | N028927 | 1 | WASHER | LX | |
||
| 232 | 147107-00 | 1 | KNOB | LX | |
||
| 233 | N026733 | 1 | GUIDE SA | LX | |
||
| 861 | A28470 | 1 | KITBOX | not included with unit | LX | |
