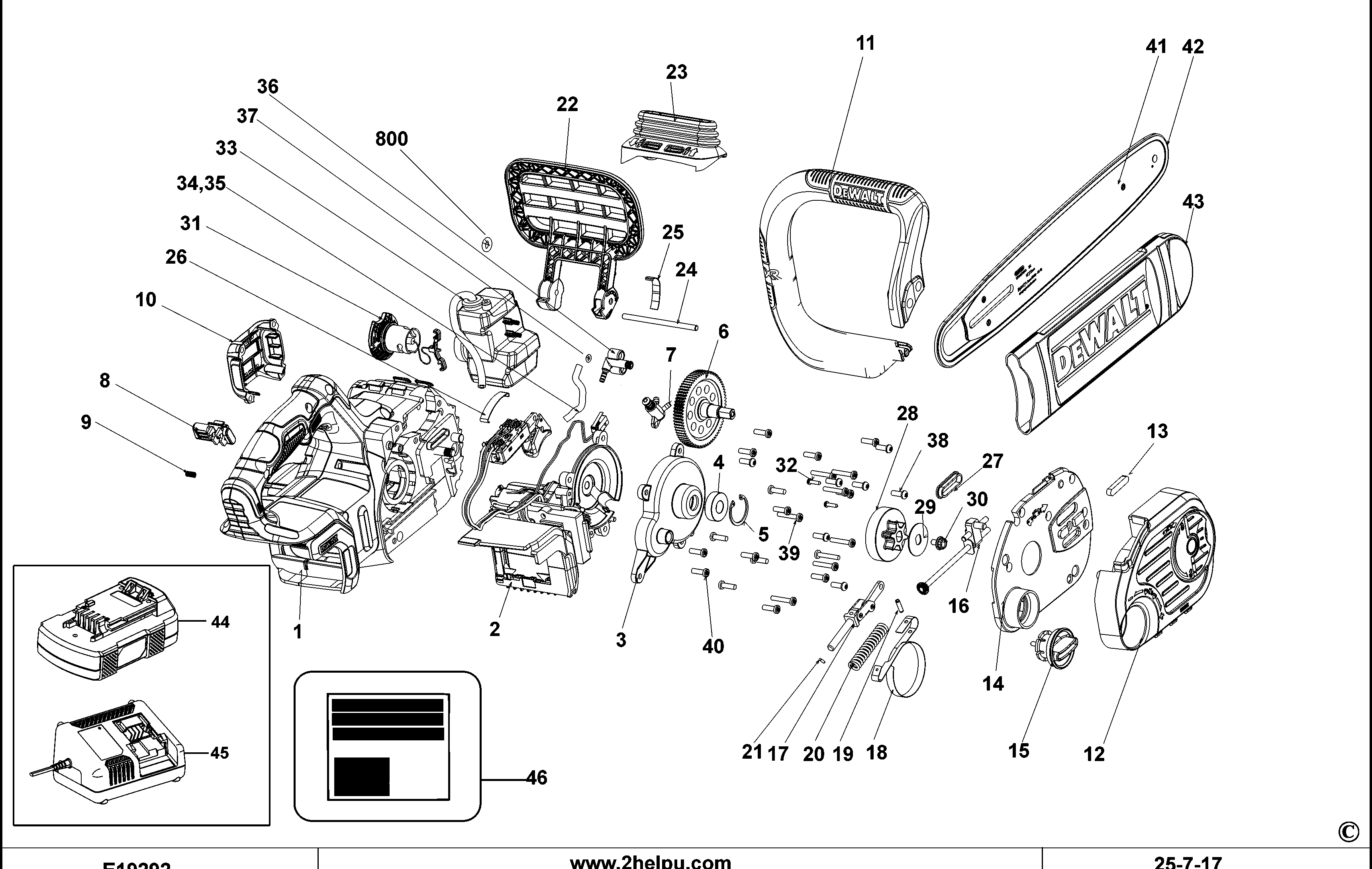

DCM565 CHAINSAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N496647 | 1 | HOUSING | GB | |||
| 2 | N539696 | 1 | MOTOR SA | GB |  |
||
| 3 | N503590 | 1 | GEARCASE COVER SA | GB | |
||
| 4 | N150961 | 1 | BEARING | GB | |
||
| 5 | 90551022 | 1 | RING | GB | |
||
| 6 | N539694 | 1 | OUTPUT SHAFT SA | GB | |
||
| 7 | 90624557 | 1 | PUMP SA | GB | |
||
| 8 | N503277 | 1 | BUTTON LOCK-OFF | GB | |
||
| 9 | N433343 | 1 | SPRING | GB | |
||
| 10 | N507146 | 1 | END CAP | GB | |
||
| 11 | N505189 | 1 | HANDLE | GB | |||
| 12 | N723753 | 1 | COVER | GB | |
||
| 13 | 90622086 | 1 | SEAL | GB | |
||
| 14 | 90609778 | 1 | COVER | GB | |
||
| 15 | N738912 | 1 | KNOB SA | GB | |
||
| 16 | 90626481 | 1 | ADJUSTER | CHAIN | GB | |
|
| 17 | N523178 | 1 | BRAKE | GB | |
||
| 18 | 90638025 | 1 | STRAP | GB | |
||
| 19 | 90627301 | 1 | SPIROL PIN | GB | |
||
| 20 | 90609777 | 1 | SPRING | GB | |
||
| 21 | 90594864 | 1 | PIN | GB | |
||
| 22 | 90609587 | 1 | GUARD | GB | |
||
| 23 | N507145 | 1 | SEAL | GB | |
||
| 24 | 90618528 | 1 | PIN | GB | |
||
| 25 | 90621730 | 1 | LEAF SPRING | GB | |
||
| 26 | 90622670 | 1 | LEAF SPRING | GB | |
||
| 27 | 90618051 | 1 | SEAL | GB | |
||
| 28 | 90618228 | 1 | SPROCKET | GB | |
||
| 29 | 90618229 | 1 | WASHER | GB | |
||
| 30 | 90639221 | 1 | BOLT | M5x8.5 LEFT-HAND | GB | |
|
| 31 | 90618141 | 1 | CAP | GB | |
||
| 32 | 330019-28 | 1 | SCREW | GB | |
||
| 33 | N539697 | 1 | TANK | GB | |
||
| 34 | 90609542 | 1 | TUBE | GB | |
||
| 35 | 90620845 | 1 | SPRING | GB | |
||
| 36 | 90104269 | 1 | PLUG | GB | |
||
| 37 | 90104270 | 1 | O RING | GB | |
||
| 38 | 330019-11 | 1 | SCREW | M4.55x13 T20 | GB | |
|
| 39 | 330019-14 | 1 | SCREW | GB | |
||
| 40 | 330019-12 | 1 | SCREW | GB | |
||
| 41 | N594322 | 1 | BAR | 30CM | GB | |
|
| 42 | N580237 | 1 | CHAIN 12" | GB | |
||
| 43 | N517988 | 1 | SHEATH | 30CM | GB | ||
| 44 | N394624 | 1 | BATTERY 18V - 5.0AH - 90WH | DCM565P1 | GB | |
|
| 45 | N450537 | 1 | CHARGER 10.8V - 18V | DCM565P1 | GB | |
|
| 46 | N520898 | 1 | RATING LABEL | GB | |
||
| 800 | 90618339 | 1 | O RING | GB | |
