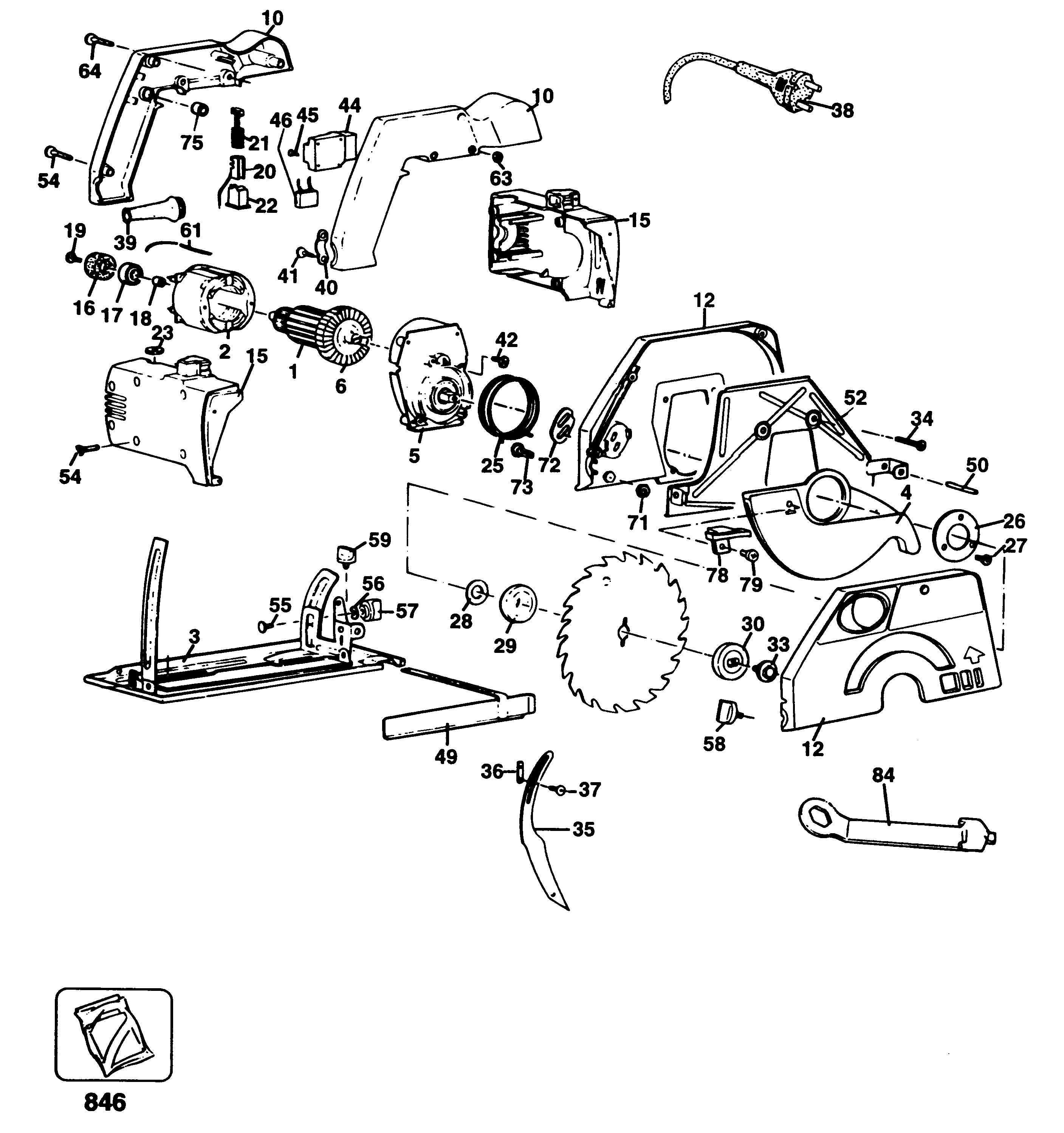

BD840 CIRC. SAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 943024-01 | 1 | SCREW | XJ |  |
||
| 2 | 879174 | 1 | FIELD | XJ | |
||
| 2 | 862217-92 | 1 | HOUSING | XJ |  |
||
| 3 | 879418-01 | 1 | SHOE | XJ | |
||
| 3 | 11711 | 1 | STRAP | XJ | |
||
| 4 | 323032 | 1 | GUARD | XJ | |
||
| 5 | 372854-49 | 1 | GEAR SA | XJ | |
||
| 6 | 324401-00 | 1 | FAN | XJ | |
||
| 6 | 11154 | 1 | SCREW | XJ | |
||
| 7 | 726325 | 1 | RIVET | XJ | |
||
| 9 | 375750-01 | 2 | BLADE SET | XJ | |
||
| 10 | 323056 | 1 | COVER SA | XJ | |
||
| 10 | 11709 | 1 | STRAP | XJ | |
||
| 12 | 374749-01 | 1 | GUARD SA | XJ | |
||
| 12 | 577850-01 | 8 | INTERSHAFT SA | XJ | |
||
| 13 | 132156 | 4 | BASE | XJ | |
||
| 14 | N110358 | 10 | BEARING | XJ | |
||
| 15 | 322941 | 1 | HOUSING SA | XJ | |
||
| 16 | 911897 | 1 | HOLDER | XJ | |
||
| 16 | 11725 | 4 | STRAP | XJ | |||
| 17 | 330003-31 | 1 | BEARING | XJ | |
||
| 18 | 918687 | 1 | SPACER | XJ | |||
| 18 | 11726 | 6 | STRAP | XJ | |||
| 19 | 911276 | 1 | SCREW | XJ | |
||
| 20 | 877898 | 2 | BRUSH HOLDER | XJ | |
||
| 21 | 915068-01 | 2 | BRUSH & SPRING | SINGULAR | XJ | |
|
| 21 | 477198-02 | 2 | SERVICE KIT 120V | XJ | |||
| 22 | 875735 | 2 | INSERT | XJ | |
||
| 22 | 11723 | 4 | STRAP | XJ | |
||
| 23 | 321345 | 2 | BRUSH CAP | XJ | |
||
| 23 | 449630-00 | 1 | SPACER | XJ | |||
| 25 | 914816 | 1 | SPRING | XJ | |
||
| 25 | 588696-01 | 3 | HOUSING HANDLE | DeWalt | XJ | ||
| 26 | 914632 | 1 | COVERPLATE | XJ | |||
| 26 | 862085-01 | 1 | GUARD | XJ | |
||
| 27 | 911216 | 3 | SCREW | XJ | |
||
| 27 | 861055-01 | 1 | FLANGE | XJ | |
||
| 28 | 910623 | 1 | WASHER | XJ | |
||
| 28 | 391908-00 | 2 | HOUSING | Clutch | XJ | |
|
| 29 | 918191 | 1 | FLANGE | XJ | |
||
| 29 | 862047-00 | 2 | NUT | XJ | |
||
| 30 | 872696 | 1 | FLANGE | XJ | |
||
| 30 | 610822-00 | 1 | MODULE | XJ | |
||
| 31 | 862127-00 | 1 | HOUSING | XJ | |
||
| 32 | 943172-02 | 1 | HANDLE SA | XJ | |
||
| 33 | 911760 | 1 | SCREW | XJ | |
||
| 34 | 324006-02 | 4 | SCREW | XJ | |
||
| 34 | 581642-00 | 1 | HOUSING | XJ | |
||
| 35 | 918486 | 1 | RIVING KNIFE | XJ | |
||
| 36 | 874649 | 1 | INSERT | XJ | |
||
| 37 | 322491 | 2 | SCREW | XJ | |
||
| 37 | 613234-00 | 1 | REAR LEG | XJ | |||
| 38 | 324438-07 | 1 | CORDSET (EURO) | XJ | |
||
| 39 | 916969 | 1 | PROTECTOR | XJ | |
||
| 40 | 910556 | 1 | CABLE CLAMP | XJ | |
||
| 41 | 894748 | 2 | O RING | XJ | |
||
| 41 | 621215-00 | 2 | HOUSING | XJ | |
||
| 42 | 324006-00 | 1 | SCREW | XJ | |
||
| 44 | 322001 | 1 | SWITCH | Lock-Off | XJ | |
|
| 45 | 911026 | 3 | SCREW | XJ | |
||
| 46 | 807285-01 | 1 | CAPACITOR | XJ | |
||
| 49 | 879420-01 | 1 | FENCE | XJ | |
||
| 50 | 918252 | 1 | PIN | XJ | |||
| 52 | 879725 | 1 | INSERT | XJ | |
||
| 54 | 911325 | 11 | SCREW | XJ | |
||
| 55 | 911353 | 1 | SCREW | XJ | |
||
| 56 | 330016-07 | 1 | WASHER | XJ | |
||
| 57 | 322078 | 1 | NUT WING | XJ | |
||
| 58 | 322079 | 1 | SCREW | XJ | |
||
| 59 | 322320 | 1 | KNOB | XJ | |
||
| 61 | 878846 | 2 | LEAD 360MM | XJ | |
||
| 63 | 322319 | 2 | NUT | XJ | |
||
| 64 | 322318 | 2 | SCREW | XJ | |
||
| 71 | 911041 | 1 | NUT | XJ | |
||
| 72 | 874650 | 1 | PLATE | XJ | |
||
| 73 | 372748-05 | 1 | SCREW | XJ | |
||
| 75 | 917650-01 | 1 | BLANK | XJ | |
||
| 78 | 322462 | 1 | LATCH | XJ | |
||
| 79 | 323253 | 1 | SCREW | XJ | |
||
| 84 | 913155 | 1 | SPANNER RING | XJ | |
||
| 846 | A5642 | 1 | ADAPTOR | XJ | |
