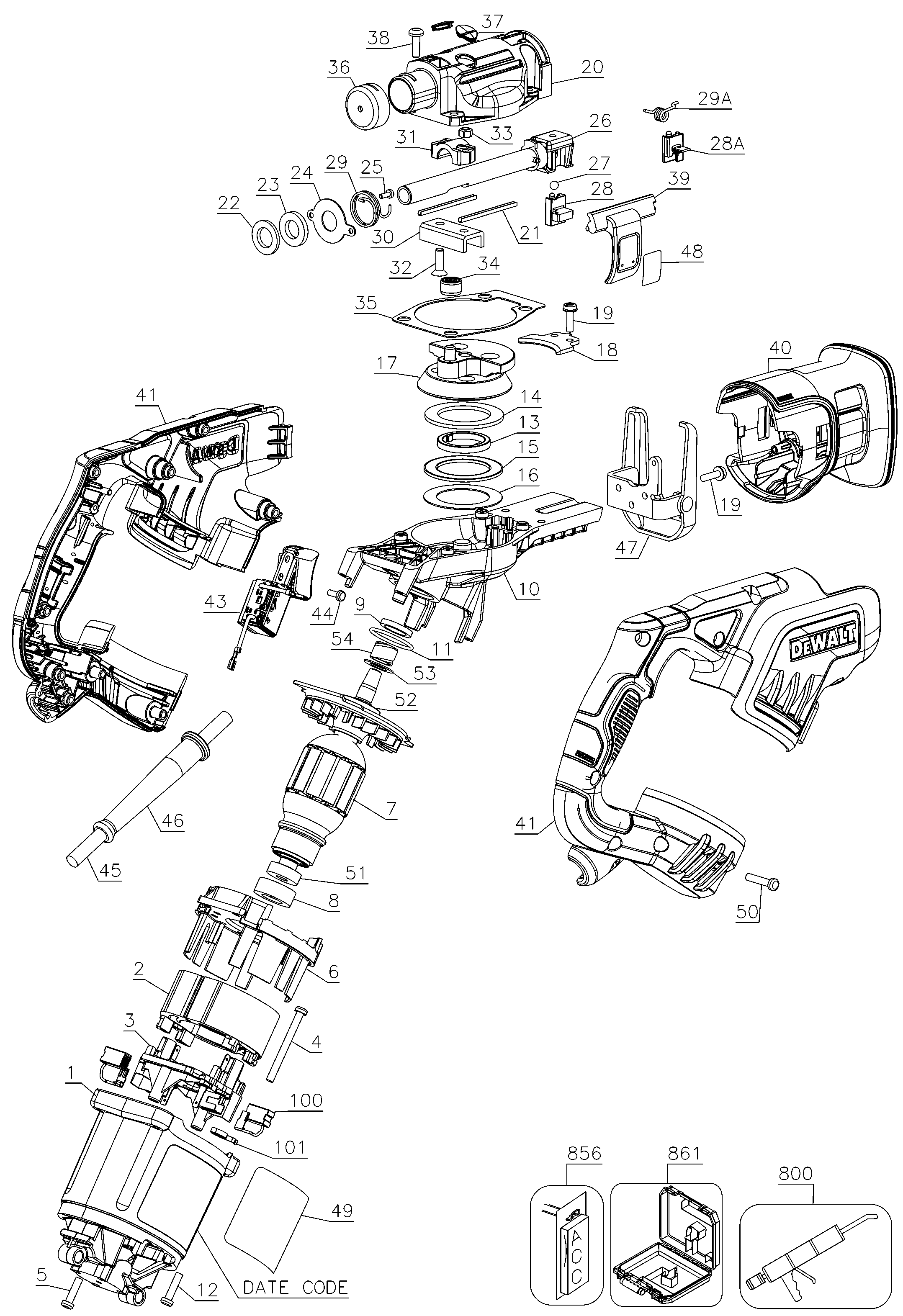

DWE357K CORDLESS RECIPROCATING SAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N115655 | 1 | FIELDCASE | LX |  |
||
| 2 | 448719-80SV | 1 | FIELD 115V | LX | |
||
| 3 | N159217 | 1 | BRUSH PLATE SA | PM818 | LX |  |
|
| 4 | 330019-18 | 2 | SCREW | M4.55 x 50 PLASTIC THD FMG | LX | |
|
| 5 | 330019-32 | 11 | SCREW | LX | |
||
| 6 | N115654 | 1 | BAFFLE FAN | LX | |
||
| 7 | N195824 | 1 | ARMATURE SA | LX | |
||
| 8 | 694432 | 1 | HOLDER BEARING | LX | |
||
| 9 | N143636 | 1 | FELT SEAL | LX | |
||
| 10 | N195818 | 1 | GEARCASE SA | PKG'D N115638 | LX | |
|
| 11 | N129171 | 1 | O RING | LX | |
||
| 12 | N130874 | 4 | SCREW | LX | |
||
| 13 | N143177 | 1 | SPACER | LX | |
||
| 14 | N124072 | 1 | WASHER THRUST | LX | |
||
| 15 | N115646 | 1 | THRUST BEARING | LX | |
||
| 16 | N115647 | 1 | WASHER THRUST | LX | |
||
| 17 | N195823 | 1 | GEAR SA | PKG'D N115643 | LX | |
|
| 18 | N115642 | 1 | THRUST PLATE | LX | |
||
| 19 | 142940-00 | 5 | SCREW | LX | |
||
| 20 | N195829 | 1 | GEARCASE COVER SA | LX | |
||
| 21 | 621979-00 | 2 | STRIP | LX | |
||
| 22 | 618733-00 | 1 | SEAL | LX | |
||
| 23 | 618477-00 | 1 | FELT SEAL | LX | |
||
| 24 | N020720 | 1 | COVERPLATE | LX | |
||
| 25 | 330045-43 | 1 | SCREW | LX | |
||
| 26 | N026647 | 1 | SHAFT SA | Includes 27, 28, 29, 30, 32 | LX | |
|
| 27 | 000903-00 | 1 | BALL | LX | |
||
| 28 | 622647-00 | 1 | SLIDER | LX | |
||
| 28 | N252639 | 1 | SLIDER | After 201609 | LX | |
|
| 29 | 622659-00 | 1 | SPRING TORSION | LX | |
||
| 29 | N426742 | 1 | SPRING | After 201609 | LX | |
|
| 30 | 658115-00 | 1 | YOKE | LX | |
||
| 31 | 617000-00 | 1 | SADDLE | LX | |
||
| 32 | 622486-00 | 2 | SCREW | M5x 17 mm T20 HD | LX | |
|
| 33 | 622485-00 | 2 | LOCK NUT | LX | |
||
| 34 | N021857 | 1 | BEARING | LX | |
||
| 35 | N115641 | 1 | GASKET | LX | |
||
| 36 | N115637 | 1 | CAP | LX | |
||
| 37 | N131037 | 2 | COVER | LX | |
||
| 38 | 144457-02 | 4 | SCREW | LX | |
||
| 39 | N115631 | 1 | LEVER SA | LX | |
||
| 40 | N115626 | 1 | BOOT | LX | |
||
| 41 | N115623 | 1 | CLAMSHELL SET | LX | |
||
| 43 | N054930SV | 1 | SWITCH SA | LX | |
||
| 44 | 330019-01 | 1 | SCREW.TEMP | M3.63 x 9.5mm T15 | LX | |
|
| 45 | N130272 | 1 | CORDSET | LX | |
||
| 46 | 330005-01 | 1 | CORD PROTECTOR | LX | |||
| 47 | N226256 | 1 | SHOE SA | LX | |
||
| 48 | N145237 | 1 | LABEL | BLADE RELEASE | LX | |
|
| 49 | N132588 | 1 | RATING PLATE | LX | |
||
| 50 | 330019-13 | 9 | SCREW | M4X19 T20 | LX | |
|
| 51 | 330003-05 | 1 | BEARING | LX | |||
| 52 | 605040-20 | 1 | BEARING | 12 x 28 x 8mm | LX | |
|
| 53 | N166858 | 1 | WASHER FELT | LX | |
||
| 54 | N172838 | 1 | COLLAR | LX | |
||
| 100 | 384719-01 | 2 | BRUSH 115V | LX | |
||
| 101 | 383387-00 | 2 | BRUSH SPRING | LX | |
||
| 800 | 286436-00 | 1 | GREASE | NYE RHEOLUBE 380, 500 GRAM JAR | LX | |
|
| 856 | 384428-03 | 1 | BLADE PACK | DW4876 | Not Supplied | LX | |
| 861 | N152704 | 1 | KITBOX | LX | |
