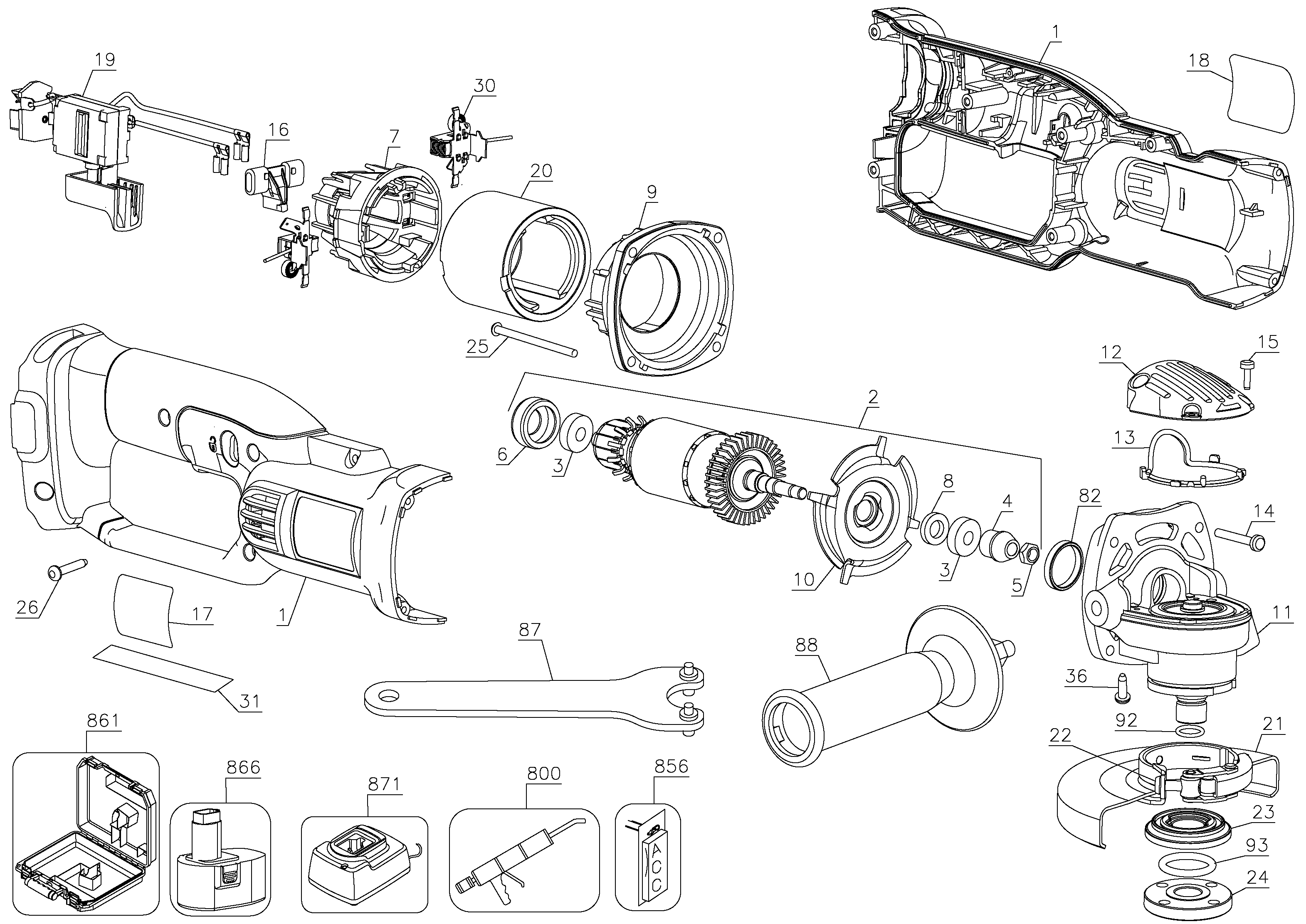

DC411 SMALL ANGLE GRINDER Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 640879-00 | 1 | CLAMSHELL SET | Housing 18 volt | XJ |  |
|
| 2 | 652479-00SV | 1 | ARMATURE SA | Incl. 3,4,5,6,8,10 | XJ | |
|
| 3 | N110359 | 2 | BEARING | XJ |  |
||
| 4 | 623564-00 | 1 | PINION | 9 TOOTH | XJ | |
|
| 5 | 604484-00 | 1 | NUT | XJ | |
||
| 6 | 631563-00 | 1 | BOOT | XJ | |
||
| 7 | N171820 | 1 | SUPPORT BEARING | XJ | |
||
| 8 | 623617-00 | 1 | FELT SEAL | XJ | |
||
| 9 | N027986 | 1 | BAFFLE FAN | XJ | |
||
| 10 | N422242 | 1 | RETAINER | XJ | |
||
| 11 | N042060SV | 1 | GEARCASE SA | M14 SPINDLE | XJ | ||
| 12 | 623562-00 | 1 | GEARCASE COVER | XJ | |
||
| 13 | 623618-00 | 1 | GASKET | XJ | |
||
| 14 | 330065-13 | 4 | SCREW | XJ | |
||
| 15 | 385676-01 | 4 | SCREW | XJ | |
||
| 16 | 646976-00 | 1 | BUTTON LOCK-OFF | XJ | |
||
| 17 | N104719 | 1 | RATING LABEL | DC411 TY2 EURO | XJ | ||
| 18 | 646006-00 | 1 | IDENTITY LABEL | XJ | |
||
| 19 | 650920-01 | 1 | SWITCH SA | XJ | |
||
| 20 | 611202-00SV | 1 | MAGNET | XJ | |
||
| 21 | N039878 | 1 | GUARD SA | 125MM, KEYLESS | XJ | |
|
| 22 | 631609-02 | 1 | SCREW | M5x16 SPECIAL | XJ | |
|
| 23 | 633257-00SV | 1 | INNER FLANGE SA | INCL. 93 | XJ | |
|
| 24 | 622613-02 | 1 | OUTER FLANGE | M14 | M14 | XJ | |
| 25 | 330019-25 | 2 | SCREW | XJ | |
||
| 26 | 330019-04 | 6 | SCREW | XJ | |
||
| 30 | 610126-00 | 2 | BRUSHBOX SA | XJ | |
||
| 31 | 655484-00 | 1 | WARNING LABEL | READ MANUAL | XJ | |
|
| 36 | N033051 | 1 | SCREW | XJ | |
||
| 82 | 611492-00 | 1 | SLEEVE | XJ | |
||
| 87 | 401680-00 | 1 | WRENCH | XJ | |
||
| 88 | N239381 | 1 | SIDE HANDLE | XJ | |||
| 92 | 633045-00 | 1 | O RING | 9.19x2.62 | XJ | |
|
| 93 | 633043-00 | 1 | O RING | 20.5x2.4 | XJ | |
|
| 800 | 761995-01 | 1 | GREASE | 180 Grams | XJ | ||
| 800 | 283484-01 | 1 | GREASE | 32oz, EXXON CVJ | XJ | ||
| 856 | 651278-09 | 1 | GRINDING WHEEL | DW8062 | XJ | ||
| 861 | 647578-00 | 1 | KITBOX | not supplied w/unit | XJ | |
|
| 866 | DE9096 | 1 | BATTERY 18V - 2.4AH | Ni-Cad | not supplied w/unit | XJ | |
| 871 | DE9116 | 1 | CHARGER 7.2V - 18V | Ni-Cad - NiMH - 1 hr | not supplied w/unit | XJ |
