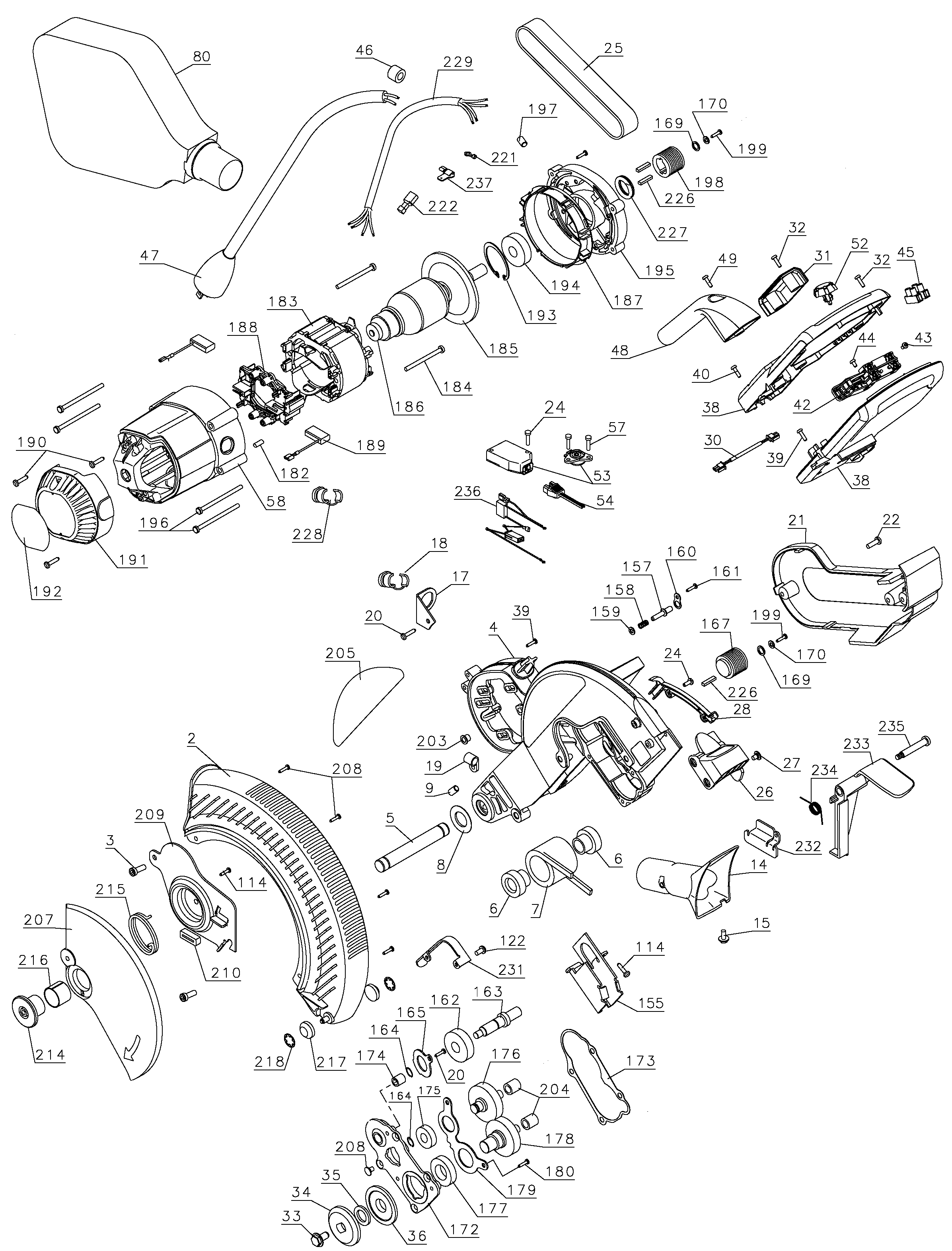

DW716 MITER SAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 626389-01SV | 1 | BASE ASSEMBLY | GB | |||
| 2 | 618231-01 | 1 | GUARD LOWER | GB |  |
||
| 3 | 394589-01 | 2 | SCREW | GB | |
||
| 4 | 626402-01SV | 1 | ARM | GB | |||
| 5 | 146751-00 | 1 | SHAFT | GB | |
||
| 6 | 146732-00 | 2 | SPACER | GB | |
||
| 7 | N039405 | 1 | SPRING TORSION | ARM | GB |  |
|
| 8 | 148296-00 | 2 | WASHER | GB | |
||
| 9 | 150075-00 | 2 | SCREW | GB | |
||
| 10 | 385756-01 | 1 | BUSH | GB | |
||
| 11 | 330045-32 | 1 | SCREW | M8x1.25x20 MTLTHDFMG | GB | |
|
| 12 | 387130-00 | 1 | LOCKING PIN | GB | |
||
| 13 | 034158-00 | 1 | O RING | GB | |
||
| 14 | 391336-00 | 1 | DUST DEFLECTOR | GB | |
||
| 15 | 153460-00 | 1 | SCREW | GB | |
||
| 17 | 394643-00 | 1 | BRACKET | GB | |
||
| 18 | 33821-00 | 1 | BUSHING | GB | |
||
| 19 | 398443-00 | 1 | CABLE CLAMP | GB | |
||
| 20 | 330045-49 | 3 | SCREW | GB | |
||
| 21 | 623355-00 | 1 | BELT COVER | GB | |
||
| 22 | 330045-14 | 3 | SCREW | GB | |
||
| 23 | 146726-02 | 1 | PLATE | GB | |
||
| 24 | 330045-05 | 14 | SCREW | GB | |
||
| 25 | 153555-00 | 1 | BELT | GB | |
||
| 26 | N026930 | 1 | COVER | LASER CAVITY | GB | |
|
| 27 | 385915-02 | 4 | SCREW | GB | |
||
| 28 | 618269-00 | 1 | COVER | LASER WIRE | GB | |
|
| 30 | N467585 | 1 | CABLE SA | CORD, LASER | GB | |
|
| 31 | 618270-00 | 1 | COVER | HANDLE CAVITY | GB | |
|
| 32 | 330019-32 | 5 | SCREW | GB | |
||
| 33 | 145344-01 | 1 | BLADE BOLT | M8 X 20 LH | GB | |
|
| 34 | 604765-00 | 1 | CLAMP OUTER | GB | |
||
| 35 | 604770-00 | 1 | ADAPTOR | GB | |
||
| 36 | 645000-00 | 1 | WASHER INNER CLAMP | GB | |
||
| 38 | 624730-00 | 1 | HANDLE SA | GB | |
||
| 39 | 330045-15 | 7 | SCREW | GB | |
||
| 40 | 330045-18 | 4 | SCREW | GB | |
||
| 42 | 606056-00 | 1 | SWITCH | GB | |||
| 43 | 384127-01 | 4 | SCREW | GB | |
||
| 44 | 330019-12 | 1 | SCREW | GB | |
||
| 45 | 393520-00 | 1 | TERMINAL BLOCK | GB | |
||
| 46 | 388414-01 | 1 | BUSH | GB | |
||
| 47 | 330060-91 | 1 | CORDSET | 230V GB | GB | |
|
| 48 | N083060 | 1 | HANDLE | GB | |
||
| 49 | 330019-22 | 1 | SCREW | M5.74x32 | GB | |
|
| 58 | 391317-00 | 1 | FIELDCASE | GB | |
||
| 80 | 147734-06 | 1 | DUSTBAG | GB | |
||
| 102 | 098025-35 | 1 | SCREW | M8x1.25x35 HEX | GB | |
|
| 103 | N044739 | 1 | LOCK NUT | GB | |
||
| 104 | 153792-00 | 2 | WASHER | GB | |
||
| 106 | 391292-01 | 1 | DETENT | GB | |
||
| 107 | 604410-00 | 3 | SCREW | GB | |
||
| 108 | 391353-00 | 1 | PLATE | GB | |||
| 109 | 608563-01 | 1 | WRENCH SPECIAL | M13 - T30 | GB | |
|
| 110 | 391358-01 | 1 | HOLDER | GB | |
||
| 111 | 330045-06 | 1 | SCREW | GB | |
||
| 112 | 636305-00 | 1 | TABLE | GB | |||
| 113 | N173259 | 1 | SPRING | GB | |
||
| 114 | 330045-23 | 8 | SCREW | GB | |
||
| 115 | 148611-00 | 1 | COVER | GB | |
||
| 116 | 398693-00 | 1 | POINTER | GB | |
||
| 118 | 649430-00 | 1 | LEVER LOCK | MITER | GB | |
|
| 119 | 5140063-30 | 1 | COLLAR KIT | 2 pc collar | set screw not used with 2 pc collar | GB | |
| 120 | 5140110-47 | 1 | SET SCREW | 10-32X1/2 CUPPT BRAS | GB | ||
| 121 | 630693-00 | 1 | PLATE | MITER CLAMP | GB | |
|
| 122 | 330045-13 | 6 | SCREW | M5x0.8x10 MTL THDFMG | GB | |
|
| 123 | 626610-00 | 1 | ROD | GB | |
||
| 124 | 626611-00 | 1 | PIN | GB | |
||
| 125 | 058698-00 | 1 | SPRING | GB | |
||
| 126 | 330016-03 | 1 | WASHER | GB | |
||
| 128 | 391347-00 | 2 | PAWL | GB | |
||
| 129 | 153655-00 | 2 | WASHER | GB | |
||
| 130 | 153639-00 | 2 | SCREW | GB | |
||
| 131 | 153797-01 | 2 | SCREW | HEX HD 5/16-18x30mm | GB | |
|
| 132 | 153797-02 | 1 | SCREW | HEX HD 5/16-18x57mm | GB | |
|
| 133 | 146760-02 | 1 | STUD | GB | |
||
| 135 | 391345-00 | 1 | POINTER | GB | |
||
| 136 | 393570-00 | 1 | DUST DEFLECTOR | GB | |
||
| 137 | 330045-55 | 3 | SCREW | M5x55 MTL THD FMG | GB | |
|
| 138 | 049787-00 | 1 | O RING | GB | |
||
| 139 | 626395-01 | 1 | FENCE | BASE | GB | |
|
| 140 | 626396-04SV | 1 | FENCE LH | GB | |
||
| 141 | 626397-03SV | 1 | RIGHT FENCE | GB | |||
| 142 | 147107-02 | 2 | KNOB LOWER | GB | |
||
| 143 | 098105-03 | 4 | SCREW | GB | |
||
| 144 | 5140103-70 | 1 | TRUNION | GB | |
||
| 145 | 330045-33 | 1 | SCREW | GB | |
||
| 146 | 330016-04 | 1 | WASHER | GB | |
||
| 147 | N056883 | 1 | LOCK HANDLE | GB | |
||
| 148 | 391350-00 | 2 | STOP PLATE | GB | |
||
| 149 | 391346-00 | 2 | SCREW | GB | |
||
| 150 | 391348-00 | 1 | PIN | GB | |
||
| 151 | 167785-00 | 1 | SPRING | GB | |
||
| 152 | 391349-00 | 1 | KNOB | GB | |
||
| 153 | 060325-01 | 1 | RING | GB | |
||
| 154 | 629175-00 | 1 | PLATE | MITER GUIDE | GB | |
|
| 155 | 618190-00 | 1 | GUARD REAR | GB | |
||
| 157 | 153561-00 | 1 | LOCKING PIN | GB | |
||
| 158 | 448176-00 | 1 | SPRING | GB | |
||
| 159 | 153559-00 | 1 | WASHER | GB | |
||
| 160 | 393071-00 | 1 | PLATE | GB | |
||
| 161 | 330045-45 | 1 | SCREW | GB | |
||
| 162 | 605040-33 | 1 | BEARING | GB | |
||
| 163 | N105443 | 1 | PULLEY SA | inc 33,35 | GB | |
|
| 164 | 153752-00 | 2 | RETAINER | GB | |
||
| 165 | 618244-00 | 1 | RETAINING PLATE | GB | |
||
| 167 | 153796-00 | 1 | PULLEY | GB | |
||
| 169 | 153782-00 | 2 | WASHER | GB | |
||
| 170 | 098198-05 | 2 | WASHER | LOCK, M6 | GB | |
|
| 172 | 393935-01SV | 1 | GR CASE CVR ASY | INCL 174 | GB | ||
| 173 | 391315-00 | 1 | GASKET | GB | |
||
| 174 | 391616-00 | 1 | BEARING NEEDLE | GB | |
||
| 175 | 605040-20 | 1 | BEARING | 12 x 28 x 8mm | GB | |
|
| 176 | 393703-00SV | 1 | GEAR SA | GB | |||
| 177 | 330003-66 | 1 | BEARING,BALL | GB | |
||
| 178 | 393702-00SV | 1 | SPINDLE & GEAR | GB | |
||
| 179 | 391310-00 | 1 | BEARING PLATE | GB | |
||
| 180 | 098094-13 | 3 | SCREW | M5 x 13mm, Pan Hd | GB | |
|
| 182 | 145312-00 | 1 | PLUG | GB | |
||
| 183 | 391318-01SV | 1 | FIELD | 230V | GB | |
|
| 184 | 330019-19 | 2 | SCREW | GB | |
||
| 185 | N093107 | 1 | ARMATURE 230V | inc 48,149,150,160 | GB | |
|
| 186 | N110359 | 1 | BEARING | GB | |
||
| 187 | 391375-00 | 1 | BAFFLE FAN | GB | |
||
| 188 | 389512-01 | 1 | BRUSH PLATE | GB | |
||
| 189 | 381028-08 | 2 | BRUSH & LEAD | GB | |
||
| 190 | 330019-13 | 4 | SCREW | M4X19 T20 | GB | |
|
| 191 | 391933-01 | 1 | END CAP | GB | |
||
| 192 | 391325-00 | 1 | IDENTITY LABEL | GB | |
||
| 193 | 144803-00 | 1 | CIRCLIP | GB | |
||
| 194 | N127530 | 1 | BEARING BALL | GB | |||
| 195 | 391282-00 | 1 | MOUNTING BRACKET | GB | |
||
| 196 | 98094-55 | 4 | SCREW | M5 X 55mm T25 | GB | |
|
| 197 | 394034-00 | 1 | SCREW | GB | |
||
| 198 | 153554-00 | 1 | DRIVE PULLEY | GB | |
||
| 199 | 153778-00 | 2 | SCREW | M6x20, NYLON PATCH | GB | |
|
| 200 | 394976-00 | 2 | LABEL | WARNING | GB | |
|
| 202 | 395301-00 | 2 | LABEL | GB | |||
| 203 | 148608-00 | 2 | INSERT | GB | |
||
| 204 | 386780-00 | 2 | BEARING | GB | |
||
| 205 | 393706-00 | 1 | LABEL | GB | |
||
| 207 | N020603 | 1 | GUARD PLATE | GB | |
||
| 208 | 385915-01 | 8 | SCREW | GB | |
||
| 209 | 621037-00 | 1 | PLATE | GB | |
||
| 210 | 146768-00 | 1 | BUMPER | GB | |
||
| 211 | 391314-00 | 1 | LINK | GB | |
||
| 212 | 146740-01 | 1 | BUSH | GB | |
||
| 214 | 146750-03 | 1 | RETAINING PLATE | GB | |
||
| 215 | N034013 | 1 | SPRING | GB | |
||
| 216 | 148295-00 | 1 | SLEEVE | GB | |
||
| 217 | 625825-00 | 2 | ROLLER | GB | |
||
| 218 | 142273-00 | 2 | RING | GB | |
||
| 221 | 395716-00 | 4 | TERMINAL | RING | GB | |
|
| 222 | 450212-00 | 1 | TERMINAL | GB | |
||
| 226 | 153638-00 | 3 | KEY | GB | |
||
| 227 | 153783-00 | 1 | RING | GB | |
||
| 228 | 605155-00 | 1 | BUSHING | GB | |
||
| 229 | 618276-00 | 1 | MOTOR CABLE | GB | |
||
| 230 | 391355-00 | 1 | COVER | GB | |
||
| 231 | 623957-00 | 1 | GUARD | GB | |
||
| 232 | 393791-00 | 1 | PLATE | GB | |
||
| 233 | 391925-00 | 1 | LEVER LOCK | GB | |
||
| 234 | 386196-00 | 1 | SPRING | GB | |
||
| 235 | 152852-00 | 1 | BOLT | GB | |
||
| 236 | 618159-01 | 1 | LEAD SA | LASER POWER SUPPLY | GB | |
|
| 237 | 145332-00 | 4 | TERMINAL | GB | |
||
| 800 | 93488-00 | 1 | GREASE | GB | |
||
| 800 | 429698-00 | 1 | GREASE | BD-L 2 | GB | |
