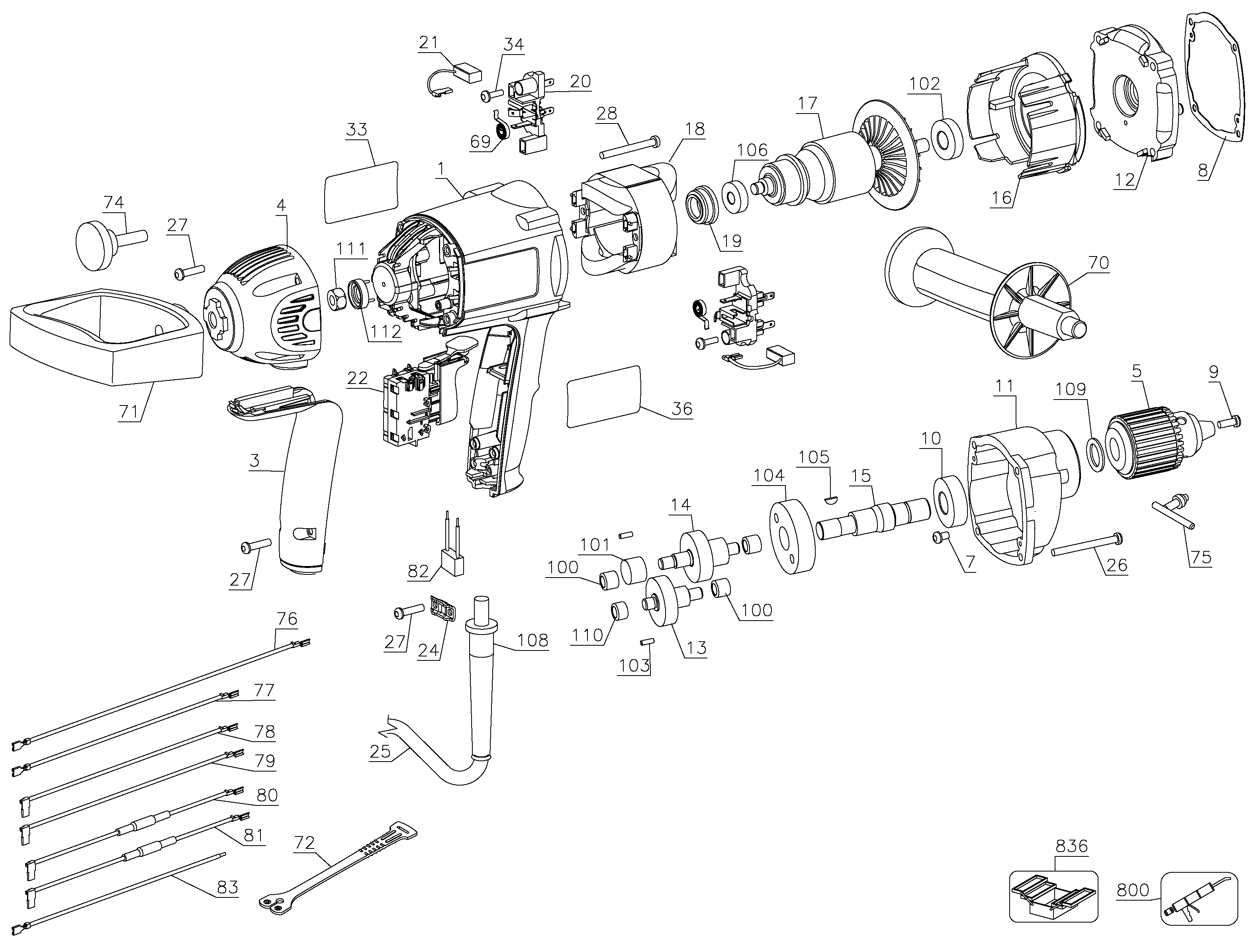

D21520 MUD MIXER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 616828-06 | 1 | FIELDCASE | GB |  |
||
| 3 | 624114-00 | 1 | HANDLE COVER | GB | |
||
| 4 | 622397-01 | 1 | END CAP | GB | |
||
| 5 | 135514-00 | 1 | CHUCK | NPP | GB | ||
| 7 | 052819-00 | 2 | SCREW | GB | |
||
| 8 | 450485-00 | 1 | GASKET | GB | |
||
| 9 | 447735-02 | 1 | SCREW | GB | |
||
| 10 | 605040-25 | 1 | BEARING,BALL | GB | |
||
| 11 | N763396 | 1 | GEARCASE SA | INCL 100 | GB |  |
|
| 12 | 623442-00 | 1 | GEARCASE COVER SA | INCL 100-103,110 | GB | |
|
| 13 | 449486-00SV | 1 | GEAR & PINION | GB | |
||
| 14 | 449489-00SV | 1 | GEAR & SPINDLE | GB | |
||
| 15 | 147195-00 | 1 | SPINDLE | 5/8 - 16 THD | GB | |
|
| 16 | 655537-00 | 1 | BAFFLE FAN | GB | |
||
| 17 | 658752-01SV | 1 | ARMATURE 230V | GB | |
||
| 18 | 624841-01SV | 1 | FIELD 230V | GB | |
||
| 19 | 445217-02 | 1 | SLEEVE | GB | |
||
| 20 | 616857-00 | 2 | BRUSH HOLDER | GB | |
||
| 21 | 617848-03 | 2 | BRUSH 230V | GB | |
||
| 22 | 625228-00 | 1 | SWITCH SA | GB | |
||
| 24 | 450877-00 | 1 | CORD CLAMP | GB | |
||
| 25 | 330060-44 | 1 | CORDSET (M/PLUG) | GB | |
||
| 26 | 330019-30 | 4 | SCREW | GB | |
||
| 27 | 330019-13 | 8 | SCREW | M4X19 T20 | GB | |
|
| 28 | 330019-17 | 2 | SCREW | GB | |
||
| 33 | 605523-00 | 1 | IDENTITY LABEL | GB | |
||
| 34 | 176951-00 | 2 | SCREW | GB | |
||
| 36 | N031221 | 1 | RATING PLATE | D21520-GB TY1 | GB | |
|
| 69 | 383387-00 | 2 | BRUSH SPRING | GB | |
||
| 70 | 625712-00 | 1 | SIDE HANDLE | GB | |
||
| 71 | 628037-00 | 1 | HANDLE | GB | |
||
| 72 | 065288-01 | 1 | HOLDER CHUCK KEY | GB | |
||
| 74 | 382531-00 | 1 | KNOB | GB | |
||
| 75 | 330034-03 | 1 | CHUCK KEY | GB | |
||
| 76 | 616852-00 | 1 | LEAD BLUE | BLUE | GB | |
|
| 77 | 616852-01 | 1 | LEAD WHITE | WHITE | GB | |
|
| 78 | 616852-07 | 1 | LEAD RED | RED, 185MM | GB | |
|
| 79 | 616852-06 | 1 | LEAD SA | GREEN, 135MM | GB | |
|
| 80 | 616853-00 | 1 | CHOKE LEAD BLACK | BLACK | GB | |
|
| 81 | 616853-01 | 1 | CHOKE LEAD RED | RED | GB | |
|
| 82 | 628531-00 | 1 | CAPACITOR | GB | |
||
| 100 | 330004-02 | 3 | BEARING NEEDLE | GB | |
||
| 101 | 135937-00 | 1 | BEARING | GB | |
||
| 102 | 605040-20 | 1 | BEARING | 12 x 28 x 8mm | GB | |
|
| 103 | 091286-00 | 2 | PIN | GB | |||
| 104 | 400147-00 | 1 | GEAR | GB | |
||
| 105 | 007027-00 | 1 | KEY | GB | |
||
| 106 | 330003-04 | 1 | BEARING | GB | |||
| 108 | 330005-01 | 1 | CORD PROTECTOR | GB | |||
| 109 | 147196-00 | 1 | WASHER | GB | |
||
| 110 | 330004-27 | 1 | BEARING,NEEDLE | GB | |
||
| 111 | 99371-06 | 1 | NUT | GB | |
||
| 112 | 623785-00 | 1 | CAP | GB | |
||
| 800 | 429698-00 | 1 | GREASE | BD-L 2 | GB | |
|
| 836 | 233804-33 | 1 | S.T.PRESS | 626572-00 | FOR FAN END BRG. | GB |
