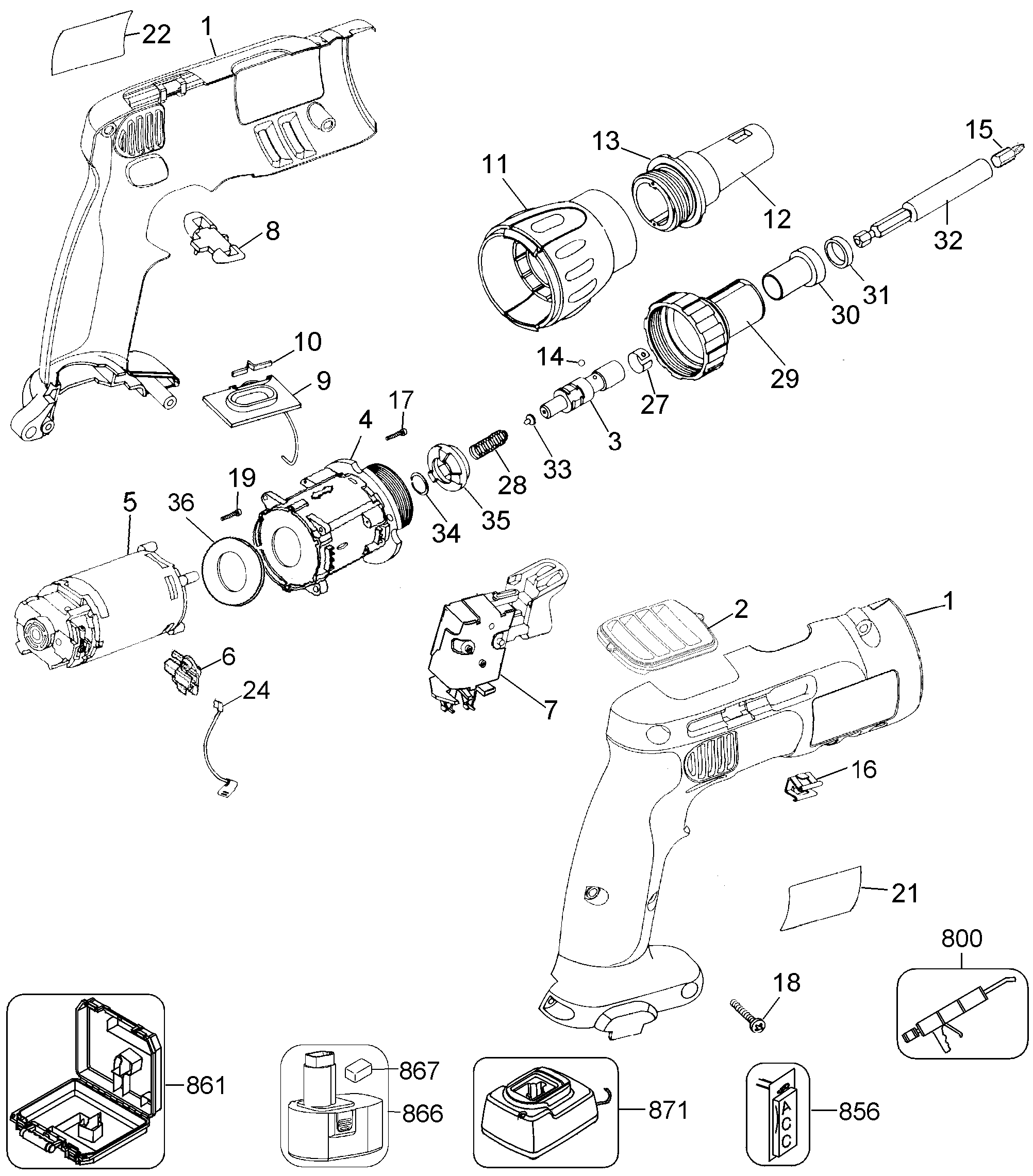

DC520N 18V DRYWALL SCREWDRIVER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 151791-21 | 1 | CLAMSHELL PAIR | XJ |  |
||
| 2 | 151681-04 | 1 | VENT | XJ | |
||
| 3 | N278979 | 1 | SPINDLE | INC 14, 27 | XJ | |
|
| 4 | 152576-00SV | 1 | TRANSMISSION SA | XJ | |
||
| 5 | 606004-11SV | 1 | MOTOR & PINION | XJ | |||
| 6 | 603754-01 | 2 | BRUSH & HOLDER | XJ | |||
| 7 | 152274-19SV | 1 | SWITCH | XJ | |
||
| 8 | 151678-00 | 1 | BUTTON | XJ | |
||
| 9 | 150939-01 | 1 | ACTUATOR | XJ | |
||
| 10 | 144658-00 | 1 | SPRING | XJ | |
||
| 11 | 151225-00 | 1 | COLLAR | XJ | |
||
| 12 | 448862-00 | 1 | LOCATOR | 3/8 Nut Runner | 9/16" DIAMETER | XJ |  |
| 12 | 450770-01SV | 1 | LOCATOR | 1/2" DIAMETER | XJ | ||
| 13 | 449890-00 | 1 | SEAL | XJ | |
||
| 14 | 696631-00 | 1 | BALL | XJ | |
||
| 15 | 607904-22 | 1 | BIT SCREWDRIVER | DRYWALL PR2 | XJ | |
|
| 16 | 148354-03 | 2 | HOLDER | XJ | |
||
| 17 | 330019-00 | 4 | SCREW | M3x16 T10 PLASTITE | XJ | |
|
| 18 | 330019-04 | 7 | SCREW | XJ | |
||
| 19 | 098091-10 | 4 | SCREW | XJ | |
||
| 21 | 634605-00 | 1 | RATING PLATE | DC520N-XJ Type 1 | XJ | ||
| 22 | 395657-00 | 1 | BRAND LABEL | XJ | |
||
| 24 | N180562 | 1 | LEAD SA | w/EMI Beads | XJ | |
|
| 27 | 094518-00 | 1 | RETAINER | XJ | |
||
| 28 | 086211-00 | 1 | SPRING | XJ | |
||
| 28 | 86211-00 | 1 | SPRING | XJ | |||
| 29 | 448859-05 | 1 | HOUSING | INC 30, 31 | XJ | |
|
| 30 | 450907-00 | 1 | SLEEVE | XJ | |
||
| 31 | 696534-00 | 1 | SEAL | XJ | |
||
| 32 | N449701 | 1 | HOLDER BIT | XJ | |
||
| 33 | 021287-00 | 1 | GUIDE | XJ | |
||
| 34 | 089210-00 | 1 | RETAINER | XJ | |
||
| 35 | N737329 | 1 | CLUTCH | XJ | |
||
| 35 | 603478-00 | 1 | CLUTCH | XJ | |||
| 36 | 152482-00 | 1 | SEAL | XJ | |
||
| 800 | N017298 | 1 | GREASE | G-2008 Molykote | 1-LB | XJ | |
