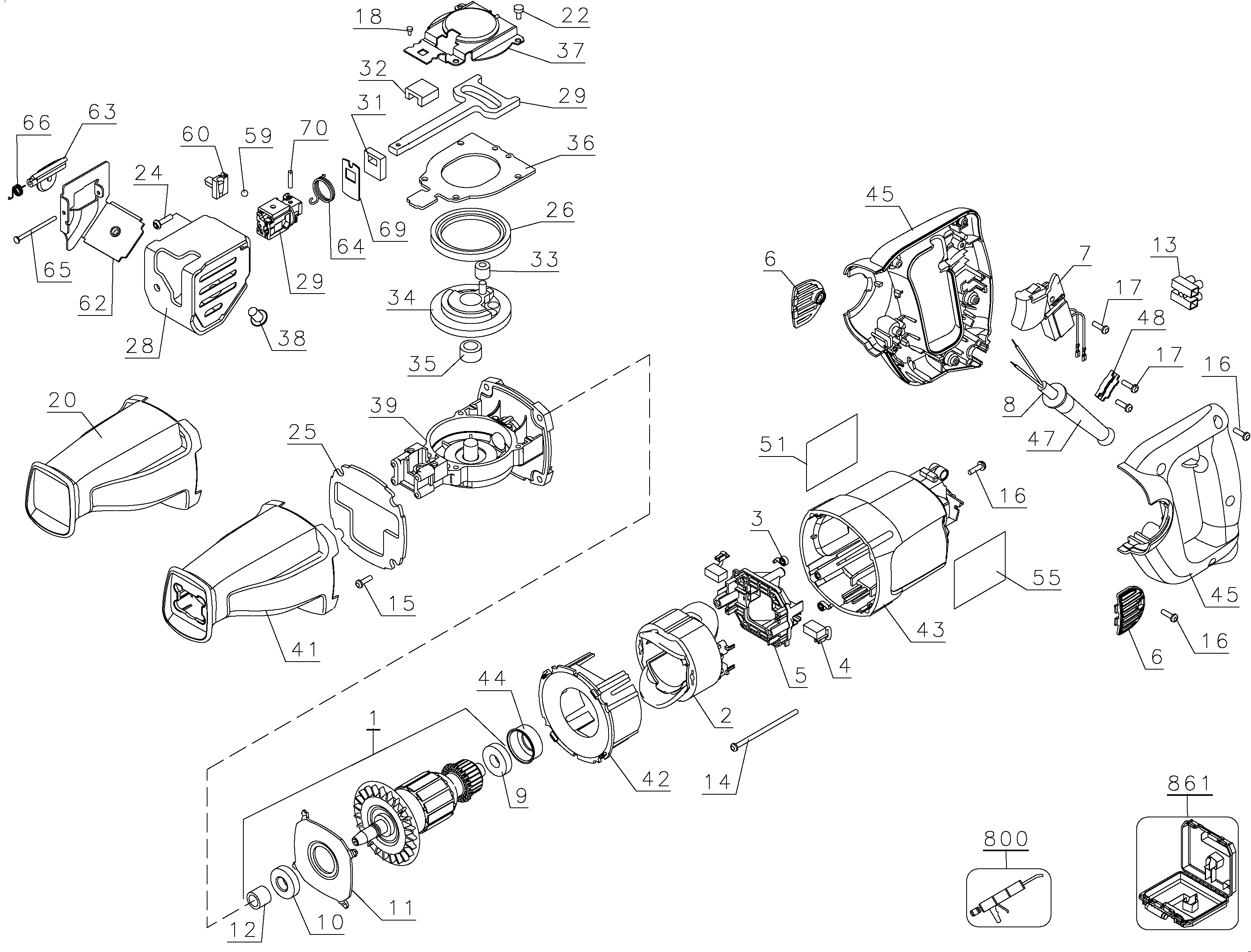

DW304PK CUTSAW Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 616355-01SV | 1 | ARMATURE SA | GB |  |
||
| 2 | 448719-81SV | 1 | FIELD 230V | GB |  |
||
| 3 | 383387-00 | 2 | BRUSH SPRING | GB | |
||
| 4 | N501035 | 2 | BRUSH 230V | GB | |
||
| 5 | N402490 | 1 | BRUSH SA | GB | |
||
| 6 | 382751-00 | 2 | COVER BRUSH | GB | |
||
| 7 | 640151-00 | 1 | SWITCH | GB | |
||
| 8 | 330060-84 | 1 | CABLE & PLUG | GB | |
||
| 9 | 605040-20 | 1 | BEARING | 12 x 28 x 8mm | GB | |
|
| 10 | 605040-20 | 1 | BEARING | 12 x 28 x 8mm | GB | |
|
| 11 | 383476-00 | 1 | PLATE | GB | |
||
| 12 | 616345-00 | 1 | BUSH | GB | |
||
| 13 | 320078-00 | 1 | TERMINAL BLOCK | GB | |
||
| 14 | 330019-18 | 2 | SCREW | M4.55 x 50 PLASTIC THD FMG | GB | |
|
| 15 | 330019-15 | 4 | SCREW | GB | |
||
| 16 | 330019-13 | 9 | SCREW | M4X19 T20 | GB | |
|
| 17 | 330019-01 | 3 | SCREW.TEMP | M3.63 x 9.5mm T15 | GB | |
|
| 18 | 158472-00 | 2 | SCREW | GB | |
||
| 20 | N028019 | 1 | COVER | GB | |
||
| 22 | 144457-02 | 4 | SCREW | GB | |
||
| 24 | 142940-00 | 4 | SCREW | GB | |
||
| 25 | 146576-00 | 1 | GASKET | GB | |
||
| 26 | N401394 | 1 | RING | GB | |
||
| 28 | N302139 | 1 | SHAFT SA | SA Shaft w/SA Shoe | GB | |
|
| 29 | N302139 | 1 | SHAFT SA | SA Shaft w/SA Shoe | GB | |
|
| 31 | 609488-00 | 1 | FELT SEAL | GB | |
||
| 32 | N400905 | 1 | BEARING | GB | |
||
| 33 | 385238-00 | 1 | BEARING NEEDLE | GB | |
||
| 34 | 448503-14SV | 1 | GEAR | GB | |
||
| 35 | 135531-00 | 1 | BEARING | GB | |
||
| 36 | N083910 | 1 | PLATE | GB | |
||
| 37 | 448489-03 | 1 | PLATE | GB | |
||
| 38 | 099279-08 | 1 | SCREW | GB | |
||
| 39 | 616333-00SV | 1 | GEARCASE | GB | |
||
| 41 | 613722-00SV | 1 | GEARCASE COVER SA | GB | |
||
| 42 | 382750-01 | 1 | BAFFLE FAN | GB | |
||
| 43 | 382747-08 | 1 | FIELDCASE | GB | |
||
| 44 | 137382-02 | 1 | SLEEVE | GB | |
||
| 45 | 383598-00 | 1 | HANDLE SA | GB | |
||
| 47 | 330005-01 | 1 | CORD PROTECTOR | GB | |||
| 48 | 450877-00 | 1 | CORD CLAMP | GB | |
||
| 51 | 646437-00 | 1 | RATING PLATE | DW304PK-GB TY2 | GB | |
|
| 55 | 627212-00 | 1 | BRAND LABEL | DEWALT | GB | |
|
| 59 | 000903-00 | 1 | BALL | GB | |
||
| 60 | N302139 | 1 | SHAFT SA | SA Shaft w/SA Shoe | GB | |
|
| 62 | N302139 | 1 | SHAFT SA | SA Shaft w/SA Shoe | GB | |
|
| 63 | N302139 | 1 | SHAFT SA | SA Shaft w/SA Shoe | GB | |
|
| 64 | N302139 | 1 | SHAFT SA | SA Shaft w/SA Shoe | GB | |
|
| 65 | N302139 | 1 | SHAFT SA | SA Shaft w/SA Shoe | GB | |
|
| 65 | N302139 | 1 | SHAFT SA | SA Shaft w/SA Shoe | GB | |
|
| 66 | N302139 | 1 | SHAFT SA | SA Shaft w/SA Shoe | GB | |
|
| 66 | 396017-00 | 1 | SPRING | GB | |||
| 69 | 608202-00 | 1 | RETAINER | PLATE | GB | |
|
| 70 | 330041-27 | 1 | ROLLPIN | GB | |
||
| 800 | 429698-00 | 1 | GREASE | BD-L 2 | GB | |
|
| 861 | N003337 | 1 | KITBOX | GB | |
