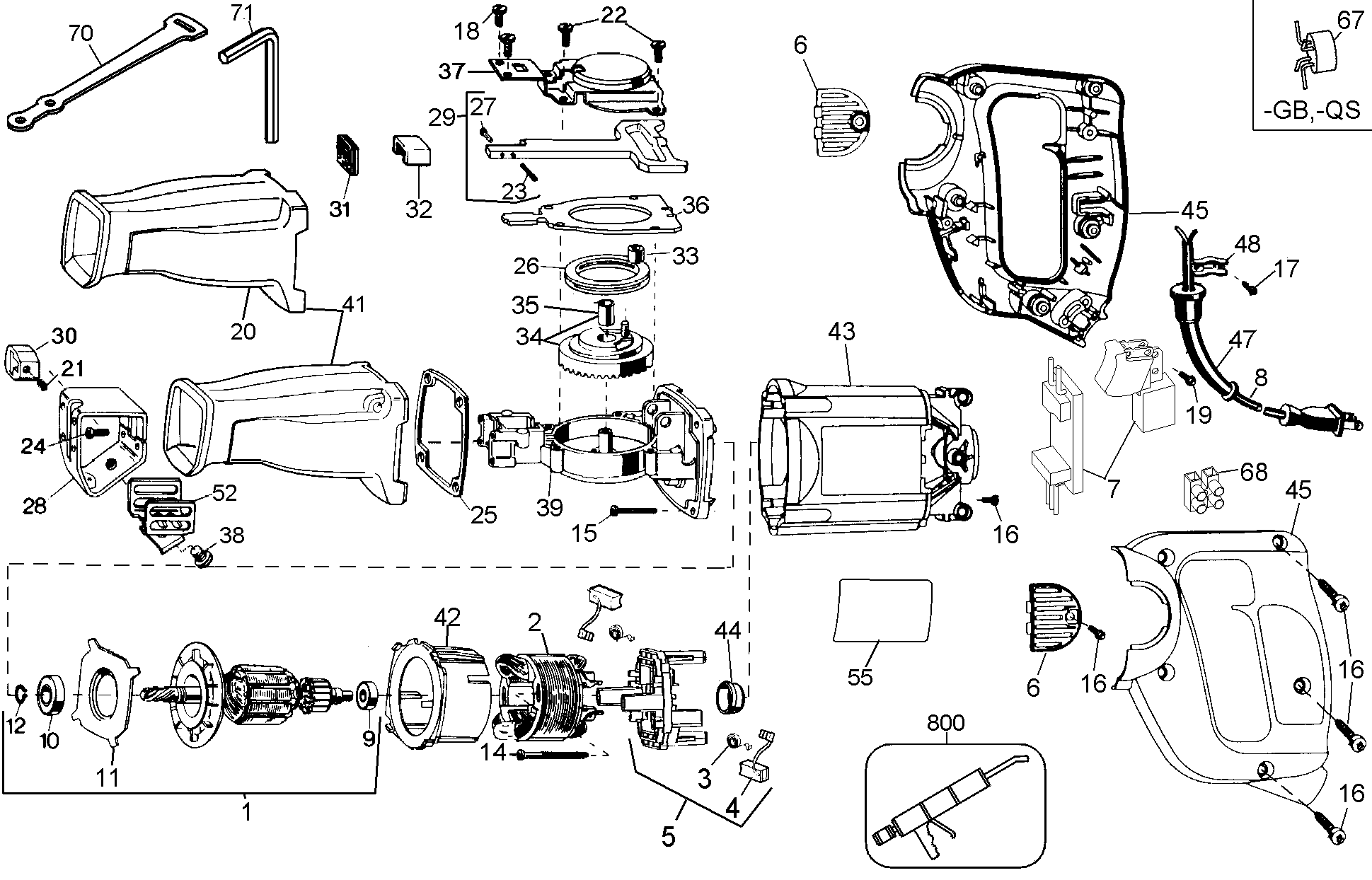

DW303K RECIPROCATING SAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 383475-01SV | 1 | ARMATURE & FAN | INC 9,10,11,12 | GB |  |
|
| 2 | 448719-78SV | 1 | FIELD | GB | |||
| 3 | 383387-00 | 2 | BRUSH SPRING | GB |  |
||
| 4 | N501035 | 2 | BRUSH 230V | GB | |
||
| 5 | N402490 | 1 | BRUSH SA | GB | |
||
| 6 | 382751-00 | 2 | COVER BRUSH | GB | |
||
| 7 | 382642-06 | 1 | ELECTRONIC & SWITCH | GB | |
||
| 8 | 330060-84 | 1 | CABLE & PLUG | GB | |
||
| 9 | 605040-20 | 1 | BEARING | 12 x 28 x 8mm | GB | |
|
| 10 | 605040-20 | 1 | BEARING | 12 x 28 x 8mm | GB | |
|
| 11 | 383476-00 | 1 | PLATE | GB | |
||
| 12 | 696060-00 | 1 | RETAINER | GB | |
||
| 14 | 330019-18 | 2 | SCREW | M4.55 x 50 PLASTIC THD FMG | GB | |
|
| 15 | 330019-15 | 4 | SCREW | GB | |
||
| 16 | 330019-13 | 9 | SCREW | M4X19 T20 | GB | |
|
| 17 | 330019-02 | 2 | SCREW | GB | |
||
| 18 | 158472-00 | 2 | SCREW | GB | |
||
| 19 | 330019-01 | 1 | SCREW.TEMP | M3.63 x 9.5mm T15 | GB | |
|
| 20 | N028019 | 1 | COVER | GB | |
||
| 21 | 385927-00 | 1 | SCREW | GB | |
||
| 22 | 144457-02 | 4 | SCREW | GB | |
||
| 23 | 144434-00 | 1 | ROLLPIN | GB | |
||
| 24 | 142940-00 | 4 | SCREW | GB | |
||
| 25 | 146576-00 | 1 | GASKET | GB | |
||
| 26 | N401394 | 1 | RING | GB | |
||
| 27 | 158466-00 | 1 | PIN | GB | |
||
| 28 | 399725-00 | 1 | SHOE | GB | |
||
| 29 | 679869-00 | 1 | SHAFT | INC 23,27 | GB | |
|
| 30 | 381749-01 | 1 | BLADE CLAMP | GB | |
||
| 31 | 386698-00 | 1 | SEAL SA | GB | |
||
| 32 | 450865-00 | 1 | BEARING | GB | |
||
| 33 | 385238-00 | 1 | BEARING NEEDLE | GB | |
||
| 34 | 606113-00 | 1 | GEAR SA | INCL. THRUST RING | 55 TEETH ; INC 35 | GB | |
| 35 | 135531-00 | 1 | BEARING | GB | |
||
| 36 | N083910 | 1 | PLATE | GB | |
||
| 37 | 448489-03 | 1 | PLATE | GB | |
||
| 38 | 099279-08 | 1 | SCREW | GB | |
||
| 39 | 616333-00SV | 1 | GEARCASE | GB | |
||
| 41 | 621608-00 | 1 | COVER SA | INC 20 | GB | |
|
| 42 | 382750-01 | 1 | BAFFLE FAN | GB | |
||
| 43 | 382747-08 | 1 | FIELDCASE | GB | |
||
| 44 | 137382-02 | 1 | SLEEVE | GB | |
||
| 45 | 383598-00 | 1 | HANDLE SA | GB | |
||
| 47 | 330005-01 | 1 | CORD PROTECTOR | GB | |||
| 48 | 86634-00 | 1 | CORD CLAMP | GB | |||
| 52 | 157325-00 | 1 | GUARD | GB | |
||
| 55 | 627212-00 | 1 | BRAND LABEL | DEWALT | GB | |
|
| 67 | 382642-06 | 1 | ELECTRONIC & SWITCH | GB | |
||
| 68 | 320078-00 | 1 | TERMINAL BLOCK | GB | |
||
| 70 | 449817-00 | 1 | HOLDER | GB | |
||
| 71 | 098000-11 | 1 | HEX KEY | GB | |
||
| 800 | 429698-00 | 1 | GREASE | BD-L 2 | 4 LBS | GB | |
