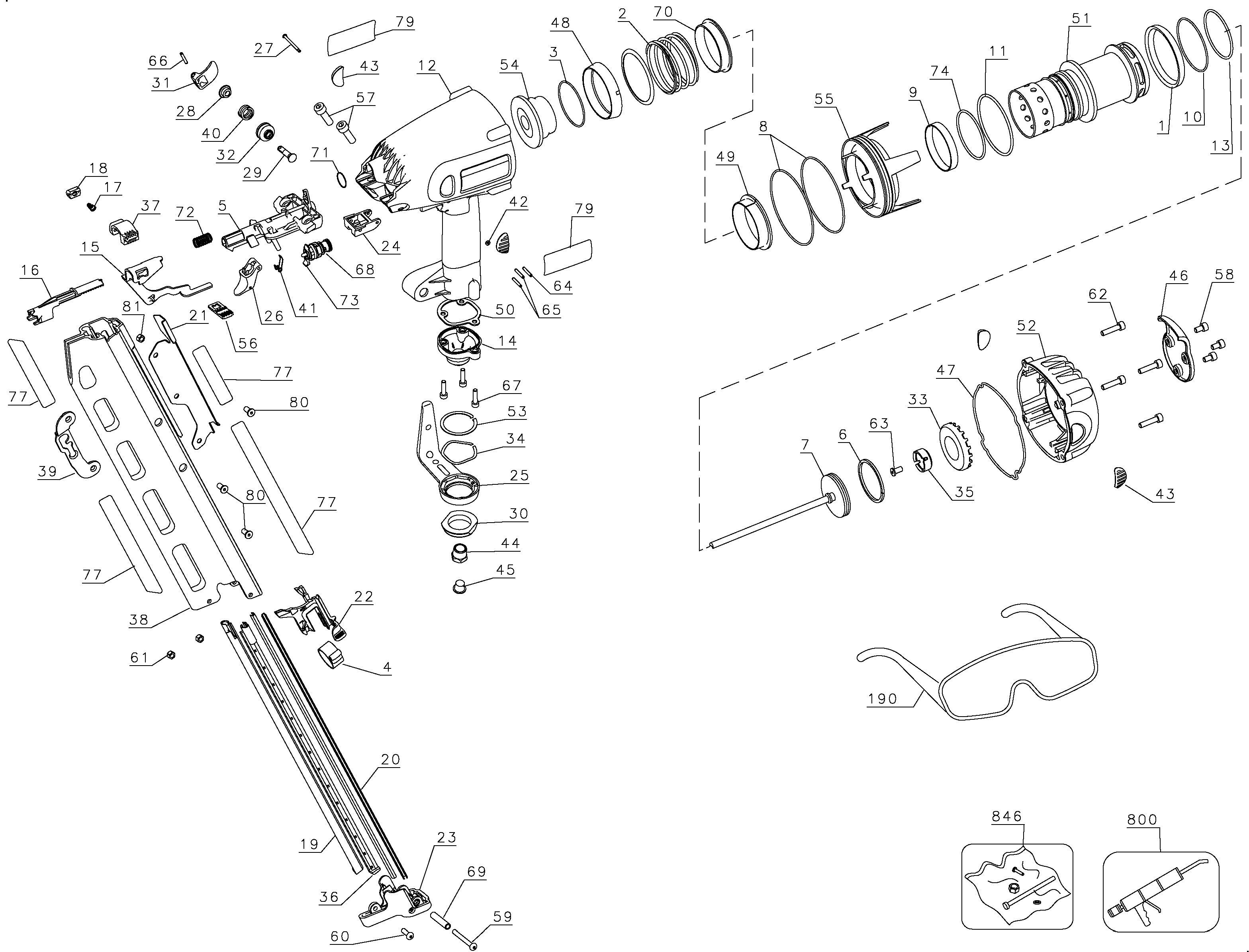

D51823 CLIPPED HEAD FRAMING NAILER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 390140-00 | 1 | SEAL | XJ |  |
||
| 2 | 603413-00 | 1 | SPRING | HEAD VALVE | XJ | |
|
| 3 | 390146-00 | 1 | O RING | 2.239 x 0.070 | XJ | |
|
| 4 | 390147-00 | 1 | HUB | XJ | |
||
| 5 | 608600-00 | 1 | NOSE | XJ | |
||
| 6 | 390151-00 | 1 | PISTON RING | XJ | |
||
| 6 | 608611-00 | 1 | O RING | 1.859 * 0.139 | FOR PISTON W/CURVED RING GROOVE ONLY | XJ | |
| 7 | 610756-00 | 1 | PISTON SA | D518232 | XJ | |
|
| 8 | 390156-00 | 2 | O RING | 96 x 2 | XJ | |
|
| 9 | 390159-00 | 1 | SEAL | XJ | |
||
| 10 | 390160-00 | 1 | O RING | 2.237 x 0.103 | XJ | |
|
| 11 | 612096-00 | 1 | O RING | 75 * 3 | XJ | |
|
| 12 | 390163-00 | 1 | HOUSING | XJ | |
||
| 13 | 390164-00 | 2 | O RING | 2.362 x 0.103 | XJ | |
|
| 14 | 612105-00 | 1 | END CAP | 3/8" NPT | XJ | |
|
| 15 | N016232 | 1 | CONTACT TRIP | UPPER | XJ | ||
| 16 | 638750-00 | 1 | CONTACT | LOWER | XJ | |
|
| 17 | 390724-00 | 1 | SPRING | XJ | |
||
| 18 | 391804-00 | 1 | CAP | CONTACT TRIP ADJ. | XJ | ||
| 19 | 390727-00 | 1 | LINER | LEFT | XJ | |
|
| 20 | 390728-00 | 2 | LINER | XJ | |
||
| 21 | 606632-00 | 1 | GUIDE | XJ | |
||
| 22 | 390731-00 | 1 | PUSH BLOCK | XJ | |
||
| 23 | 390733-00 | 1 | CAP | XJ | |
||
| 24 | N000248 | 1 | GUIDE | XJ | |||
| 25 | 390744-00 | 1 | HOOK | XJ | |
||
| 26 | 390746-00 | 1 | TRIGGER | XJ | |
||
| 26 | 395198-00SV | 1 | TRIGGER | XJ | |||
| 27 | 395091-00 | 1 | PIN | XJ |  |
||
| 28 | 391781-00 | 1 | WASHER | XJ | |
||
| 29 | 391782-00 | 1 | SHAFT | XJ | |
||
| 30 | 5140005-30 | 1 | NUT | INCL. NUT | XJ | ||
| 31 | 391784-00 | 1 | LATCH | XJ | |
||
| 32 | 391785-00 | 1 | BUSHING | XJ | |
||
| 33 | 391786-00 | 1 | BUTTON | XJ | |
||
| 34 | 391787-00 | 1 | WASHER | XJ | |
||
| 35 | 391789-00 | 1 | BUMPER | XJ | |
||
| 36 | 391795-00 | 1 | LINER | RIGHT | XJ | |
|
| 37 | 391807-00 | 1 | COVER | XJ | |
||
| 38 | 5140002-63 | 1 | MAGAZINE SA | NLS - 30 DEG. | INCL. 77 | XJ | |
| 39 | 5140058-66 | 1 | BRACKET KIT | MAGAZINE | XJ | ||
| 40 | 391812-00 | 1 | SPRING | XJ | |
||
| 41 | 391813-00 | 1 | SPRING | XJ | |
||
| 42 | 391814-00 | 1 | GROMMET | XJ | |
||
| 43 | 616557-00 | 4 | LABEL | XJ | |
||
| 44 | 395195-00 | 1 | BUSHING | XJ | |
||
| 45 | 395196-00 | 1 | PLUG | XJ | |
||
| 46 | 5140026-36 | 1 | DEFLECTOR | XJ | |
||
| 47 | 395201-00 | 1 | SEAL | XJ | |
||
| 48 | N009190 | 1 | COLLAR | XJ | |
||
| 49 | N009191 | 1 | SPRING RETAINER | XJ | |||
| 50 | 649365-00 | 1 | GASKET | XJ | |||
| 51 | 395207-00 | 1 | CYLINDER | XJ | |
||
| 52 | 395208-01 | 1 | COVER-TOP | XJ | |
||
| 53 | 395211-00 | 1 | SPACER | XJ | |
||
| 54 | 395213-00 | 1 | BUMPER | XJ | |
||
| 55 | 395215-00 | 1 | COVER | XJ | |
||
| 56 | 603380-00 | 1 | ADJUSTER | XJ | |
||
| 57 | 603383-00 | 2 | SCREW | XJ | |
||
| 58 | 603384-00 | 3 | SCREW | XJ | |
||
| 59 | 603385-00 | 1 | SCREW | XJ | |
||
| 60 | 603386-00 | 1 | SCREW | XJ | |
||
| 61 | 603387-00 | 2 | NUT | XJ | |
||
| 62 | 603390-00 | 4 | SCREW | XJ | |
||
| 63 | 650159-00 | 1 | SCREW | XJ | |||
| 64 | 650155-00 | 1 | SPIROL PIN | XJ | |
||
| 65 | 650156-00 | 2 | SPIROL PIN | XJ | |
||
| 66 | 603394-00 | 1 | PIN | XJ | |
||
| 67 | 603395-00 | 3 | SCREW | XJ | |
||
| 68 | 5140095-73 | 1 | TRIGGER VALVE KIT | INCL. 73 | XJ | ||
| 69 | 603397-00 | 1 | SPACER | XJ | |
||
| 70 | 603561-00 | 1 | BAND | XJ | |
||
| 71 | 617161-00 | 1 | O RING | 14 X 2 | XJ | |
|
| 72 | 390735-00 | 1 | SPRING | XJ | |
||
| 73 | 5140095-73 | 1 | TRIGGER VALVE KIT | XJ | |||
| 74 | 606640-00 | 1 | O RING | 103 x 2.3 | XJ | |
|
| 77 | 606635-00 | 1 | LABEL | XJ | |
||
| 79 | 603409-00 | 2 | LABEL | XJ | |
||
| 80 | 610779-00 | 3 | SCREW | M6x1.0x10 BTN HD | XJ | |
|
| 81 | 389038-00 | 1 | LOCK NUT | XJ | |
||
| 190 | 609123-00 | 1 | SAFETY GLASSES | XJ | |
||
| 800 | 429995-00 | 1 | GREASE 150 GMS | 5.3oz. TUBE | XJ | |
|
| 846 | 606125-00 | 1 | PISTON SA | D518232 | XJ | |
|
| 846 | 606132-00 | 1 | TRIGGER | D510005 | XJ | |
|
| 846 | 605709-00 | 1 | OIL | 20 Ounces | XJ | |
|
| 846 | 605708-00 | 1 | OIL | 8 Ounces | XJ | |
|
| 846 | 395440-00 | 1 | OIL | 1 oz BOTTLE | XJ | ||
| 846 | 609172-00 | 1 | TRIGGER | SEQUENTIAL KIT | XJ | |
|
| 846 | 606111-00 | 1 | O RING KIT | XJ | |
||
| 846 | 606130-00 | 1 | BUMPER | D518003 | XJ | |
|
| 846 | 606131-00SV | 1 | MAGAZINE SPRING | XJ |
