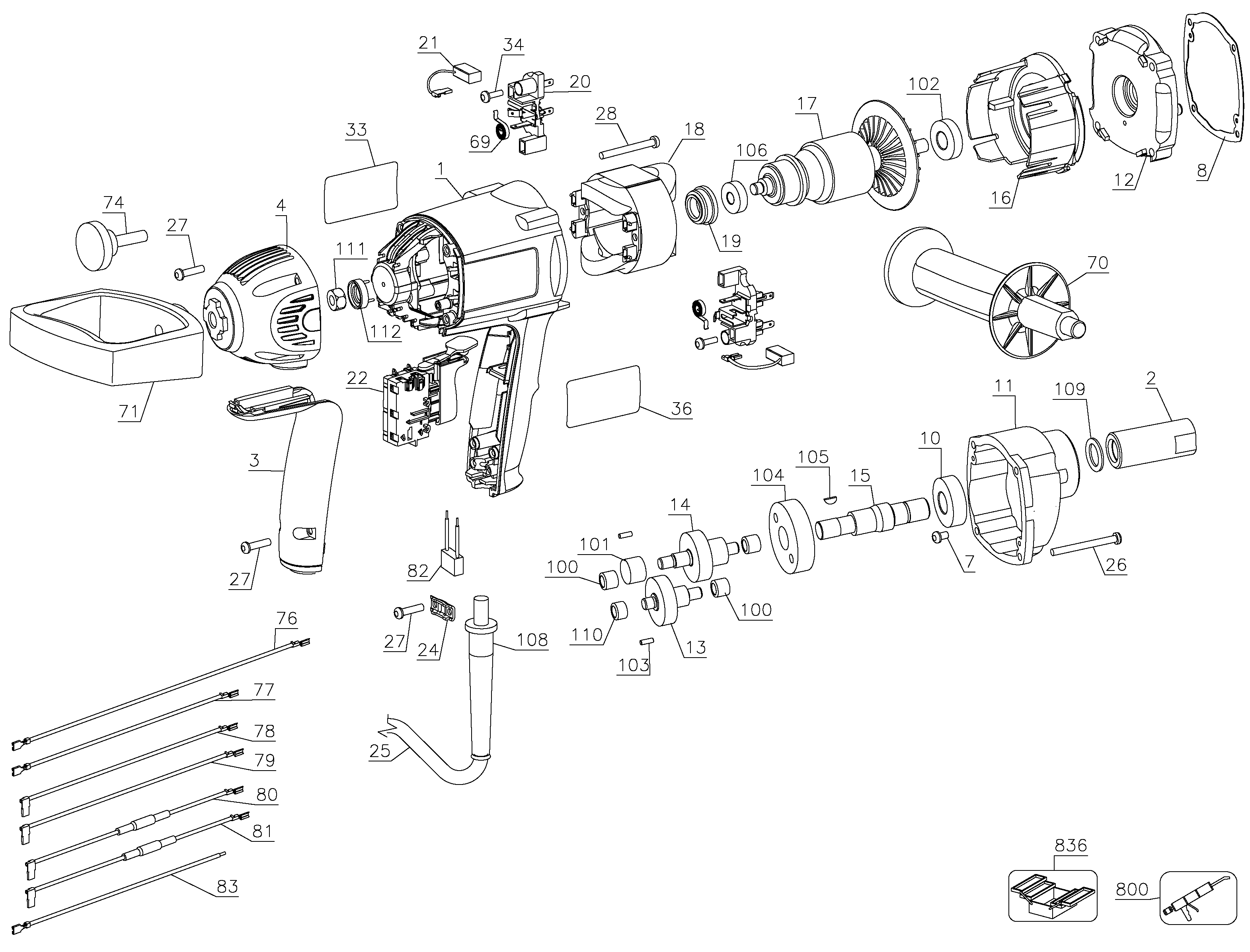

D21510 MUD MIXER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 616828-06 | 1 | FIELDCASE | LX |  |
||
| 2 | 395839-00 | 1 | ADAPTOR | LX | |||
| 3 | 624114-00 | 1 | HANDLE COVER | LX | |
||
| 4 | 622397-01 | 1 | END CAP | LX | |
||
| 7 | 052819-00 | 2 | SCREW | LX | |
||
| 8 | 450485-00 | 1 | GASKET | LX | |
||
| 10 | 605040-25 | 1 | BEARING,BALL | LX | |
||
| 11 | N763396 | 1 | GEARCASE SA | INCL 100 | LX |  |
|
| 12 | 623442-00 | 1 | GEARCASE COVER SA | INCL 100-103,110 | LX | |
|
| 13 | 449486-00SV | 1 | GEAR & PINION | LX | |
||
| 14 | 449489-00SV | 1 | GEAR & SPINDLE | LX | |
||
| 15 | 147195-00 | 1 | SPINDLE | 5/8 - 16 THD | LX | |
|
| 16 | 655537-00 | 1 | BAFFLE FAN | LX | |
||
| 17 | 658752-00SV | 1 | ARMATURE 120V | LX | |
||
| 18 | 624841-00SV | 1 | FIELD | LX | |
||
| 19 | 445217-02 | 1 | SLEEVE | LX | |
||
| 20 | 616857-00 | 2 | BRUSH HOLDER | LX | |
||
| 21 | 655213-02 | 2 | BRUSH 115V | LX | |
||
| 22 | 621884-04 | 1 | SWITCH SA | LX | |
||
| 24 | 450877-00 | 1 | CORD CLAMP | LX | |
||
| 25 | 330061-10 | 1 | CORDSET (M/PLUG) | LX | |
||
| 26 | 330019-30 | 4 | SCREW | LX | |
||
| 27 | 330019-13 | 8 | SCREW | M4X19 T20 | LX | |
|
| 28 | 330019-17 | 2 | SCREW | LX | |
||
| 33 | 605523-00 | 1 | IDENTITY LABEL | LX | |
||
| 34 | 176951-00 | 2 | SCREW | LX | |
||
| 36 | N044876 | 1 | RATING PLATE | LX | |
||
| 69 | 383387-00 | 2 | BRUSH SPRING | LX | |
||
| 70 | 625712-00 | 1 | SIDE HANDLE | LX | |
||
| 71 | 628037-00 | 1 | HANDLE | LX | |
||
| 74 | 382531-00 | 1 | KNOB | LX | |
||
| 76 | 626004-00 | 1 | LEAD 200MM BLUE | BLUE, 200MM | LX | |
|
| 77 | 626004-01 | 1 | LEAD SA WHITE | WHITE, 165MM | LX | |
|
| 80 | 616853-00 | 1 | CHOKE LEAD BLACK | BLACK | LX | |
|
| 81 | 616853-01 | 1 | CHOKE LEAD RED | RED | LX | |
|
| 82 | 628531-00 | 1 | CAPACITOR | LX | |
||
| 83 | 616851-00 | 1 | LEAD BLUE | BLUE, 105MM | LX | |
|
| 100 | 330004-02 | 3 | BEARING NEEDLE | LX | |
||
| 101 | 135937-00 | 1 | BEARING | LX | |
||
| 102 | 605040-20 | 1 | BEARING | 12 x 28 x 8mm | LX | |
|
| 103 | 091286-00 | 2 | PIN | LX | |||
| 104 | 400147-00 | 1 | GEAR | LX | |
||
| 105 | 007027-00 | 1 | KEY | LX | |
||
| 106 | 330003-04 | 1 | BEARING | LX | |||
| 108 | 330005-01 | 1 | CORD PROTECTOR | LX | |||
| 109 | 147196-00 | 1 | WASHER | LX | |
||
| 110 | 330004-27 | 1 | BEARING,NEEDLE | LX | |
||
| 111 | 99371-06 | 1 | NUT | LX | |
||
| 112 | 623785-00 | 1 | CAP | LX | |
||
| 800 | 429698-00 | 1 | GREASE | BD-L 2 | LX | |
|
| 836 | 233804-33 | 1 | S.T.PRESS | 626572-00 | FOR FAN END BRG. | LX |
