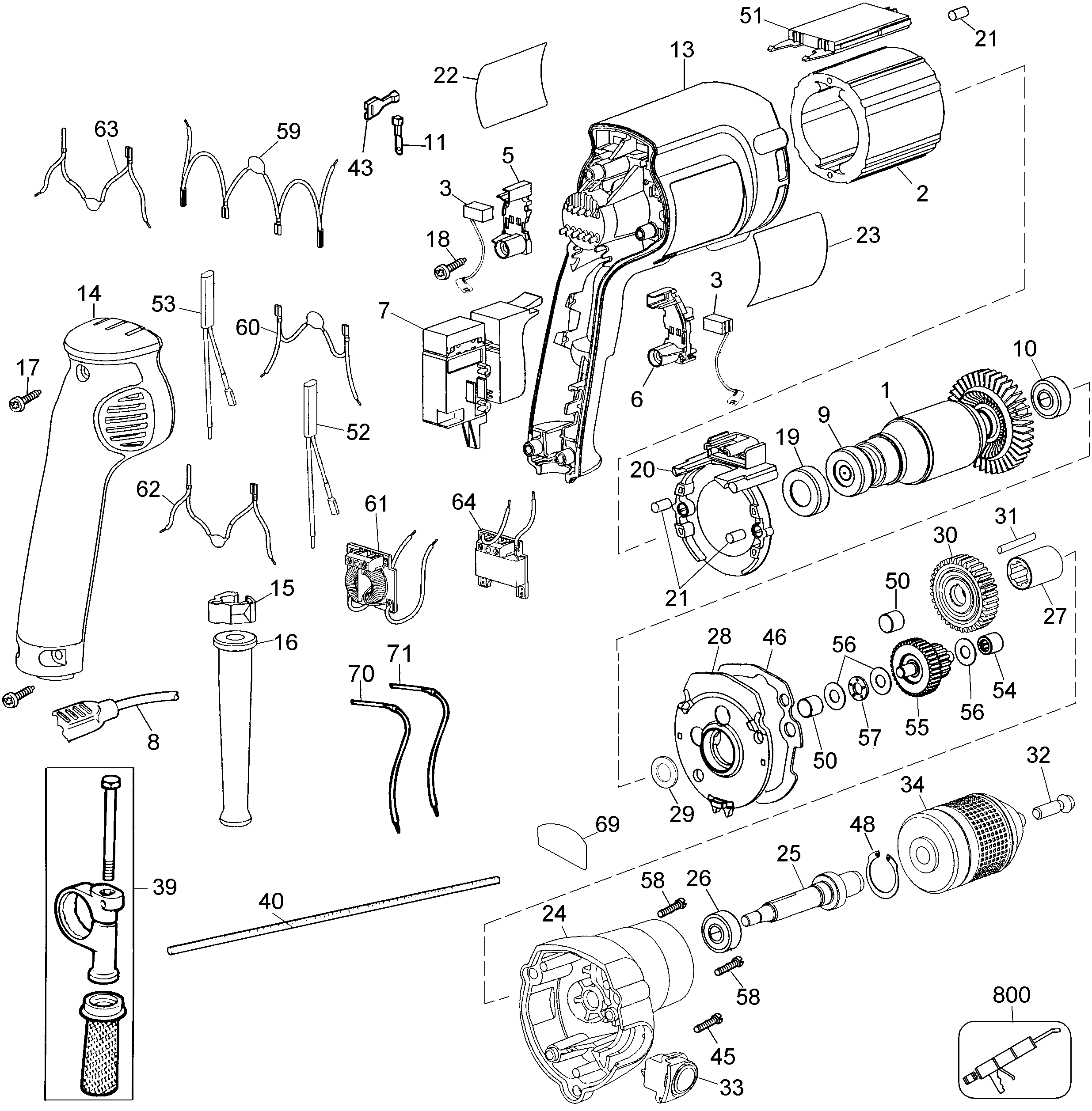

DW226 DRILL Type A1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 176850-00SV | 1 | ARMATURE & FAN | XW | |||
| 2 | 176848-00SV | 1 | FIELD | XW | |||
| 3 | 176949-01 | 1 | BRUSH | 115V | XW |  |
|
| 5 | 176801-03 | 1 | BRUSH HOLDER | XW |  |
||
| 6 | 176800-03 | 1 | BRUSH HOLDER | XW | |
||
| 7 | 176830-19 | 1 | SWITCH | XW | |
||
| 8 | 330061-14 | 1 | CORDSET | XW | |
||
| 9 | 330003-04 | 1 | BEARING | XW | |||
| 10 | 330003-04 | 1 | BEARING | XW | |||
| 11 | 449192-00 | 2 | TERMINAL | XW | |
||
| 13 | 429974-04 | 1 | FIELDCASE SA | XW | |
||
| 14 | 176818-02 | 1 | HANDLE COVER | XW | |||
| 15 | 176832-00 | 1 | CORD CLAMP | XW | |
||
| 16 | 330005-01 | 1 | CORD PROTECTOR | XW | |||
| 17 | 330019-13 | 3 | SCREW | M4X19 T20 | XW | |
|
| 18 | 176951-00 | 2 | SCREW | XW | |
||
| 19 | 389824-00 | 1 | BOOT | GREY | XW | |
|
| 19 | 949721-03 | 1 | SLEEVE | BLACK | XW | |
|
| 20 | 176811-00 | 1 | BAFFLE | XW | |
||
| 21 | 949638-02 | 3 | DAMPER | XW | |
||
| 22 | 395047-00 | 1 | BRAND LABEL | XW | |
||
| 23 | 385146-02 | 1 | NAMEPLATE | XW | |||
| 24 | 176634-03SV | 1 | GEAR CASE | XW | |||
| 25 | 176638-00 | 1 | SPINDLE | XW | |
||
| 26 | 605040-20 | 1 | BEARING | 12 x 28 x 8mm | XW | |
|
| 27 | 176691-00 | 1 | SPACER | XW | |
||
| 28 | 388761-00 | 1 | GEARCASE COVER | XW | |
||
| 29 | 023813-00 | 1 | WASHER FIBRE | XW | |||
| 30 | 176687-00 | 1 | GEAR | XW | |
||
| 31 | 099227-05 | 1 | PIN | XW | |
||
| 32 | 605256-01 | 1 | SCREW | XW | |
||
| 33 | 176641-00 | 1 | SPINDLE LOCK | XW | |
||
| 34 | 330075-68 | 1 | CHUCK KEYLESS | 3/8 CAP 1/2-20 THD | XW | |
|
| 39 | N429860 | 1 | SIDE HANDLE | 939794-00 | XW | ||
| 40 | 940357-00 | 1 | DEPTH STOP | XW | |
||
| 43 | 136086-02 | 2 | TERMINAL | XW | |
||
| 45 | 330019-14 | 1 | SCREW | XW | |
||
| 46 | 176655-00 | 1 | GASKET | XW | |
||
| 48 | 087692-00 | 1 | RETAINER | XW | |
||
| 50 | 093128-00 | 2 | BEARING NEEDLE | XW | |
||
| 51 | 176917-00 | 1 | MODULE | XW | |
||
| 52 | 176890-00 | 1 | LEAD WHITE | XW | |
||
| 53 | 176890-01 | 1 | LEAD RED | XW | |
||
| 54 | 330004-00 | 1 | BEARING | XW | |
||
| 55 | 176653-00SV | 1 | GEAR & PINION SA | XW | |
||
| 56 | 091817-00 | 3 | WASHER | XW | |
||
| 57 | 091644-00 | 1 | BEARING THRUST | XW | |
||
| 58 | 330019-16 | 2 | SCREW | XW | |
||
| 62 | 383663-01 | 1 | CAPACITOR & BOX SA | XW | |
||
| 63 | 383663-00 | 1 | CAPACITOR SA | XW | |
||
| 64 | 383670-00 | 1 | CAPACITOR SA | XW | |
||
| 69 | 387233-00 | 1 | LABEL | XW | |
||
| 800 | 286436-00 | 1 | GREASE | NYE RHEOLUBE 380, 500 GRAM JAR | XW | |
