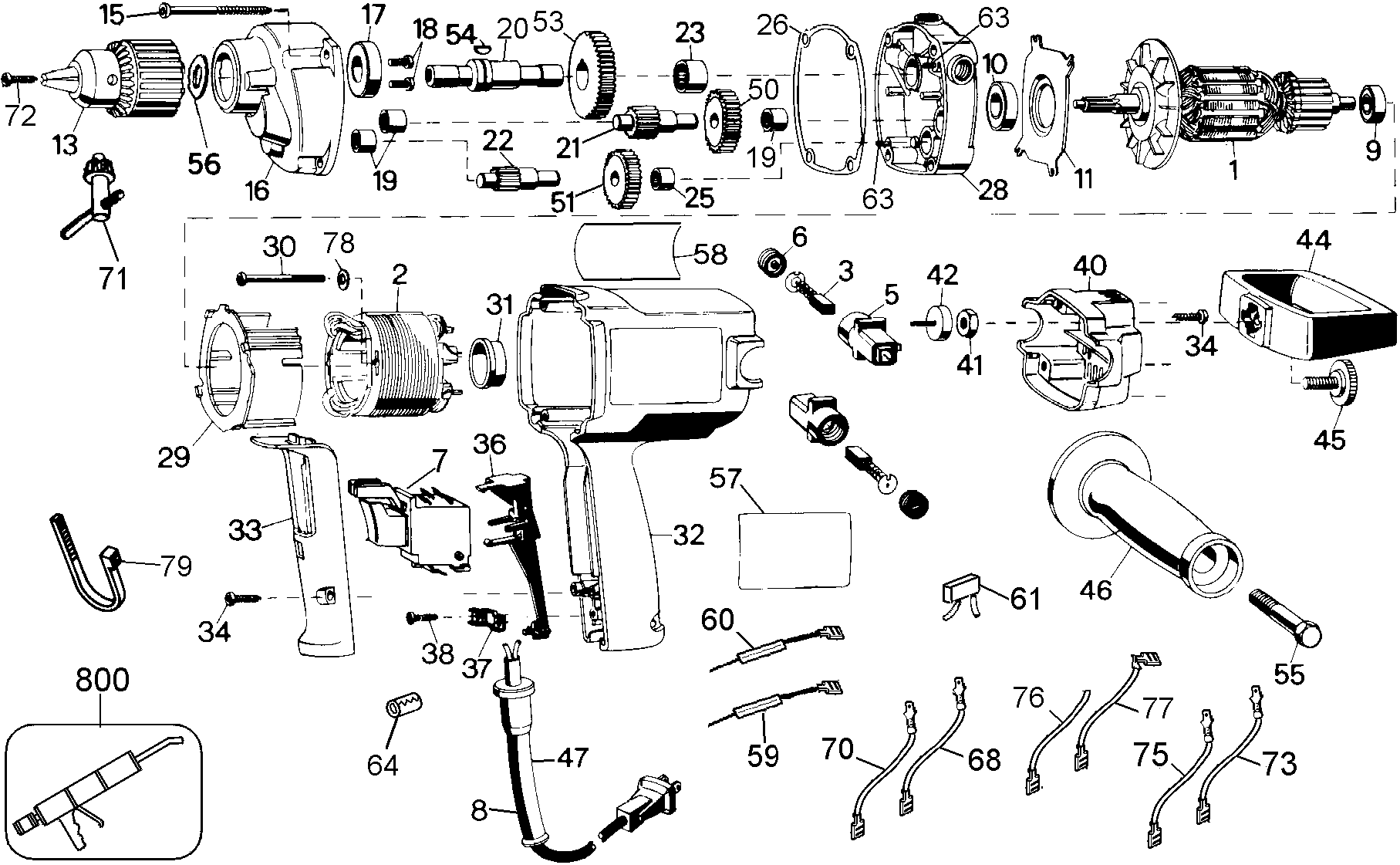

DW130 MIXER Type A2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 450130-00SV | 1 | ARMATURE & FAN | XW | |||
| 2 | 449458-71SV | 1 | FIELD | XW | |||
| 3 | 450374-12 | 2 | BRUSH & SPRING | XW |  |
||
| 5 | 448083-01 | 2 | BRUSHBOX SA | XW | |
||
| 6 | 448084-01 | 2 | BRUSH CAP | XW |  |
||
| 7 | 88324-05 | 1 | SWITCH | Black | XW | |
|
| 8 | 330061-20 | 1 | CORDSET | XW | |
||
| 9 | 605040-20 | 1 | BEARING | 12 x 28 x 8mm | XW | |
|
| 10 | 330003-04 | 1 | BEARING | XW | |||
| 11 | 448079-00 | 1 | PLATE | XW | |
||
| 13 | 135514-00 | 1 | CHUCK | NPP | XW | ||
| 15 | 330019-30 | 4 | SCREW | XW | |
||
| 16 | N763396 | 1 | GEARCASE SA | XW | |
||
| 17 | 700964-00 | 1 | BEARING | XW | |
||
| 18 | 052819-00 | 2 | SCREW | XW | |
||
| 19 | 330004-02 | 3 | BEARING NEEDLE | XW | |
||
| 20 | 147195-00 | 1 | SPINDLE | XW | |
||
| 21 | 449489-00SV | 1 | GEAR & SPINDLE | XW | |
||
| 22 | 449486-00SV | 1 | GEAR & PINION | XW | |
||
| 23 | 135937-00 | 1 | BEARING | XW | |
||
| 25 | 330004-27 | 1 | BEARING,NEEDLE | XW | |
||
| 26 | 450485-00 | 1 | GASKET | XW | |
||
| 28 | 449483-00SV | 1 | COVER-GEAR CASE | XW | |||
| 29 | 447786-00 | 1 | BAFFLE FAN | XW | |
||
| 30 | 330019-18 | 2 | SCREW | M4.55 x 50 PLASTIC THD FMG | XW | |
|
| 31 | 445217-02 | 1 | SLEEVE | XW | |
||
| 32 | 429939-00 | 1 | FIELDCASE SA-KIT | XW | |
||
| 33 | 5140004-80 | 1 | HANDLE & COVER | XW | |
||
| 33 | 392273-00 | 1 | HANDLE COVER | XW | |
||
| 34 | 330019-13 | 6 | SCREW | M4X19 T20 | XW | |
|
| 36 | 449915-00 | 1 | SWITCH SUPPORT | XW | |
||
| 37 | 86634-00 | 1 | CORD CLAMP | XW | |||
| 38 | 330019-03 | 2 | SCREW | XW | |
||
| 40 | 449492-02 | 1 | END CAP | XW | |
||
| 41 | 99371-06 | 1 | NUT | XW | |
||
| 42 | 449700-00 | 1 | CAP | XW | |
||
| 44 | 628037-00 | 1 | HANDLE | XW | |
||
| 45 | 382531-00 | 1 | KNOB | XW | |
||
| 46 | 625712-00 | 1 | SIDE HANDLE | XW | |
||
| 47 | 401751-00 | 1 | CORD PROTECTOR | XW | |
||
| 50 | 449490-00 | 1 | GEAR | XW | |
||
| 51 | 449487-00 | 1 | GEAR | XW | |
||
| 53 | 400147-00 | 1 | GEAR | XW | |
||
| 54 | 007027-00 | 1 | KEY | XW | |
||
| 55 | 99173-36 | 1 | SCREW | XW | |
||
| 56 | 147196-00 | 1 | WASHER | XW | |
||
| 57 | 627212-00 | 1 | BRAND LABEL | DEWALT | XW | |
|
| 58 | 390216-00 | 1 | NAMEPLATE | XW | |
||
| 61 | 135107-05 | 1 | CAPACITOR | XW | |
||
| 63 | 091286-00 | 2 | PIN | XW | |||
| 64 | 444262-00 | 2 | TERMINAL | CABLE CRIMP | XW | ||
| 68 | 146957-01 | 1 | LEAD BLACK | XW | |
||
| 70 | 146957-00 | 1 | LEAD RED | XW | |
||
| 71 | 330034-03 | 1 | CHUCK KEY | XW | |
||
| 72 | 447735-02 | 1 | SCREW | XW | |
||
| 73 | 146976-00 | 1 | LEAD BLUE | XW | |
||
| 75 | 146956-00 | 1 | LEAD WHITE | XW | |
||
| 76 | 390449-00 | 1 | LEAD | XW | |
||
| 77 | 390449-01 | 1 | LEAD | XW | |
||
| 78 | 098197-03 | 1 | WASHER LOCK | XW | |||
| 79 | 690673 | 1 | TIE | 0.1 x 4.0in | XW | |
|
| 800 | 429698-00 | 1 | GREASE | BD-L 2 | XW | |
