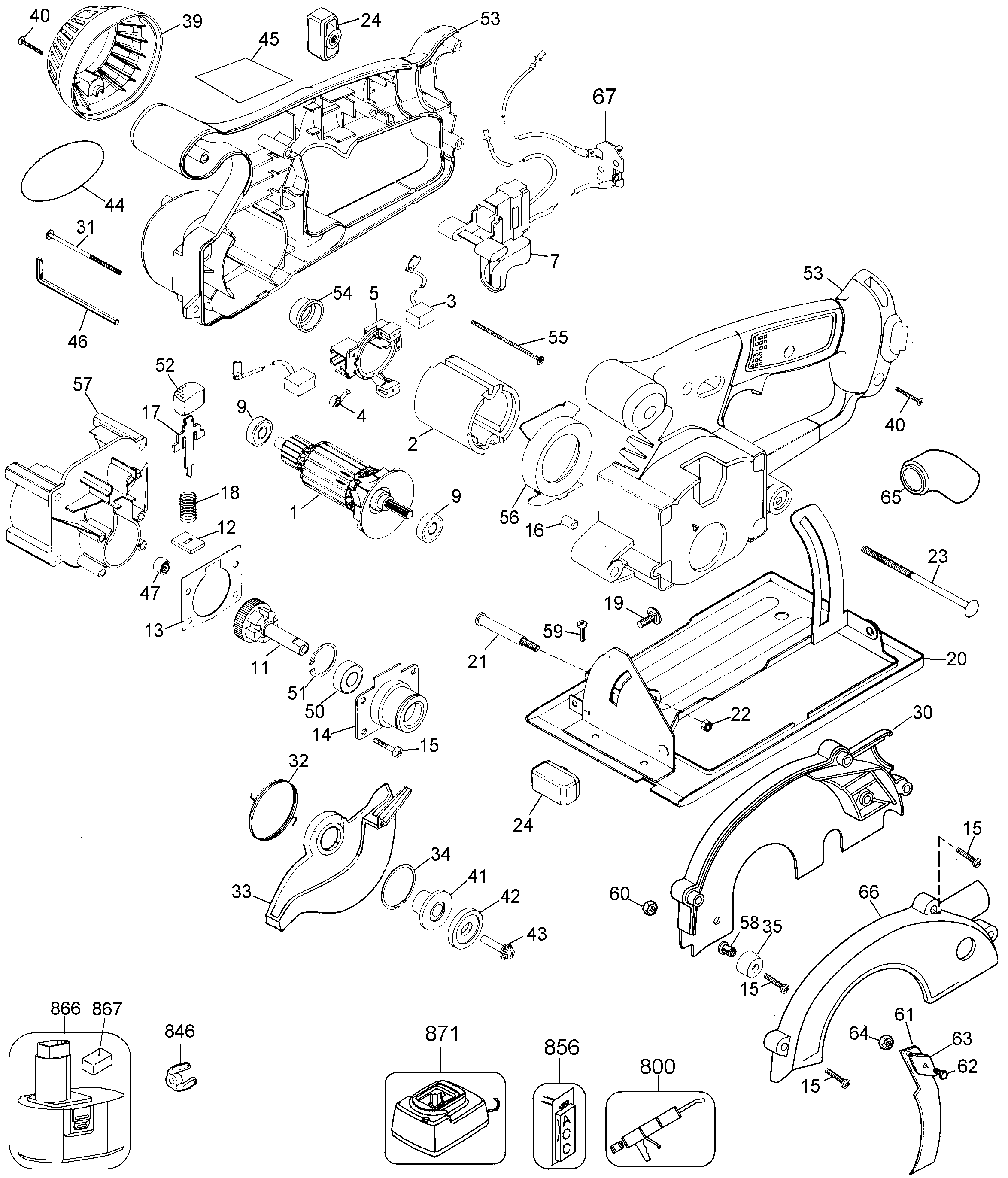

DW935K2 14.4V TRIMSAW KIT-U.K. Type 3 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 392996-00SV | 1 | ARMATURE & FAN | 8 TEETH | GB | ||
| 2 | 388232-01SV | 1 | MAGNET | GB |  |
||
| 3 | 387558-01 | 2 | BRUSH & LEAD | GB | |||
| 4 | 445860-00 | 2 | BRUSH SPRING | GB |  |
||
| 5 | 382178-01 | 1 | BRUSH FRAME | GB | |
||
| 7 | N062230 | 1 | SWITCH,TRIGGER | INC 60 | GB | ||
| 9 | 330003-04 | 2 | BEARING | GB | |||
| 11 | 393000-00SV | 1 | SPINDLE ASSY. | 37 TEETH | GB | ||
| 12 | 393004-00 | 1 | WIPER | GB | |
||
| 13 | 393005-00 | 1 | GASKET | GB | |
||
| 14 | 393007-00 | 1 | GEARCASE COVER | GB | |
||
| 15 | 330045-06 | 8 | SCREW | GB | |
||
| 16 | 032731-00 | 1 | PLUG | GB | |||
| 17 | 150389-00 | 1 | SPINDLE LOCK | GB | |
||
| 18 | 058698-00 | 1 | SPRING | GB | |
||
| 19 | N091970 | 1 | CARRIAGE BOLT | M6x1.0x15mm NYLOK | GB | |
|
| 20 | 380045-02 | 1 | SHOE SA | GB | |
||
| 21 | 396631-00 | 1 | SCREW | GB | |
||
| 22 | 148641-00 | 1 | LOCK-NUT | GB | |
||
| 23 | 098128-97 | 1 | BOLT | GB | |
||
| 24 | 395889-00 | 2 | KNOB | GB | |
||
| 30 | 380047-00 | 1 | GUARD UPPER | GB | |
||
| 31 | 398987-00 | 4 | SCREW | GB | |
||
| 32 | 605014-00 | 1 | SPRING | GB | |||
| 33 | 381130-00 | 1 | GUARD LOWER | GB | |
||
| 34 | 150383-00 | 1 | RETAINER | GB | |
||
| 35 | 445625-01 | 1 | BUMPER | GB | |
||
| 39 | 150386-00 | 1 | END CAP | GB | |
||
| 40 | 330019-04 | 7 | SCREW | GB | |
||
| 41 | 150369-02 | 1 | WASHER INNER CLAMP | GB | |
||
| 42 | 610669-00 | 1 | WASHER OUTER CLAMP | GB | |
||
| 43 | 150384-00 | 1 | BLADE BOLT | L.H. | GB | |
|
| 44 | 396062-00 | 1 | IDENTITY LABEL | GB | |
||
| 45 | 617251-00 | 1 | RATING PLATE | DW935 Type 3 EUO | GB | |
|
| 46 | 497570-02 | 1 | KEY | 4mm | GB | |
|
| 47 | 385939-00 | 1 | SLEEVE BEARING | GB | |
||
| 50 | 605040-15 | 1 | BEARING,BALL | NPP | GB | |
|
| 51 | 037464-00 | 1 | RETAINING RING | GB | |||
| 52 | 145350-00 | 1 | BUTTON | GB | |
||
| 53 | 380968-01 | 1 | CLAMSHELL PAIR | GB | |
||
| 54 | 445217-02 | 1 | SLEEVE | GB | |
||
| 55 | 448269-00 | 2 | SCREW | GB | |
||
| 56 | 150370-00 | 1 | FAN | GB | |
||
| 57 | 615621-00SV | 1 | GEARCASE ASSY | INCL. ITEMS 9,47 | GB | ||
| 58 | 091963-13 | 1 | EYELET | GB | |||
| 59 | 098003-11 | 1 | SCREW | GB | |||
| 60 | 330021-00 | 1 | STOP NUT | GB | |||
| 61 | 380041-00 | 1 | RIVING KNIFE | GB | |
||
| 62 | 098023-17 | 1 | T-20 SCREW | GB | |||
| 63 | 380042-00 | 1 | PLATE | GB | |
||
| 64 | 330021-01 | 1 | NUT | GB | |
||
| 65 | 380043-00 | 1 | NOZZLE | GB | |
||
| 66 | 380048-00SV | 1 | GUARD-CVR.UPPER | GB | |||
| 67 | 285371-00 | 1 | TERMINAL BLOCK | GB | |
||
| 800 | 286436-00 | 1 | GREASE | NYE RHEOLUBE 380, 500 GRAM JAR | 1-LB | GB | |
| 846 | 084317-00 | 1 | NUT,WING | FOR KIT BOX | GB | ||
| 856 | 340781-15 | 1 | BLADE | GB | |||
| 861 | 380865-02 | 1 | HANDLE FRAME KIT | GB | |||
| 861 | 637475-00 | 2 | LATCH ASSEMBLY | GB | |||
| 866 | DE9093 | 2 | BATTERY 14.4V - 2.0AH | Ni-Cad | GB | ||
| 867 | 645221-00 | 2 | CAP | GB | |
||
| 871 | DE9107 | 1 | CHARGER | 9.6 - 14.4V - Ni-Cad | GB |
