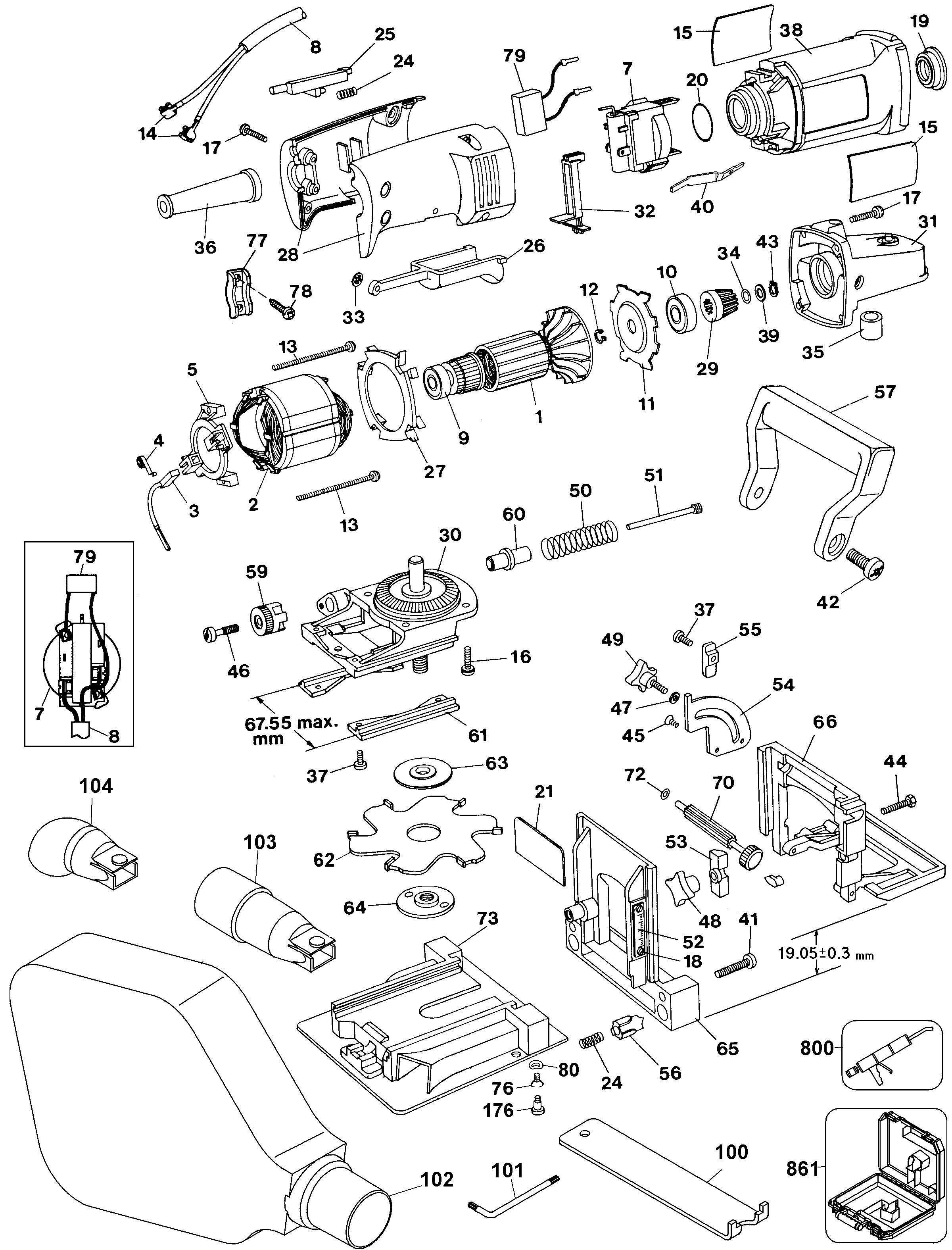

DW682K BISCUIT JOINTER Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 150320-02 | 1 | ARMATURE AND FAN | LX |  |
||
| 2 | 150050-00 | 1 | FIELD 115V | LX | |
||
| 3 | 445861-30 | 2 | BRUSH 220V | LX |  |
||
| 4 | 445860-00 | 2 | BRUSH SPRING | LX | |
||
| 5 | 449899-05 | 1 | RING | LX | |
||
| 7 | 147789-01 | 1 | SWITCH | LX | |
||
| 8 | 150998-04 | 1 | CORDSET | LX | |
||
| 9 | 330003-04 | 1 | BEARING | LX | |||
| 10 | 605040-15 | 1 | BEARING,BALL | NPP | LX | |
|
| 11 | 150057-00 | 1 | RETAINER | LX | |
||
| 12 | 444793-00 | 1 | CIRCLIP | LX | |
||
| 13 | 445880-00 | 2 | SCREW | LX | |
||
| 14 | 151169-00 | 2 | TERMINAL | LX | |
||
| 15 | 395047-00 | 2 | BRAND LABEL | LX | |
||
| 16 | 146929-00 | 4 | SCREW | 8-32x5/8 W/LOCK WSHR | LX | |
|
| 17 | 330019-13 | 8 | SCREW | M4X19 T20 | LX | |
|
| 18 | 330045-43 | 2 | SCREW | LX | |
||
| 19 | 445217-01 | 1 | SLEEVE | LX | |
||
| 20 | 700248-00 | 1 | SEAL | LX | |
||
| 24 | 147809-00 | 3 | SPRING | LX | |
||
| 25 | 147722-00 | 1 | BUTTON | LX | |
||
| 26 | 147723-01 | 1 | TRIGGER | LX | |
||
| 27 | 445876-00 | 1 | BAFFLE | LX | |
||
| 28 | 147727-03 | 1 | HANDLE & COVER | LX | |
||
| 29 | 152487-01 | 1 | PINION | LX | |
||
| 30 | 147730-02 | 1 | GEARCASE COVER | LX | |||
| 31 | 150323-03SV | 1 | CASE-GEAR/L.PIN | LX | |
||
| 32 | 151144-01 | 1 | ACTUATOR | LX | |
||
| 33 | 701901-00 | 1 | RING | LX | |
||
| 34 | 050050-00 | 1 | RING | LX | |
||
| 35 | 036826-00 | 1 | SLEEVE BEARING | LX | |
||
| 36 | 330005-01 | 1 | CORD PROTECTOR | LX | |||
| 37 | 330045-05 | 6 | SCREW | LX | |
||
| 38 | 445857-03 | 1 | FIELDCASE | LX | |
||
| 39 | 449559-00 | 1 | WASHER | LX | |
||
| 40 | 445882-00 | 2 | CONTACT | LX | |
||
| 41 | 330045-16 | 2 | SCREW | LX | |
||
| 42 | 330045-32 | 2 | SCREW | M8x1.25x20 MTLTHDFMG | LX | |
|
| 43 | 38751-00 | 1 | RING | LX | |
||
| 44 | 098022-25 | 1 | HEX HD SCREW | LX | |
||
| 45 | 098102-10 | 2 | SCREW.TEMP | M4x10 FLATHD TAPTITE | LX | |
|
| 46 | 147791-00 | 1 | SCREW | LX | |
||
| 47 | 330016-07 | 1 | WASHER | LX | |
||
| 48 | 396991-00 | 1 | KNOB | LX | |
||
| 49 | 396992-00 | 1 | KNOB | LX | |
||
| 50 | 147758-00 | 1 | SPRING | LX | |
||
| 51 | 147759-00 | 1 | SHAFT | LX | |
||
| 52 | 147797-01 | 1 | SCALE | LX | |
||
| 53 | 147749-00 | 1 | CLAMP | LX | |
||
| 54 | 147795-00 | 1 | QUADRANT | LX | |
||
| 55 | 147786-00 | 1 | STOP | LX | |
||
| 56 | 147753-00 | 2 | PIN | LX | |
||
| 57 | 147793-00 | 1 | HANDLE | LX | |
||
| 59 | 147760-00 | 1 | STOP | LX | |
||
| 60 | 147785-00 | 1 | GUIDE | LX | |
||
| 61 | 147736-01 | 2 | PAD | LX | |
||
| 62 | N514055 | 1 | BLADE | LX | |||
| 63 | 147725-00 | 1 | WASHER | LX | |
||
| 64 | 151001-00 | 1 | NUT | LX | |
||
| 65 | 147741-00 | 1 | SUPPORT | LX | |
||
| 66 | 147740-01SV | 1 | FENCE | LX | |||
| 70 | 147745-00SV | 1 | PINION | LX | |
||
| 72 | 147799-00 | 2 | O RING | LX | |
||
| 73 | 385914-00 | 1 | BASEPLATE SA | LX | |
||
| 76 | 5140160-00 | 4 | SCREW | M5x0.8x16 | LX | |
|
| 77 | 450877-00 | 1 | CORD CLAMP | LX | |
||
| 78 | 330019-02 | 2 | SCREW | LX | |
||
| 79 | 147792-00 | 1 | CAPACITOR | LX | |
||
| 80 | 385946-00 | 4 | WASHER SPRING | LX | |
||
| 100 | 445871-00 | 1 | SPANNER | LX | |
||
| 101 | 152693-00 | 1 | KEY | T20 | LX | |
|
| 102 | 147734-06 | 1 | DUSTBAG | LX | |
||
| 103 | 147794-00 | 1 | ADAPTOR | LX | |
||
| 104 | 151002-00 | 1 | DUST DEFLECTOR | LX | |
||
| 176 | 385915-01 | 4 | SCREW | LX | |
||
| 800 | 283484-01 | 1 | GREASE | 32oz, EXXON CVJ | LX | ||
| 800 | 761995-01 | 1 | GREASE | 180 Grams | CVJ GREASE | LX | |
| 861 | 621119-00 | 1 | KITBOX | LX | |
