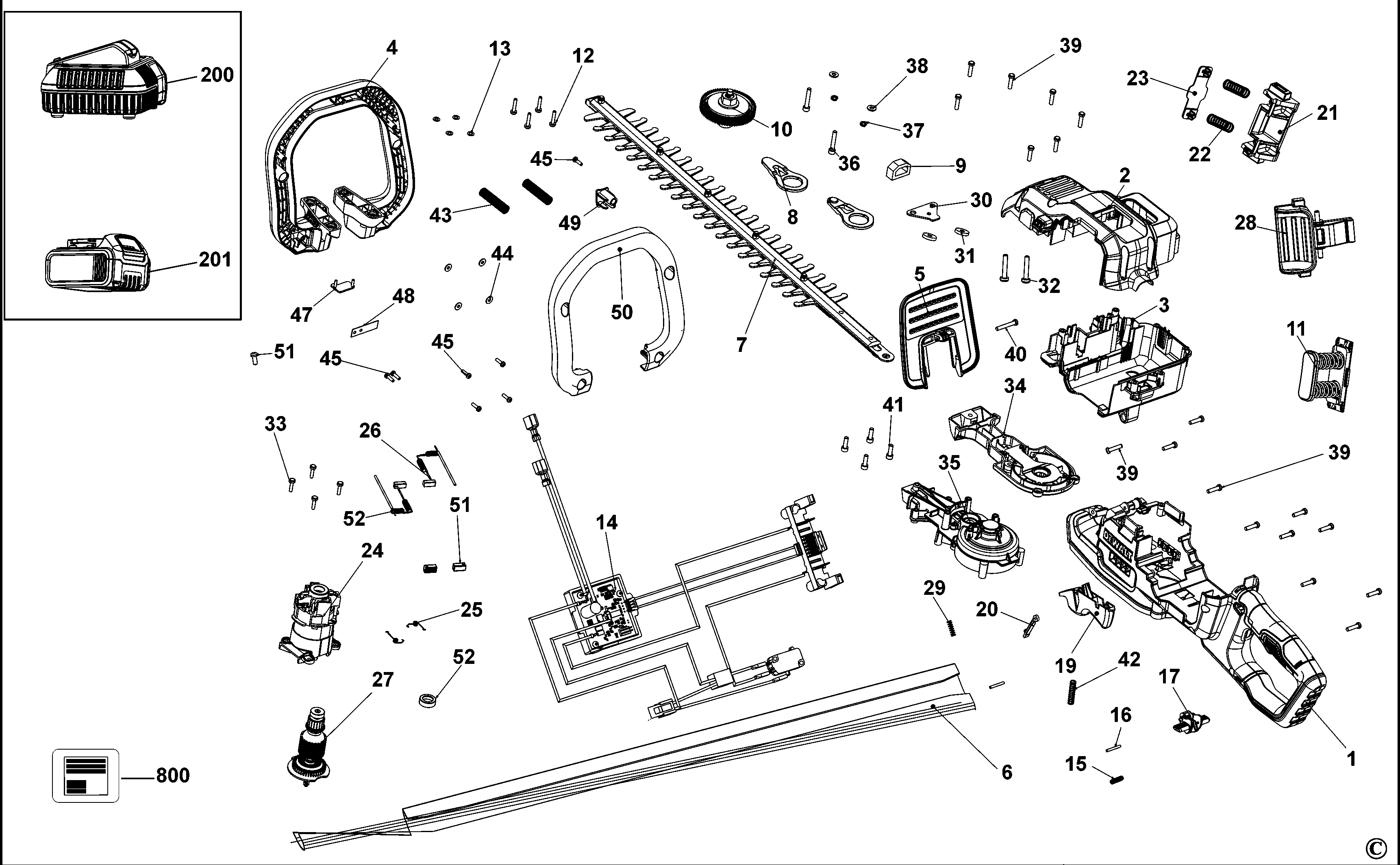

DCM583 HEDGE TRIMMER Type 1 | Drawings

Documents

Item No.	Product Number	Qty Per	Product Description	General Description	Other Info	Markets
1	90634674	1	HOUSING SA			XJ
2	90604970	1	HOUSING	BATTERY HOUSING		XJ
3	90604969	1	HOUSING	BATTERY BOTTOM		XJ
4	N529041	1	HANDLE SA			XJ
5	90604059	1	GUARD			XJ
6	90629314	1	SHEATH			XJ
7	90603148	1	BLADE SA			XJ
8	90603147	2	CONNECTOR			XJ
9	90607673	1	FELT			XJ
10	90620543	1	TRANSMISSION SA			XJ
11	90605769	1	EJECTOR			XJ
12	330045-07	4	SCREW			XJ
13	330016-15	4	WASHER			XJ
14	90635808	1	HARNESS			XJ
15	90604113	1	SPRING			XJ
16	5119820-00	2	PIN			XJ
17	90603478	1	LOCK			XJ
19	90634673	1	TRIGGER			XJ
20	90637318	1	SWITCH			XJ
21	90606555	1	LATCH			XJ
22	90606558	2	SPRING			XJ
23	90607453	1	SUPPORT			XJ
24	90639041	1	FIELD			XJ
25	90619719	2	SPRING BRUSH			XJ
26	90640897	2	BRUSH & LEAD			XJ
27	90639974	1	ARMATURE			XJ
28	90606556	1	BUTTON			XJ
29	90588958	1	SPRING			XJ
30	90604153	1	PLATE	PLATE BEARING		XJ
31	90605587	2	WASHER			XJ
32	330045-02	2	SCREW			XJ
33	330045-06	4	SCREW			XJ
34	90604277	1	GEARCASE COVER SA			XJ
35	90603422	1	GEARCASE			XJ
36	395441-00	2	SCREW			XJ
37	657339-00	2	WASHER			XJ
38	90607754	2	WASHER SPECIAL			XJ
39	330019-13	18	SCREW	M4X19 T20		XJ
40	330019-15	1	SCREW			XJ
41	098120-16	4	SCREW			XJ
42	90638274	1	SPRING			XJ
43	90572095	2	SPRING			XJ
44	90629573	4	WASHER			XJ
45	330013-02	7	SCREW			XJ
46	90595882	2	HOLDER			XJ
47	90634670	1	HOLDER	SWITCH HOLDER		XJ
48	90638227	1	SPRING			XJ
49	90638185	1	COVER			XJ
50	90634669	1	HANDLE			XJ
51	90008440	1	SCREW			XJ
52	90640895	1	BRUSH & LEAD			XJ
201	N517081	1	BATTERY 36V - 6.0AH - 216KW	Li-Ion - DCB496		XJ
800	90640724	1	RATING LABEL		DCM583N	XJ
