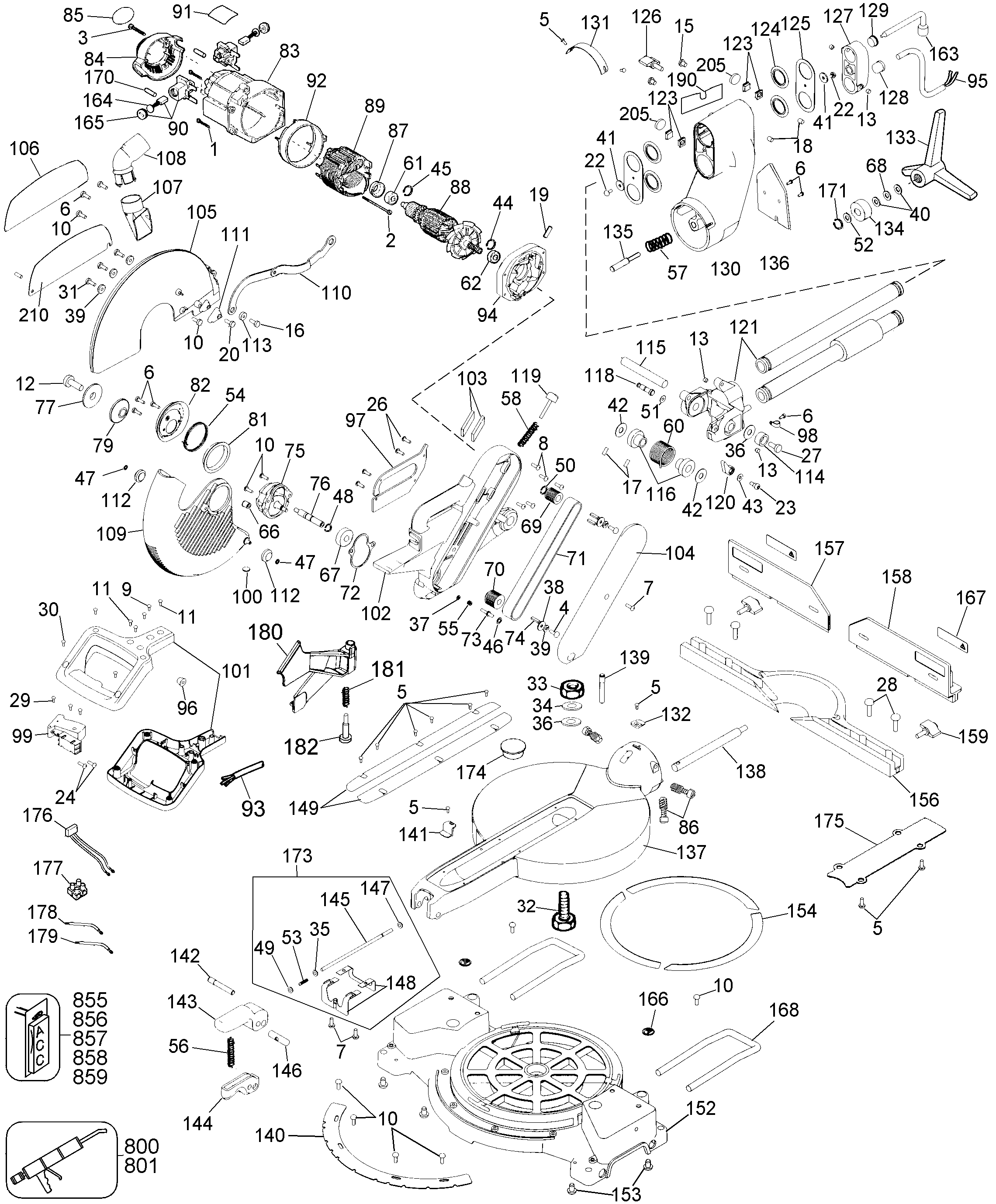

DW708 MITRE SAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 98094-55 | 4 | SCREW | M5 X 55mm T25 | GB |  |
|
| 2 | 330019-19 | 2 | SCREW | GB | |
||
| 3 | 330019-20 | 2 | SCREW | GB |  |
||
| 4 | 153778-00 | 2 | SCREW | M6x20, NYLON PATCH | GB | |
|
| 5 | 330045-05 | 10 | SCREW | GB | |
||
| 6 | 330045-13 | 8 | SCREW | M5x0.8x10 MTL THDFMG | GB | |
|
| 7 | 330045-14 | 3 | SCREW | GB | |
||
| 8 | 330045-15 | 6 | SCREW | GB | |
||
| 9 | 330045-18 | 1 | SCREW | GB | |
||
| 10 | 330045-23 | 10 | SCREW | GB | |
||
| 11 | 330045-20 | 3 | SCREW | M5*45 T25 | GB | |
|
| 12 | 145344-01 | 1 | BLADE BOLT | M8 X 20 LH | GB | |
|
| 13 | 153666-00 | 4 | SCREW | set screw M8 x 8mm long | GB | |
|
| 15 | 153637-02 | 2 | SCREW | GB | |
||
| 16 | 153720-00 | 1 | SCREW | GB | |
||
| 17 | 150075-00 | 2 | SCREW | GB | |
||
| 18 | 153576-00 | 2 | SCREW | GB | |
||
| 19 | 394034-00 | 1 | SCREW | GB | |
||
| 20 | 144949-00 | 1 | SCREW.SPECIAL | GB | |
||
| 22 | 151799-00 | 2 | SCREW | GB | |||
| 23 | 153639-00 | 1 | SCREW | GB | |
||
| 24 | 384127-01 | 4 | SCREW | GB | |
||
| 26 | 330045-06 | 4 | SCREW | GB | |
||
| 27 | 330045-47 | 1 | SCREW | GB | |
||
| 28 | 330045-33 | 4 | SCREW | GB | |
||
| 29 | 330019-03 | 1 | SCREW | GB | |
||
| 30 | 330019-14 | 4 | SCREW | GB | |
||
| 31 | 330045-24 | 3 | SCREW | GB | |
||
| 32 | 5140117-87 | 1 | SCREW | 5/16-24x2.0in | GB | ||
| 33 | 153794-00 | 1 | NUT | GB | |
||
| 34 | 153792-00 | 1 | WASHER | GB | |
||
| 35 | 062487-00 | 1 | WASHER | GB | |||
| 36 | 153781-00 | 2 | WASHER | GB | |
||
| 37 | 153559-00 | 1 | WASHER | GB | |
||
| 38 | 153782-00 | 2 | WASHER | GB | |
||
| 39 | 098198-05 | 5 | WASHER | LOCK, M6 | GB | |
|
| 40 | 153769-01 | 2 | WASHER THRUST | GB | |
||
| 41 | 153586-00 | 2 | WASHER | GB | |
||
| 42 | 148296-00 | 2 | WASHER | GB | |
||
| 43 | 153655-00 | 1 | WASHER | GB | |
||
| 44 | 144803-00 | 1 | CIRCLIP | GB | |
||
| 45 | 5140096-03 | 1 | RETAINING RING | EXTERNAL | GB | ||
| 46 | 153753-00 | 1 | RETAINER | GB | |
||
| 47 | 142273-00 | 2 | RING | GB | |
||
| 48 | 153752-00 | 1 | RETAINER | GB | |
||
| 49 | 153763-00 | 1 | RING | GB | |
||
| 50 | 153783-00 | 1 | RING | GB | |
||
| 51 | 034158-00 | 1 | O RING | GB | |
||
| 52 | 385717-00 | 1 | O RING | GB | |
||
| 53 | 140733-00 | 1 | SPRING | GB | |
||
| 54 | 606888-00 | 1 | SPRING | GB | |
||
| 55 | 448176-00 | 1 | SPRING | GB | |
||
| 56 | 096723-00 | 1 | SPRING | GB | |
||
| 57 | 88165-00 | 1 | SPRING | GB | |
||
| 58 | 168507-00 | 1 | SPRING | GB | |
||
| 60 | 153596-01 | 1 | SPRING | GB | |
||
| 61 | 605040-20 | 1 | BEARING | 12 x 28 x 8mm | GB | |
|
| 62 | N127530 | 1 | BEARING BALL | GB | |||
| 66 | 330004-02 | 1 | BEARING NEEDLE | GB | |
||
| 67 | 330003-47 | 1 | BEARING | 12 x 37 x 12 - 6301 | GB | |
|
| 68 | 065786-00 | 1 | BEARING | GB | |
||
| 69 | 153554-00 | 1 | DRIVE PULLEY | GB | |
||
| 70 | 429721-00 | 1 | PULLEY REPAIR KIT | INCL. GR CS AND BRG | GB | |
|
| 71 | 153555-00 | 1 | BELT | GB | |
||
| 72 | 153560-00 | 1 | GASKET | GB | |
||
| 73 | 153561-00 | 1 | LOCKING PIN | GB | |
||
| 74 | 153638-00 | 3 | KEY | GB | |
||
| 75 | 5140000-28 | 1 | GEARCASE SA | INCL. GR CS / BRG | GB | |
|
| 76 | 5140000-28 | 1 | GEARCASE SA | INCL. GR CS / BRG | GB | |
|
| 77 | 5140005-29 | 1 | BLADE CLAMP | KIT | GB | |
|
| 79 | 5140005-29 | 1 | BLADE CLAMP | KIT | GB | |
|
| 81 | 153649-00 | 1 | SLEEVE | GB | |
||
| 82 | 153563-00 | 1 | COVER | GB | |
||
| 83 | 389786-05 | 1 | FIELDCASE | Yellow | GB | |
|
| 84 | 387678-00 | 1 | END CAP | GB | |
||
| 85 | 149521-01 | 1 | NAMEPLATE | GB | |
||
| 86 | 153788-00 | 3 | STOP | GB | |
||
| 87 | 137382-01 | 1 | SLEEVE | GB | |
||
| 88 | 397368-03SV | 1 | ARMATURE & FAN | GB | |
||
| 89 | N078041SV | 1 | FIELD | 230/240V | GB | ||
| 90 | 147097-09 | 2 | BRUSH HOLDER SA | GB | |
||
| 91 | 384838-03 | 1 | NAMEPLATE | GB | |
||
| 92 | 146723-01 | 1 | BAFFLE | GB | |
||
| 93 | 381740-00 | 1 | LEAD SA | GB | |
||
| 94 | 153564-00 | 1 | PLATE SA | GB | |
||
| 95 | 330060-02 | 1 | CORDSET (M/PLUG) | GB | GB | |
|
| 96 | 32114-00 | 1 | CONNECTOR | GB | |||
| 97 | 153647-00 | 1 | COVER | GB | |||
| 98 | 153669-00 | 1 | CORD CLAMP | GB | |
||
| 99 | 153749-00 | 1 | SWITCH | Tyco | GB | |
|
| 100 | 153756-00 | 1 | PLUG | GB | |
||
| 101 | 153755-01 | 1 | CLAMSHELL PAIR | GB | |
||
| 102 | 5140062-30 | 1 | ARM | GB | |
||
| 103 | 153721-00 | 2 | FOAM | GB | |
||
| 104 | 153562-00 | 1 | BELT COVER | GB | |
||
| 105 | 153648-05 | 1 | GUARD UPPER | GB | |
||
| 106 | 149365-01 | 1 | IDENTITY LABEL | GB | |
||
| 107 | 605408-01 | 1 | DUST EXTRACTOR | GB | |
||
| 108 | 605408-01 | 1 | DUST EXTRACTOR | GB | |
||
| 109 | 5140000-89 | 1 | GUARD KIT | LOWER | GB | |
|
| 110 | 153719-01 | 1 | LINK | GB | |
||
| 111 | 145318-00 | 1 | BUMPER | GB | |
||
| 112 | 146774-00 | 2 | ROLLER | GB | |
||
| 113 | 146740-00 | 1 | SLEEVE | GB | |
||
| 114 | 385756-00 | 1 | BUSH | GB | |
||
| 115 | 146751-00 | 1 | SHAFT | GB | |
||
| 116 | 153593-01 | 2 | SPACER | GB | |
||
| 117 | 153796-00 | 1 | PULLEY | GB | |
||
| 118 | 387131-00 | 1 | LOCKING PIN | GB | |
||
| 119 | 397000-00 | 1 | SCREW.SPECIAL | GB | |
||
| 120 | 153603-01 | 1 | PAWL | GB | |
||
| 121 | 429941-00 | 1 | TRUNNION | GB | |
||
| 121 | 429941-00 | 1 | TRUNNION | GB | |
||
| 123 | 153582-00 | 4 | GUIDE | GB | |
||
| 124 | 153590-00 | 4 | WIPER | GB | |
||
| 125 | 153583-00 | 2 | COVER | GB | |
||
| 126 | 147107-03 | 1 | KNOB | GB | |
||
| 127 | 153584-02 | 1 | END CAP | GB | |
||
| 128 | 33821-00 | 1 | BUSHING | GB | |
||
| 129 | 153667-00 | 1 | BUSHING | GB | |
||
| 131 | 153578-00 | 1 | SCALE | GB | |
||
| 132 | 153575-00 | 1 | POINTER | GB | |
||
| 133 | 392422-00 | 1 | HANDLE | GB | |
||
| 134 | 385708-01 | 1 | SPACER | GB | |
||
| 135 | 153570-00 | 1 | PIN | GB | |
||
| 136 | 153793-00 | 1 | PLATE | GB | |
||
| 137 | 429910-00 | 1 | TABLE KIT | GB | |
||
| 138 | 385709-00 | 1 | SHAFT | GB | |
||
| 139 | 153640-00 | 1 | PIN | GB | |
||
| 140 | 429921-01 | 1 | REPAIR KIT | GB | |
||
| 141 | 153624-00 | 1 | POINTER | GB | |
||
| 142 | 153632-00 | 1 | PIN | GB | |
||
| 143 | 153621-00 | 1 | HANDLE | GB | |
||
| 144 | 153722-01 | 1 | TRIGGER | GB | |
||
| 145 | 153622-00 | 1 | LOCKING PIN | GB | |
||
| 146 | 153626-00 | 1 | LEVER | GB | |
||
| 147 | 385652-00SV | 1 | LOCK SA | GB | |
||
| 148 | 153768-00 | 1 | SPRING SA | GB | |
||
| 149 | 395672-00 | 2 | PLATE SA | GB | |
||
| 152 | 153765-02 | 1 | BASE | GB | |
||
| 153 | 153612-00 | 4 | FOOT | GB | |
||
| 154 | 153614-01 | 3 | THRUST PLATE | GB | |
||
| 156 | 153627-00 | 1 | FENCE SA | GB | |
||
| 157 | 153766-03SV | 1 | FENCE LH | GB | |
||
| 158 | 153767-03SV | 1 | FENCE-RIGHT | GB | |||
| 159 | 147107-02 | 1 | KNOB LOWER | GB | |
||
| 163 | 608563-01 | 1 | WRENCH SPECIAL | M13 - T30 | GB | |
|
| 164 | 145323-06 | 2 | BRUSH SA | GB | |
||
| 165 | 448084-01 | 2 | BRUSH CAP | GB | |
||
| 166 | 394976-00 | 2 | LABEL | WARNING | GB | |
|
| 167 | 380179-00 | 2 | WARNING LABEL | GB | |
||
| 168 | 391246-00 | 1 | SUPPORT BRACKET | GB | |
||
| 170 | 87205-00 | 2 | PLUG | GB | |
||
| 171 | 385750-00 | 1 | WASHER | GB | |
||
| 173 | 385652-00SV | 1 | LOCK SA | GB | |
||
| 174 | 153799-00 | 1 | PLUG | GB | |
||
| 175 | 153608-00 | 1 | INSERT | GB | |
||
| 176 | 148679-04 | 1 | CAPACITOR | GB | |
||
| 177 | 320078-00 | 1 | TERMINAL BLOCK | GB | |
||
| 178 | 151644-00 | 1 | LEAD SA BLACK | GB | |
||
| 179 | 385235-00 | 1 | LEAD | GB | |
||
| 180 | 384495-00 | 1 | LOCKING DEVICE | GB | |
||
| 181 | 386196-00 | 1 | SPRING | GB | |
||
| 182 | 152852-00 | 1 | BOLT | GB | |
||
| 190 | 387553-00 | 1 | LABEL | GB | |
||
| 205 | 613497-00 | 2 | THRUST PLATE | GB | |
||
| 210 | 153601-01 | 1 | COVER | GB | |
||
| 800 | 5140061-28 | 1 | GREASE | GB | |
||
| 801 | 93488-00 | 1 | GREASE | GB | |
||
| 855 | DW7053 | 1 | DUST BAG SA | GB | |||
| 856 | DW7084 | 1 | STOP PLATE | GB | |||
| 857 | 5140050-83 | 1 | LENGTH STOP | WAS ACCY DW7051 | GB | ||
| 858 | 153650-00 | 1 | CLAMP | GB | |
||
| 859 | DW7080 | 1 | EXTENSION SYSTEM | ACCESSORY | GB |
