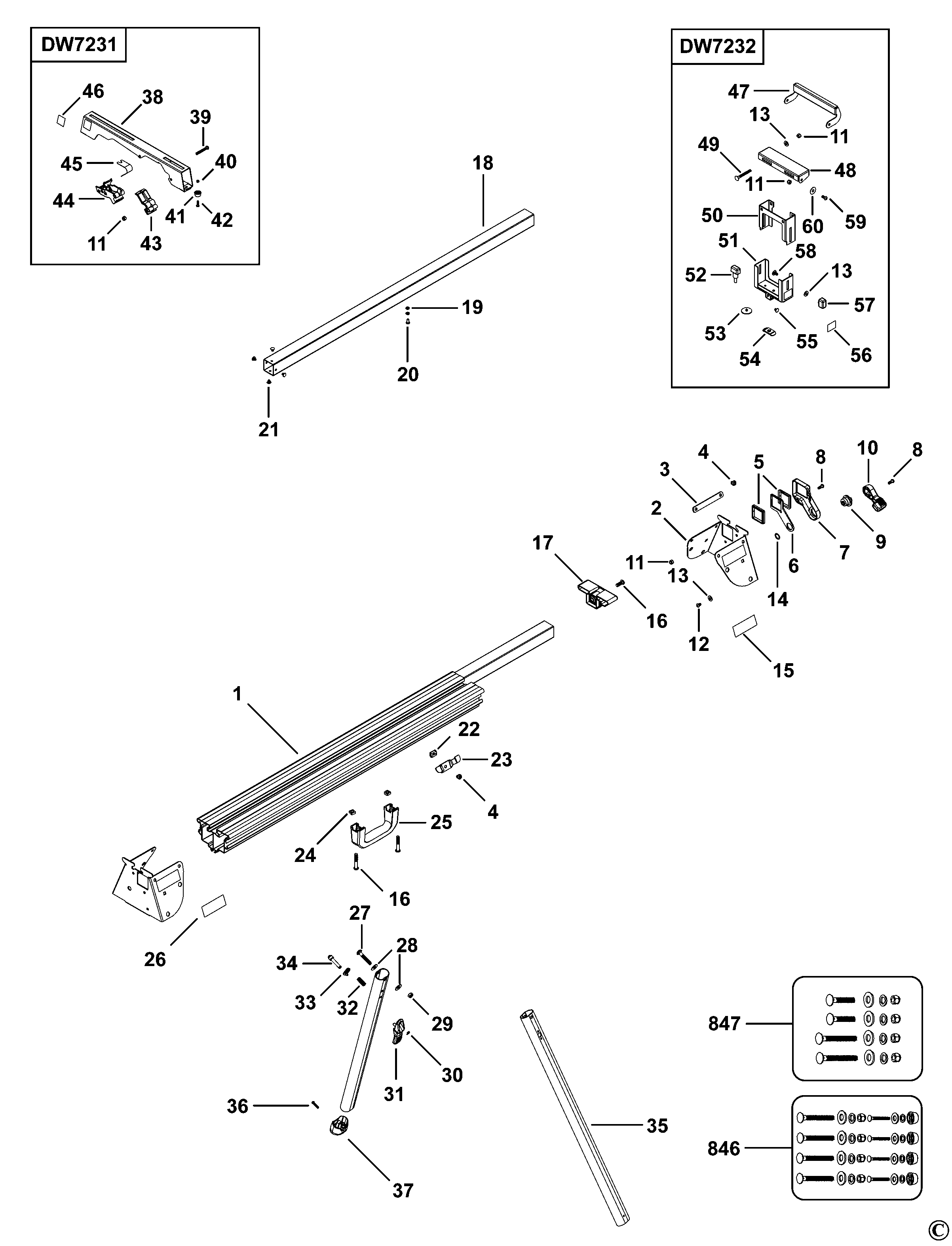

DWX724 LEG STAND Type 4 | Drawings

Documents

Item No.	Product Number	Qty Per	Product Description	General Description	Markets
1	N450288	1	BEAM		XJ
2	N450289	2	SUPPORT BRACKET		XJ
3	N087205	4	PLATE		XJ
4	330045-31	9	SCREW		XJ
5	N087198	4	GUIDE		XJ
6	N439896	2	PLATE LOCK		XJ
7	N576965	2	COVERPLATE		XJ
8	N087285	6	SCREW		XJ
9	N439901	2	CAM		XJ
10	N069240	2	LEVER LOCK		XJ
11	330021-01	16	NUT		XJ
12	N087318	2	SCREW		XJ
13	N087248	10	WASHER		XJ
14	N087200	2	WASHER SPRING	12.8mm	XJ
16	N086604	4	SCREW		XJ
17	N576964	2	END CAP		XJ
18	N450292	2	EXTENSION		XJ
19	N087321	4	WASHER LOCK		XJ
20	N087258	2	SCREW		XJ
21	N439894	8	PAD		XJ
22	N087250	1	NUT		XJ
23	N087127	1	BRACKET		XJ
24	N087199	2	NUT		XJ
25	N087125	1	HANDLE		XJ
26	606774-00	1	BRAND LABEL		XJ
27	658122-00	4	CARRIAGE BOLT		XJ
28	657479-00	8	WASHER PLASTIC		XJ
29	330021-02	4	NUT		XJ
30	658121-00	4	RING		XJ
31	N041876	4	LEVER LOCK		XJ
32	658120-00	4	SPRING COMPRESSION		XJ
33	657478-00	4	WASHER PLASTIC		XJ
34	N439891	4	LOCK PIN		XJ
35	N450293	4	LEG		XJ
36	330019-32	4	SCREW		XJ
37	N074647	4	FOOT		XJ
38	N087331	2	MOUNTING BRACKET		XJ
39	N087342	4	SCREW		XJ
40	330021-00	4	STOP NUT		XJ
41	N057926	4	FOOT		XJ
42	330045-06	4	SCREW		XJ
43	N087369	2	CLIP		XJ
44	N087367	2	LEVER RELEASE		XJ
45	N087366	2	LEAF SPRING		XJ
46	N217779	1	RATING PLATE		XJ
47	N087387	2	STOP		XJ
48	N087381	2	SUPPORT		XJ
49	N087382	4	CARRIAGE BOLT		XJ
50	N087377	2	SUPPORT BRACKET		XJ
51	N087402	2	BASE BRACKET		XJ
52	N087376	2	KNOB		XJ
53	N087374	4	PLASTIC INSERT		XJ
54	N087375	2	BAR LOCKING		XJ
55	N087373	8	PLASTIC INSERT		XJ
56	N217778	1	RATING PLATE		XJ
57	N087378	4	KNOB		XJ
58	N087380	4	SCREW		XJ
59	N087390	4	SCREW		XJ
60	N087392	4	WASHER PLASTIC		XJ
846	N088854	1	PARTS PACK		XJ
847	N088855	1	PARTS PACK		XJ
