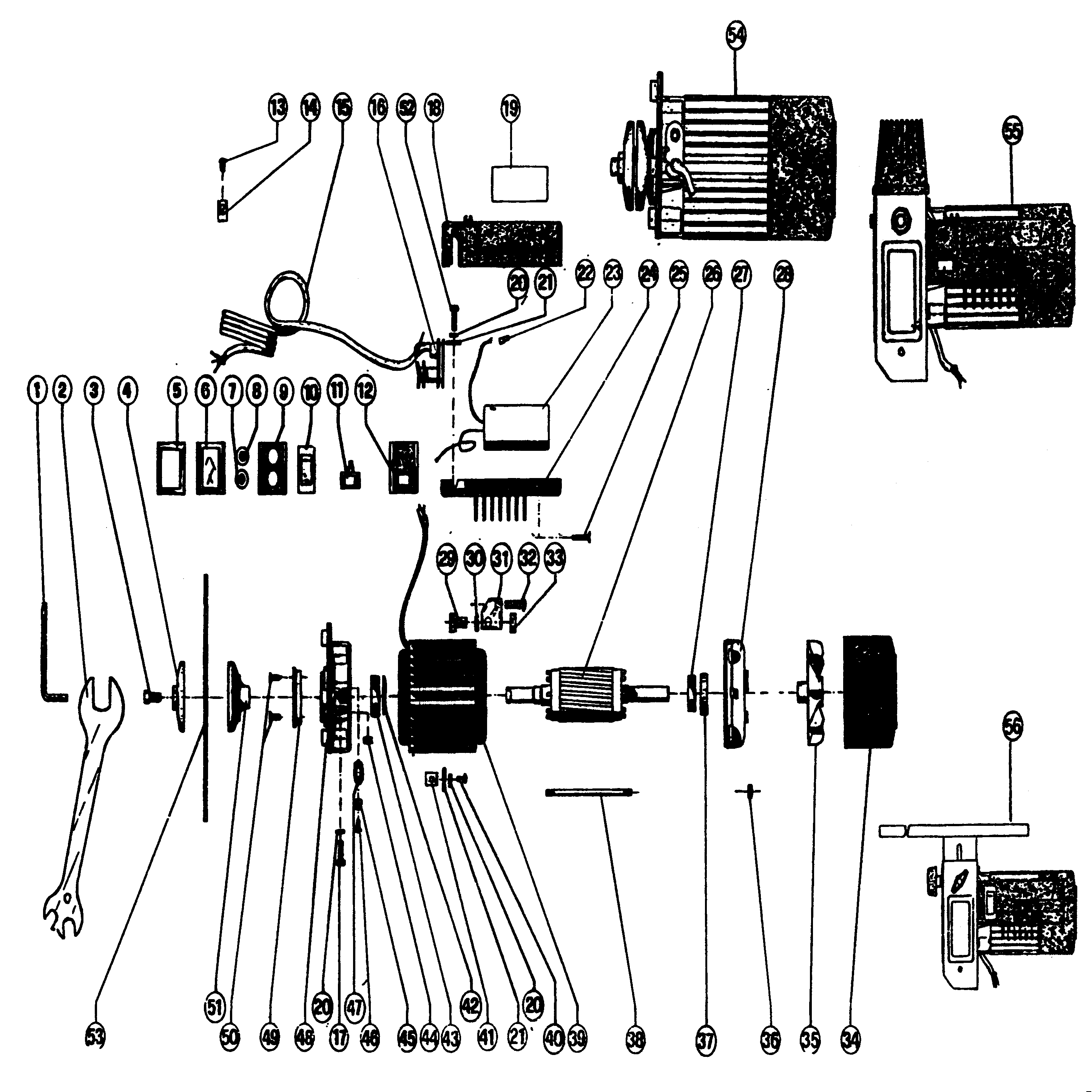

DW250-----A MITRE SAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 860098-04 | 1 | WRENCH 6 MM | XJ |  |
||
| 2 | 860153-00 | 1 | WRENCH | XJ |  |
||
| 3 | 761295-00 | 1 | SCREW | XJ | |
||
| 5 | 863198-00 | 1 | PLATE | XJ | |
||
| 6 | 863849-00 | 1 | CAP | XJ | |
||
| 7 | 863124-17 | 1 | BUTTON START | DW252 | XJ | |
|
| 7 | 863124-17 | 1 | BUTTON START | DW252 | XJ | |
|
| 8 | 863124-16 | 1 | BUTTON STOP | DW252 | XJ | |
|
| 9 | 862420-00 | 1 | REDUCER | DW252 | XJ | |
|
| 10 | 861385-05 | 1 | SWITCH | DW252 | XJ | |
|
| 11 | 863124-07 | 1 | SWITCH | DW252 | XJ | |
|
| 11 | 44425 | 1 | SWITCH | DW250 | XJ | |
|
| 12 | 862430-00 | 1 | REDUCER | XJ | |
||
| 13 | 860094-03 | 1 | SCREW | XJ | |
||
| 14 | 123106-00 | 1 | STRAP | XJ | |
||
| 15 | 949863-37 | 1 | CABLE | XJ | |
||
| 16 | 863573-00 | 1 | INLET | XJ | |
||
| 17 | 860085-13 | 1 | SCREW | XJ | |
||
| 18 | 862429-04 | 1 | HANDLE & COVER | XJ | |
||
| 19 | 32120 | 1 | NAMEPLATE | DW250 | XJ | |
|
| 19 | 32122 | 1 | NAMEPLATE | DW252 | XJ | |
|
| 20 | 860075-00 | 1 | WASHER | XJ | |
||
| 21 | 863025-00 | 2 | SHEATH | XJ | |
||
| 22 | 860134-00 | 1 | CONNECTOR | XJ | |
||
| 23 | 949772-23 | 1 | CAPACITOR | XJ | |
||
| 25 | 860084-09 | 1 | SCREW | XJ | |
||
| 26 | 196527 | 1 | ROTOR | XJ | |
||
| 27 | 868768-07 | 1 | BEARING | XJ | |
||
| 28 | 860443-00 | 1 | END CAP | XJ | |
||
| 29 | 860085-18 | 1 | SCREW | DW252 | XJ | |
|
| 30 | 860074-03 | 1 | WASHER | DW252 | XJ | |
|
| 31 | 863571-00 | 1 | PLATE | DW252 | XJ | |
|
| 32 | 249406-00 | 1 | SCREW | DW252 | XJ | |
|
| 33 | 860083-04 | 1 | NUT | DW252 | XJ | |
|
| 34 | 860445-00 | 1 | COVER | XJ | |
||
| 35 | 860444-00 | 1 | FAN | XJ | |
||
| 36 | 860083-02 | 1 | NUT | XJ | |
||
| 37 | 860080-02 | 1 | RING | XJ | |
||
| 38 | 863015-00 | 1 | TIE ROD | XJ | |
||
| 39 | 868412-00 | 1 | STATOR | XJ | |
||
| 40 | 930076-00 | 1 | SCREW | XJ | |
||
| 41 | 949761-01 | 1 | WASHER | XJ | |
||
| 42 | 860806-00 | 1 | RING | XJ | |
||
| 43 | 861721-12 | 1 | BEARING | XJ | |
||
| 44 | 860083-03 | 1 | NUT | XJ | |
||
| 45 | 944650-00 | 1 | WASHER SPRING | XJ | |
||
| 46 | 860094-03 | 1 | SCREW | XJ | |
||
| 47 | 863026-00 | 1 | GASKET | XJ | |
||
| 48 | 176483 | 1 | SUPPORT | XJ | |
||
| 49 | 863039-02 | 1 | HUB | XJ | |
||
| 50 | 11275 | 1 | SCREW | XJ | |
||
| 51 | 863603-00 | 1 | FLANGE | XJ | |
||
| 52 | 860085-13 | 1 | SCREW | XJ | |
||
| 54 | 197513 | 1 | MOTOR SA | XJ | |
||
| 56 | 197515 | 1 | HEAD SA | DW252 | XJ | |
