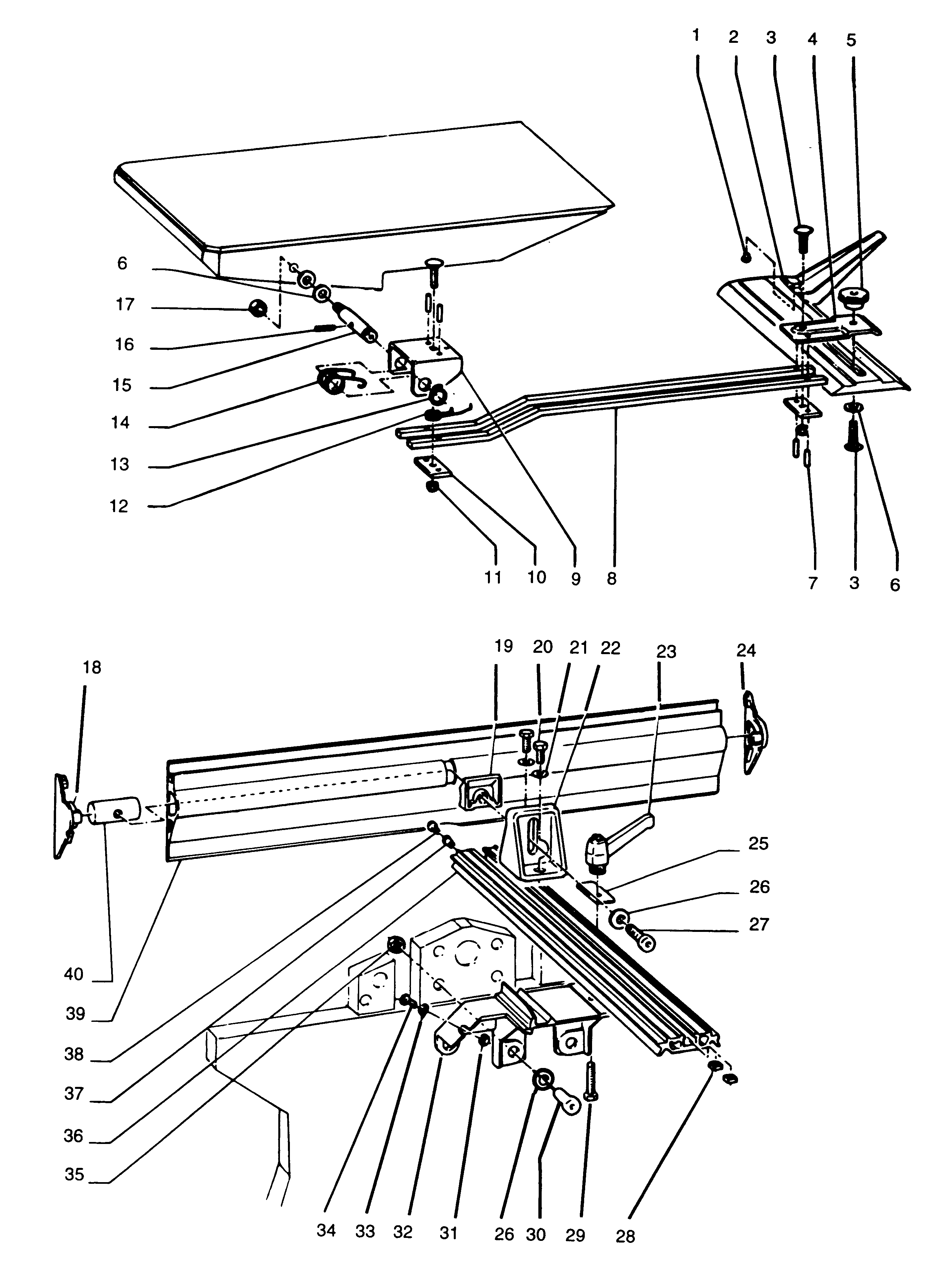

DW1150----E PLANER THICKNESSER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 32393 | 1 | STOP | XJ |  |
||
| 2 | 199428 | 1 | GUARD SA | XJ | |
||
| 3 | 249406-02 | 2 | SCREW | XJ | |
||
| 4 | 32309 | 1 | PLATE | XJ | |
||
| 5 | 32378 | 1 | KNOB | XJ | |
||
| 6 | 860073-03 | 3 | WASHER M8 | XJ |  |
||
| 8 | 32307 | 1 | BAR | XJ | |
||
| 9 | 32306 | 1 | SUPPORT | XJ | |
||
| 11 | 860092-03 | 1 | NUT M5 | XJ | |
||
| 12 | 32311 | 1 | SPRING | XJ | |
||
| 13 | 860079-03 | 1 | CIRCLIP | XJ | |
||
| 14 | 31909 | 1 | SPRING | XJ | |
||
| 15 | 32305 | 1 | PIN | XJ | |
||
| 16 | 11453 | 1 | PIN | XJ | |
||
| 17 | 860083-04 | 1 | NUT | XJ | |
||
| 18 | 860311-00 | 1 | CAP | XJ | |
||
| 19 | 860305-00 | 1 | SPACER | XJ | |
||
| 20 | 860085-07 | 2 | SCREW | XJ | |
||
| 21 | 860074-02 | 2 | WASHER | XJ | |
||
| 22 | 860306-00 | 1 | BRACKET | XJ | |
||
| 23 | 861840-00 | 1 | HANDLE | XJ | |
||
| 24 | 860311-01 | 1 | CAP | XJ | |
||
| 25 | 860373-00 | 1 | PLATE | XJ | |
||
| 26 | 860074-03 | 1 | WASHER | XJ | |
||
| 27 | 860093-04 | 1 | SCREW | XJ | |
||
| 28 | 860310-00 | 2 | NUT | XJ | |
||
| 29 | 943520-00 | 1 | BOLT | XJ | |
||
| 30 | 860093-00 | 1 | SCREW | XJ | |
||
| 31 | 860083-02 | 1 | NUT | XJ | |
||
| 32 | 862169-00 | 1 | BRACKET | XJ | |
||
| 33 | 860073-01 | 1 | WASHER | XJ | |
||
| 34 | 860089-18 | 1 | SCREW | XJ | |
||
| 35 | 860083-04 | 1 | NUT | XJ | |
||
| 36 | 862484-00 | 1 | GUIDE | XJ | |
||
| 36 | 862484-00 | 1 | GUIDE | XJ | |
||
| 37 | 860309-00 | 1 | INSERT | XJ | |
||
| 38 | 860085-06 | 1 | SCREW | XJ | |
||
| 39 | 35039 | 1 | FENCE | XJ | |
||
| 40 | 860308-00 | 1 | PIN | XJ | |
||
| 846 | 199428 | 1 | GUARD SA | XJ | |
