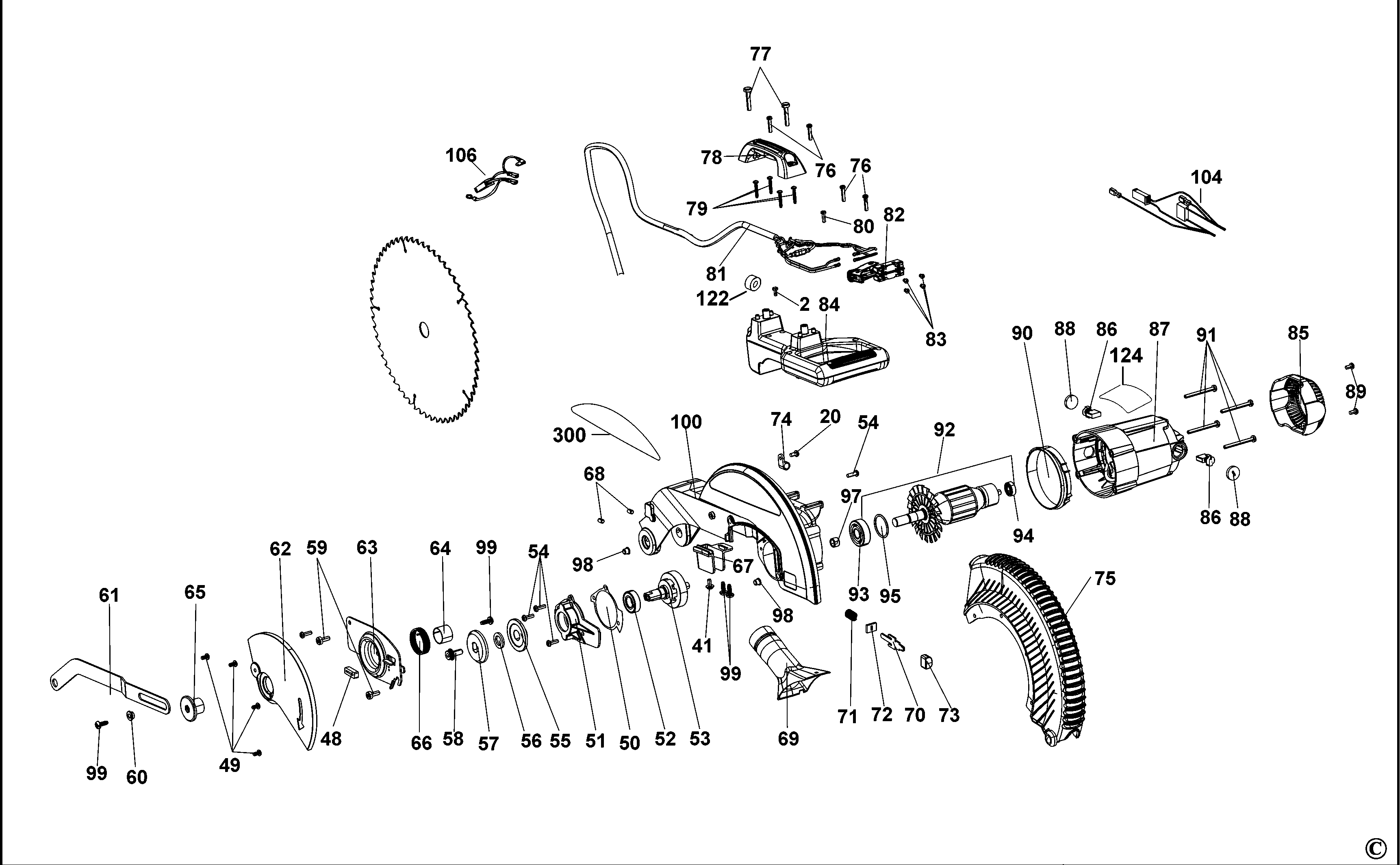

DWS715 MITRE SAW Type 20 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N542738 | 1 | POINTER | XJ |  |
||
| 2 | 330045-05 | 8 | SCREW | XJ | |
||
| 3 | N542862 | 1 | COVERPLATE | XJ | |
||
| 4 | N555147 | 1 | TABLE | XJ | |
||
| 5 | N542735 | 1 | CAM | XJ | |
||
| 6 | 398256-00 | 1 | BUSHING | XJ |  |
||
| 7 | N582377 | 1 | PLATE | XJ | |
||
| 8 | N542431 | 1 | KNOB SA | XJ | |
||
| 9 | 153792-00 | 2 | WASHER | XJ | |
||
| 10 | N556926 | 1 | CAP | XJ | |
||
| 11 | 330021-02 | 1 | NUT | XJ | |
||
| 12 | 330045-22 | 4 | SCREW | M6X10, T30 | XJ | |
|
| 13 | 604410-00 | 2 | SCREW | XJ | |
||
| 14 | N542736 | 1 | DETENT | XJ | |
||
| 15 | N555150 | 1 | DETENT | XJ | |
||
| 16 | N543960 | 1 | PLATE | XJ | |
||
| 17 | 391358-01 | 1 | HOLDER | XJ | |
||
| 18 | N542847 | 4 | HOLDER | XJ | |
||
| 19 | N555148 | 1 | GUARD | XJ | |
||
| 20 | 330045-13 | 14 | SCREW | M5x0.8x10 MTL THDFMG | XJ | |
|
| 21 | N555155 | 1 | BASE | XJ | |
||
| 22 | N600007 | 1 | SPANNER | XJ | |
||
| 23 | N571680 | 3 | PLATE | XJ | |
||
| 24 | N058318 | 1 | SCREW | XJ | |
||
| 25 | 49787-00 | 1 | O RING | XJ | |
||
| 26 | N377514 | 2 | BUSHING | XJ | |
||
| 27 | N126153 | 1 | PIVOT SHAFT | XJ | |
||
| 28 | 146732-00 | 2 | SPACER | XJ | |
||
| 29 | N639013 | 1 | SPRING | XJ | |
||
| 31 | N562268 | 1 | KNOB | XJ | |
||
| 32 | 612008-00 | 1 | SCREW | XJ | |
||
| 33 | 330016-04 | 1 | WASHER | XJ | |
||
| 34 | N542863 | 1 | KNOB SA | XJ | |
||
| 35 | 399042-00 | 1 | BUSHING | XJ | |
||
| 36 | 330045-32 | 1 | SCREW | M8x1.25x20 MTLTHDFMG | XJ | |
|
| 37 | N562266 | 1 | PIN | XJ | |
||
| 38 | 391350-00 | 2 | STOP PLATE | XJ | |
||
| 39 | 330045-55 | 2 | SCREW | M5x55 MTL THD FMG | XJ | |
|
| 40 | 391631-00 | 1 | POINTER | XJ | |
||
| 41 | 153460-00 | 2 | SCREW | XJ | |
||
| 42 | N600059 | 2 | BOLT | XJ | |
||
| 43 | N555141 | 1 | TRUNION | XJ | |
||
| 44 | 98105-03 | 4 | SCREW | M8x25 FT HD THD FMG | XJ | ||
| 45 | N555151 | 1 | FENCE | LEFT | XJ | |
|
| 46 | N555159 | 1 | FENCE | BASE | XJ | |
|
| 47 | N543041 | 1 | CLAMP SA | XJ | |
||
| 48 | 146768-00 | 1 | BUMPER | XJ | |
||
| 49 | N298367 | 4 | SCREW | XJ | |
||
| 50 | N142856 | 1 | GASKET | XJ | |||
| 51 | N142661 | 1 | COVER | XJ | |
||
| 52 | 330003-29 | 1 | BEARING,BALL | XJ | |
||
| 53 | N142663 | 1 | SPINDLE & GEAR SA | XJ | |
||
| 54 | 330045-14 | 5 | SCREW | XJ | |
||
| 55 | N595259 | 1 | WASHER | XJ | |
||
| 56 | 393868-00 | 1 | ADAPTOR | XJ | |
||
| 57 | N538823 | 1 | CLAMP OUTER | XJ | |
||
| 58 | N600011 | 1 | BLADE BOLT | XJ | |
||
| 59 | 394589-01 | 2 | SCREW | XJ | |
||
| 60 | 146740-01 | 1 | BUSH | XJ | |
||
| 61 | N559837 | 1 | GUARD | XJ | |
||
| 62 | N142192 | 1 | GUARD PLATE | XJ | |||
| 63 | 399139-00 | 1 | PIVOT | XJ | |
||
| 64 | 148295-00 | 1 | SLEEVE | XJ | |
||
| 65 | 146750-01 | 1 | RETAINING PLATE | XJ | |
||
| 66 | N034013 | 1 | SPRING | XJ | |
||
| 67 | N559496 | 1 | GUARD | XJ | |
||
| 68 | 150075-00 | 2 | SCREW | XJ | |
||
| 69 | N142065 | 1 | DUST PORT | XJ | |||
| 70 | N161335 | 1 | SPINDLE LOCK | XJ | |||
| 71 | 398736-00 | 1 | SPRING | XJ | |
||
| 72 | 146710-00 | 1 | WIPER | XJ | |
||
| 73 | 145350-03 | 1 | BUTTON | XJ | |
||
| 74 | 153669-00 | 1 | CORD CLAMP | XJ | |
||
| 75 | N696696 | 1 | GUARD | XJ | |
||
| 76 | 330019-32 | 4 | SCREW | XJ | |
||
| 77 | 330019-22 | 2 | SCREW | M5.74x32 | XJ | |
|
| 78 | 396375-01 | 1 | HANDLE | XJ | |
||
| 79 | 330019-22 | 4 | SCREW | M5.74x32 | XJ | |
|
| 80 | 330019-12 | 1 | SCREW | XJ | |
||
| 82 | N548978 | 1 | SWITCH | XJ | |||
| 83 | N458834 | 4 | SCREW | 6-32 x 5.55mm | XJ | |
|
| 84 | N555136 | 1 | HANDLE SA | XJ | |
||
| 85 | 614373-00 | 1 | END CAP | XJ | |
||
| 86 | 5140186-31 | 1 | BRUSH PAIR | XJ | |
||
| 88 | 614368-00 | 2 | BRUSH CAP | XJ | |
||
| 89 | 330019-03 | 2 | SCREW | XJ | |
||
| 90 | 614366-00 | 1 | BAFFLE FAN | XJ | |
||
| 91 | 614375-00 | 4 | SCREW | XJ | |
||
| 93 | 605040-27 | 1 | BEARING | XJ | |
||
| 94 | N043347 | 1 | BEARING | XJ | |
||
| 95 | 701297-00 | 1 | SEAL | XJ | |
||
| 97 | 330004-06 | 1 | BEARING NEEDLE | XJ | |
||
| 98 | 148608-00 | 2 | INSERT | XJ | |
||
| 99 | 330045-23 | 4 | SCREW | XJ | |
||
| 100 | N555138 | 1 | ARM | XJ | |
||
| 101 | N480602 | 2 | KNOB SA | XJ | |
||
| 102 | N562267 | 1 | SPRING | XJ | |
||
| 103 | N126162 | 1 | DUST BAG SA | XJ | |
||
| 104 | N152791 | 1 | CAPACITOR | XJ | |
||
| 105 | 330016-13 | 1 | WASHER | XJ | |
||
| 122 | 388414-01 | 1 | BUSH | XJ | |
||
| 217 | N497365 | 1 | WARNING LABEL | XJ | |
||
| 218 | 394976-00 | 1 | LABEL | WARNING | XJ | |
|
| 300 | N457634 | 1 | BRAND LABEL | XJ | |
