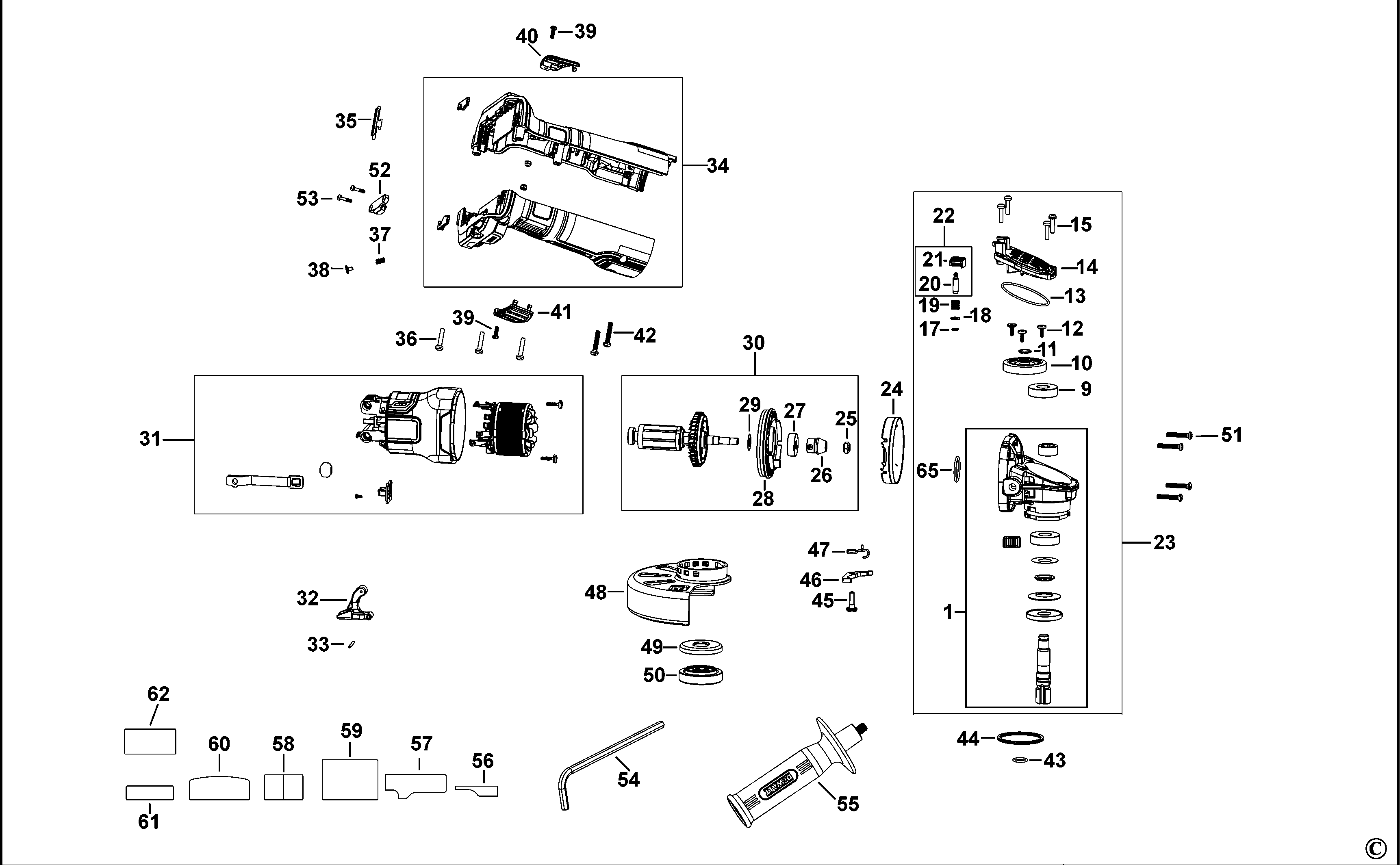

DCG409 SMALL ANGLE GRINDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N918410 | 1 | SPINDLE SA | GB |  |
||
| 9 | N150961 | 1 | BEARING | GB | |
||
| 10 | N153126 | 1 | GEAR | GB | |
||
| 11 | 444793-00 | 1 | CIRCLIP | GB | |
||
| 12 | N118088 | 3 | SCREW | GB | |
||
| 13 | N094024 | 1 | O RING | GB | |
||
| 14 | N851776 | 1 | GEARCASE COVER | GB | |
||
| 15 | N122904 | 4 | SCREW | GB | |
||
| 17 | N094012 | 1 | O RING | GB | |
||
| 18 | N447838 | 1 | WASHER | GB | |
||
| 19 | N092954 | 1 | SPRING | GB | |
||
| 20 | N114592 | 1 | SPINDLE LOCK | GB | |
||
| 21 | N126105 | 1 | BUTTON | GB | |
||
| 22 | N181767 | 1 | SPINDLE LOCK | GB | |
||
| 23 | N887982 | 1 | GEARCASE SA | M14 | GB | |
|
| 24 | N478435 | 1 | BAFFLE | GB | |
||
| 25 | 604484-00 | 1 | NUT | GB | |
||
| 26 | N153125 | 1 | PINION | GB | |
||
| 27 | N214432 | 1 | BEARING | GB | |
||
| 28 | N478436 | 1 | STATOR | GB | |
||
| 29 | N213812 | 1 | WASHER | GB | |
||
| 31 | N889066 | 1 | MOTOR HOUSING SA | GB | |
||
| 32 | N497112 | 1 | LEVER | GB | |
||
| 33 | N489903 | 1 | PIN | GB | |
||
| 34 | N889065 | 1 | CLAMSHELL SET | GB | |
||
| 35 | N467560 | 1 | PLATE | GB | |
||
| 36 | 90611830 | 3 | SCREW | GB | |
||
| 37 | N461735 | 1 | SPRING | GB | |
||
| 38 | N122099 | 1 | BLOCK | GB | |
||
| 39 | N042665 | 2 | SCREW | GB | |
||
| 40 | N493573 | 1 | COVER | GB | |
||
| 41 | N493572 | 1 | COVER | GB | |
||
| 42 | 330065-33 | 2 | SCREW | GB | |
||
| 43 | 633044-00 | 1 | O RING | 10.82x1.78 | GB | |
|
| 44 | N135116 | 1 | WASHER SPRING | GB | |
||
| 45 | N137733 | 1 | SCREW | GB | |
||
| 46 | N136731 | 1 | LEVER | GB | |
||
| 47 | N105579 | 1 | SPRING | GB | |
||
| 48 | N501323 | 1 | GUARD | GB | |
||
| 49 | 391969-00 | 1 | INNER FLANGE | GB | |
||
| 50 | N484250 | 1 | OUTER FLANGE | GB | |
||
| 51 | 330065-31 | 4 | PLASTIC SCREW | GB | |
||
| 52 | N787996 | 1 | INSERT | GB | |
||
| 53 | N831593 | 2 | SCREW | M3 X12 | GB |  |
|
| 54 | N107295 | 1 | HEX KEY | 6 mm | GB | |
|
| 55 | N421925 | 1 | SIDE HANDLE | GB | |
||
| 56 | N860997 | 1 | BRAND LABEL | BRUSHLESS 18V | GB | |
|
| 57 | N860994 | 1 | RATING PLATE | EURO | GB | |
|
| 58 | N860996 | 1 | WARNING LABEL | CE | GB | |
|
| 59 | N499037 | 1 | LABEL | BRAKE | GB | |
|
| 60 | N196273 | 1 | LABEL | PERFORM & PROTECT | GB | |
|
| 61 | N861001 | 1 | LABEL | FLEXVOLT ADV | GB | |
|
| 62 | N883657 | 1 | LABEL | QR CODE | GB | |
|
| 65 | N119639 | 1 | O RING | GB | |
