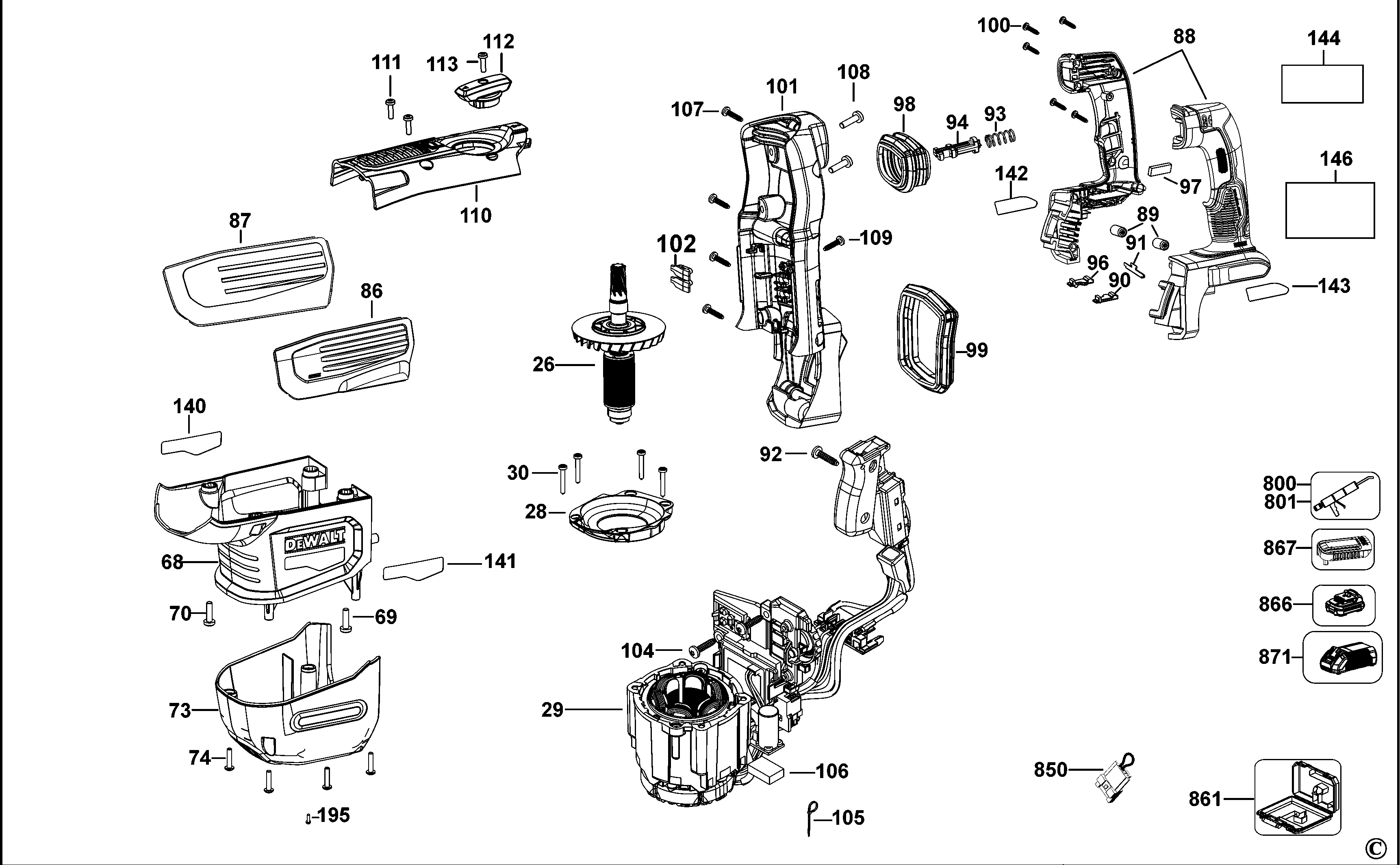

DCH614 ROTARY HAMMER DRILL Type 1 | Drawings
Documents

Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
---|---|---|---|---|---|---|---|
1 | N770433 | 1 | HOUSING SA | GB | ![]() |
||
2 | N447147 | 1 | SEAL | 8-10KG | GB | ![]() |
|
3 | N773361 | 1 | CLUTCH SA | 6KG | GB | ![]() |
|
4 | N773364 | 1 | CRANKSHAFT | GB | ![]() |
||
5 | 605040-32 | 1 | BEARING | GB | ![]() |
||
6 | N526266 | 1 | CIRCLIP | GB | ![]() |
||
8 | N773365 | 1 | GEAR | GB | ![]() |
||
9 | 323711-26 | 1 | O RING | GB | ![]() |
||
10 | N110358 | 1 | BEARING | GB | ![]() |
||
11 | N537938 | 1 | SLIDER | GB | ![]() |
||
12 | N540705 | 1 | CONNECTOR | GB | ![]() |
||
13 | N520791 | 2 | SPRING | GB | ![]() |
||
14 | N515556 | 1 | O RING | 8 X 2.2 | GB | ![]() |
|
15 | N539769 | 1 | ECCENTRIC | 6KG | GB | ![]() |
|
16 | N538422 | 1 | SEAL | GB | ![]() |
||
17 | N537843 | 1 | COVER | GB | ![]() |
||
18 | N583061 | 1 | FELT | GB | ![]() |
||
19 | N520790 | 1 | DETENT | GB | ![]() |
||
20 | 324007-11 | 4 | SCREW | M5 X 18 | GB | ![]() |
|
21 | 327575-00 | 1 | SLEEVE | GB | ![]() |
||
22 | N495599 | 1 | SEAL | GB | ![]() |
||
23 | 577745-01 | 1 | BEARING,BALL | GB | ![]() |
||
24 | 488147-01 | 1 | CIRCLIP | INTERNAL, 28MM | GB | ![]() |
|
25 | N773366 | 1 | HOUSING SA | GB | ![]() |
||
26 | N773657 | 1 | ROTOR SA | GB | ![]() |
||
27 | 324007-11 | 6 | SCREW | M5 X 18 | GB | ![]() |
|
28 | N535851 | 1 | BAFFLE FAN | GB | ![]() |
||
29 | N773658 | 1 | STATOR SA | GB | |||
30 | 90611830 | 4 | SCREW | GB | ![]() |
||
33 | N528347 | 1 | CON ROD | 6KG | GB | ![]() |
|
34 | N526045 | 1 | PISTON | GB | ![]() |
||
35 | N550706 | 1 | PIN | GB | ![]() |
||
36 | N550147 | 1 | PISTON RING | GB | ![]() |
||
37 | N550196 | 1 | O RING | 23.7 X 4 | GB | ![]() |
|
38 | N773624 | 1 | RAM SA | GB | ![]() |
||
39 | N550196 | 1 | O RING | 23.7 X 4 | GB | ![]() |
|
40 | N773631 | 1 | CYLINDER SA | GB | ![]() |
||
41 | N773632 | 1 | PISTON SA | GB | ![]() |
||
42 | 577744-00 | 2 | O RING | 25.5 X 2 | GB | ![]() |
|
43 | N528300 | 1 | FORK | GB | ![]() |
||
44 | N773634 | 1 | BEVEL GEAR | GB | ![]() |
||
45 | N773642 | 1 | SLEEVE | GB | ![]() |
||
46 | N533753 | 1 | SPRING | GB | ![]() |
||
47 | N549690 | 1 | BUSH | GB | ![]() |
||
48 | N549912 | 1 | O RING | 31 X 2.6 | GB | ![]() |
|
49 | N529936 | 1 | BUSH | GB | ![]() |
||
50 | N529844 | 1 | DAMPER | GB | ![]() |
||
51 | N715616 | 1 | SLEEVE | GB | ![]() |
||
52 | N529841 | 1 | WASHER | GB | ![]() |
||
53 | N537701 | 1 | SEAL | GB | ![]() |
||
54 | N446544 | 1 | O RING | 21 X 3.5 FKM75 | GB | ![]() |
|
55 | N773643 | 1 | BEAT PIECE | 6KG | GB | ![]() |
|
56 | N773644 | 1 | SPINDLE | 6KG | GB | ![]() |
|
57 | N536519 | 1 | SLEEVE | GB | ![]() |
||
58 | N535959 | 1 | DAMPER | GB | ![]() |
||
59 | N440708 | 1 | WASHER | SPINDLE, 35x45x2.2mm | GB | ![]() |
|
60 | N538127 | 1 | BEARING | 41 X 35 X 16 | GB | ![]() |
|
62 | N534851 | 1 | SPINDLE LOCK | GB | ![]() |
||
63 | N526258 | 1 | GASKET | GB | ![]() |
||
64 | N538669 | 1 | SEAL | GB | ![]() |
||
65 | N538725 | 1 | CIRCLIP | J47 | GB | ![]() |
|
66 | N773646 | 1 | HOUSING SA | GB | ![]() |
||
67 | 918825-02 | 4 | SCREW | GB | ![]() |
||
68 | N550171 | 1 | HOUSING MOTOR | GB | ![]() |
||
69 | 324007-11 | 2 | SCREW | M5 X 18 | GB | ![]() |
|
70 | N605427 | 2 | SCREW | M4 X 12 T20 | GB | ![]() |
|
73 | N550184 | 1 | END CAP | GB | ![]() |
||
74 | 330065-08 | 4 | SCREW | M4x18 T20 | GB | ![]() |
|
75 | N550186 | 1 | COVER | GB | ![]() |
||
76 | N810029 | 1 | FELT | GB | ![]() |
||
77 | N465749 | 1 | WASHER | 29x55x1.8 | GB | ![]() |
|
78 | 323395-06 | 1 | SPRING | GB | ![]() |
||
79 | 487118-00 | 1 | SPRING | GB | ![]() |
||
80 | N464690 | 1 | GUIDE | GUIDE | GB | ![]() |
|
81 | N468172 | 2 | LOCKING PIN | GB | ![]() |
||
82 | 325878-00 | 2 | ROLLER | GB | ![]() |
||
83 | N464913 | 1 | SLEEVE | INCL. WASHER | GB | ![]() |
|
84 | 326575-01 | 1 | COLLAR | GB | ![]() |
||
85 | N465586 | 1 | LIP SEAL | GB | ![]() |
||
86 | N550219 | 1 | PANEL LH | GREY | GB | ![]() |
|
87 | N550222 | 1 | PANEL RH | GREY | GB | ![]() |
|
88 | N583662 | 1 | CLAMSHELL SET | GB | ![]() |
||
89 | N487311 | 2 | RUBBER | GB | ![]() |
||
90 | N438439 | 1 | INSERT | GB | ![]() |
||
91 | N467560 | 1 | PLATE | GB | ![]() |
||
92 | 330065-08 | 1 | SCREW | M4x18 T20 | GB | ![]() |
|
93 | N106188 | 1 | SPRING COMPRESSION | GB | ![]() |
||
94 | N152623 | 1 | STOP | GB | ![]() |
||
96 | N438438 | 1 | INSERT | GB | ![]() |
||
97 | 620051-00 | 1 | PAD | GB | ![]() |
||
98 | N497943 | 1 | BELLOWS | UPPER | GB | ![]() |
|
99 | N588809 | 1 | BELLOWS | LOWER | GB | ![]() |
|
100 | 330065-08 | 7 | SCREW | M4x18 T20 | GB | ![]() |
|
101 | N550217 | 1 | CLAMSHELL SET | GB | ![]() |
||
102 | N633441 | 2 | LENS | GB | ![]() |
||
104 | 330065-08 | 2 | SCREW | M4x18 T20 | GB | ![]() |
|
105 | 361886-00 | 2 | CABLE TIE | GB | ![]() |
||
106 | 620051-00 | 1 | PAD | GB | ![]() |
||
107 | 330065-08 | 4 | SCREW | M4x18 T20 | GB | ![]() |
|
108 | 324007-11 | 4 | SCREW | M5 X 18 | GB | ![]() |
|
109 | 330065-08 | 2 | SCREW | M4x18 T20 | GB | ![]() |
|
110 | N550188 | 1 | COVER-TOP | GB | ![]() |
||
111 | 324007-11 | 2 | SCREW | M5 X 18 | GB | ![]() |
|
112 | N550235 | 1 | SELECTOR | MODE 6KG | GB | ![]() |
|
113 | 330065-08 | 1 | SCREW | M4x18 T20 | GB | ![]() |
|
130 | N609696 | 1 | HANDLE SIDE SA | GB | ![]() |
||
131 | N552104 | 1 | BOLT | M8 X 75 | GB | ![]() |
|
132 | N609796 | 1 | CLAMP | 6KG | GB | ![]() |
|
133 | N610193 | 1 | WASHER CLAMP | 6KG | GB | ![]() |
|
134 | N609760 | 1 | CLAMP | 6KG | GB | ![]() |
|
135 | N499183 | 1 | HANDLE SA | GB | ![]() |
||
140 | N687260 | 1 | LABEL | RH | GB | ![]() |
|
141 | N687258 | 1 | LABEL | LH | GB | ![]() |
|
142 | N687267 | 1 | LABEL | RH | GB | ![]() |
|
143 | N687264 | 1 | LABEL | LH | GB | ![]() |
|
144 | N208653 | 1 | LABEL | PERFORM & PROTECT | GB | ![]() |
|
146 | N666004 | 1 | RATING PLATE | QW | GB | ||
195 | 90611830 | 2 | SCREW | GB | ![]() |
||
300 | N773659 | 1 | SERVICE KIT | DC | GB | ![]() |
|
800 | 578970-06 | 1 | GREASE 150 GMS | GB | ![]() |
||
801 | 870889-02 | 1 | GREASE | GB | ![]() |
||
837 | 1003981-99 | 1 | S.T.PULLER | GB | ![]() |
||
838 | 1003982-99 | 1 | S.T.SEAL FITTING TOOL | GB | ![]() |
||
838 | 1003972-99 | 1 | S.T.SEAL FITTING TOOL | 8KG BEATPIECE | GB | ![]() |
|
839 | 1003984-99 | 1 | S.T.SEAL FITTING TOOL | GB | ![]() |
||
850 | N544162 | 1 | SERVICE TOOL | RESET | GB | ![]() |
|
861 | N657876 | 1 | KITBOX | 6KG | GB | ![]() |
|
866 | N491552 | 2 | BATTERY 3 X18V-9.0AH-162WH | DCB547-XJ | GB | ![]() |
|
867 | N462141 | 1 | SAFETY CAP | GB | ![]() |
||
871 | N473855 | 1 | CHARGER GB | DCB118-GB | GB | ![]() |
