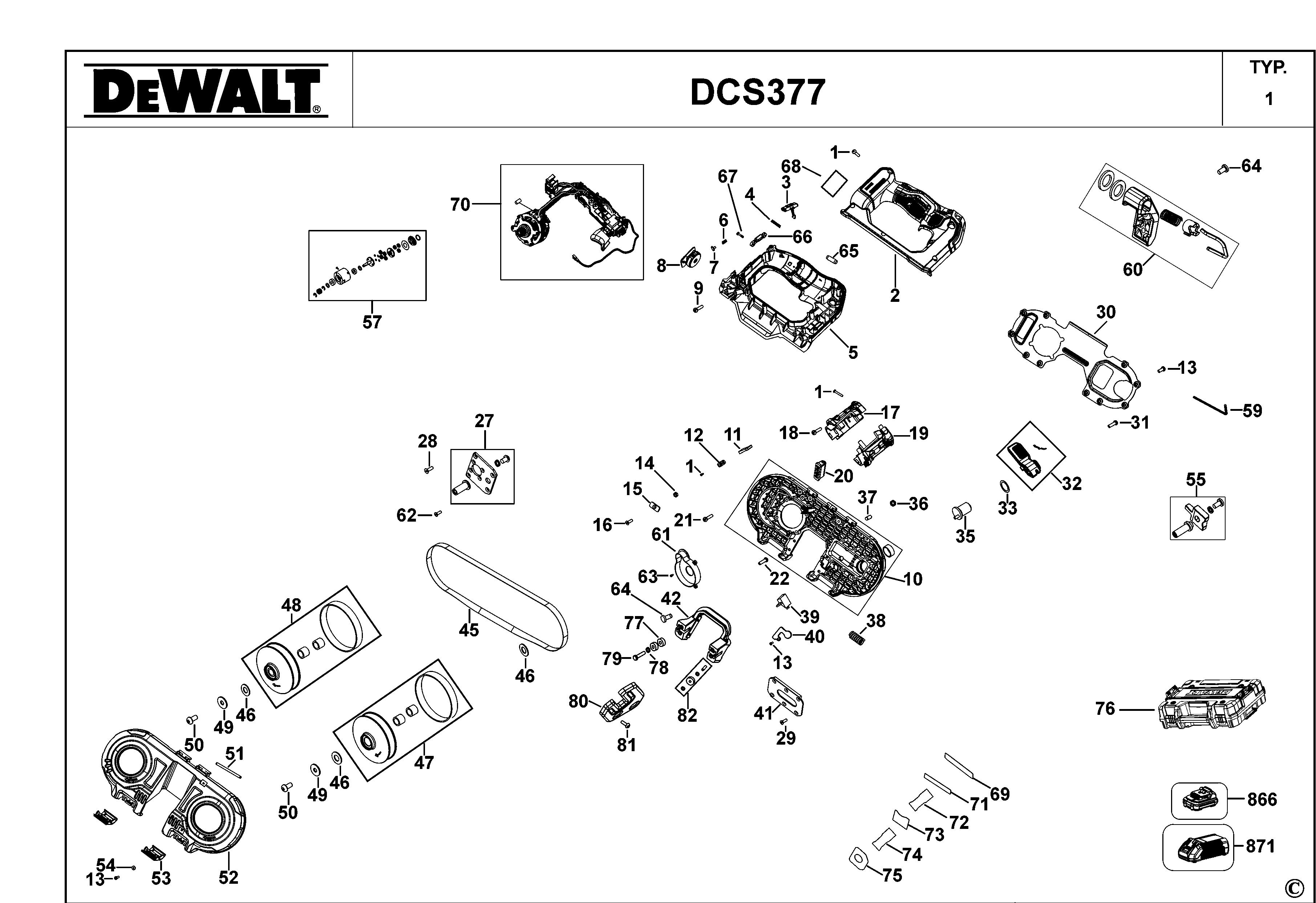

DCS377 BANDSAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N864841 | 14 | SCREW | M3 X 13 | GB |  |
|
| 2 | N855008 | 1 | CLAMSHELL HALF | COVER | GB | |
|
| 3 | N823374 | 1 | SWITCH LOCK OFF | GB | |
||
| 4 | N824141 | 1 | SPRING | GB | |
||
| 5 | N855009 | 1 | CLAMSHELL HALF | ASSEMBLY | GB | |
|
| 6 | N461735 | 1 | SPRING | GB | |
||
| 7 | N122099 | 1 | BLOCK | GB | |
||
| 8 | N812341 | 1 | SPEED REGULATOR | GB | |
||
| 9 | N864842 | 5 | SCREW | 6 X 18 | GB | |
|
| 10 | N912915 | 1 | BASE SA | GB | |
||
| 11 | N825617 | 1 | BRUSH | GB | |
||
| 12 | N850559 | 1 | COVER | GB | |
||
| 13 | N864843 | 13 | SCREW | M3 X 8 | GB | |
|
| 14 | N865171 | 1 | LOCK NUT | M3 | GB | |
|
| 15 | N850565 | 1 | BAFFLE | GB | |
||
| 16 | N864845 | 1 | SCREW | M3 X 12 | GB | |
|
| 17 | N855005 | 1 | CLAMSHELL HALF | ASSEMBLY | GB | |
|
| 18 | N864848 | 4 | SCREW | 6 X 25 | GB | |
|
| 19 | N855007 | 1 | CLAMSHELL HALF | COVER | GB | |
|
| 20 | N816041 | 1 | INSERT | LANYARD SEAT | GB | |
|
| 21 | N864850 | 2 | SCREW | M4 X 15 | GB | |
|
| 22 | N864851 | 4 | SCREW | M4 X 12 | GB | |
|
| 27 | N901812 | 1 | PLATE SA | GB | |
||
| 28 | N271627 | 4 | SCREW | M4 X 8 FLAT HEAD | GB | |
|
| 29 | N864852 | 6 | SCREW | 8 X 15 | GB | |
|
| 30 | N777949 | 1 | PLATE | GB | |
||
| 31 | N271607 | 1 | SCREW | M5 X 16 | GB | |
|
| 32 | N901815 | 1 | LEVER SA | GB | |
||
| 33 | N271602 | 1 | WASHER BOW | 20IDX26OD X0.5MM | GB | |
|
| 35 | N271606 | 1 | CAM | GB | |
||
| 36 | N271603 | 1 | NUT M6 | THIN | GB | |
|
| 37 | N271604 | 1 | SCREW | HEX SOC M6 X 16 | GB | |
|
| 38 | N851382 | 2 | SPRING | CAM | GB | |
|
| 39 | N803480 | 1 | LED LIGHT | GB | |
||
| 40 | N850560 | 1 | COVER | GB | |
||
| 41 | N850567 | 1 | PLATE | GB | |
||
| 45 | N770337 | 1 | BLADE | GB | |
||
| 46 | N271623 | 3 | WASHER NYLON | 1/2"ID 1"OD X 0.062 | GB | |
|
| 47 | N272138 | 1 | WHEEL FRICTION | IDLE | GB | |
|
| 48 | N825527 | 1 | WHEEL FRICTION | DRIVE | GB | |
|
| 49 | N271624 | 2 | WASHER | 8.2ID X 24OD X2 | GB | |
|
| 50 | N271626 | 2 | SCREW | M8 X 16 | GB | |
|
| 51 | N854134 | 2 | PIN | 4 X 59 | GB | |
|
| 52 | N777950 | 1 | COVER | GB | |
||
| 53 | N854111 | 2 | LATCH | GB | |
||
| 54 | N884441 | 2 | WASHER | D8 X d3.3 x 0.5 | GB | |
|
| 55 | N901816 | 1 | BLOCK SA | GB | |
||
| 57 | N825644 | 1 | GEARBOX SA | GB | |
||
| 59 | N272127 | 1 | HEX KEY 3 MM | GB | |
||
| 60 | N825470 | 1 | HOOK SA | GB | |
||
| 61 | N850562 | 1 | DUST GUARD | GB | |
||
| 62 | N864855 | 4 | SCREW | SELF TAP | GB | |
|
| 63 | N864857 | 2 | SCREW | M4 X 6 | GB | |
|
| 64 | N864858 | 2 | SCREW | SELF TAP 4.55 X 18 | GB | |
|
| 65 | N071836 | 1 | ROLL PIN | GB | |
||
| 66 | N787996 | 1 | INSERT | GB | |
||
| 67 | N831593 | 2 | SCREW | M3 X12 | GB |  |
|
| 68 | N883321 | 1 | LABEL | FOOT | GB | ||
| 69 | N883320 | 1 | LABEL | BRUSHLESS | GB | |
|
| 70 | N899536 | 1 | MOTOR & SWITCH SA | GB | |
||
| 71 | N883905 | 1 | BRAND LABEL | 18V | GB | |
|
| 72 | N883904 | 1 | WARNING LABEL | EURO | GB | |
|
| 73 | N864186 | 1 | WARNING LABEL | HANG HOOK | GB | |
|
| 74 | N868320 | 1 | RATING PLATE | EURO | GB | |
|
| 75 | N883909 | 1 | LABEL | BLADE TENSION | GB | |
|
| 76 | N850243 | 1 | KITBOX | W TRAY | GB | |
|
| 77 | N854980 | 8 | BEARING | GB | |
||
| 78 | N271660 | 4 | WASHER LOCK | 5MM ID | GB | |
|
| 79 | N862006 | 4 | SCREW | GB | |
||
| 80 | N816039 | 1 | FENCE | GB | |
||
| 81 | N864853 | 2 | SCREW | M5 X 15 | GB | |
|
| 82 | N912646 | 1 | BEARING SA | GB | |
