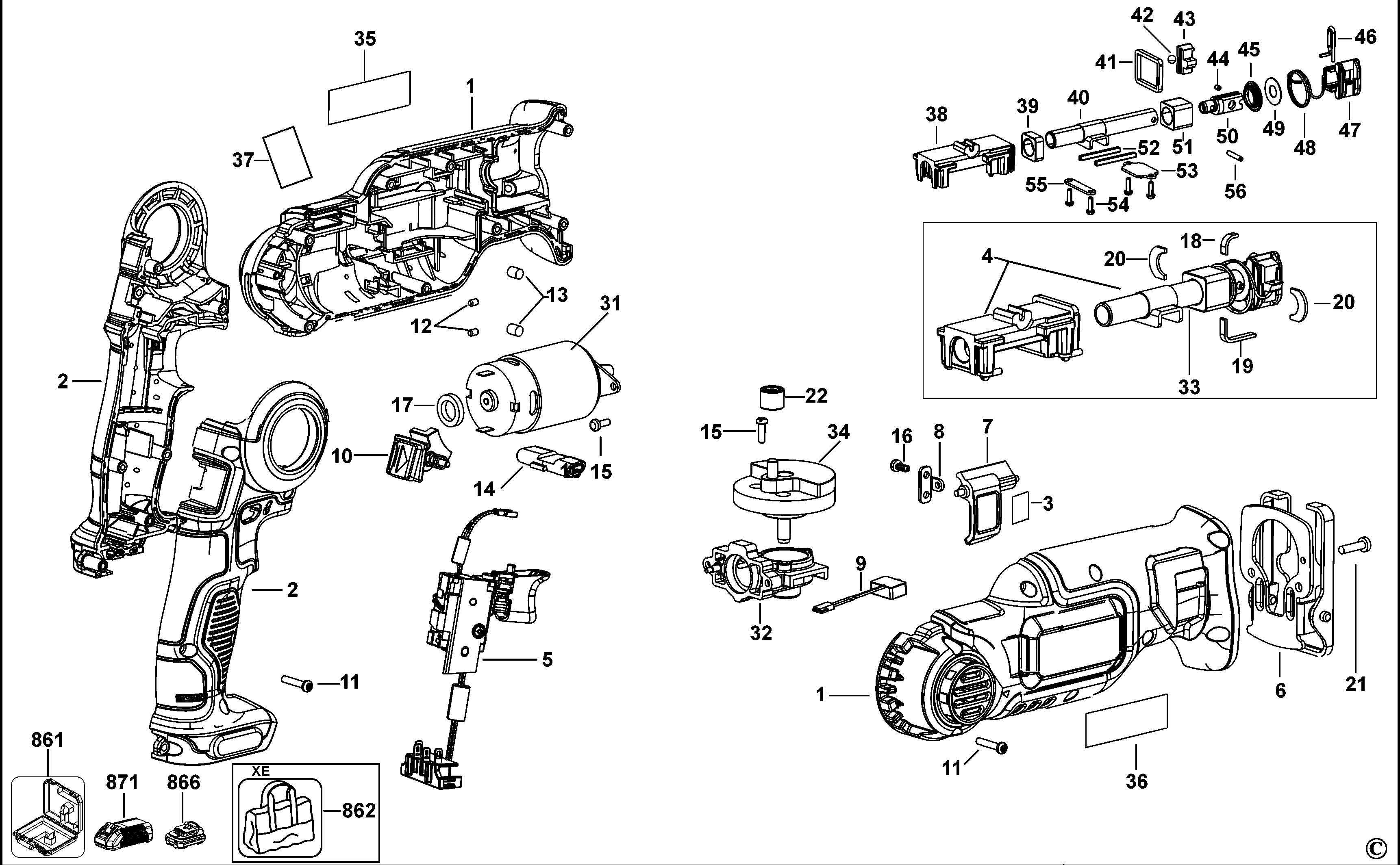

DCS310 CORDLESS RECIPROCATING SAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N103454 | 1 | CLAMSHELL SET | GB |  |
||
| 2 | N103094 | 1 | CLAMSHELL SET | GB | |
||
| 3 | N143838 | 1 | LABEL | GB | |
||
| 4 | N131523 | 1 | SHAFT SA | GB | |
||
| 5 | N175742 | 1 | SWITCH SA | EMI | GB |  |
|
| 6 | N096581 | 1 | SHOE SA | GB | |
||
| 7 | N098006 | 1 | LEVER SA | GB | |
||
| 8 | N101648 | 1 | BRACKET | GB | |
||
| 9 | N114801 | 1 | LED LIGHT | GB | |
||
| 10 | N131526 | 1 | ACTUATOR | GB | |
||
| 11 | 682211-00 | 14 | SCREW | GB | |
||
| 12 | N031603 | 2 | RUBBER | GB | |
||
| 13 | N015397 | 2 | PLUG | GB | |
||
| 14 | N098461 | 1 | LOCK BUTTON | GB | |
||
| 15 | 330045-43 | 5 | SCREW | GB | |
||
| 16 | N086775 | 2 | SCREW | GB | |
||
| 17 | N108470 | 1 | RING | GB | |
||
| 18 | N116071 | 1 | SEAL | GB | |
||
| 19 | N116072 | 1 | SEAL | GB | |
||
| 20 | N116073 | 2 | SEAL | GB | |
||
| 21 | 330065-31 | 2 | PLASTIC SCREW | GB | |
||
| 22 | N131521 | 1 | BEARING | GB | |
||
| 31 | N131518 | 1 | MOTOR & PINION | GB | |
||
| 32 | N131520 | 1 | GEAR CASE SA | GB | |
||
| 33 | N131522 | 1 | BLADE CLAMP | GB | |
||
| 34 | N131519 | 1 | GEAR SA | GB | |
||
| 35 | N150552 | 1 | BRAND LABEL | GB | |
||
| 36 | N150514 | 1 | RATING PLATE | EURO | GB | |
|
| 37 | N150553 | 1 | LABEL | GB | |
||
| 38 | N096418 | 1 | SUPPORT BEARING | GB | |
||
| 39 | N096424 | 1 | BUSH | GB | |
||
| 40 | N096409 | 1 | DRIVE SHAFT | GB | |
||
| 41 | N096425 | 1 | FELT SEAL | GB | |
||
| 42 | 000903-00 | 1 | BALL | GB | |
||
| 43 | N133647 | 1 | SLIDER | GB | |
||
| 44 | 386786-00 | 1 | PIN | GB | |
||
| 45 | N115522 | 1 | O RING | GB | |
||
| 46 | 620663-00 | 1 | LOCK PIN | GB | |
||
| 47 | 604731-00 | 1 | BLADE CLAMP | GB | |
||
| 48 | 623343-00 | 1 | SPRING | GB | |
||
| 49 | N120463 | 1 | WASHER | GB | |
||
| 50 | N098176 | 1 | SHAFT | GB | |
||
| 51 | N096420 | 1 | BUSH | GB | |
||
| 52 | N096419 | 2 | PLATE | GB | |
||
| 53 | N096422 | 1 | BEARING PLATE | GB | |
||
| 54 | 330045-01 | 4 | SCREW | GB | |||
| 55 | N096423 | 1 | BEARING PLATE | GB | |
||
| 56 | N096408 | 1 | SPIROL PIN | GB | |
||
| 861 | N130920 | 1 | KITBOX | GB | |
||
| 866 | N394620 | 1 | BATTERY 10.8V - 2.0AH - 21.6WH | DCB127-XJ | DCS310S2 | GB | |
| 871 | N450537 | 1 | CHARGER 10.8V - 18V | GB | |
