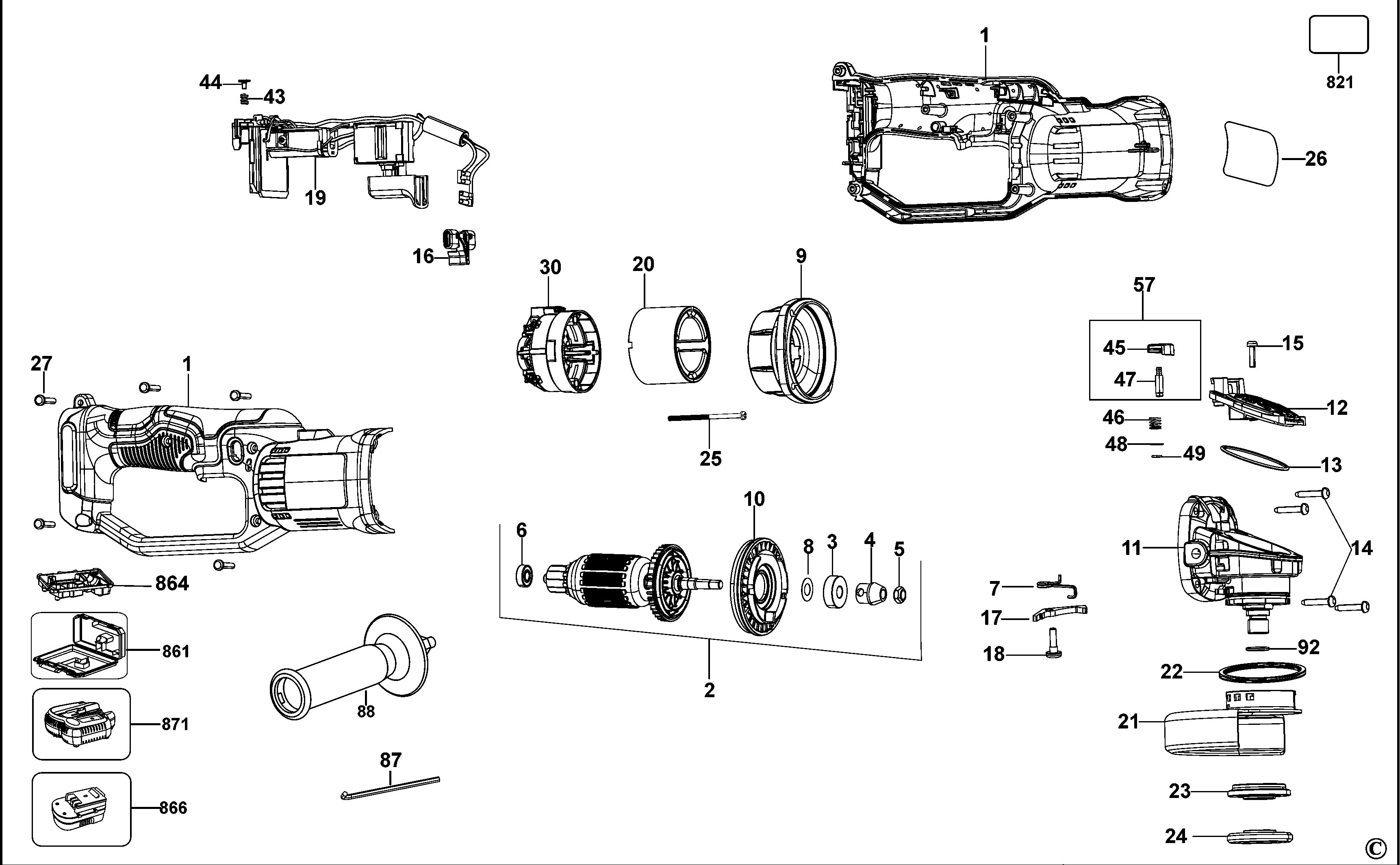

DCG412 ANGLE GRINDER Type 11 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N532927 | 1 | CLAMSHELL PAIR | GB |  |
||
| 2 | N793841 | 1 | ARMATURE SA | DCG412 Type4 | GB | |
|
| 3 | N214432 | 1 | BEARING | GB | |
||
| 4 | N095840 | 1 | PINION | GB | |
||
| 5 | 604484-00 | 1 | NUT | GB | |
||
| 6 | N330639 | 1 | BEARING,BALL | GB | |
||
| 7 | N105579 | 1 | SPRING | GB | |
||
| 8 | N213812 | 1 | WASHER | GB | |
||
| 9 | N531815 | 1 | BAFFLE | GB | |
||
| 10 | N478436 | 1 | STATOR | GB | |
||
| 11 | N748009 | 1 | GEARCASE SA | GB | |
||
| 12 | N116180 | 1 | GEARCASE COVER | GB | |
||
| 13 | N094024 | 1 | O RING | GB | |
||
| 14 | 330065-31 | 4 | PLASTIC SCREW | GB | |
||
| 15 | N122904 | 4 | SCREW | GB | |
||
| 16 | N129056 | 1 | BUTTON LOCK-OFF | GB | |
||
| 17 | N136731 | 1 | LEVER | GB | |
||
| 18 | N137733 | 1 | SCREW | GB | |
||
| 19 | N414107 | 1 | SWITCH SA | DCG412 EMI 4P58 | GB | |
|
| 20 | N436044 | 1 | MAGNET | GB | |
||
| 21 | N194230 | 1 | GUARD | 125MM | 125MM KEYLESS | GB | |
| 22 | N135116 | 1 | WASHER SPRING | GB | |
||
| 23 | 633257-00SV | 1 | INNER FLANGE SA | GB | |
||
| 24 | N134466 | 1 | OUTER FLANGE | GB | |
||
| 25 | N389143 | 2 | SCREW | GB | |
||
| 26 | N139498 | 1 | BRAND LABEL | GB | |
||
| 27 | 90611830 | 5 | SCREW | GB | |
||
| 30 | N412223 | 1 | BRUSH HOLDER SA | GB | |
||
| 43 | N102647 | 1 | SPRING | GB | |
||
| 44 | N122099 | 1 | BLOCK | GB | |
||
| 45 | N126105 | 1 | BUTTON | GB | |
||
| 46 | N092954 | 1 | SPRING | GB | |
||
| 47 | N114592 | 1 | SPINDLE LOCK | GB | |
||
| 48 | N447838 | 1 | WASHER | GB | |
||
| 49 | N094012 | 1 | O RING | GB | |
||
| 57 | N181767 | 1 | SPINDLE LOCK | GB | |
||
| 87 | N107295 | 1 | HEX KEY | 6 mm | GB | |
|
| 88 | N401305 | 1 | SIDE HANDLE | GB | |
||
| 92 | N748010 | 1 | O RING | GB | |
||
| 821 | N662231 | 1 | RATING LABEL | GB | |
||
| 861 | N615986 | 1 | KITBOX | GB | |
||
| 864 | N771496 | 1 | INSERT | GB | |
||
| 866 | N195933 | 1 | BATTERY 18V - 4.0AH - 72WH | Li-Ion - DCB182; Li-Ion - DCB182-XJ | DCG412M2 | GB | |
| 871 | N450537 | 1 | CHARGER 10.8V - 18V | DCG412M2 | GB | |
