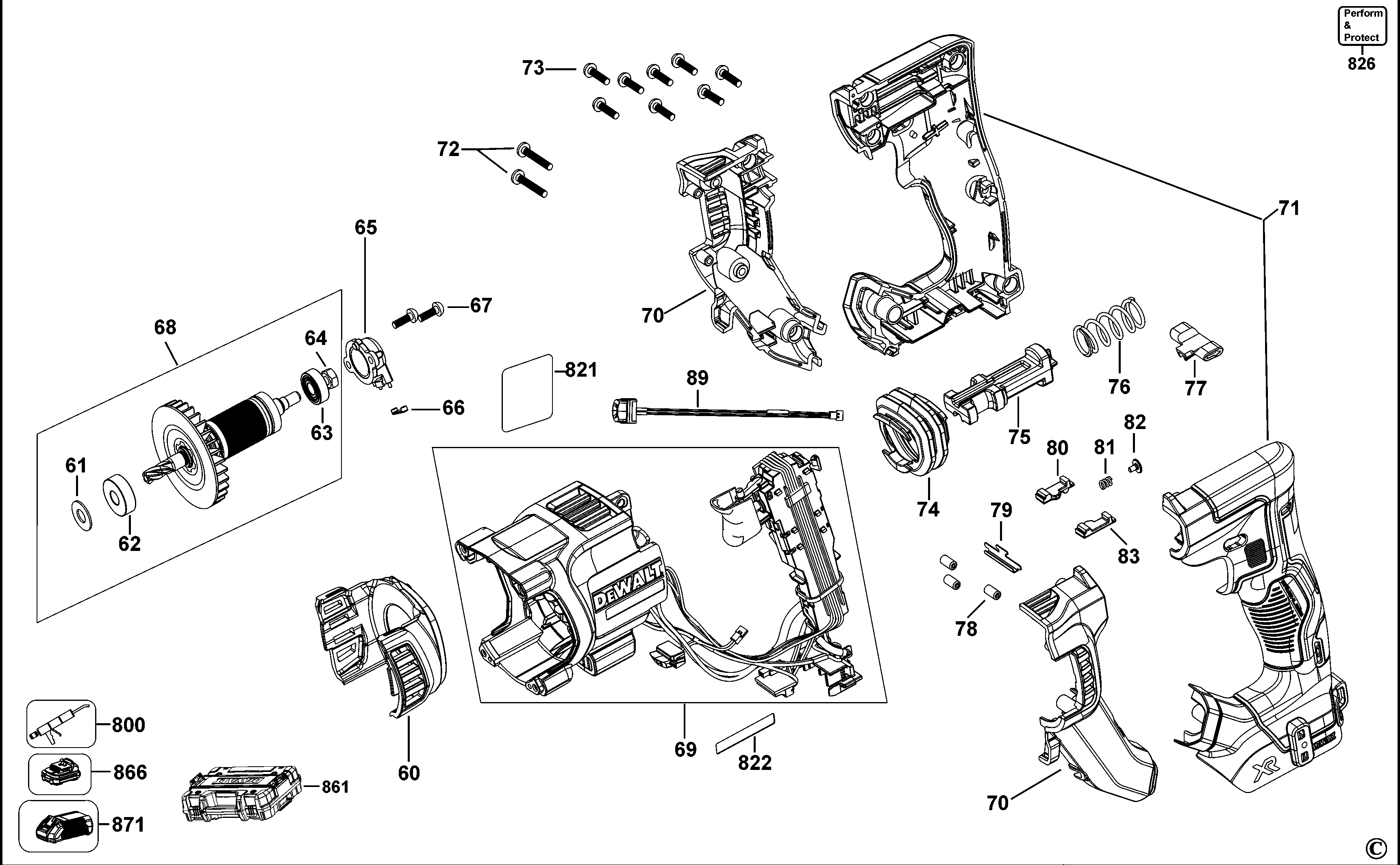

DCH263 CORDLESS DRILL Type 1 | Drawings
Documents

Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
---|---|---|---|---|---|---|---|
2 | 323489-00 | 1 | CAP | GB | ![]() |
||
3 | 579212-00 | 1 | RING | GB | ![]() |
||
4 | N850185 | 1 | TUBE | GB | ![]() |
||
5 | 583890-00 | 1 | BALL | GB | ![]() |
||
6 | 578387-00 | 1 | WASHER | GB | ![]() |
||
7 | 871690 | 1 | SPRING | GB | ![]() |
||
10 | 577812-00 | 1 | SEAL | GB | ![]() |
||
11 | 577813-00 | 1 | BEARING NEEDLE | GB | ![]() |
||
13 | 577814-00 | 1 | WASHER | GB | ![]() |
||
15 | 584423-00 | 1 | BEARING & SEAL | GB | ![]() |
||
16 | 577139-00 | 1 | SEAL | GB | ![]() |
||
17 | 577814-00 | 1 | WASHER | GB | ![]() |
||
18 | N322087 | 1 | SPRING | GB | ![]() |
||
19 | N417736 | 1 | LOCKING RING | GB | ![]() |
||
20 | N417740 | 1 | GEAR | GB | ![]() |
||
21 | 581836-00 | 1 | LOCKING RING | GB | ![]() |
||
22 | 577135-00 | 2 | O RING | GB | ![]() |
||
23 | 577130-00 | 1 | DAMPER | GB | ![]() |
||
24 | N082142 | 1 | BEAT PIECE | GB | ![]() |
||
25 | 580990-00 | 1 | O RING | GB | ![]() |
||
26 | N401306 | 1 | WASHER | GB | ![]() |
||
27 | N361759 | 1 | CLIP | GB | ![]() |
||
28 | N059509 | 1 | WASHER | GB | ![]() |
||
29 | N417747 | 1 | BEARING | GB | ![]() |
||
32 | 579699-00 | 1 | O RING | GB | ![]() |
||
33 | N417751 | 1 | PISTON | GB | ![]() |
||
34 | N325040 | 1 | WASHER | GB | ![]() |
||
35 | N325041 | 1 | BEARING SPINDLE | GB | ![]() |
||
36 | N495867 | 1 | HOUSING BEARING | GB | ![]() |
||
37 | N264673 | 1 | O RING | GB | ![]() |
||
38 | N418018 | 1 | INTERSHAFT SA | GB | ![]() |
||
44 | 1005844-00 | 1 | WASHER | GB | ![]() |
||
45 | N264672 | 1 | O RING | GB | ![]() |
||
47 | N417860 | 1 | GEAR | GB | ![]() |
||
48 | 1005812-00 | 2 | FELT | GB | ![]() |
||
49 | N445171 | 2 | SCREW | GB | ![]() |
||
50 | 324006-15 | 3 | SCREW | GB | ![]() |
||
51 | N323101 | 1 | PLATE | GB | ![]() |
||
52 | 1005795-00 | 1 | SPRING | GB | ![]() |
||
53 | 330065-13 | 4 | SCREW | GB | ![]() |
||
55 | N091381-00 | 1 | O RING | GB | ![]() |
||
60 | N556386 | 1 | BAFFLE FAN | GB | ![]() |
||
61 | N245239 | 1 | WASHER | GB | ![]() |
||
62 | 330003-60 | 1 | BEARING | GB | ![]() |
||
63 | 1005895-00 | 1 | BEARING | GB | ![]() |
||
64 | N467767 | 1 | NUT | GB | ![]() |
||
65 | N467131 | 1 | COVER BEARING | GB | ![]() |
||
66 | N261987 | 1 | CAP | GB | ![]() |
||
67 | 330065-06 | 2 | SCREW | GB | ![]() |
||
68 | N485568 | 1 | ARMATURE SA | GB | ![]() |
||
69 | N684207 | 1 | MOTOR SA | GB | ![]() |
||
70 | N572774 | 1 | CLAMSHELL SET | GB | ![]() |
||
71 | N572780 | 1 | CLAMSHELL SET | GB | ![]() |
||
72 | 330065-09 | 2 | SCREW | GB | ![]() |
||
73 | 330065-07 | 8 | SCREW | GB | ![]() |
||
74 | N538721 | 1 | BELLOWS | UPPER | GB | ![]() |
|
75 | N152623 | 1 | STOP | GB | ![]() |
||
76 | N106188 | 1 | SPRING COMPRESSION | GB | ![]() |
||
77 | N399342 | 1 | ACTUATOR FWD/REV | GB | ![]() |
||
78 | N487311 | 1 | RUBBER | GB | ![]() |
||
79 | N467560 | 1 | PLATE | GB | ![]() |
||
80 | N728013 | 1 | INSERT | GB | ![]() |
||
81 | N102647 | 1 | SPRING | GB | ![]() |
||
82 | N122099 | 1 | BLOCK | GB | ![]() |
||
83 | N728012 | 1 | INSERT | GB | ![]() |
||
89 | N655033 | 1 | LED LIGHT | GB | ![]() |
||
90 | N413662 | 1 | HANDLE SIDE SA | GB | ![]() |
||
91 | 798846-02 | 1 | DEPTH STOP | GB | ![]() |
||
100 | N418052 | 1 | SPINDLE SA | GB | ![]() |
||
101 | N417861 | 1 | SELECTOR SA | GB | ![]() |
||
102 | N418036 | 1 | RAM SA | GB | ![]() |
||
104 | N417853 | 1 | COLLAR | GB | ![]() |
||
118 | N417734 | 1 | HOUSING SA | GB | ![]() |
||
800 | 870889-02 | 1 | GREASE | GB | ![]() |
||
801 | 487130-04 | 1 | GREASE | GLK FLUID 249 NLGI 000 (10G SERVICE) | GB | ![]() |
|
821 | N653201 | 1 | RATING PLATE | EURO | GB | ![]() |
|
822 | N483918 | 1 | LABEL | GB | ![]() |
||
826 | N253819 | 1 | LABEL | PERFORM & PROTECT | GB | ![]() |
|
836 | 1003924-99 | 1 | S.T.CIRCLIP REMOVER | GB | ![]() |
||
836 | 596005-99 | 1 | S.T.CIRCLIP REMOVER | GB | ![]() |
||
836 | 1003925-99 | 1 | S.T.CIRCLIP INSERTER | GB | ![]() |
||
846 | N684220 | 1 | SERVICE KIT | GB | ![]() |
||
861 | N614733 | 1 | KITBOX | GB | ![]() |
||
866 | N394624 | 1 | BATTERY 18V - 5.0AH - 90WH | GB | ![]() |
||
871 | N450537 | 1 | CHARGER 10.8V - 18V | GB | ![]() |
