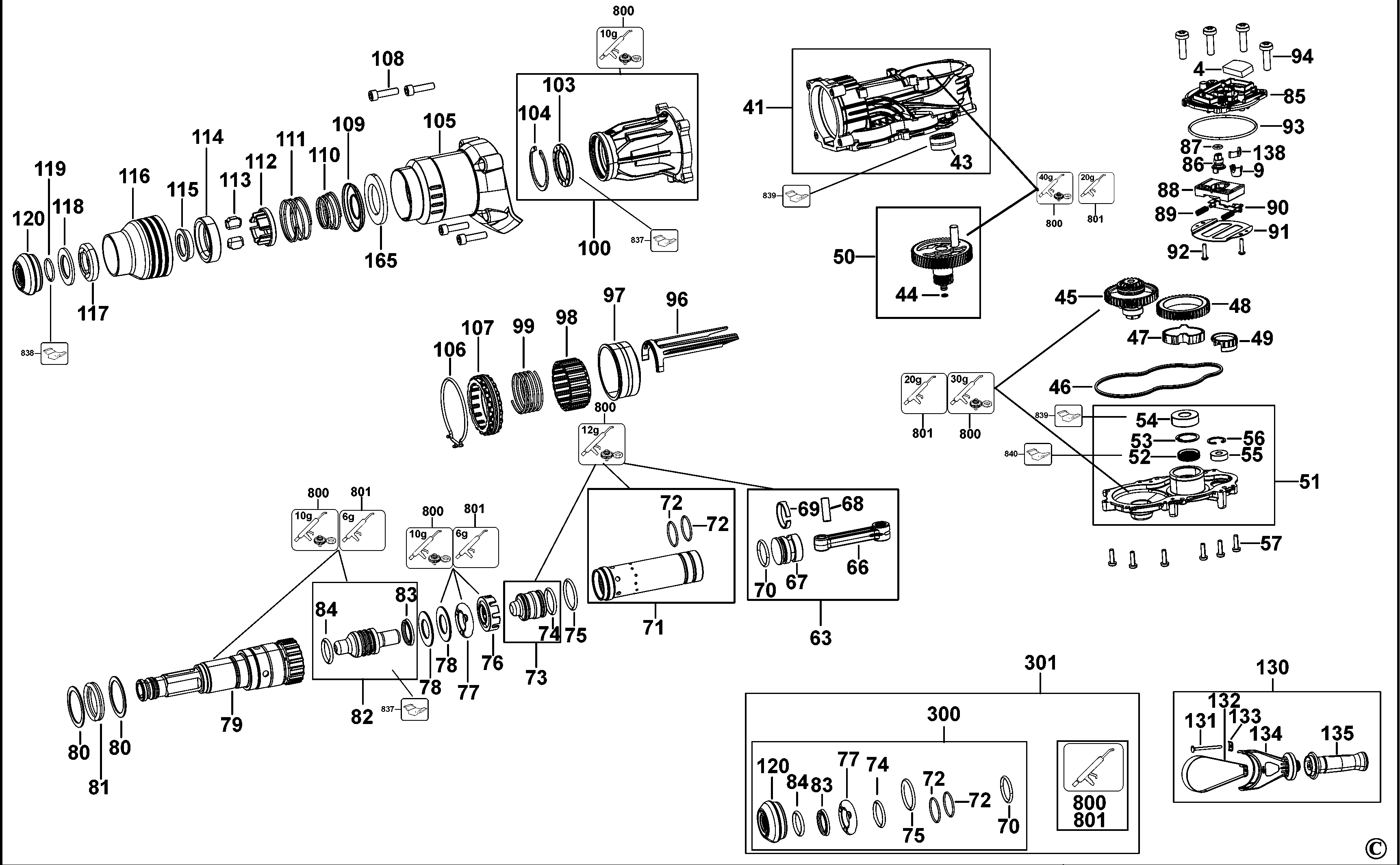

DCH733 ROTARY HAMMER Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N454966 | 1 | END CAP | GB |  |
||
| 2 | N426918 | 1 | HOUSING MOTOR | GB | |
||
| 3 | N548557 | 8 | SCREW | M5 X 18 T25 | GB | |
|
| 4 | N481045 | 1 | FELT | GB | |
||
| 5 | 330065-08 | 4 | SCREW | M4x18 T20 | GB | |
|
| 8 | N402321 | 1 | SIDE LH | GREY | GB | |
|
| 9 | N607940 | 1 | CAP | GB | |
||
| 10 | N402322 | 1 | SIDE RH | GREY | GB | |
|
| 11 | N410170 | 1 | COVER-TOP | YELLOW | GB | |
|
| 12 | N548557 | 4 | SCREW | M5 X 18 T25 | GB | |
|
| 13 | N463694 | 1 | SELECTOR | MODE | GB | |
|
| 14 | 330065-08 | 1 | SCREW | M4x18 T20 | GB | |
|
| 15 | 330065-08 | 2 | SCREW | M4x18 T20 | GB | |
|
| 16 | N548557 | 4 | SCREW | M5 X 18 T25 | GB | |
|
| 17 | N496302 | 1 | COVER REAR | GB | |
||
| 18 | N497944 | 1 | BELLOWS | LOWER | GB | |
|
| 19 | N513311 | 1 | LENS | GB | |
||
| 20 | N592380 | 1 | MOTOR & SWITCH SA | 54V | GB | |
|
| 21 | 330065-08 | 1 | SCREW | M4x18 T20 | GB | |
|
| 22 | N565828 | 1 | RETAINER | GB | |
||
| 23 | 330065-06 | 1 | SCREW | GB | |
||
| 24 | N122099 | 1 | BLOCK | GB | |
||
| 25 | N461735 | 1 | SPRING | GB | |
||
| 26 | N728012 | 1 | INSERT | GB | |
||
| 27 | N728013 | 1 | INSERT | GB | |
||
| 28 | N467560 | 1 | PLATE | GB | |
||
| 29 | N518220 | 1 | SPRING | 35 X 6 | GB | |
|
| 30 | N518219 | 1 | BUTTON | GB | |
||
| 31 | N152623 | 1 | STOP | GB | |
||
| 32 | N501559 | 1 | SPRING | 31.75 X 18.29 | GB | |
|
| 33 | N497943 | 1 | BELLOWS | UPPER | GB | |
|
| 34 | N453525 | 1 | PIN | 6 X 60 | GB | |
|
| 36 | N580544 | 1 | CLAMSHELL SET | GB | |
||
| 37 | 330065-08 | 8 | SCREW | M4x18 T20 | GB | |
|
| 38 | N580546 | 1 | CLAMSHELL SET | GB | |
||
| 40 | 330065-08 | 6 | SCREW | M4x18 T20 | GB | |
|
| 41 | N850601 | 1 | HOUSING SA | 8KG COMBI TYP2 | GB | |
|
| 43 | N408073 | 1 | BEARING,NEEDLE | GB |  |
||
| 44 | N537973 | 1 | O RING | GB | |
||
| 45 | N580503 | 1 | CLUTCH SA | GB | |
||
| 46 | N447147 | 1 | SEAL | 8-10KG | GB | |
|
| 47 | N781072 | 1 | BEARING SINTER | GB | |
||
| 48 | N580506 | 1 | GEAR | GB | |
||
| 49 | N537281 | 1 | SPACER | GB | |
||
| 50 | N580547 | 1 | CRANKSHAFT | 8KG | GB | |
|
| 51 | N851025 | 1 | GEARCASE COVER SA | GB | |
||
| 52 | N422626 | 1 | SEAL | GB | |
||
| 53 | 488147-01 | 1 | CIRCLIP | INTERNAL, 28MM | GB | |
|
| 54 | 330003-13 | 1 | BEARING | GB | |
||
| 55 | 330003-60 | 1 | BEARING | GB | |
||
| 56 | N362699 | 1 | CIRCLIP | GB | |
||
| 57 | N548557 | 6 | SCREW | M5 X 18 T25 | GB | |
|
| 58 | N592375 | 1 | ROTOR SA | GB | |
||
| 59 | N417208 | 1 | BAFFLE | GB | |
||
| 60 | N680282 | 2 | RUBBER | GB | |
||
| 61 | 330019-05 | 4 | SCREW | GB | |
||
| 63 | N580550 | 1 | PISTON SA | 8KG | GB | |
|
| 66 | N662674 | 1 | CON ROD | 8KG | GB | |
|
| 67 | N430664 | 1 | PISTON | 8KG | GB | |
|
| 68 | N026609 | 1 | PIN | GB | |
||
| 69 | N439990 | 1 | PISTON RING | GB | |
||
| 70 | N612854 | 1 | O RING | 27.7 X 3.53 | GB | |
|
| 71 | N580553 | 1 | CYLINDER | 8KG | GB | |
|
| 72 | N481377 | 2 | O RING | 29 X 2 | GB | |
|
| 73 | N580554 | 1 | RAM SA | 8KG | GB | |
|
| 74 | N612854 | 1 | O RING | 27.7 X 3.53 | GB | |
|
| 75 | N493644 | 1 | O RING | 34 X 3.5 | GB | |
|
| 76 | N413144 | 1 | BUSH | 8KG | GB | |
|
| 77 | N400500 | 1 | DAMPER | 8KG | GB | |
|
| 78 | N389366 | 2 | WASHER | GB | |
||
| 79 | N580555 | 1 | SPINDLE | 8KG | GB | |
|
| 80 | N392234 | 2 | WASHER | GB | |
||
| 81 | 589223-00 | 1 | DAMPER | GB | |
||
| 82 | N580556 | 1 | BEAT PIECE | 8KG | GB | |
|
| 83 | N594490 | 1 | SEAL | 25 X 33 X 4.3 | GB | |
|
| 84 | N432561 | 1 | O RING | 25 X 4 | GB | |
|
| 85 | N409943 | 1 | COVER | GB | |
||
| 86 | N504016 | 1 | ECCENTRIC | GB | |
||
| 87 | N515556 | 1 | O RING | 8 X 2.2 | GB | |
|
| 88 | N410143 | 1 | SLIDER | GB | |
||
| 89 | N520791 | 2 | SPRING | GB | |
||
| 90 | N410898 | 1 | CONNECTOR | GB | |
||
| 91 | N427022 | 1 | PLATE | GB | |
||
| 92 | 330065-08 | 2 | SCREW | M4x18 T20 | GB | |
|
| 93 | N455140 | 1 | O RING | 81 X 3 | GB | |
|
| 94 | N548557 | 1 | SCREW | M5 X 18 T25 | GB | |
|
| 96 | N409698 | 1 | SLIDER | 8KG | GB | |
|
| 97 | N580526 | 1 | BEVEL GEAR | GB | |
||
| 98 | N580533 | 1 | SLEEVE | GB | |
||
| 99 | N497938 | 1 | SPRING | GB | |
||
| 100 | N580559 | 1 | HOUSING FRONT | 8KG | GB | |
|
| 103 | N392582 | 1 | SEAL | GB | |
||
| 104 | N181847 | 1 | LOCKING RING | GB | |
||
| 105 | N416526 | 1 | COVER HOUSING | YELLOW | GB | |
|
| 106 | N431324 | 1 | GASKET | GB | |
||
| 107 | N420195 | 1 | BUSH | GB | |
||
| 108 | 949886-32 | 4 | SCREW | GB | |
||
| 109 | N516486 | 1 | GUIDE | GB | |
||
| 110 | N520784 | 1 | SPRING | GB | |
||
| 111 | N520782 | 1 | SPRING | GB | |
||
| 112 | N408040 | 1 | BUSH | GB | |
||
| 113 | N511836 | 2 | LOCKING DEVICE | GB | |
||
| 114 | N511834 | 1 | BUSH | GB | |
||
| 115 | N511805 | 1 | DAMPER | GB | |
||
| 116 | N468816 | 1 | SLEEVE | GB | |
||
| 117 | 487244-00 | 1 | RUBBER | GB | |
||
| 118 | N516487 | 1 | WASHER | GB | |
||
| 119 | N522784 | 1 | RETAINER | 28 X 2.5 | GB | |
|
| 120 | 487238-01 | 1 | SEAL | GB | |
||
| 130 | N412213 | 1 | HANDLE SIDE SA | GB | |
||
| 131 | N552104 | 1 | BOLT | M8 X 75 | GB | |
|
| 132 | N412984 | 1 | CLAMP | GB | |
||
| 133 | N413396 | 1 | WASHER | GB | |
||
| 134 | N411953 | 1 | CLAMP | GB | |
||
| 135 | N499183 | 1 | HANDLE SA | GB | |
||
| 138 | N520790 | 1 | DETENT | GB | |
||
| 140 | N551539 | 1 | LABEL | BRUSHLESS RH | GB | |
|
| 141 | N551538 | 1 | LABEL | BRUSHLESS LH | GB | |
|
| 142 | N551541 | 1 | LABEL | FLEXVOLT RH | GB | |
|
| 143 | N551540 | 1 | LABEL | FLEXVOLT LH | GB | |
|
| 144 | N551374 | 1 | LABEL | PERFORM AND PROTECT | GB | |
|
| 145 | N551537 | 1 | LABEL | ANTI ROTATION | GB | |
|
| 146 | N840408 | 1 | RATING PLATE | EURO | GB | |
|
| 150 | 330065-35 | 2 | SCREW | GB | |
||
| 165 | N578605 | 1 | FELT | GB | |
||
| 195 | 90611830 | 2 | SCREW | TRACKER | GB | |
|
| 300 | N593952 | 1 | SERVICE KIT | 8KG DC UNIT | GB | |
|
| 800 | 578970-06 | 1 | GREASE 150 GMS | GB | |
||
| 801 | 870889-02 | 1 | GREASE | GB | |
||
| 837 | 1003973-99 | 1 | S.T.SEAL FITTING TOOL | 8-10KG | GB | |
|
| 837 | 1003972-99 | 1 | S.T.SEAL FITTING TOOL | 8KG BEATPIECE | GB | |
|
| 837 | 1003974-99 | 1 | S.T.SUPPORT JIG | MAIN HOUSING | GB | |
|
| 837 | 1003975-99 | 1 | S.T.INSERTION TOOL | FRONT HOUSING | GB | |
|
| 838 | 559651-99 | 1 | S.T.CIRCLIP REMOVER | GB | |
||
| 838 | 1003976-99 | 1 | S.T.CIRCLIP REMOVER | CIRCLIPREMOVE INSERT | GB | |
|
| 839 | 1003979-99 | 1 | S.T.BEARING INSERTOR | GB | |
||
| 840 | 1003978-99 | 1 | S.T.INSERTION TOOL | GB | |
||
| 850 | N544162 | 1 | SERVICE TOOL | RESET | GB | |
|
| 861 | N508182 | 1 | KITBOX | GB | |
||
| 866 | N491552 | 1 | BATTERY 3 X18V-9.0AH-162WH | DCB547-XJ | GB | |
|
| 867 | N462141 | 1 | SAFETY CAP | GB | |
||
| 871 | N473855 | 1 | CHARGER GB | DCB118-GB | GB | |
