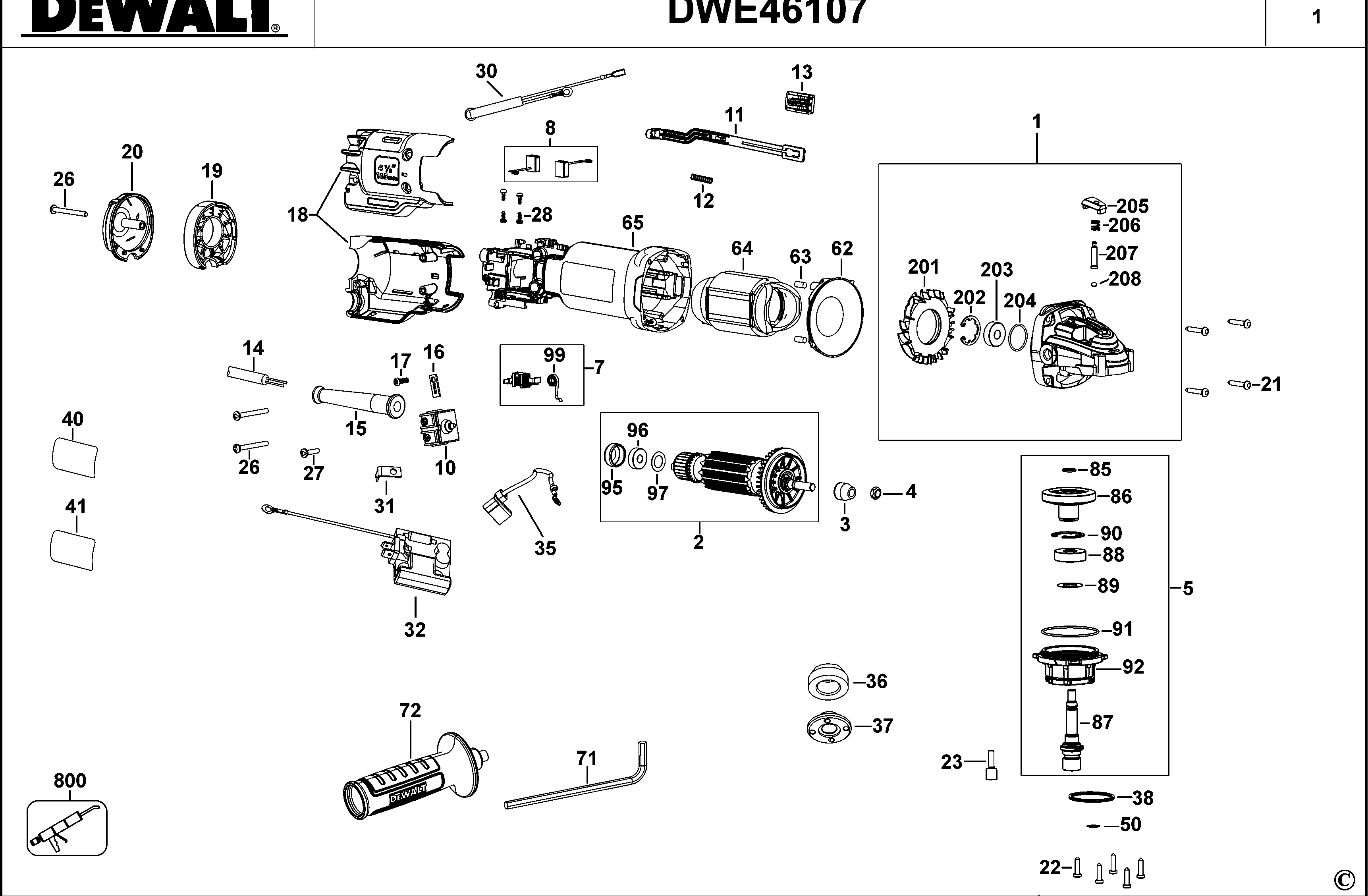

DWE46107 ANGLE GRINDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 2 | N442428 | 1 | ARMATURE 230V | XJ | |||
| 3 | N423537 | 1 | PINION | 10T | XJ |  |
|
| 4 | N372039 | 1 | NUT | M7 | XJ | |
|
| 7 | N413349 | 2 | BRUSHBOX SA | XJ | |
||
| 11 | N437742 | 1 | LINK | XJ | |||
| 12 | N093410 | 1 | SPRING | XJ | |
||
| 13 | N097844 | 1 | BUTTON | XJ | |
||
| 15 | N542553 | 1 | CORD PROTECTOR | XJ | |||
| 15 | N542553 | 1 | CORD PROTECTOR | XJ | |||
| 16 | 619328-00 | 1 | CORD CLAMP | XJ | |
||
| 17 | 330065-06 | 1 | SCREW | XJ | |
||
| 18 | N419604 | 1 | HOUSING SA | XJ | |
||
| 19 | N563707 | 1 | DUST PORT | XJ | |
||
| 20 | N400902 | 1 | END CAP | XJ | |
||
| 21 | N371839 | 4 | SCREW | M4x22 PLSTC THDFMG | XJ | |
|
| 22 | 330045-06 | 5 | SCREW | XJ | |
||
| 23 | N130031 | 1 | SCREW | XJ | |
||
| 26 | N389438 | 3 | SCREW | M4x40 PLSTC THD FMG | XJ | |
|
| 27 | 330065-09 | 1 | SCREW | XJ | |
||
| 28 | 593478-00 | 4 | SCREW | M3 X 8 | XJ |  |
|
| 30 | N408538 | 1 | LEAD SA | XJ | |
||
| 31 | 634599-00 | 1 | TERMINAL | XJ | |
||
| 35 | 631028-00 | 1 | LEAD SA | RED, 80mm, 18GA | XJ | |
|
| 36 | N654478 | 1 | INNER FLANGE | XJ | |
||
| 37 | N666474 | 1 | OUTER FLANGE | XJ | |
||
| 38 | N135116 | 1 | WASHER SPRING | XJ | |
||
| 40 | N403730 | 1 | BRAND LABEL | XJ | |
||
| 50 | N420261 | 1 | O RING | XJ | |
||
| 62 | N399419 | 1 | BAFFLE FAN | XJ | |
||
| 63 | 949638-02 | 2 | DAMPER | XJ | |
||
| 64 | N421413 | 1 | FIELD 230V | 230V | XJ | ||
| 65 | N390640 | 1 | FIELDCASE | XJ | |
||
| 71 | N107295 | 1 | HEX KEY | 6 mm | XJ | |
|
| 72 | N382311 | 1 | SIDE HANDLE | XJ | |
||
| 85 | 444793-00 | 1 | CIRCLIP | XJ | |
||
| 86 | N409481 | 1 | GEAR | 38T /PKG'D N375319 | XJ | |
|
| 87 | N163702 | 1 | SPINDLE | M14 | XJ | |
|
| 88 | 605040-24 | 1 | BEARING | XJ | |
||
| 89 | N400478 | 1 | WASHER | XJ | |
||
| 90 | N481950 | 1 | RETAINER | XJ | |
||
| 91 | N307625 | 1 | O RING | XJ | |
||
| 92 | N441765 | 1 | GEARCASE COVER | XJ | |
||
| 95 | 641823-00 | 1 | SLEEVE | XJ | |
||
| 96 | N130916 | 1 | BEARING | XJ | |
||
| 97 | N324400 | 1 | WASHER | XJ | |
||
| 99 | N273780 | 2 | SPRING | XJ | |
||
| 101 | N645894 | 1 | DUST PORT | XJ | |
||
| 102 | N651615 | 1 | COVER | XJ | |
||
| 103 | N645891 | 1 | CLAMSHELL HALF | XJ | |
||
| 104 | N645890 | 1 | CLAMSHELL HALF | XJ | |
||
| 105 | N646433 | 1 | SPRING | XJ | |
||
| 106 | N645896 | 1 | PIN | XJ | |
||
| 107 | N743974 | 1 | WASHER | XJ | |
||
| 108 | 098197-10 | 1 | WASHER LOCK | XJ | |
||
| 109 | 153778-01 | 1 | SCREW | XJ | |
||
| 110 | N646437 | 1 | BACKPLATE | XJ | |
||
| 111 | N646443 | 1 | STRAP | XJ | |
||
| 112 | 631609-03 | 1 | SCREW | XJ | |
||
| 113 | 90611830 | 10 | SCREW | XJ | |
||
| 114 | N813648 | 10 | SCREW | XJ | |
||
| 115 | 330019-66 | 3 | SCREW | XJ | |
||
| 116 | N760650 | 8 | PLASTIC SCREW | XJ | |
||
| 117 | N659081 | 1 | CLAMSHELL HALF | XJ | |
||
| 118 | N645892 | 1 | CLAMSHELL HALF | XJ | |
||
| 119 | N116219 | 2 | NUT | XJ | |
||
| 120 | N647700 | 1 | WINDOW | XJ | |
||
| 121 | 478455-00 | 2 | SCREW | XJ | |
||
| 122 | N646434 | 1 | SPRING | XJ | |
||
| 123 | N645899 | 1 | LATCH BUTTON | XJ | |
||
| 124 | N646432 | 1 | PIN | XJ | |
||
| 125 | N770509 | 1 | SPRING | XJ | |
||
| 126 | N645897 | 1 | LOCK HOOK | XJ | |
||
| 127 | N646427 | 1 | STRAP | XJ | |
||
| 128 | N646444 | 1 | LATCH | XJ | |
||
| 129 | N646430 | 1 | BRACKET | XJ | |
||
| 130 | N646428 | 1 | KNOB | XJ | |
||
| 131 | N645902 | 1 | SHOE | XJ | |
||
| 132 | 386957-00 | 4 | CLIP | XJ | |
||
| 133 | N703486 | 4 | WHEEL | XJ | |
||
| 134 | N774538 | 4 | WASHER | XJ | |
||
| 135 | N703485 | 2 | AXLE | XJ | |
||
| 136 | N654478 | 1 | INNER FLANGE | XJ | |
||
| 137 | N666474 | 1 | OUTER FLANGE | XJ | |
||
| 138 | N665586 | 1 | INNER FLANGE | XJ | |
||
| 139 | N665610 | 1 | OUTER FLANGE | XJ | |
||
| 140 | N716878 | 1 | RATING PLATE | XJ | |||
| 141 | N456231 | 1 | LABEL | XJ | |
||
| 201 | N401958 | 1 | DEFLECTOR | XJ | |
||
| 202 | N453031 | 1 | RETAINER | XJ | |
||
| 203 | N175104 | 1 | BEARING | XJ | |
||
| 204 | N119639 | 1 | O RING | XJ | |
||
| 205 | N278899 | 1 | BUTTON | SPINDLE | XJ | |
|
| 206 | N263579 | 1 | SPRING | XJ | |
||
| 207 | N481683 | 1 | LOCK PIN | XJ | |
||
| 208 | N263699 | 1 | O RING | XJ | |
||
| 800 | 583534-00 | 1 | GREASE | 50 GRAMS - NYE RHEOLUB 380G1 | XJ | |
