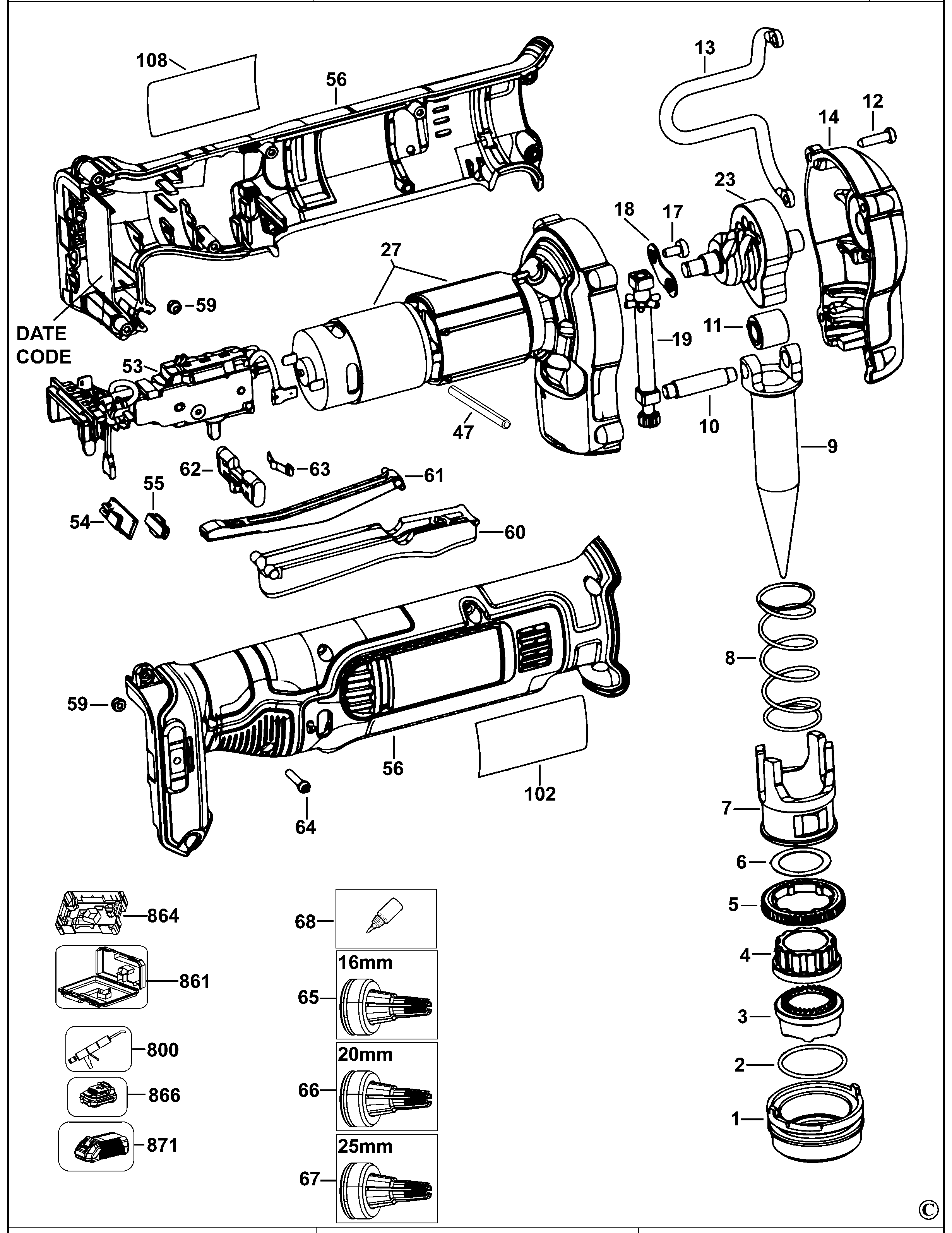

DCE400 PEX EXPANDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N462117 | 1 | COLLAR | THREADED | GB |  |
|
| 1 | 31587 | 1 | SPRING | GB |  |
||
| 2 | N508447 | 1 | O RING | 28.2x1.8MM | GB | |
|
| 2 | 1003402-00 | 5 | CORDSET | GB | |||
| 3 | N462118 | 1 | COLLAR | ROTATING | GB | |
|
| 4 | N462119 | 1 | GEAR | GB | |
||
| 5 | N462120 | 1 | GEAR | GB | |
||
| 5 | 860912-00 | 3 | TABLE WORK | GB | |
||
| 6 | N462124 | 1 | WASHER | 20.5 x 27.6 x 0.40MM | GB | |
|
| 6 | 930104 | 25 | WASHER | GB | |
||
| 7 | N462125 | 1 | SLEEVE | PISTON | GB | |
|
| 7 | 623964-00 | 2 | SCREW | GB | |
||
| 8 | N440687 | 1 | SPRING | GB | |
||
| 8 | 930106 | 1 | WASHER | GB | |
||
| 9 | N462121 | 1 | CONE | GB | |
||
| 9 | 5140189-67 | 5 | PCB ASSEMBLY | MAIN | GB | ||
| 10 | N462123 | 1 | PIN | ROLLER | GB | |
|
| 10 | 930115 | 1 | WASHER | INCL. 11-26 | GB | |
|
| 11 | N462122 | 1 | ROLLER | GB | |
||
| 11 | 860913-00 | 1 | ELEMENT | GB | |
||
| 12 | 330045-06 | 4 | SCREW | GB | |
||
| 12 | 382675-01 | 1 | WOODRUFF KEY | GB | |
||
| 13 | N474323 | 1 | HOOK | GB | |
||
| 13 | 286303-00 | 4 | KNOB SA | GB | |
||
| 14 | N660115 | 1 | GEARCASE COVER SA | PKGD N462549 | GB | |
|
| 14 | 1003372-00 | 1 | CIRCLIP | GB | |||
| 15 | 862226-00 | 1 | MOTOR COVER | GB | |
||
| 16 | 860088-01 | 1 | SCREW | GB | |
||
| 17 | 330045-44 | 2 | SCREW | GB | |
||
| 17 | 609153-00 | 1 | FIELDCASE | GB | |||
| 18 | N462217 | 1 | COVER | GB | |
||
| 18 | 933087-01 | 1 | BASE | Inc. 19 | GB | |
|
| 19 | N660116 | 1 | SHAFT SA | PKGD N462742 | GB | |
|
| 19 | 933087-01 | 1 | BASE | GB | |
||
| 20 | 582573-05 | 1 | CORDSET | GB | |
||
| 21 | N032917 | 1 | PIN | GB | |
||
| 22 | 942965-00 | 3 | FIELD 115V | GB | |
||
| 23 | N660114 | 1 | GEAR & CAM SA | PKG'D N462126 | GB | |
|
| 23 | 579185-00 | 1 | COVER | GB | |
||
| 24 | 944359-00 | 1 | PLATE | GB | |
||
| 25 | 863437-00 | 1 | BRACKET | GB | |
||
| 26 | 860089-39 | 2 | SCREW | GB | |
||
| 27 | N770086 | 1 | MOTOR & GEARCASE | 18V, EMI | GB | |
|
| 27 | 947923-00 | 1 | SUPPORT | GB | |
||
| 28 | 90507536 | 1 | TRANSMISSION SA | GB | |
||
| 29 | N377247 | 2 | FIELD CASE | GB | |||
| 30 | 176830-13 | 2 | SWITCH SA | GB | |
||
| 31 | 071816800 | 2 | PIN | GB | |||
| 33 | N061664 | 5 | HEX KEY | GB | |
||
| 34 | 945848-00 | 1 | CLIP | GB | |
||
| 35 | 945892-05 | 1 | CABLE SA | GB | |
||
| 36 | 11189 | 1 | SCREW | GB | |
||
| 37 | 429691-00 | 4 | JAM NUT | GB | |||
| 38 | 1003403-00 | 2 | CORDSET | GB | |||
| 39 | 903398 | 2 | COVER | CORK ADHESIVE | GB | |
|
| 40 | 286056-00 | 1 | BRACKET,TOOL | GB | |||
| 42 | 861479-00 | 1 | GUARD SA | GB | |
||
| 44 | N415904 | 5 | ARMATURE SA | 4-Pole Motor | GB | |
|
| 46 | 623804-00 | 2 | BELT | GB | |||
| 47 | N462236 | 2 | PIN | 3 x 40MM | GB | |
|
| 48 | 285903-00 | 1 | TABLE | GB | |
||
| 49 | N467939 | 1 | GEAR | GB | |
||
| 50 | 86-048BST | 1 | 1/4DR 6P D 7/16 | GB | |||
| 53 | N770096 | 1 | SWITCH SA | PKGD N690919 | GB | |
|
| 53 | 868911-00 | 2 | SCREW | M6 x 12 | GB | |
|
| 54 | N231799 | 1 | LED LIGHT | GB | |
||
| 54 | 070814503 | 1 | STUD | GB | |||
| 55 | N394333 | 1 | LENS | GB | |
||
| 55 | 945840-02 | 1 | ROTOR | GB | |||
| 56 | N695771 | 1 | CLAMSHELL SET | INCL 59 | GB | |
|
| 56 | 90517719 | 1 | SHEATH | GB | |||
| 57 | 286269-00 | 1 | ARM STROKE | GB | |
||
| 58 | 93-530ST | 1 | 1/2DR 6P D 15MM | GB | |||
| 59 | 330021-11 | 2 | STOP NUT | GB | |
||
| 60 | N462211 | 1 | TRIGGER | GB | |
||
| 61 | N462212 | 1 | LINK | TRIGGER | GB | |
|
| 61 | 86-099BST | 2 | 1/4DR 6P D 11MM | GB | |||
| 62 | N462213 | 1 | ACTUATOR | LOCK-OFF | GB | |
|
| 62 | 1003407-00 | 1 | LOCK NUT | GB | |||
| 63 | N392855 | 1 | DETENT | GB | |
||
| 63 | N415395 | 1 | CLAMP | GB | |||
| 64 | 682211-00 | 7 | SCREW | GB | |
||
| 65 | N715857 | 1 | HEAD SA | DCE40016-EC 16MM | DCE400D2 | GB | |
| 65 | 011930171 | 1 | WASHER | GB | |
||
| 66 | N715889 | 1 | HEAD SA | DCE40020-EC 20MM | DCE400D2 | GB | |
| 66 | 871824 | 1 | BRUSH | GB | |
||
| 66 | 610718-00 | 1 | WARNING LABEL | GB | |||
| 67 | N715849 | 1 | HEAD SA | DCE40025-EC 25MM | DCE400D2 | GB | |
| 67 | 490829-01 | 1 | POINTER | GB | |||
| 68 | 1004773-23 | 1 | GREASE | DCE400GR-EC | DCE400D2 | GB | |
| 68 | 86-301BST | 2 | 3/8DR 6P S 6MM | GB | |||
| 69 | 11220 | 1 | NUT | GB | |||
| 70 | 945885-01 | 1 | LABEL | GB | |
||
| 71 | 568569-00 | 1 | BASE | GB | |
||
| 72 | 330045-06 | 2 | SCREW | GB | |
||
| 73 | 862180-06 | 4 | SUPPORT BRACKET | GB | |
||
| 74 | 385865-00 | 4 | SCREW | GB | |
||
| 75 | 1004503-16 | 2 | COVER SA | GB | |
||
| 77 | 933516 | 1 | BAFFLE | GB | |
||
| 78 | 596339-00 | 1 | MOUNTING BRACKET | GB | |
||
| 80 | 569085-00 | 1 | ARMATURE SA | GB | |
||
| 81 | N399977 | 1 | RECIP. SHAFT ASSY. | GB | |||
| 82 | 605040-32 | 1 | BEARING | GB | |
||
| 83 | 862148-06 | 1 | ROLLER HEAD | GB | |
||
| 84 | 862157-00 | 1 | SCALE | GB | |
||
| 85 | 862167-04 | 1 | TABLE PLANER | GB | |||
| 89 | 862179-90 | 1 | TABLE ROTARY | GB | |||
| 90 | 605093-00 | 5 | SPINDLE LOCK | GB | |||
| 91 | 1008355-00 | 1 | DAMPER | GB | |
||
| 92 | 944335-00 | 1 | LEG | GB | |
||
| 93 | 623655-00 | 4 | FAN | GB | |||
| 98 | 098162-18 | 7 | SPRING PIN | GB | |||
| 102 | N767369 | 1 | BRAND LABEL | GB | |
||
| 105 | 862182-00 | 1 | SUPPORT | GB | |
||
| 106 | 862182-01 | 1 | SUPPORT SA | GB | |
||
| 108 | N761672 | 1 | RATING PLATE | DCE400 TYPE 1 | GB | |
|
| 108 | 1003395-00 | 2 | BRUSH | GB | |||
| 109 | 868153-01 | 1 | SUPPORT LH | GB | |
||
| 110 | N769849 | 2 | LOCKING RING | GB | |
||
| 111 | N650831 | 1 | BATTERY COVER | GB | |
||
| 113 | 577801-00 | 1 | BEARING BLOCK | GB | |
||
| 114 | 944375-00 | 1 | HANDLE | GB | |
||
| 115 | 32324 | 1 | KNOB | GB | |||
| 116 | 1003399-00 | 1 | SCREW | GB | |||
| 117 | 861490-00 | 1 | MOTOR SA 1PH | GB | |||
| 118 | N422502 | 4 | O RING | GB | |||
| 119 | 943963 | 1 | GEARCASE COVER SA | GB | |||
| 120 | N035392 | 1 | SCREW | GB | |
||
| 121 | 5103598-00 | 1 | CARRIER | GB | |
||
| 122 | N045948 | 1 | GUARD | GB | |
||
| 123 | N402103 | 1 | SERVICE KIT | GB | |||
| 124 | N176175 | 1 | RATING PLATE | GB | |
||
| 125 | 864351-78 | 1 | MOTOR SA 1PH | GB | |
||
| 126 | 1003409-00 | 1 | WHEEL GRINDING | GB | |||
| 127 | 90510912 | 1 | CLAMSHELL SET | GB | |||
| 128 | N552368 | 1 | INNER FLANGE | GB | |||
| 129 | 604107-00 | 1 | BALL STEEL | GB | |
||
| 130 | 946862-00 | 1 | SCALE | GB | |
||
| 132 | 398474-00 | 1 | LOCKING DEVICE | GB | |
||
| 135 | 861511-01 | 1 | MOTOR SA | GB | |
||
| 137 | 862234-02 | 1 | GUARD | INCL. 138 | GB | |
|
| 138 | 947642-00 | 1 | SPRING | GB | |
||
| 140 | 862235-04 | 1 | GUARD | GB | |
||
| 142 | 862237-02 | 1 | COLUMN | GB | |
||
| 143 | 610625-00 | 1 | NUT | GB | |
||
| 144 | 860083-03 | 1 | NUT | GB | |
||
| 146 | 286336-00 | 1 | O RING | GB | |
||
| 150 | 862185-02 | 1 | PULLEY | GB | |
||
| 151 | 444469-42 | 1 | CORDSET | GB | |||
| 153 | 720961-00 | 1 | WASHER | GB | |||
| 154 | 720952-00 | 1 | SPACER | GB | |||
| 155 | N411027 | 4 | LEAD ASSY. | WHITE (125MM) | GB | ||
| 156 | 645165-00 | 1 | RATING PLATE | GB | |||
| 800 | N017298 | 1 | GREASE | G-2008 Molykote | GB | |
|
| 800 | 391918-00 | 1 | MITER GAUGE | LUBRIPLATE | GB | ||
| 800 | N167546 | 1 | RATING LABEL | DW680 ty 3 | GB | ||
| 861 | N615986 | 1 | KITBOX | DCE400D2 | GB | |
|
| 864 | N796936 | 1 | PLASTIC INSERT | KITBOX MP97761-QZ | DCE400D2 | GB | |
| 866 | N314783 | 1 | BATTERY 18V - 2.0AH - 36WH | DCB183-XJ | DCE400D2 | GB | |
| 866 | 5140063-21 | 2 | HANDLE SA | GB | |
||
| 867 | 868529-03 | 2 | SPEED REGULATOR | GB | |||
| 871 | N450537 | 1 | CHARGER 10.8V - 18V | DCE400D2 | GB | |
|
| 871 | 5130032-00 | 1 | PLUG | 1/4 NPT | GB | |
|
| 871 | DE0246 | 1 | CHARGER 24V | Ni-Cad - NiMH- 1 Hr | GB |
