DCF620 CORDLESS SCREWDRIVER Type 3 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N178812 | 1 | CLAMSHELL SET | 18V | GB |  |
|
| 2 | N456983 | 1 | MOTOR & SWITCH SA | 18V | GB | |
|
| 3 | N410831 | 1 | CLUTCH KIT | Inc 15 | GB | |
|
| 4 | N410832 | 1 | GEARCASE SA | GB | |
||
| 5 | N435495 | 1 | NOSE SA | GB | |
||
| 6 | N257859 | 1 | TRIGGER LOCK-ON | GB | |
||
| 7 | N435687 | 1 | HOOK SA | GB | |
||
| 8 | N042665 | 1 | SCREW | GB | |
||
| 10 | 682211-00 | 11 | SCREW | GB | |
||
| 15 | N364699 | 1 | SLEEVE | GB | |
||
| 16 | N383282 | 1 | WASHER THRUST | GB | |
||
| 17 | 605852-00 | 1 | THRUST BEARING | GB | |
||
| 18 | N112274 | 1 | WASHER THRUST | GB | |
||
| 19 | 56122-00 | 1 | O RING | GB | |
||
| 20 | N244399 | 1 | BEARING | 5 X 13 X 4 | GB | |
|
| 21 | N449701 | 1 | HOLDER BIT | GB | |
||
| 22 | 607904-22 | 1 | BIT SCREWDRIVER | DRYWALL PR2 | GB | |
|
| 23 | N257879 | 1 | SPRING | GB | |
||
| 24 | N811122 | 1 | RATING PLATE | GB | |||
| 25 | N333803 | 1 | BRAND LABEL | 18V | GB | |
|

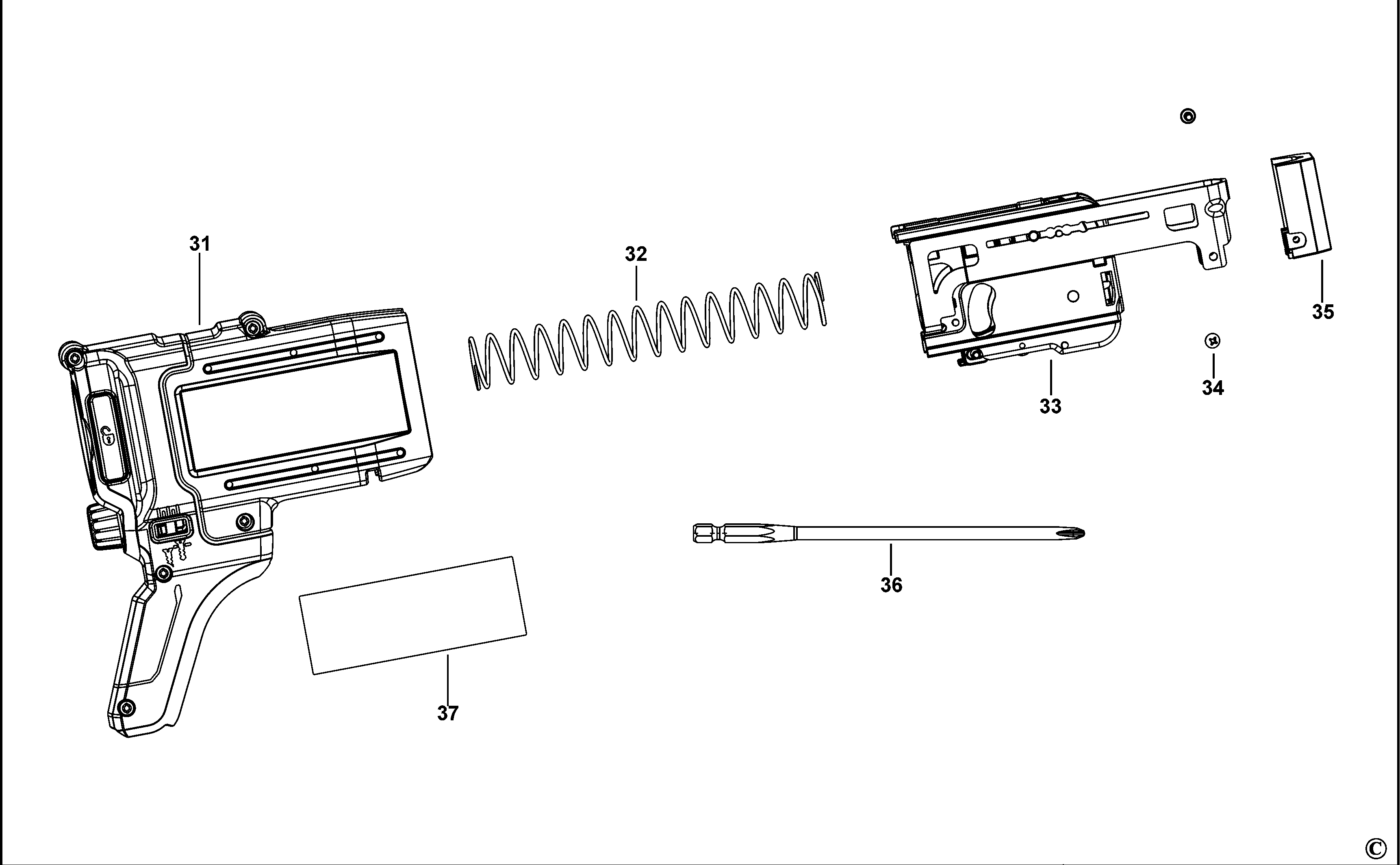

| 31 | N811506 | 1 | BODY | DCF620M2K | GB | |
|
| 32 | N418687 | 1 | SPRING | DCF620M2K | GB | |
|
| 33 | N811509 | 1 | MAGAZINE SA | DCF620M2K | GB | |
|
| 34 | N803777 | 2 | SCREW | DCF620M2K | GB | |
|
| 35 | N682732 | 1 | RUBBER PAD | DCF620M2K | GB | |
|
| 36 | N690733 | 1 | BIT PHILLIPS | DCF620M2K | GB | |
|
| 37 | N811183 | 1 | RATING PLATE | GB | |||
| 800 | N017298 | 1 | GREASE | G-2008 Molykote | GB | |
|
| 860 | H1400196008 | 2 | HANDLE | GB | |||
| 861 | N279261 | 1 | KITBOX | GB | |
||
| 862 | H1500082520 | 2 | LATCH | GB | |||
| 863 | P910190 | 1 | LATCH | GB | |
||
| 864 | N763897 | 1 | TRAY | KITBOX | DCF620M2K | GB | |
| 866 | N394624 | 1 | BATTERY 18V - 5.0AH - 90WH | DCF620P2 | GB | |
|
| 866 | N195933 | 1 | BATTERY 18V - 4.0AH - 72WH | Li-Ion - DCB182; Li-Ion - DCB182-XJ | DCF620M2K | GB | |
| 866 | N314783 | 1 | BATTERY 18V - 2.0AH - 36WH | DCB183-XJ | DCF620D2 | GB | |
| 871 | N450537 | 1 | CHARGER 10.8V - 18V | GB | |
