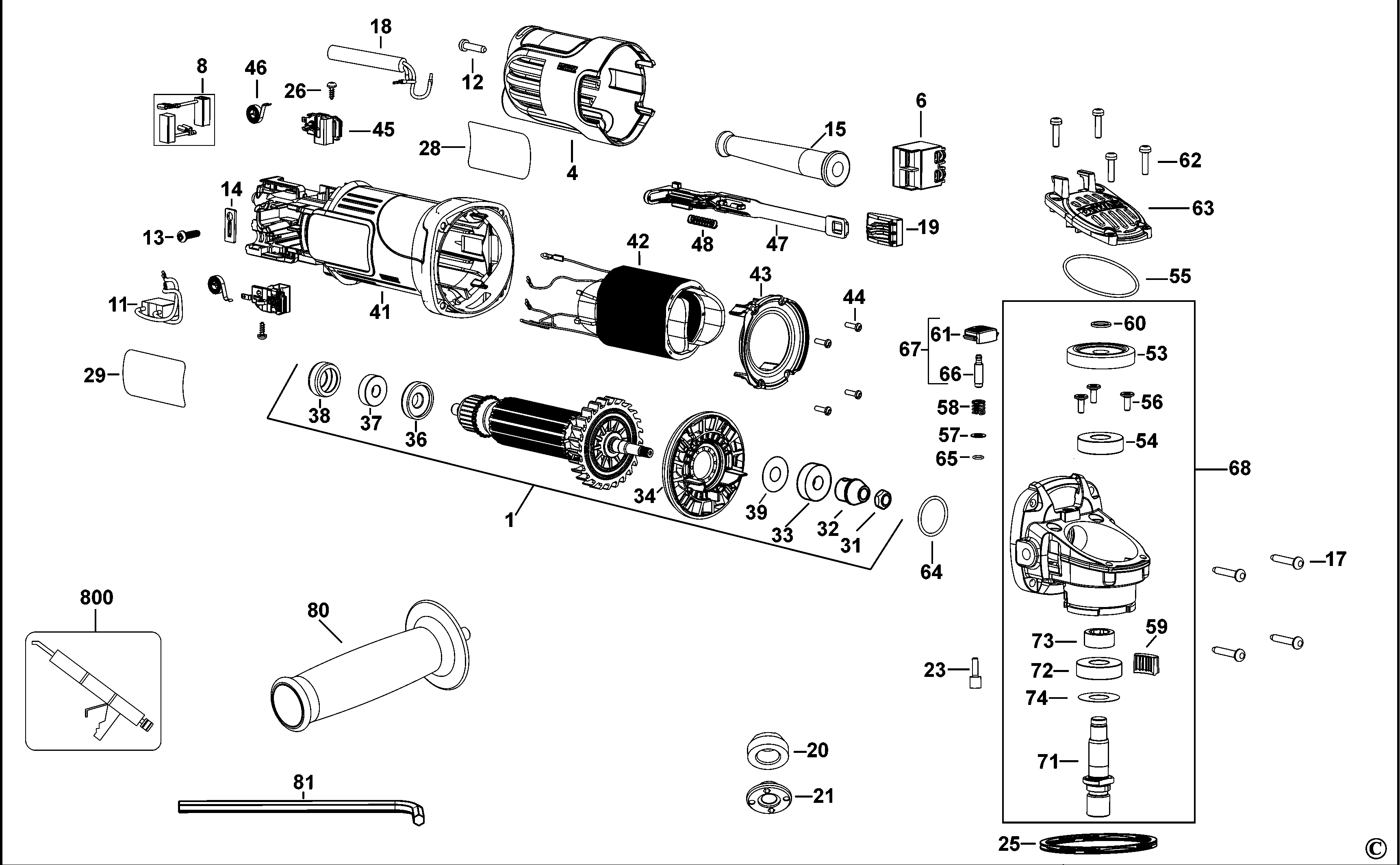

DWE46106 SMALL ANGLE GRINDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N389433 | 1 | ARMATURE 230V | XJ | |||
| 4 | N115132 | 1 | HOUSING | XJ |  |
||
| 6 | N442171 | 1 | SWITCH | XJ | |
||
| 8 | NA160502 | 1 | BRUSH PAIR | XJ | |
||
| 11 | N442344 | 1 | CAPACITOR SA | XJ | |
||
| 12 | N017839 | 1 | SCREW | XJ | |
||
| 13 | 562097-00 | 1 | SCREW | XJ |  |
||
| 14 | 619328-00 | 1 | CORD CLAMP | XJ | |
||
| 15 | N918736 | 1 | CORD PROTECTOR | XJ | |
||
| 17 | 330065-31 | 4 | PLASTIC SCREW | XJ | |
||
| 19 | N097844 | 1 | BUTTON | XJ | |
||
| 20 | N654478 | 1 | INNER FLANGE | XJ | |
||
| 21 | N666474 | 1 | OUTER FLANGE | XJ | |
||
| 23 | N130031 | 1 | SCREW | XJ | |
||
| 25 | N135116 | 1 | WASHER SPRING | XJ | |
||
| 26 | 593478-00 | 2 | SCREW | M3 X 8 | XJ | |
|
| 28 | N149175 | 1 | BRAND LABEL | XJ | |
||
| 31 | 604484-00 | 1 | NUT | XJ | |
||
| 32 | N153125 | 1 | PINION | XJ | |
||
| 33 | N175104 | 1 | BEARING | XJ | |
||
| 34 | N132042 | 1 | BAFFLE | XJ | |
||
| 36 | N101228 | 1 | WASHER | XJ | |
||
| 37 | N130916 | 1 | BEARING | XJ | |
||
| 38 | 641823-00 | 1 | SLEEVE | XJ | |
||
| 39 | N213812 | 1 | WASHER | XJ | |
||
| 41 | N115131 | 1 | FIELDCASE | XJ | |
||
| 42 | N232482 | 1 | FIELD 230V | XJ | |
||
| 43 | N132864 | 1 | BAFFLE | XJ | |
||
| 44 | 330065-25 | 4 | SCREW | XJ | |
||
| 45 | N097702 | 2 | BRUSHBOX | XJ | |
||
| 46 | N097703 | 2 | SPRING | XJ | |
||
| 47 | N117648 | 1 | LINK | XJ | |
||
| 48 | N093410 | 1 | SPRING | XJ | |
||
| 53 | N153126 | 1 | GEAR | XJ | |
||
| 54 | 605040-24 | 1 | BEARING | XJ | |
||
| 55 | N094024 | 1 | O RING | XJ | |
||
| 56 | N118088 | 3 | SCREW | XJ | |
||
| 57 | N447838 | 1 | WASHER | XJ | |
||
| 58 | N092954 | 1 | SPRING | XJ | |
||
| 59 | N126708 | 1 | INSERT | XJ | |
||
| 60 | 444793-00 | 1 | CIRCLIP | XJ | |
||
| 61 | N126105 | 1 | BUTTON | XJ | |
||
| 62 | N122904 | 4 | SCREW | XJ | |
||
| 63 | N116180 | 1 | GEARCASE COVER | XJ | |
||
| 64 | N119639 | 1 | O RING | XJ | |
||
| 65 | N094012 | 1 | O RING | XJ | |
||
| 66 | N114592 | 1 | SPINDLE LOCK | XJ | |
||
| 67 | N181767 | 1 | SPINDLE LOCK | XJ | |
||
| 68 | N232479 | 1 | GEARCASE SA | XJ | |||
| 71 | N110057 | 1 | SPINDLE | XJ | |
||
| 72 | 605040-24 | 1 | BEARING | XJ | |
||
| 73 | N095815 | 1 | SLEEVE | XJ | |
||
| 74 | 638229-00 | 1 | WASHER | XJ | |
||
| 80 | 562211-00 | 1 | HANDLE SIDE SA | XJ | |
||
| 81 | N107295 | 1 | HEX KEY | 6 mm | XJ | |
|
| 101 | N645894 | 1 | DUST PORT | XJ | |
||
| 102 | N651615 | 1 | COVER | XJ | |
||
| 103 | N645891 | 1 | CLAMSHELL HALF | XJ | |
||
| 104 | N645890 | 1 | CLAMSHELL HALF | XJ | |
||
| 105 | N646433 | 1 | SPRING | XJ | |
||
| 106 | N645896 | 1 | PIN | XJ | |
||
| 107 | N743974 | 1 | WASHER | XJ | |
||
| 108 | 098197-10 | 1 | WASHER LOCK | XJ | |
||
| 109 | 153778-01 | 1 | SCREW | XJ | |
||
| 110 | N646437 | 1 | BACKPLATE | XJ | |
||
| 111 | N646443 | 1 | STRAP | XJ | |
||
| 112 | 631609-03 | 1 | SCREW | XJ | |
||
| 113 | 90611830 | 10 | SCREW | XJ | |
||
| 114 | N813648 | 10 | SCREW | XJ | |
||
| 115 | 330019-66 | 3 | SCREW | XJ | |
||
| 116 | N760650 | 8 | PLASTIC SCREW | XJ | |
||
| 117 | N659081 | 1 | CLAMSHELL HALF | XJ | |
||
| 118 | N645892 | 1 | CLAMSHELL HALF | XJ | |
||
| 119 | N116219 | 2 | NUT | XJ | |
||
| 120 | N647700 | 1 | WINDOW | XJ | |
||
| 121 | 478455-00 | 2 | SCREW | XJ | |
||
| 122 | N646434 | 1 | SPRING | XJ | |
||
| 123 | N645899 | 1 | LATCH BUTTON | XJ | |
||
| 124 | N646432 | 1 | PIN | XJ | |
||
| 125 | N770509 | 1 | SPRING | XJ | |
||
| 126 | N645897 | 1 | LOCK HOOK | XJ | |
||
| 127 | N646427 | 1 | STRAP | XJ | |
||
| 128 | N646444 | 1 | LATCH | XJ | |
||
| 129 | N646430 | 1 | BRACKET | XJ | |
||
| 130 | N646428 | 1 | KNOB | XJ | |
||
| 131 | N645902 | 1 | SHOE | XJ | |
||
| 132 | 386957-00 | 4 | CLIP | XJ | |
||
| 133 | N703486 | 4 | WHEEL | XJ | |
||
| 134 | N774538 | 4 | WASHER | XJ | |
||
| 135 | N703485 | 2 | AXLE | XJ | |
||
| 136 | N654478 | 1 | INNER FLANGE | XJ | |
||
| 137 | N666474 | 1 | OUTER FLANGE | XJ | |
||
| 138 | N665586 | 1 | INNER FLANGE | XJ | |
||
| 139 | N665610 | 1 | OUTER FLANGE | XJ | |
||
| 140 | NA177560 | 1 | RATING LABEL | XJ | |
||
| 141 | N456231 | 1 | LABEL | XJ | |
||
| 800 | 583534-00 | 1 | GREASE | 50 GRAMS - NYE RHEOLUB 380G1 | XJ | |
