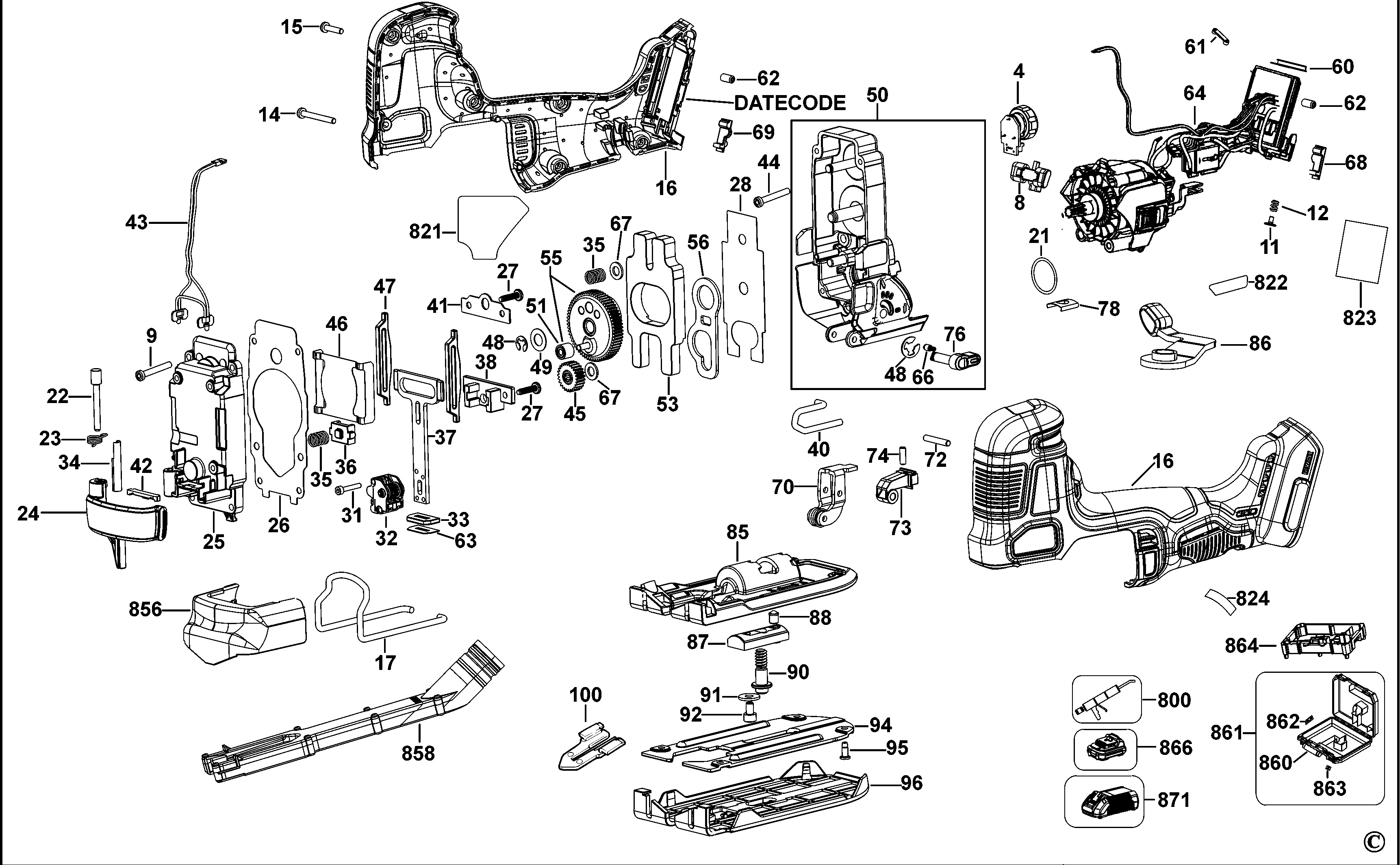

DCS335 JIGSAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 4 | N573899 | 1 | WHEEL SPEED | GB |  |
||
| 8 | N544264 | 1 | BUTTON LOCK-OFF | GB | |
||
| 9 | 330045-07 | 4 | SCREW | GB | |
||
| 11 | N122099 | 1 | BLOCK | GB | |
||
| 12 | N102647 | 1 | SPRING | GB | |
||
| 14 | 330019-06 | 1 | SCREW | GB | |
||
| 15 | 330019-03 | 9 | SCREW | GB | |
||
| 16 | N577780 | 1 | CLAMSHELL SET | GB | |
||
| 17 | N523099 | 1 | GUARD | GB | |
||
| 21 | 697029 | 1 | O RING | GB | |
||
| 22 | N524855 | 1 | PIN | GB | |
||
| 23 | N515119 | 1 | SPRING | GB | |
||
| 24 | N565505 | 1 | CLAMP | GB | |
||
| 25 | N561929 | 1 | GEARCASE | GB | |
||
| 26 | N514407 | 1 | GASKET | GB | |
||
| 27 | 330045-06 | 4 | SCREW | GB | |
||
| 28 | N509093 | 1 | PLATE | GB | |
||
| 31 | 582837-00 | 2 | BOLT | GB | |
||
| 32 | N723991 | 1 | BLADE CLAMP | GB | |
||
| 33 | N723984 | 1 | SEAL SA | GB | |
||
| 34 | N548918 | 1 | PLATE | Clamp lever | GB | |
|
| 35 | N543918 | 1 | SPRING | GB | |
||
| 36 | N573337 | 1 | BEARING | Lower | GB | |
|
| 37 | N499406 | 1 | RECIPROCATOR | GB | |
||
| 38 | N500477 | 1 | BEARING | GB | |
||
| 40 | N547459 | 1 | GUARD | GB | |
||
| 41 | N539624 | 1 | BEARING | GB | |
||
| 42 | N543121 | 1 | RETAINER | LED | GB | |
|
| 43 | N518314 | 1 | LED | GB | |
||
| 44 | 330019-21 | 4 | SCREW.TEMP | GB | |
||
| 45 | N505401 | 1 | GEAR | GB | |
||
| 46 | N539623 | 1 | GUIDE | GB | |
||
| 47 | N539622 | 2 | GUIDE | GB | |
||
| 48 | 571181-00 | 2 | CLIP | GB | |
||
| 49 | 582829-00 | 1 | WASHER | M8 15.5 X 0.5 | GB | |
|
| 50 | N723994 | 1 | GEARCASE SA | with pins | GB | |
|
| 51 | 330004-20 | 1 | BEARING NEEDLE | GB | |
||
| 53 | N499205 | 1 | CONNTERWEIGHT | GB | |
||
| 55 | N723993 | 1 | GEAR SA | output | GB | |
|
| 56 | N509087 | 1 | ACTUATOR | GB | |
||
| 60 | N467560 | 1 | PLATE | GB | |
||
| 61 | N261987 | 1 | CAP | GB | |
||
| 62 | N487311 | 2 | RUBBER | GB | |
||
| 63 | N579198 | 1 | SEAL | GB |  |
||
| 64 | N632686 | 1 | MOTOR & SWITCH SA | CAD FREE | GB | |
|
| 66 | 326467-00 | 1 | DETENT | GB | |
||
| 67 | N563127 | 1 | WASHER | M6 | GB | |
|
| 68 | N438439 | 1 | INSERT | GB | |
||
| 69 | N438438 | 1 | INSERT | GB | |
||
| 70 | N723988 | 1 | BRACKET | GB | |
||
| 72 | 330041-29 | 1 | PIN | GB | |
||
| 73 | N504498 | 1 | DUST PORT | GB | |
||
| 74 | N516272 | 1 | PIN | GB | |
||
| 76 | N515469 | 1 | LEVER | GB | |
||
| 78 | N562695 | 1 | CLIP | GB | |
||
| 85 | N527629 | 1 | SHOE | GB | |
||
| 86 | N536524 | 1 | LEVER | GB | |
||
| 87 | N516006 | 1 | CLAMPING BAR | GB | |
||
| 88 | 584686-00 | 1 | PLUNGER | GB | |
||
| 90 | 582826-00 | 1 | BOLT | GB | |
||
| 91 | N595377 | 1 | WASHER | GB | |
||
| 92 | N595379 | 1 | BOLT | GB | |
||
| 94 | N555231 | 1 | SHOE | Shoe | GB | |
|
| 95 | N056875 | 4 | SCREW TORX | M4x10 | GB | |
|
| 96 | N548480 | 1 | SOLE PLATE | Sole | GB | |
|
| 100 | 402140-00 | 1 | ANTI SPLINTER DEVICE | GB | |
||
| 800 | 870889-03 | 1 | GREASE | RENOLIT PARAGON EP ½ - 20 GRAMS | GB | |
|
| 821 | N681946 | 1 | RATING PLATE | DCS355N | GB | |
|
| 822 | N664486 | 1 | BRAND LABEL | GB | |
||
| 823 | N605025 | 1 | LABEL | DCS335 EU | GB | |
|
| 824 | N581733 | 1 | LABEL | brushless motor | GB | |
|
| 856 | N575480 | 1 | SHIELD | GB | |
||
| 858 | N564892 | 1 | DUST PORT | DCS334/DCS335 | GB | |
|
| 860 | H1400196008 | 2 | HANDLE | GB | |||
| 861 | N279261 | 1 | KITBOX | DCS335NT | GB | |
|
| 862 | H1500082520 | 2 | LATCH | GB | |||
| 863 | P910190 | 2 | LATCH | GB | |
||
| 864 | N577616 | 1 | INSERT | KITBOX | GB | |
|
| 866 | N394624 | 1 | BATTERY 18V - 5.0AH - 90WH | DCS335P2 | GB | |
|
| 871 | N450537 | 1 | CHARGER 10.8V - 18V | GB | |
