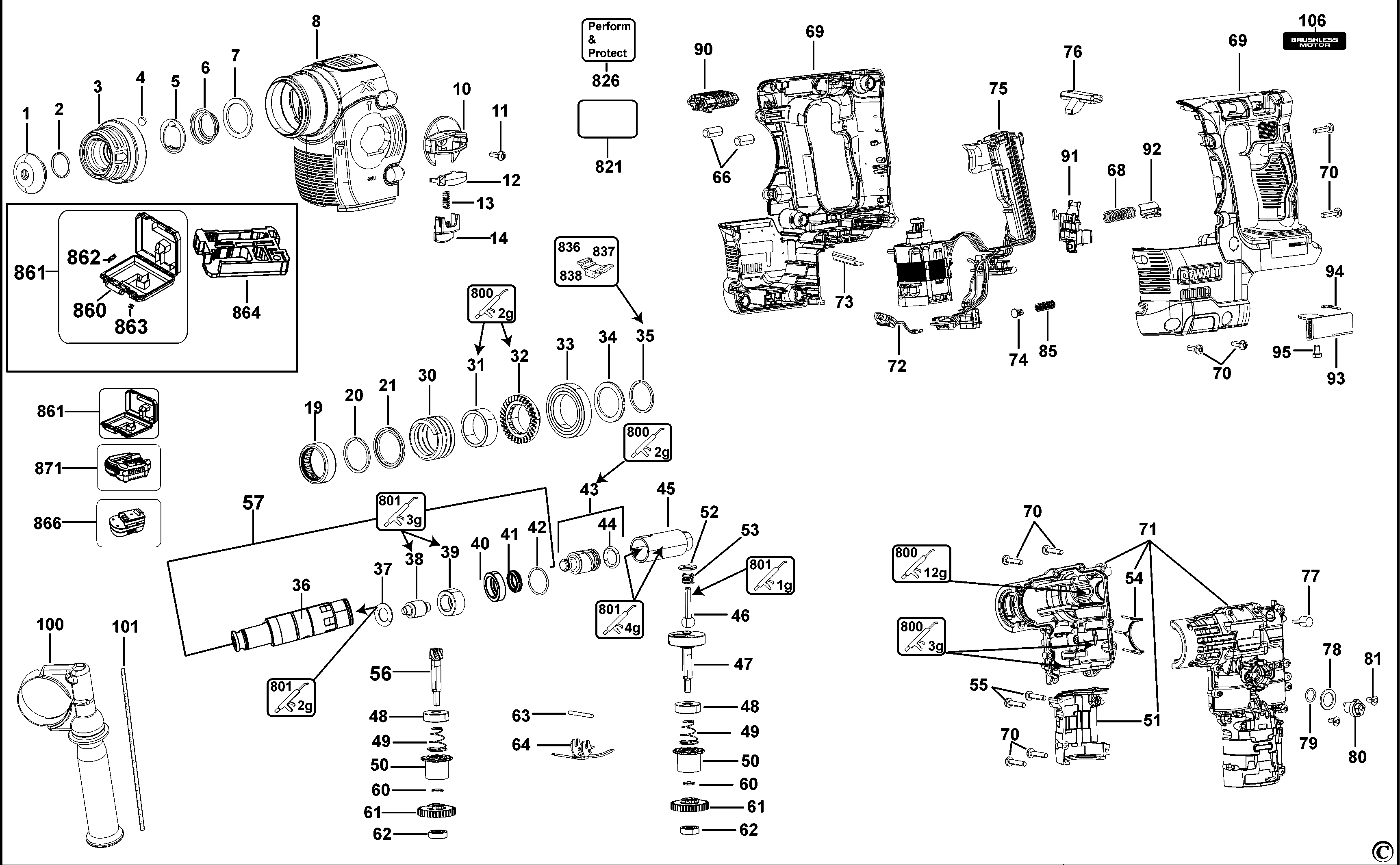

DCH273 ROTARY HAMMER Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 323489-00 | 1 | CAP | GB |  |
||
| 2 | 579212-00 | 1 | RING | GB | |
||
| 3 | N774198 | 1 | TUBE SA | GB | |
||
| 4 | 583890-00 | 1 | BALL | GB | |
||
| 5 | 578387-00 | 1 | WASHER | GB | |
||
| 6 | 871690 | 1 | SPRING | GB | |
||
| 7 | 590306-00 | 1 | FELT SEAL | GB | |
||
| 8 | N339199 | 1 | GEARCASE COVER | GB | |
||
| 10 | N190510 | 1 | SELECTOR | GB | |
||
| 11 | 324006-16 | 1 | SCREW | GB | |
||
| 12 | N034134 | 1 | COVER | GB | |
||
| 13 | N074923 | 1 | SPRING | GB | |
||
| 14 | N190511 | 1 | BUTTON RELEASE | GB | |
||
| 19 | N149956 | 1 | BEARING NEEDLE | GB | |
||
| 20 | 488105-00 | 1 | CLIP | GB | |
||
| 21 | N043423 | 1 | WASHER | GB | |
||
| 30 | 589346-00 | 1 | SPRING | GB | |
||
| 31 | N410822 | 1 | SLEEVE | GB | |
||
| 32 | N383250 | 1 | GEAR & PINION SA | GB | |
||
| 33 | 479478-00 | 1 | BEARING,BALL | 6906 | GB | |
|
| 34 | N043424 | 1 | WASHER | GB | |
||
| 35 | 488390-00 | 1 | CLIP | SW26 1.5mm | GB | |
|
| 36 | N477771 | 1 | SPINDLE | GB | |
||
| 37 | N394276 | 1 | O RING | GB | |
||
| 38 | 492808-00 | 1 | BEAT PIECE | NQCC | GB | |
|
| 39 | N470388 | 1 | TUBE GUIDE | GB | |
||
| 40 | N531681 | 1 | WASHER | GB | |
||
| 41 | 580990-00 | 1 | O RING | GB | |
||
| 42 | N294259 | 1 | RING | GB | |
||
| 43 | N178363 | 1 | RAM SA | 19mm; Inc 222+223 | GB | |
|
| 44 | N114827 | 1 | O RING | Dynamic 13x3 | GB | |
|
| 45 | 492822-00 | 1 | PISTON | GB | |
||
| 46 | 492823-00 | 1 | BALL SPINDLE | GB | |
||
| 47 | N288223 | 1 | CRANKSHAFT | GB | |
||
| 48 | N168103 | 2 | BEARING | GB | |
||
| 49 | N466046 | 1 | SPRING COMPRESSION | GB | |
||
| 50 | N150085 | 2 | COLLAR | GB | |
||
| 51 | N382169 | 1 | MOTOR COVER | GB | |
||
| 52 | N108992 | 1 | WASHER | GB | |
||
| 53 | 490286-00 | 1 | SPRING | GB | |
||
| 54 | N323159 | 1 | SEAL | GB | |
||
| 55 | 330019-81 | 2 | SCREW | GB | |
||
| 56 | N383250 | 1 | GEAR & PINION SA | GB | |
||
| 57 | N719465 | 1 | SPINDLE SA | Upgrade Kit | GB | |
|
| 60 | 323763-10 | 2 | LOCKING RING | 8; | GB | |
|
| 61 | N450704 | 2 | GEAR SA | GB | |
||
| 62 | N621023 | 2 | BEARING | GB | |
||
| 63 | 590312-00 | 1 | PIN | GB | |
||
| 64 | 575022-00 | 1 | PLATE | GB | |
||
| 66 | 575032-00 | 2 | PIN | GB | |
||
| 68 | N416466 | 1 | SPRING | GB | |
||
| 69 | N421939 | 1 | HANDLE SA | GB | |||
| 70 | 330019-80 | 24 | SCREW | GB | |
||
| 71 | N421951 | 1 | HOUSING GEARBOX | Inc 51 | GB | |
|
| 72 | N051450 | 1 | LED | GB | |
||
| 73 | N094649 | 1 | PLATE | GB | |
||
| 74 | N122099 | 1 | BLOCK | GB | |
||
| 75 | N463936 | 1 | MOTOR & SWITCH SA | GB | |
||
| 76 | N072124 | 1 | LEVER | GB | |
||
| 77 | 582865-00 | 1 | FILTER | GB | |
||
| 78 | 1006725-00 | 1 | WASHER SHIM | 12x18x1.2 | GB | |
|
| 79 | 323711-34 | 1 | O RING | GB | |
||
| 80 | 575025-00 | 1 | LEVER | GB | |
||
| 81 | 330065-04 | 2 | SCREW | GB | |
||
| 85 | N119679 | 1 | SPRING | GB | |
||
| 90 | N376306 | 1 | SPRING SA | GB | |
||
| 91 | N389213 | 1 | CLIP | GB | |
||
| 92 | N400088 | 1 | CAP | GB | |
||
| 93 | N461541 | 1 | HOOK | Belt | GB | |
|
| 94 | N400082 | 1 | SPRING | GB | |
||
| 95 | N400130 | 1 | SCREW | M5x8 | GB | |
|
| 100 | N112156 | 1 | HANDLE SIDE SA | GB | |
||
| 101 | N290613 | 1 | DEPTH STOP | GB | |
||
| 106 | N415919 | 1 | LABEL | 20v Brushless | GB | |
|
| 800 | 870889-03 | 1 | GREASE | RENOLIT PARAGON EP ½ - 20 GRAMS | GB | |
|
| 801 | 487130-04 | 1 | GREASE | GLK FLUID 249 NLGI 000 (10G SERVICE) | GB | |
|
| 821 | N642462 | 1 | RATING LABEL | GB | |||
| 826 | N196274 | 1 | LABEL | PERFORM & PROTECT | GB | |
|
| 836 | 596005-99 | 1 | S.T.CIRCLIP REMOVER | GB | |
||
| 837 | 596006-99 | 1 | S.T.CIRCLIP REMOVER | GB | |
||
| 838 | 596007-99 | 1 | S.T.CIRCLIP INSERTER | GB | |
||
| 860 | H1400196008 | 1 | HANDLE | GB | |||
| 861 | 576657-05 | 1 | KITBOX | GB | |
||
| 862 | H1500082520 | 2 | LATCH | GB | |||
| 863 | P910190 | 2 | LATCH | GB | |
||
| 866 | N436213 | 1 | BATTERY 18V - 5.0AH - 90WH | DCB184B BLUETOOTH | P2B | GB | |
| 871 | DCB105-KR | 1 | CHARGER SA | KR | GB | ||
| 871 | DCB101-NA | 1 | BATTERY CHARGER | GB | |||
| 871 | N450537 | 1 | CHARGER 10.8V - 18V | DCH273P2 | GB | |
|
| 871 | N450537 | 1 | CHARGER 10.8V - 18V | GB | |
