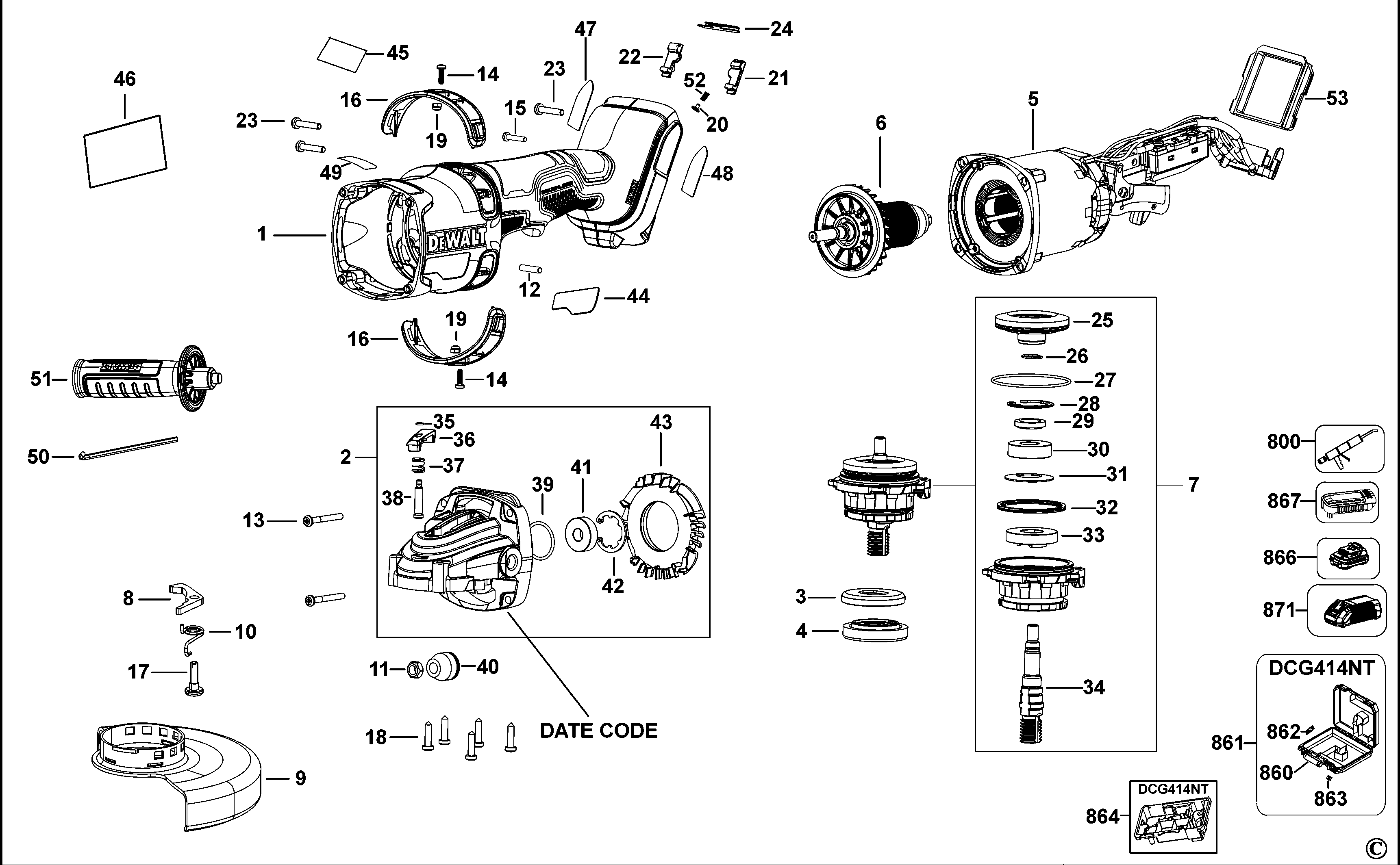

DCG414 SMALL ANGLE GRINDER Type 3 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N575277 | 1 | CLAMSHELL SET | XJ |  |
||
| 3 | 391969-00 | 1 | INNER FLANGE | XJ |  |
||
| 8 | N637725 | 1 | LEVER | XJ | |
||
| 9 | N487790 | 1 | GUARD | XJ | |
||
| 10 | N465886 | 1 | SPRING | XJ | |
||
| 11 | N372039 | 1 | NUT | M7 | XJ | |
|
| 12 | N071836 | 1 | ROLL PIN | XJ | |
||
| 13 | N412210 | 4 | SCREW | M3.63 x 31.75 mm T15 | XJ | |
|
| 14 | N575500 | 1 | SCREW | XJ | |
||
| 15 | 330019-03 | 1 | SCREW | XJ | |
||
| 16 | N436965 | 2 | VENT | XJ | |
||
| 17 | N297219 | 1 | SCREW | M4 | XJ | |
|
| 18 | 330045-06 | 5 | SCREW | XJ | |
||
| 19 | 330015-00 | 2 | NUT | XJ | |
||
| 20 | N122099 | 1 | BLOCK | XJ | |
||
| 21 | N728013 | 1 | INSERT | XJ | |
||
| 22 | N728012 | 1 | INSERT | XJ | |
||
| 23 | 90611830 | 7 | SCREW | XJ | |
||
| 24 | N467560 | 1 | PLATE | XJ | |
||
| 25 | N449470 | 1 | GEAR | XJ | |
||
| 26 | 444793-00 | 1 | CIRCLIP | XJ | |
||
| 27 | N307625 | 1 | O RING | XJ | |
||
| 28 | N481950 | 1 | RETAINER | XJ | |
||
| 29 | N390307 | 1 | SPACER | XJ | |
||
| 30 | 605040-24 | 1 | BEARING | XJ | |
||
| 31 | N390308 | 1 | WASHER SPRING | XJ | |
||
| 32 | N542715 | 1 | WASHER SPRING | XJ | |
||
| 33 | N448927 | 1 | WASHER | M14 | XJ | |
|
| 34 | N449565 | 1 | SPINDLE | M14 | XJ | |
|
| 35 | N263699 | 1 | O RING | XJ | |
||
| 36 | N278899 | 1 | BUTTON | SPINDLE | XJ | |
|
| 37 | N263579 | 1 | SPRING | XJ | |
||
| 38 | N481683 | 1 | LOCK PIN | XJ | |
||
| 39 | N119639 | 1 | O RING | XJ | |
||
| 40 | N461411 | 1 | PINION | 10T | XJ | |
|
| 41 | N175104 | 1 | BEARING | XJ | |
||
| 42 | N453031 | 1 | RETAINER | XJ | |
||
| 43 | N401958 | 1 | DEFLECTOR | XJ | |
||
| 44 | N456830 | 1 | BRAND LABEL | 54 VOLT | XJ | |
|
| 45 | N456232 | 1 | LABEL | BRAKE | XJ | |
|
| 47 | N456831 | 1 | BRAND LABEL | LH | XJ | |
|
| 48 | N456832 | 1 | BRAND LABEL | RH | XJ | |
|
| 49 | N456231 | 1 | LABEL | XJ | |
||
| 50 | N107295 | 1 | HEX KEY | 6 mm | XJ | |
|
| 51 | N382311 | 1 | SIDE HANDLE | XJ | |
||
| 52 | N461735 | 1 | SPRING | XJ | |
||
| 53 | N532926 | 1 | BOX | XJ | |
||
| 800 | 583534-00 | 1 | GREASE | 50 GRAMS - NYE RHEOLUB 380G1 | XJ | |
|
| 860 | H1400196008 | 1 | HANDLE | XJ | |||
| 861 | N279261 | 1 | KITBOX | XJ | |
||
| 862 | H1500082520 | 2 | LATCH | XJ | |||
| 863 | P910190 | 2 | LATCH | XJ | |
||
| 864 | N450869 | 1 | INSERT | KITBOX | DCG414NT | XJ | |
| 867 | N462141 | 1 | SAFETY CAP | XJ | |
