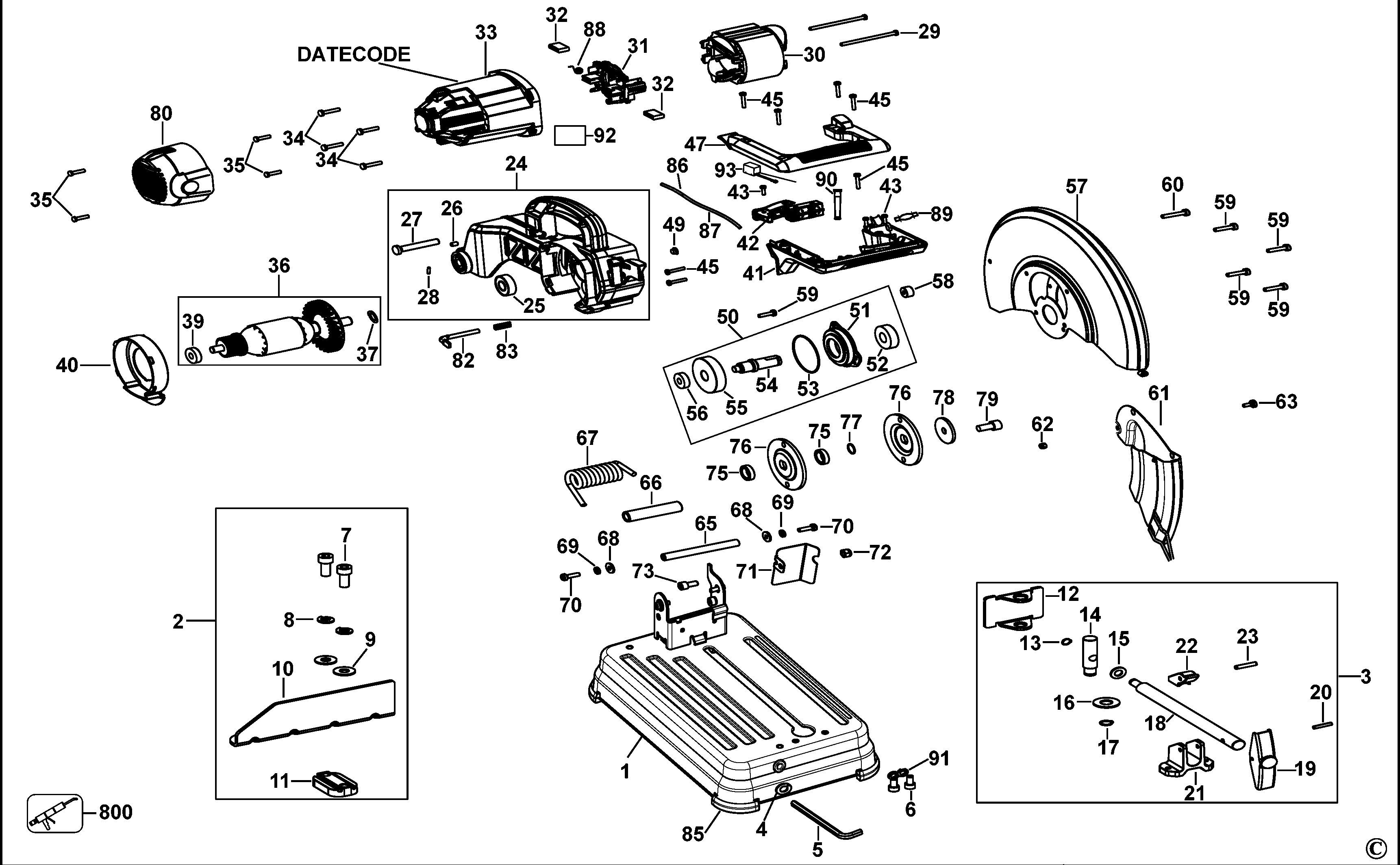

D28730 CHOP SAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N537855 | 1 | BASE | LX |  |
||
| 2 | N600074 | 1 | FENCE SA | LX | |
||
| 3 | N600076 | 1 | VICE SCREW SA | LX | |
||
| 4 | 386765-00 | 1 | HOLDER TOOL | LX | |
||
| 5 | 384717-00 | 1 | WRENCH | LX | |
||
| 6 | 098123-16 | 2 | SCREW | LX | |
||
| 7 | 383450-00 | 2 | SCREW | LX | |
||
| 8 | N468716 | 2 | WASHER LOCK | M10 | LX | |
|
| 9 | 323753-18 | 1 | WASHER | LX | |
||
| 10 | N583562 | 1 | FENCE | LX | |
||
| 11 | N462688 | 1 | MOUNTING BRACKET | LX | |
||
| 12 | N574509 | 1 | VICE JAW | LX | |
||
| 13 | 383169-00 | 1 | CIRCLIP | LX | |
||
| 14 | N447547 | 1 | PIN | LX | |
||
| 15 | 384365-00 | 1 | WASHER | LX | |
||
| 16 | 607592-00 | 1 | WASHER | LX | |
||
| 17 | 144803-00 | 1 | CIRCLIP | LX | |
||
| 18 | N447550 | 1 | ROD | LX | |
||
| 19 | 912020-00 | 1 | LOCK HANDLE | LX | |
||
| 20 | N127232 | 1 | PIN | LX | |
||
| 21 | N449677 | 1 | MOUNT | LX | |
||
| 22 | N447568 | 1 | LOCK | LX | |
||
| 23 | 562254-00 | 1 | ROLL PIN | LX |  |
||
| 24 | N600158 | 1 | ARM GUARD | LX | |
||
| 25 | 605040-27 | 1 | BEARING | LX | |
||
| 26 | 623092-00 | 1 | PLUG | RUBBER | LX | |
|
| 27 | 621104-00 | 1 | PIN | LOCK DOWN | LX | |
|
| 28 | 330036-00 | 1 | PIN | LX | |
||
| 29 | 330019-33 | 2 | SCREW | LX | |
||
| 30 | N593329 | 1 | FIELD 120V | 115V | LX | |
|
| 31 | 385582-00 | 1 | BRUSH HOLDER | LX | |
||
| 32 | N593369 | 1 | BRUSH PAIR 115V | 120V | LX | |
|
| 33 | 383151-02 | 1 | FIELDCASE | LX | |
||
| 34 | 330045-16 | 4 | SCREW | LX | |
||
| 35 | 330019-13 | 4 | SCREW | M4X19 T20 | LX | |
|
| 36 | N593383 | 1 | ARMATURE 120V | 115V | LX | |
|
| 37 | 144803-00 | 2 | CIRCLIP | LX | |
||
| 39 | 330003-17 | 1 | BEARING | LX | |
||
| 39 | N130916 | 1 | BEARING | LX | |
||
| 40 | N484130 | 1 | BAFFLE FAN | LX | |
||
| 41 | 618290-03 | 1 | LOWER HANDLE | LX | |
||
| 42 | N675744 | 1 | SWITCH | LOCK OFF | LX | |
|
| 43 | 330019-02 | 3 | SCREW | LX | |
||
| 45 | 330019-14 | 7 | SCREW | LX | |
||
| 47 | 618291-02 | 1 | HANDLE UPPER | LX | |
||
| 49 | N467523 | 1 | RUBBER PAD | LX | |
||
| 50 | N703977 | 1 | GEARCASE COVER SA | LX | |
||
| 51 | N612822 | 1 | GEARCASE COVER | LX | |
||
| 52 | 605040-31 | 1 | BEARING | LX | |
||
| 53 | 099180-46 | 1 | O RING | LX | |
||
| 54 | N687255 | 1 | SPINDLE | LX | |
||
| 55 | 621078-00 | 1 | GEAR | LX | |
||
| 56 | 605040-52 | 1 | BEARING | LX | |
||
| 57 | 639967-00 | 1 | GUARD UPPER | LX | |
||
| 58 | 629619-00 | 1 | SPACER | LX | |
||
| 59 | 330045-15 | 5 | SCREW | LX | |
||
| 60 | 330045-16 | 1 | SCREW | LX | |
||
| 61 | N615902 | 1 | GUARD LOWER | LX | |
||
| 62 | 330021-02 | 1 | NUT | LX | |
||
| 63 | 384844-00 | 1 | SCREW SPECIAL | LX | |
||
| 65 | N388906 | 1 | PIVOT SHAFT | LX | |
||
| 66 | N467337 | 1 | SPRING GUIDE | LX | |
||
| 67 | N447533 | 1 | SPRING TORSION | LX | |
||
| 68 | 330016-18 | 2 | WASHER | LX | |
||
| 69 | 098197-10 | 2 | WASHER LOCK | LX | |
||
| 70 | 153778-01 | 2 | SCREW | LX | |
||
| 71 | N449087 | 1 | DEFLECTOR | LX | |
||
| 72 | 330021-02 | 1 | NUT | LX | |
||
| 73 | 098123-16 | 1 | SCREW | LX | |
||
| 75 | N447525 | 2 | BUSH | LX | |
||
| 76 | N687254 | 2 | WASHER OUTER CLAMP | LX | |
||
| 77 | N447530 | 1 | O RING | LX | |
||
| 78 | 383246-01 | 1 | WASHER SPECIAL | LX | |
||
| 79 | 383286-00 | 1 | SCREW | LX | |
||
| 80 | 392284-00 | 1 | END CAP | LX | |
||
| 82 | 621087-00 | 1 | SPINDLE LOCK | LX | |
||
| 83 | 621088-00 | 1 | SPRING | LX | |
||
| 85 | N537857 | 4 | FOOT | LX | |
||
| 86 | N671064 | 1 | LEADWIRE | BLUE | LX | |
|
| 87 | N671066 | 1 | LEADWIRE | BROWN | LX | |
|
| 88 | 384612-00 | 2 | SPRING | LX | |
||
| 89 | 386540-00 | 1 | CORD CLAMP | LX | |
||
| 90 | N684544 | 1 | CORDSET | LX | LX | |
|
| 91 | 098197-09 | 2 | WASHER | LX | |
||
| 92 | N647612 | 1 | RATING PLATE | LX | LX | ||
| 93 | N688834 | 1 | CAPACITOR | LX | LX | |
|
| 800 | 5140061-28 | 1 | GREASE | LX | |
