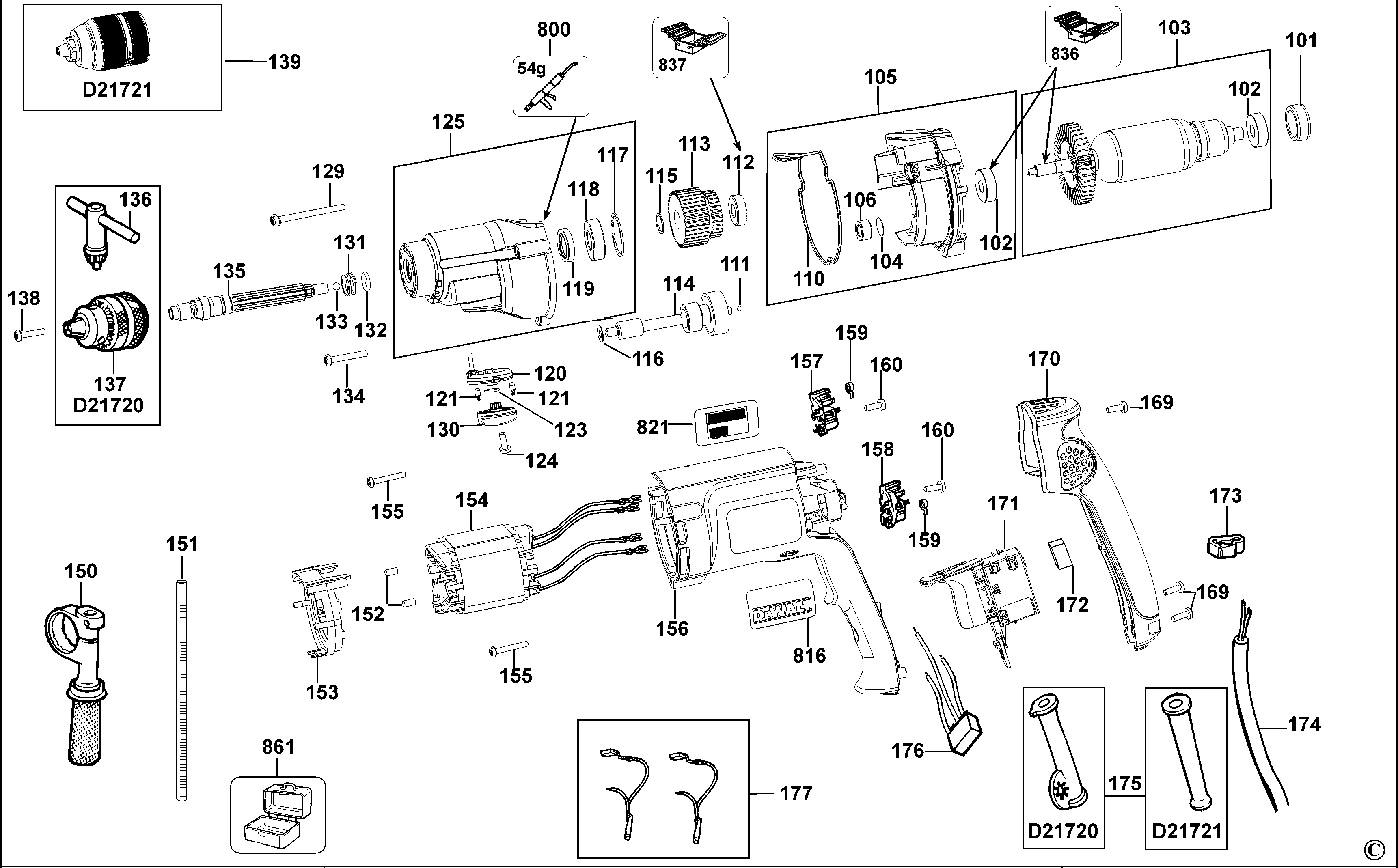

D21721 DRILL Type 4 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 101 | 389824-00 | 1 | BOOT | LX |  |
||
| 102 | 605040-06 | 2 | BEARING,BALL | LX | |
||
| 103 | 1007722-00 | 1 | ARMATURE 115V | Inc 102 | LX |  |
|
| 104 | 931284-00 | 1 | WASHER THRUST | LX | |
||
| 105 | 494623-00 | 1 | GEARCASE SA | LX | |
||
| 106 | 330004-20 | 1 | BEARING NEEDLE | LX | |
||
| 110 | 488148-00 | 1 | SEAL | LX | |
||
| 111 | 917725 | 1 | BALL | 3.5mm | LX | |
|
| 112 | 945706-00 | 1 | RATCHET | LX | |
||
| 113 | 494626-00 | 1 | GEAR | LX | |
||
| 114 | 494627-00 | 1 | INTERSHAFT SA | LX | |
||
| 115 | 479369-00 | 1 | CIRCLIP | LX | |
||
| 116 | 492481-00 | 1 | WASHER | LX | |
||
| 117 | 488147-00 | 1 | CIRCLIP | LX | |
||
| 118 | 605040-25 | 1 | BEARING,BALL | LX | |
||
| 119 | 1006305-00 | 1 | SEAL | LX | |
||
| 120 | 479859-00 | 1 | SELECTOR SA | LX | |
||
| 121 | 326467-00 | 2 | DETENT | LX | |
||
| 123 | 323711-34 | 1 | O RING | LX | |
||
| 124 | 330065-22 | 1 | SCREW | LX | |
||
| 125 | 494628-00 | 1 | GEARCASE | LX | |
||
| 129 | 330019-30 | 2 | SCREW | LX | |
||
| 130 | 479865-00 | 1 | KNOB | LX | |
||
| 131 | 931890 | 1 | SPRING | LX | |
||
| 132 | 930028-00 | 1 | O RING | LX | |
||
| 133 | 000903-00 | 1 | BALL | LX | |
||
| 134 | 330019-16 | 1 | SCREW | LX | |
||
| 135 | 494630-00 | 1 | SPINDLE | LX | |
||
| 139 | 330075-51 | 1 | CHUCK KEYLESS | LX | |
||
| 150 | 939794-02 | 1 | HANDLE SIDE SA | LX | |
||
| 151 | 580787-00 | 1 | DEPTH STOP | LX | |
||
| 152 | 949638-02 | 2 | DAMPER | LX | |
||
| 153 | 176811-00 | 1 | BAFFLE | LX | |
||
| 154 | 1005527-09 | 1 | FIELD 115V | LX | |
||
| 155 | 390198-00 | 2 | SCREW | LX | |
||
| 156 | N014399 | 1 | FIELD CASE | LX | |
||
| 157 | 401878-01 | 1 | BRUSH HOLDER SA | LX | |||
| 158 | 401877-01 | 1 | BRUSH HOLDER SA | LX | |
||
| 159 | 402759-01 | 2 | BRUSH SPRING | LX | |
||
| 160 | 330065-06 | 2 | SCREW | LX | |
||
| 169 | 330019-13 | 3 | SCREW | M4X19 T20 | LX | |
|
| 170 | 176817-04 | 1 | HANDLE COVER | LX | |
||
| 171 | 586469-01 | 1 | SWITCH 115V | LX | |
||
| 172 | 930026-01 | 1 | BUMPER | LX | |
||
| 173 | 402648-00 | 1 | CORD CLAMP | LX | |
||
| 174 | 330061-36 | 1 | CORDSET | LX | |
||
| 175 | 330065-01 | 1 | SCREW | LX | |
||
| 176 | 949877-01 | 1 | CAPACITOR | LX | |
||
| 177 | N081423 | 2 | BRUSH PAIR 115V | LX | |
||
| 800 | 870889-02 | 1 | GREASE | LX | |
||
| 816 | 395047-00 | 1 | BRAND LABEL | LX | |
||
| 821 | N045147 | 1 | RATING PLATE | LX | |
||
| 836 | 559666-99 | 1 | S.T.SUPPORT JIG | LX | |
||
| 837 | 559596-99 | 1 | S.T.PULLER | LX | |
||
| 861 | N383875 | 1 | KITBOX | LX | |
